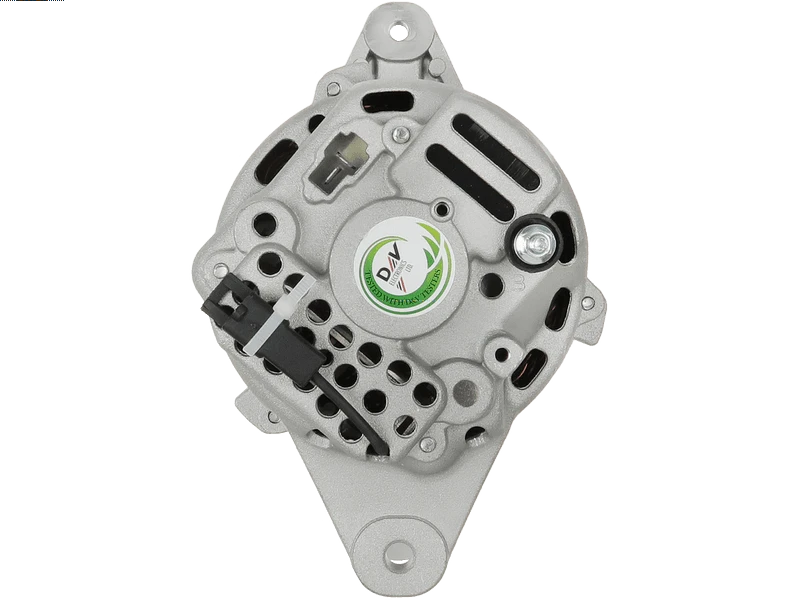

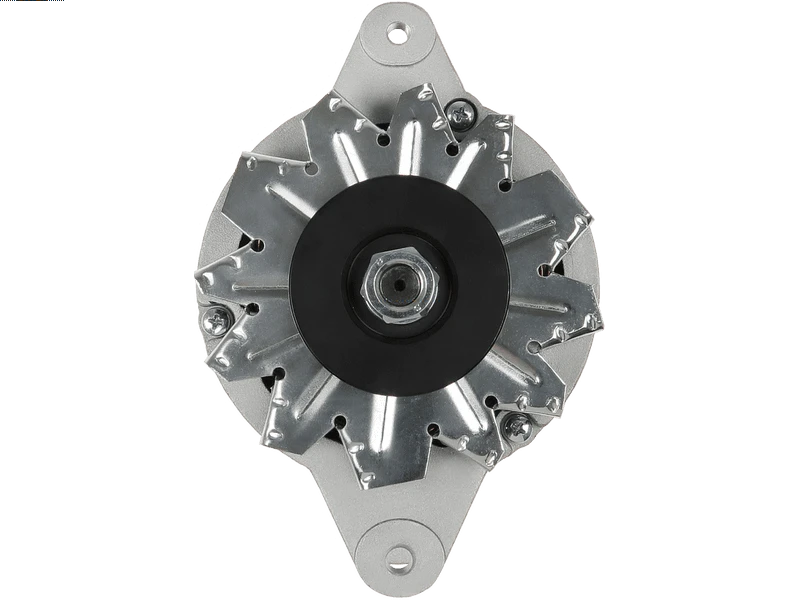

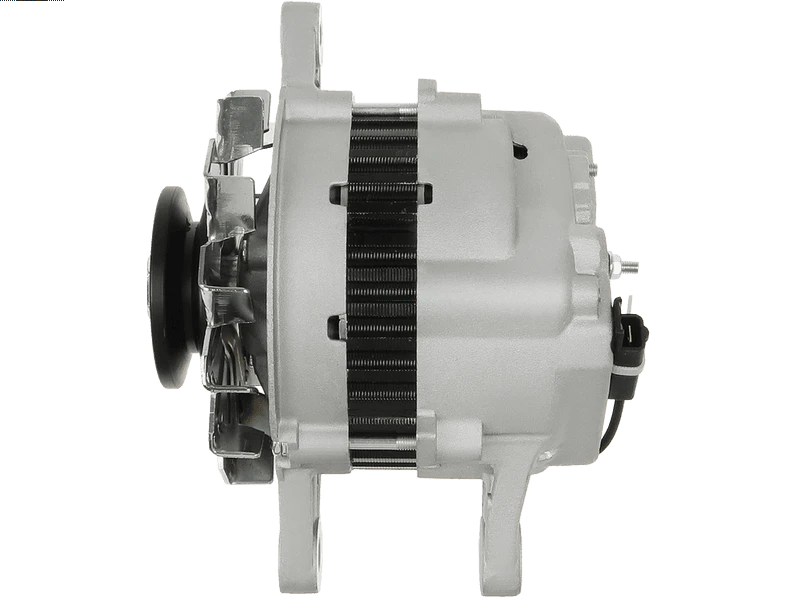

A0258 12V 50A Alternator Fits Mazda B2600, Mitsubishi Galant
Price range: £132.00 through £211.20
Identify a replacement alternator using Sahibs A0258, listed at 12V 50A. Listed applications include selected Mazda B2600, Mitsubishi Galant, Mitsubishi Galant Estate/Wagon, Mitsubishi L300 models. Identification references include Lucas LRA00258, Bosch 9120690078, Valeo 436500. Its listed 12V 50A rating provides an electrical matching point for your existing unit. Check the single-groove pulley, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your A0258 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| AMP | 50 A |
| Volt | 12 V |
| No. of Grooves | 1 qty |
| Pulley Diameter | 44.4 mm |
| Mounting holes | 3 qty |
| Position | 0° |
| B+ | M5 |
| Insulated Return | No |
| Water cooled | No |
| Vacuum pump | No |
| Start/Stop | No |
| Weight | 5 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYA0258 | Dyno Electrics |
| UD30137A | AS-PL |
| 9120690078 | BOSCH |
| 110318 | CARGO |
| F032110318 | CARGO |
| 37300-11501 | HYUNDAI / KIA |
| 37300-11510 | HYUNDAI / KIA |
| 37300-11530 | HYUNDAI / KIA |
| 37300-21310 | HYUNDAI / KIA |
| A002T16471 | MITSUBISHI |
| A002T16471A | MITSUBISHI |
| A002T16472 | MITSUBISHI |
| A002T16477 | MITSUBISHI |
| A002T23271 | MITSUBISHI |
| A002T23272 | MITSUBISHI |
| A002T23277 | MITSUBISHI |
| A002T24771 | MITSUBISHI |
| A002T25271 | MITSUBISHI |
| A002T40671 | MITSUBISHI |
| A002T41371 | MITSUBISHI |
| A003T21471 | MITSUBISHI |
| A005T15371 | MITSUBISHI |
| A005T15471 | MITSUBISHI |
| A005T21071 | MITSUBISHI |
| A005T21077 | MITSUBISHI |
| A005T21171 | MITSUBISHI |
| A005T23377 | MITSUBISHI |
| A2T16471 | MITSUBISHI |
| A2T16471A | MITSUBISHI |
| A2T16472 | MITSUBISHI |
| A2T16477 | MITSUBISHI |
| A2T23271 | MITSUBISHI |
| A2T23272 | MITSUBISHI |
| A2T23277 | MITSUBISHI |
| A2T24771 | MITSUBISHI |
| A2T25271 | MITSUBISHI |
| A2T40671 | MITSUBISHI |
| A2T41371 | MITSUBISHI |
| A3T21471 | MITSUBISHI |
| A5T15371 | MITSUBISHI |
| A5T15471 | MITSUBISHI |
| A5T21071 | MITSUBISHI |
| A5T21077 | MITSUBISHI |
| A5T21171 | MITSUBISHI |
| A5T23377 | MITSUBISHI |
| MD022578 | MITSUBISHI |
| MD025679 | MITSUBISHI |
| MD061151 | MITSUBISHI |
| MD061650 | MITSUBISHI |
| MD063781 | MITSUBISHI |
| MD064067 | MITSUBISHI |
| MD064068 | MITSUBISHI |
| 436500 | VALEO |
| AZMT-49-035-2044 | A.Z. MEISTERTEILE |
| 10441413 | ALANKO |
| AMI176A | AUTOTEAM |
| L611133 | BTS TURBO |
| CAL35176AS | CASCO |
| 226105452 | DRI |
| 55795 | EAI |
| 28-0912 | ELSTOCK |
| 12060135 | EUROTEC |
| 9051504 | FRIESEN |
| 3112193 | HENKEL PARTS |
| ALM9151 | KRAUF |
| 40117RI | KUHNER |
| 445200 | LOGISTIK |
| LRA00258 | LUCAS |
| LRA0258 | LUCAS |
| 155.006.050.130 | PSH |
| 20137671BN | REAL |
| 2035176 | SANDO |
| MA8009 | SNRA |
| STX100921 | STARDAX |
| STX102058 | STARDAX |
| AL00634 | TMI |
| 90-27-3029 | WILSON |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| A1323 | 50A | 65A | Yes |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| MAZDA | B2600 | 2.6 (2552ccm) Petrol | AM21/AM22 | AWD | UF8 | 1985 - 1989 | |
| MITSUBISHI | Galant | 1.8 (1795ccm) Diesel | 4D65T | MK V | E14A | 1984 - 1987 | |
| MITSUBISHI | Galant | 2.0 (1997ccm) Petrol | 4G63(SOHC8VCANA) | MK IV | A163V | 1980 - 1982 | |
| MITSUBISHI | Galant Estate/Wagon | 2.0 (1997ccm) Petrol | 4G63(SOHC8VCANA) | MK IV | E15A | 1980 - 1983 | |
| MITSUBISHI | L300 | 1.8 (1795ccm) Petrol | 4G62 | L001G | 1984 - 1987 | ||
| MITSUBISHI | L300 | 2.0 (1997ccm) Petrol | 4G63(SOHC8VCANA) | L001G | 1986 - 1986 | ||
| MITSUBISHI | Lancer | 1.6 (1597ccm) Petrol | 4G32 | MK I | A174A | 1979 - 1983 | |
| MITSUBISHI | Lancer | 1.6 (1597ccm) Petrol | 4G32 | MK I | A174A | 1981 - 1983 | |
| MITSUBISHI | Pajero | 2.6 (2555ccm) Petrol | 4G54/G54B | MK I | L042G | 1983 - 1986 |
Description
A0258 Replacement Alternator
The A0258 alternator is a replacement unit identified by Lucas reference LRA00258. The listed electrical rating is 12V 50A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected Mazda B2600 2.6 Petrol variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 50A output: compare the listed rating with the original alternator.
- Single-groove pulley: check belt profile and alignment against the existing unit.
- 3 mounting holes: compare the fixing pattern and unit position.
- M5 B+ terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Mazda B2600 2.6 Petrol – selected applications 1985–1989 (engine code AM21/AM22).
- Mitsubishi Galant 1.8 Diesel – selected applications 1984–1987 (engine code 4D65T).
- Mitsubishi Galant Estate/Wagon 2.0 Petrol – selected applications 1980–1983 (engine code 4G63(SOHC8VCANA)).
- Mitsubishi L300 1.8 Petrol – selected applications 1984–1987 (engine code 4G62).
- Mitsubishi Lancer 1.6 Petrol – selected applications 1979–1983 (engine code 4G32).
- Mitsubishi Pajero 2.6 Petrol – selected applications 1983–1986 (engine code 4G54/G54B).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with A0258. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
9120690078, 436500, LRA00258, LRA0258, A002T16471, A002T16471A, A002T16472, A002T16477, A002T23271, A002T23272, A002T23277, A002T24771, A002T25271, A002T40671, A002T41371, A003T21471, A005T15371, A005T15471, A005T21071, A005T21077, A005T21171, A005T23377, A2T16471, A2T16471A, A2T16472, A2T16477, A2T23271, A2T23272, A2T23277, A2T24771, A2T25271, A2T40671, A2T41371, A3T21471, A5T15371, A5T15471, A5T21071, A5T21077, A5T21171, A5T23377, MD022578, MD025679, MD061151, MD061650, MD063781, MD064067, MD064068
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Alternator?
Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying A0258 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will A0258 fit my Mazda B2600?
Mazda B2600 2.6 Petrol (1985–1989) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does A0258 replace Lucas LRA00258?
Lucas LRA00258 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for A0258?
The listed details include 12V, 50A output, 1 pulley groove. Compare the complete specifications on this page with the unit being replaced.
Is A0258 new or remanufactured?
Check the current product condition selection for A0258. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering A0258?
Compare 12V compatibility, 50A output, pulley configuration, mounting points and electrical connections with the original alternator.
Does a battery warning light prove the alternator has failed?
No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
