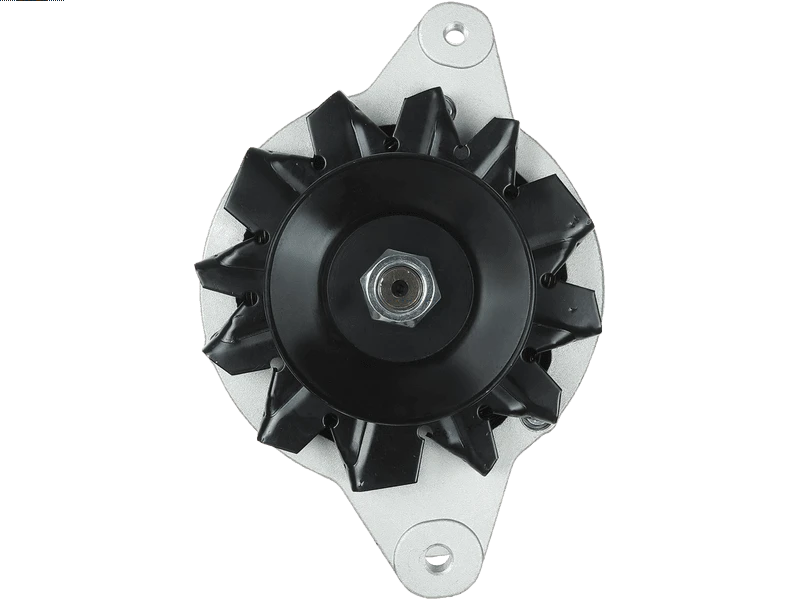

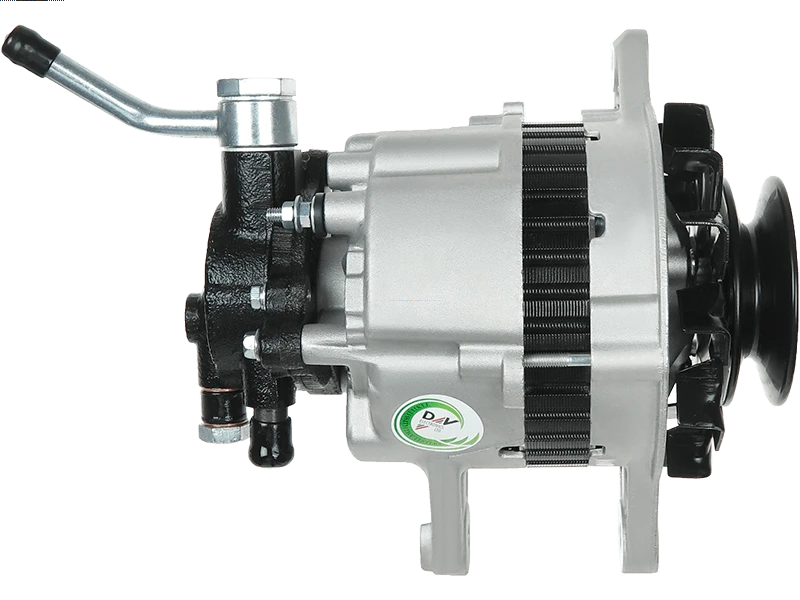

A0501 12V 45A Alternator Fits Mitsubishi Galant, Mitsubishi L200
Price range: £90.50 through £118.34
Compare the A0501 12V 45A alternator from Sahibs Auto Electrics with the unit currently fitted. Listed applications include selected Mitsubishi Galant, Mitsubishi Galant Estate/Wagon, Mitsubishi L200, Mitsubishi L300 models. Identification references include Lucas LRA00501, Bosch 9120690078, Valeo 437143. Its listed 12V 45A rating provides an electrical matching point for your existing unit. Check the single-groove pulley, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your A0501 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| AMP | 45 A |
| Volt | 12 V |
| No. of Grooves | 1 qty |
| Pulley Diameter | 48 mm |
| Mounting holes | 3 qty |
| Position | 20° |
| B+ | M6 |
| Insulated Return | No |
| Water cooled | No |

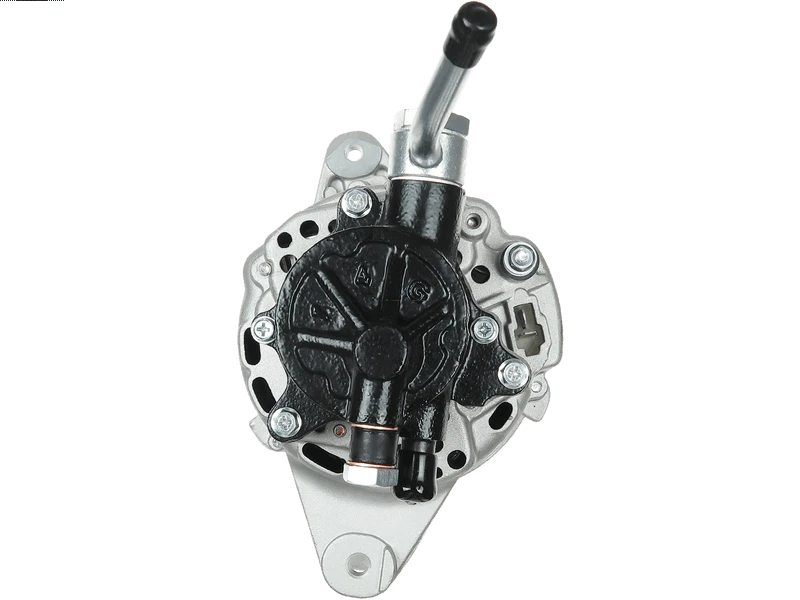

| Vacuum pump | Yes |
| Start/Stop | No |
| Weight | 5.5 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYA0501 | Dyno Electrics |
| 401690061 | Euro Car Part |
| A5030 | AS-PL |
| 9120690078 | BOSCH |
| 110318 | CARGO |
| F032110318 | CARGO |
| 1516870R | DAF |
| 8EL726378-001 | HELLA |
| 37300-42012 | HYUNDAI / KIA |
| 3730042014 | HYUNDAI / KIA |
| AD150421 | MANDO |
| AM15-18-300 | MAZDA |
| AM21-18-300 | MAZDA |
| A002T15584 | MITSUBISHI |
| A002T15884 | MITSUBISHI |
| A002T16472 | MITSUBISHI |
| A002T22784 | MITSUBISHI |
| A002T23277 | MITSUBISHI |
| A002T24771 | MITSUBISHI |
| A002T25271 | MITSUBISHI |
| A002T40671 | MITSUBISHI |
| A002T41371 | MITSUBISHI |
| A002T42671 | MITSUBISHI |
| A002T44071 | MITSUBISHI |
| A002T49377 | MITSUBISHI |
| A003T21371 | MITSUBISHI |
| A003T35577 | MITSUBISHI |
| A005T15584 | MITSUBISHI |
| A005T15684 | MITSUBISHI |
| A005T15784 | MITSUBISHI |
| A005T15884 | MITSUBISHI |
| A005T16084 | MITSUBISHI |
| A005T16384 | MITSUBISHI |
| A005T20434 | MITSUBISHI |
| A005T20481 | MITSUBISHI |
| A005T20484 | MITSUBISHI |
| A005T20484A | MITSUBISHI |
| A005T20484AM | MITSUBISHI |
| A005T21071 | MITSUBISHI |
| A005T21077 | MITSUBISHI |
| A005T21171 | MITSUBISHI |
| A005T21684 | MITSUBISHI |
| A005T21984 | MITSUBISHI |
| A005T21984B | MITSUBISHI |
| A005T22484 | MITSUBISHI |
| A005T22784 | MITSUBISHI |
| A005T23784 | MITSUBISHI |
| A2T15584 | MITSUBISHI |
| A2T15884 | MITSUBISHI |
| A2T16472 | MITSUBISHI |
| A2T22784 | MITSUBISHI |
| A2T23271 | MITSUBISHI |
| A2T23277 | MITSUBISHI |
| A2T24771 | MITSUBISHI |
| A2T24884 | MITSUBISHI |
| A2T40671 | MITSUBISHI |
| A2T41371 | MITSUBISHI |
| A2T41377 | MITSUBISHI |
| A2T42671 | MITSUBISHI |
| A2T44071 | MITSUBISHI |
| A2T49377 | MITSUBISHI |
| A2T49577 | MITSUBISHI |
| A3T21371 | MITSUBISHI |
| A3T35577 | MITSUBISHI |
| A5T15371 | MITSUBISHI |
| A5T15584 | MITSUBISHI |
| A5T15684 | MITSUBISHI |
| A5T15784 | MITSUBISHI |
| A5T15884 | MITSUBISHI |
| A5T16084 | MITSUBISHI |
| A5T16384 | MITSUBISHI |
| A5T20434 | MITSUBISHI |
| A5T20481 | MITSUBISHI |
| A5T20484 | MITSUBISHI |
| A5T20484A | MITSUBISHI |
| A5T20484AM | MITSUBISHI |
| A5T21071 | MITSUBISHI |
| A5T21077 | MITSUBISHI |
| A5T21171 | MITSUBISHI |
| A5T21684 | MITSUBISHI |
| A5T21984 | MITSUBISHI |
| A5T21984A | MITSUBISHI |
| A5T21984B | MITSUBISHI |
| A5T22484 | MITSUBISHI |
| A5T22784 | MITSUBISHI |
| A5T23784 | MITSUBISHI |
| AD150413 | MITSUBISHI |
| AH2250HG1 | MITSUBISHI |
| AQ2245G | MITSUBISHI |
| AQ2245G1 | MITSUBISHI |
| AQ2250G | MITSUBISHI |
| AQ2250G1 | MITSUBISHI |
| AQ2250G7 | MITSUBISHI |
| MD013740 | MITSUBISHI |
| MD013742 | MITSUBISHI |
| MD013742R | MITSUBISHI |
| MD022572 | MITSUBISHI |
| MD022576 | MITSUBISHI |
| MD022578 | MITSUBISHI |
| MD022579 | MITSUBISHI |
| MD025679 | MITSUBISHI |
| MD027661 | MITSUBISHI |
| MD041700 | MITSUBISHI |
| MD041701 | MITSUBISHI |
| MD050190 | MITSUBISHI |
| MD060793 | MITSUBISHI |
| MD061150 | MITSUBISHI |
| MD061151 | MITSUBISHI |
| MD061818 | MITSUBISHI |
| MD064066 | MITSUBISHI |
| MD064067 | MITSUBISHI |
| MD064068 | MITSUBISHI |
| MD067411 | MITSUBISHI |
| MD067411R | MITSUBISHI |
| MD068565 | MITSUBISHI |
| MD069859 | MITSUBISHI |
| MD070310 | MITSUBISHI |
| MD086015 | MITSUBISHI |
| MD086016 | MITSUBISHI |
| MD086049 | MITSUBISHI |
| MD087246R | MITSUBISHI |
| MD092877 | MITSUBISHI |
| MD095741 | MITSUBISHI |
| MD102865 | MITSUBISHI |
| MD304139 | MITSUBISHI |
| MDO50190 | MITSUBISHI |
| MDO60793 | MITSUBISHI |
| 437143 | VALEO |
| CGB-13035 | AINDE |
| AEA4199 | AUTOELECTRO |
| CAL35135AS | CASCO |
| CAL35135GS | CASCO |
| 9017 | CEVAM |
| 56143 | EAI |
| ALT5165 | ELECTROLOG |
| 28-0836 | ELSTOCK |
| 210728 | ERA |
| JA148IR | HC PARTS |
| JA663IR | HC PARTS |
| ALM0148 | KRAUF |
| 40148RI | KUHNER |
| 445197 | LOGISTIK |
| LRA00501 | LUCAS |
| LRA501 | LUCAS |
| 89213517 | POWERMAX |
| 155.801.060.130 | PSH |
| 155.801.060.138 | PSH |
| 155.801.060.139 | PSH |
| 155.801.060.607 | PSH |
| 20137531BN | REAL |
| 20137531OE | REAL |
| 2035135 | SANDO |
| 2035135.1 | SANDO |
| A12MH0168A2 | SIDAT |
| STX100921 | STARDAX |
| STX101147 | STARDAX |
| STX101213 | STARDAX |
| STX102058 | STARDAX |
| STX102077 | STARDAX |
| STX102079 | STARDAX |
| STX102102 | STARDAX |
| ALT31007 | WOODAUTO |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| A2702 | 45/50A | 55A | Yes |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| MITSUBISHI | Galant | 2.3 (2346ccm) Diesel | 4D55 | MK IV | A167A | 1980 - 1984 | |
| MITSUBISHI | Galant Estate/Wagon | 2.3 (2346ccm) Diesel | 4D55 | MK IV | A167V | 1983 - 1984 | |
| MITSUBISHI | L200 | 2.5 (2477ccm) Diesel | 4D56(SOHC8VPENA) | K14T | 1986 - 1996 | ||
| MITSUBISHI | L200 | 2.5 (2477ccm) Diesel | 4D56 | K24T/K34T | 1987 - 1996 | ||
| MITSUBISHI | L200 | 2.5 (2477ccm) Diesel | 4D56(SOHC8VPENA) | K24T | 1987 - 1996 | ||
| MITSUBISHI | L300 | 2.4 (2346ccm) Diesel | 4D55 | L001P | 1983 - 1986 | ||
| MITSUBISHI | Pajero | 2.3 (2346ccm) Diesel | 4D55T | MK I | L043G | 1982 - 1986 | |
| MITSUBISHI | Shogun | 2.3 (2346ccm) Diesel | 4D55T | MK I | L043G | 1984 - 1986 |
Description
A0501 Replacement Alternator
Start your A0501 alternator comparison with the linked Lucas reference LRA00501 and the specifications shown on this page. The listed electrical rating is 12V 45A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected Mitsubishi Galant 2.3 Diesel variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 45A output: compare the listed rating with the original alternator.
- Single-groove pulley: check belt profile and alignment against the existing unit.
- 3 mounting holes: compare the fixing pattern and unit position.
- M6 B+ terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Mitsubishi Galant 2.3 Diesel – selected applications 1980–1984 (engine code 4D55).
- Mitsubishi Galant Estate/Wagon 2.3 Diesel – selected applications 1983–1984 (engine code 4D55).
- Mitsubishi L200 2.5 Diesel – selected applications 1986–1996 (engine code 4D56(SOHC8VPENA)).
- Mitsubishi L300 2.4 Diesel – selected applications 1983–1986 (engine code 4D55).
- Mitsubishi Pajero 2.3 Diesel – selected applications 1982–1986 (engine code 4D55T).
- Mitsubishi Shogun 2.3 Diesel – selected applications 1984–1986 (engine code 4D55T).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with A0501. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
9120690078, 437143, LRA00501, LRA501, A002T15584, A002T15884, A002T16472, A002T22784, A002T23277, A002T24771, A002T25271, A002T40671, A002T41371, A002T42671, A002T44071, A002T49377, A003T21371, A003T35577, A005T15584, A005T15684, A005T15784, A005T15884, A005T16084, A005T16384, A005T20434, A005T20481, A005T20484, A005T20484A, A005T20484AM, A005T21071, A005T21077, A005T21171, A005T21684, A005T21984, A005T21984B, A005T22484, A005T22784, A005T23784, A2T15584, A2T15884, A2T16472, A2T22784, A2T23271, A2T23277, A2T24771, A2T24884, A2T40671, A2T41371, A2T41377, A2T42671, A2T44071, A2T49377, A2T49577, A3T21371, A3T35577, A5T15371, A5T15584, A5T15684, A5T15784, A5T15884, A5T16084, A5T16384, A5T20434, A5T20481, A5T20484, A5T20484A, A5T20484AM, A5T21071, A5T21077, A5T21171, A5T21684, A5T21984, A5T21984A, A5T21984B, A5T22484, A5T22784, A5T23784, AD150413, AH2250HG1, AQ2245G, AQ2245G1, AQ2250G, AQ2250G1, AQ2250G7, MD013740, MD013742, MD013742R, MD022572, MD022576, MD022578, MD022579, MD025679, MD027661, MD041700, MD041701, MD050190, MD060793, MD061150, MD061151, MD061818, MD064066, MD064067, MD064068, MD067411, MD067411R, MD068565, MD069859, MD070310, MD086015, MD086016, MD086049, MD087246R, MD092877, MD095741, MD102865, MD304139, MDO50190, MDO60793, 1516870R
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Alternator?
Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying A0501 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will A0501 fit my Mitsubishi Galant?
Mitsubishi Galant 2.3 Diesel (1980–1984) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does A0501 replace Lucas LRA00501?
Lucas LRA00501 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for A0501?
The listed details include 12V, 45A output, 1 pulley groove. Compare the complete specifications on this page with the unit being replaced.
Is A0501 new or remanufactured?
Check the current product condition selection for A0501. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering A0501?
Compare 12V compatibility, 45A output, pulley configuration, mounting points and electrical connections with the original alternator.
Does a battery warning light prove the alternator has failed?
No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
