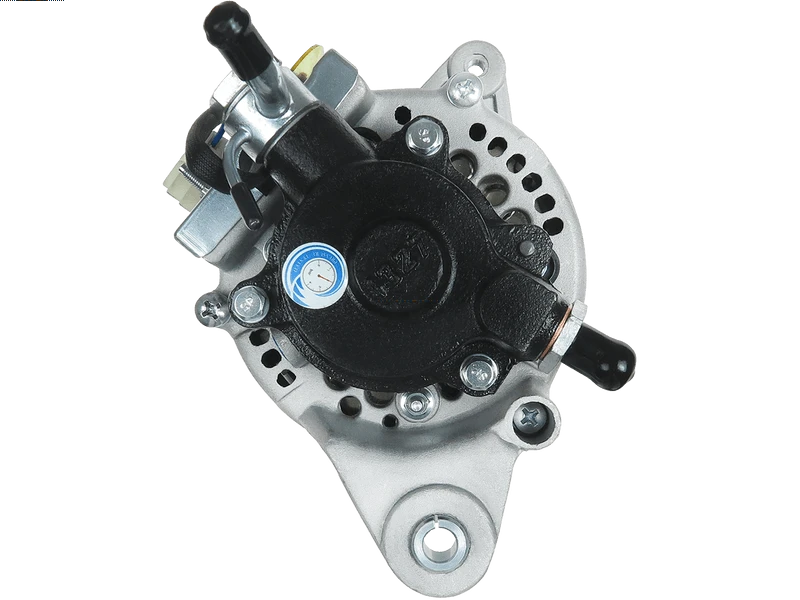

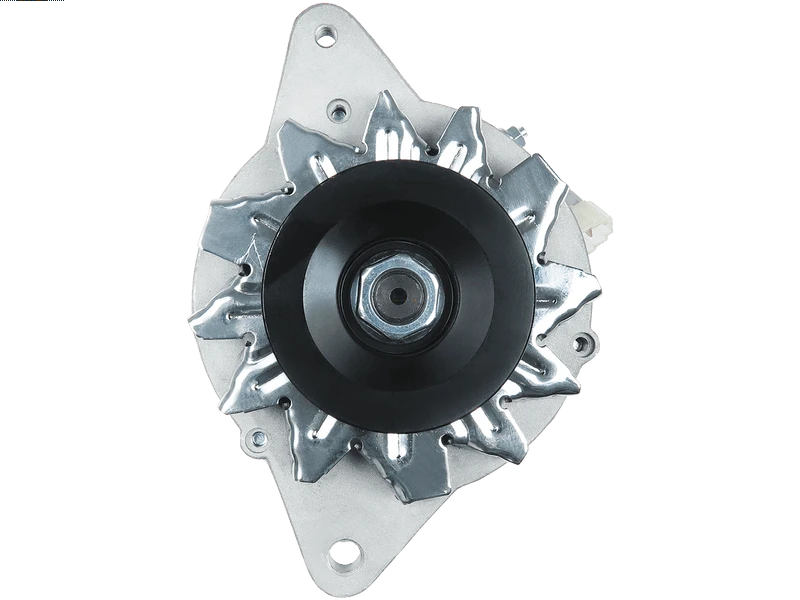

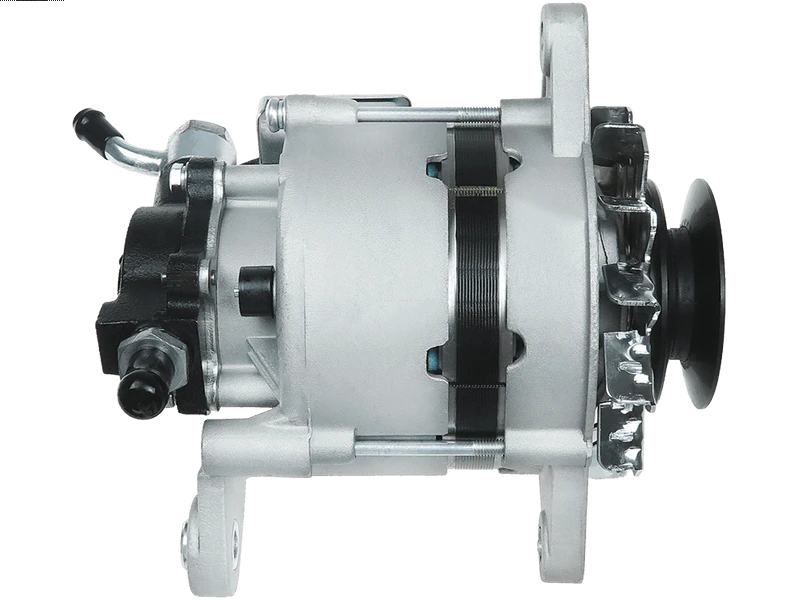

A0544 12V 40A Alternator Fits Daihatsu Fourtrak, Daihatsu Rocky
Price range: £126.62 through £168.58
Identify a replacement alternator using Sahibs A0544, listed at 12V 40A. Listed applications include selected Daihatsu Fourtrak, Daihatsu Rocky, Daihatsu Rugger, Daihatsu Wildcat models. Identification references include Lucas LRA00544, Valeo 437809, Denso 021000-9861. Its listed 12V 40A rating provides an electrical matching point for your existing unit. Check the single-groove pulley, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your A0544 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| AMP | 40 A |
| Volt | 12 V |
| No. of Grooves | 1 qty |
| Pulley Diameter | 47 mm |
| Mounting holes | 3 qty |
| Position | -25° |
| B+ | M6 |
| Insulated Return | No |
| Water cooled | No |
| Vacuum pump | Yes |
| Start/Stop | No |
| Weight | 6.2 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYA0544 | Dyno Electrics |
| 401560031 | Euro Car Part |
| UD19461A | AS-PL |
| 27030-87601 | DAIHATSU |
| 27030-87601-000 | DAIHATSU |
| 27030-87602 | DAIHATSU |
| 27030-87603 | DAIHATSU |
| DRA3138 | DELCO |
| 021000-9861 | DENSO |
| 100210-2221 | DENSO |
| 100210-2810 | DENSO |
| 100210-2840 | DENSO |
| 100210-3280 | DENSO |
| 100210-3720 | DENSO |
| 100210-3728 | DENSO |
| 100211-2841 | DENSO |
| 121000-1480 | DENSO |
| 121000-2740 | DENSO |
| 8EL726-340-001 | HELLA |
| 27020-87602 | TOYOTA |
| 27020-87603 | TOYOTA |
| 27020-87604 | TOYOTA |
| 27020-87904 | TOYOTA |
| 437809 | VALEO |
| ALTS407 | 3EFFE |
| PRAS407 | 3EFFE |
| CAL40134AS | CASCO |
| 9139 | CEVAM |
| 56435 | EAI |
| ALT6219 | ELECTROLOG |
| 27-0919 | ELSTOCK |
| ALN7603 | KRAUF |
| 40195 | KUHNER |
| 445244 | LOGISTIK |
| LRA00544 | LUCAS |
| LRA544 | LUCAS |
| 89213584 | POWERMAX |
| 115.802.045.050 | PSH |
| 20132431BN | REAL |
| 2040134 | SANDO |
| 21275R | WAI / TRANSPO |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| DAIHATSU | Fourtrak | 2.8 (2765ccm) Diesel | DL | F73/F78 | 1985 - 1990 | ||
| DAIHATSU | Fourtrak | 2.8 (2765ccm) Diesel | DL | F73 | 1986 - 1993 | ||
| DAIHATSU | Rocky | 2.8 (2765ccm) Diesel | DL | F73 | 1984 - 1993 | ||
| DAIHATSU | Rocky | 2.8 (2765ccm) Diesel | DL | F70/F75 | 1985 - 1998 | ||
| DAIHATSU | Rocky | 2.8 (2765ccm) Diesel | DL | Pick Up | F73/F78 | 1985 - 1990 | |
| DAIHATSU | Rugger | 2.8 (2765ccm) Diesel | DL | F70 | 1984 - 1993 | ||
| DAIHATSU | Wildcat | 2.8 (2765ccm) Diesel | DL | F75 | 1984 - 1987 | ||
| DAIHATSU | Wildcat | 2.8 (2765ccm) Diesel | DL | F70 | 1984 - 1987 | ||
| DAIHATSU | Wildcat | 2.8 (2765ccm) Diesel | DLT | F70 | 1985 - 1987 | ||
| DAIHATSU | Wildcat | 2.8 (2765ccm) Diesel | DLT | F75 | 1985 - 1987 |
Description
A0544 Replacement Alternator
For a A0544 alternator enquiry, use Lucas reference LRA00544 alongside the vehicle and original unit details. The listed electrical rating is 12V 40A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected Daihatsu Fourtrak 2.8 Diesel variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 40A output: compare the listed rating with the original alternator.
- Single-groove pulley: check belt profile and alignment against the existing unit.
- 3 mounting holes: compare the fixing pattern and unit position.
- M6 B+ terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Daihatsu Fourtrak 2.8 Diesel – selected applications 1985–1990 (engine code DL).
- Daihatsu Rocky 2.8 Diesel – selected applications 1984–1993 (engine code DL).
- Daihatsu Rugger 2.8 Diesel – selected applications 1984–1993 (engine code DL).
- Daihatsu Wildcat 2.8 Diesel – selected applications 1984–1987 (engine code DL).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with A0544. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
437809, 021000-9861, 100210-2221, 100210-2810, 100210-2840, 100210-3280, 100210-3720, 100210-3728, 100211-2841, 121000-1480, 121000-2740, LRA00544, LRA544, DRA3138
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Alternator?
Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying A0544 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will A0544 fit my Daihatsu Fourtrak?
Daihatsu Fourtrak 2.8 Diesel (1985–1990) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does A0544 replace Lucas LRA00544?
Lucas LRA00544 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for A0544?
The listed details include 12V, 40A output, 1 pulley groove. Compare the complete specifications on this page with the unit being replaced.
Is A0544 new or remanufactured?
Check the current product condition selection for A0544. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering A0544?
Compare 12V compatibility, 40A output, pulley configuration, mounting points and electrical connections with the original alternator.
Does a battery warning light prove the alternator has failed?
No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
