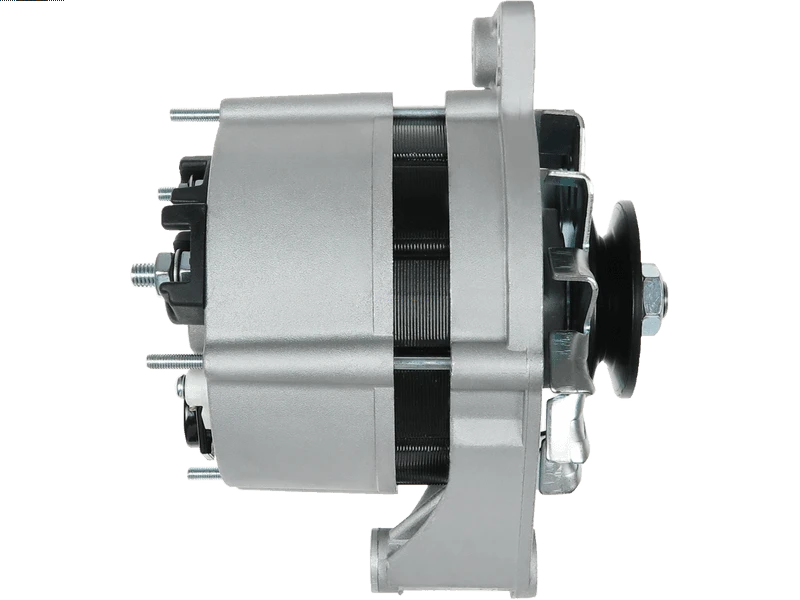

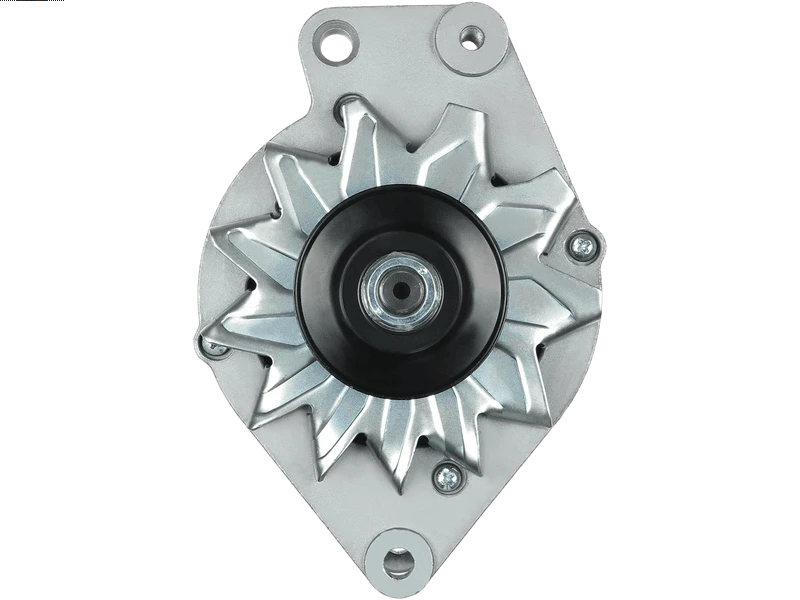

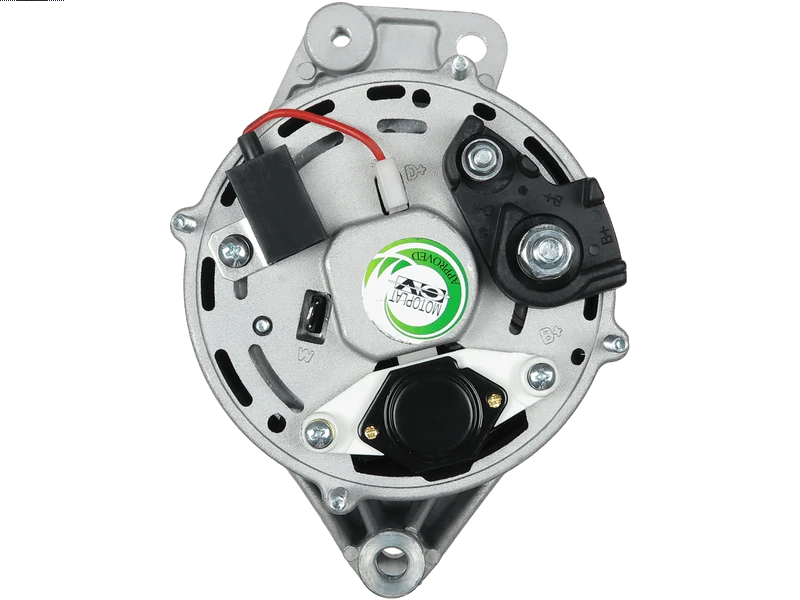

A0562 12V 55A Alternator Fits VW Golf, VW Jetta, VW Polo
Price range: £91.94 through £119.34
Identify a replacement alternator using Sahibs A0562, listed at 12V 55A. Listed applications include selected VW Golf, VW Jetta, VW Polo, VW Polo Van models. Identification references include Lucas LRA00562, Bosch 120488196, Valeo 436399. Its listed 12V 55A rating provides an electrical matching point for your existing unit. Check the single-groove pulley, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your A0562 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| AMP | 55 A |
| Volt | 12 V |
| No. of Grooves | 1 qty |
| Pulley Diameter | 44.5 mm |
| Mounting holes | 2 qty |
| Position | 15° |
| B+ | M8 |
| Insulated Return | No |
| Water cooled | No |
| Vacuum pump | No |
| Start/Stop | No |
| Weight | 4.6 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYA0562 | Dyno Electrics |
| 401440451 | Euro Car Part |
| UD15489A | AS-PL |
| 120488196 | BOSCH |
| 120488265 | BOSCH |
| 120489382 | BOSCH |
| 986041630 | BOSCH |
| DRA6263 | DELCO |
| 8EL012427-331 | HELLA |
| 9.44E+11 | MAGNETI MARELLI |
| MRA67601 | MAGNETI MARELLI |
| 27020-45071 | TOYOTA |
| 436399 | VALEO |
| 031903017C | VW |
| 031903023B | VW |
| 031903023C | VW |
| 036903017H | VW |
| 036903017HX | VW |
| 36903025 | VW |
| 036903025B | VW |
| 036903025S | VW |
| 036903025T | VW |
| 36903027 | VW |
| 036903027B | VW |
| 036903027D | VW |
| 039903025B | VW |
| CAL10182AS | CASCO |
| 56135 | EAI |
| ALT10162 | ELECTROLOG |
| 28-0937 | ELSTOCK |
| AG0036 | GHIBAUDI |
| CA588IR | HC PARTS |
| ALB0588 | KRAUF |
| 30347RI | KUHNER |
| 30588RI | KUHNER |
| LRA00562 | LUCAS |
| LRA562 | LUCAS |
| 89213410 | POWERMAX |
| 305.024.065.019 | PSH |
| 20101281BN | REAL |
| 2010182 | SANDO |
| STX100314 | STARDAX |
| STX100314R | STARDAX |
| STX100717 | STARDAX |
| STX101024 | STARDAX |
| STX101043 | STARDAX |
| STX101043R | STARDAX |
| 21115R | WAI / TRANSPO |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| B0103 | 55A | 65A | Yes |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| SEAT | Ibiza | 1.0 (1043ccm) Petrol | AAU | II | 6K1 | 1993 - 1996 | |
| SEAT | Ibiza | 1.3 (1272ccm) Petrol | 2G/AAV | II | 6K1 | 1993 - 1994 | |
| VW | Golf | 1.0 (1043ccm) Petrol | HZ | II | 191/193/1G1 | 1985 - 1991 | |
| VW | Golf | 1.3 (1272ccm) Petrol | 2G/HK/MH/NZ | II | 191/192/193/194/1G1 | 1983 - 1992 | |
| VW | Golf | 1.3 (1272ccm) Petrol | HW/NU | II | 191/192/193 | 1983 - 1987 | |
| VW | Jetta | 1.3 (1272ccm) Petrol | GT | II | 165/167 | 1984 - 1986 | |
| VW | Polo | 1.0 (1043ccm) Petrol | AAK/AAU/ACM/HZ | II | 801/867/868 | 1988 - 1990 | |
| VW | Polo | 1.0 (1043ccm) Petrol | AAU/ACM/HZ | II | Classic | 802/874 | 1985 - 1992 |
| VW | Polo | 1.0 (1043ccm) Petrol | AAK/AAU/ACM/HZ | II | 803/872 | 1988 - 1994 | |
| VW | Polo | 1.3 (1272ccm) Petrol | 3F/GK | II | 801/867 | 1982 - 1991 | |
| VW | Polo | 1.3 (1272ccm) Petrol | 3F/GK | II | 803/872 | 1988 - 1994 | |
| VW | Polo | 1.3 (1272ccm) Petrol | 2G/AAV/MH/NZ | II | Classic | 802/873/874 | 1990 - 1992 |
| VW | Polo | 1.3 (1272ccm) Petrol | 2G/AAV/HK/MH/NZ | II | 803/872 | 1990 - 1994 | |
| VW | Polo | 1.3 (1272ccm) Petrol | 2G/AAV/HK/MH/NZ | II | 801/867/868 | 1990 - 1994 | |
| VW | Polo | 1.3 (1272ccm) Petrol | 3F | II | 803 | 1991 - 1994 | |
| VW | Polo Van | 1.3 (1272ccm) Petrol | 2G/AAV/MH/NZ | II | 801/803 | 1985 - 1994 |
Description
A0562 Replacement Alternator
Start your A0562 alternator comparison with the linked Lucas reference LRA00562 and the specifications shown on this page. The listed electrical rating is 12V 55A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected VW Golf 1.0 Petrol variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 55A output: compare the listed rating with the original alternator.
- Single-groove pulley: check belt profile and alignment against the existing unit.
- 2 mounting holes: compare the fixing pattern and unit position.
- M8 B+ terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- VW Golf 1.0 Petrol – selected applications 1985–1991 (engine code HZ).
- VW Jetta 1.3 Petrol – selected applications 1984–1986 (engine code GT).
- VW Polo 1.0 Petrol – selected applications 1988–1990 (engine code AAK/AAU/ACM/HZ).
- VW Polo Van 1.3 Petrol – selected applications 1985–1994 (engine code 2G/AAV/MH/NZ).
- Seat Ibiza 1.0 Petrol – selected applications 1993–1996 (engine code AAU).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with A0562. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
120488196, 120488265, 120489382, 986041630, 436399, LRA00562, LRA562, DRA6263
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Alternator?
Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying A0562 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will A0562 fit my VW Golf?
VW Golf 1.0 Petrol (1985–1991) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does A0562 replace Lucas LRA00562?
Lucas LRA00562 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for A0562?
The listed details include 12V, 55A output, 1 pulley groove. Compare the complete specifications on this page with the unit being replaced.
Is A0562 new or remanufactured?
Check the current product condition selection for A0562. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering A0562?
Compare 12V compatibility, 55A output, pulley configuration, mounting points and electrical connections with the original alternator.
Does a battery warning light prove the alternator has failed?
No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
