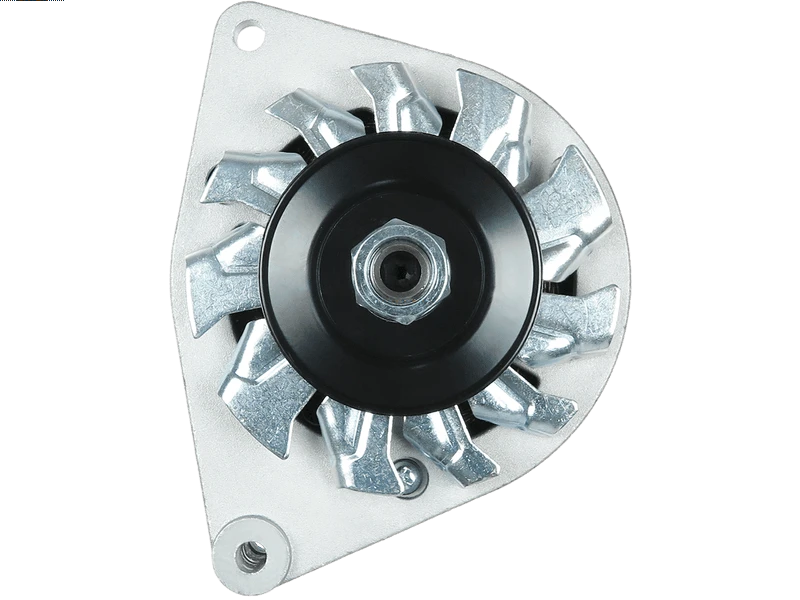

A0584 12V 33A Alternator Fits Case I.H. 1055, Case I.H. 1246

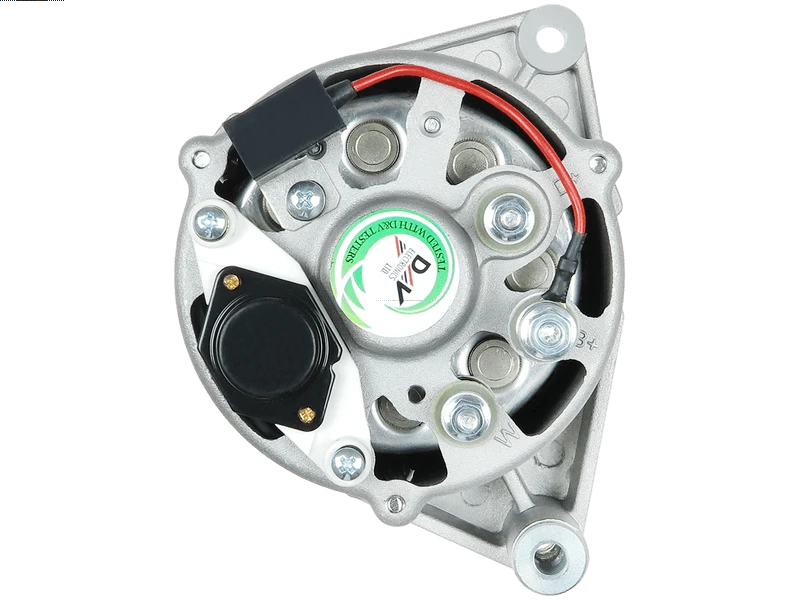

A0584 12V 33A Alternator Fits Case I.H. 1055, Case I.H. 1246 - Image 2

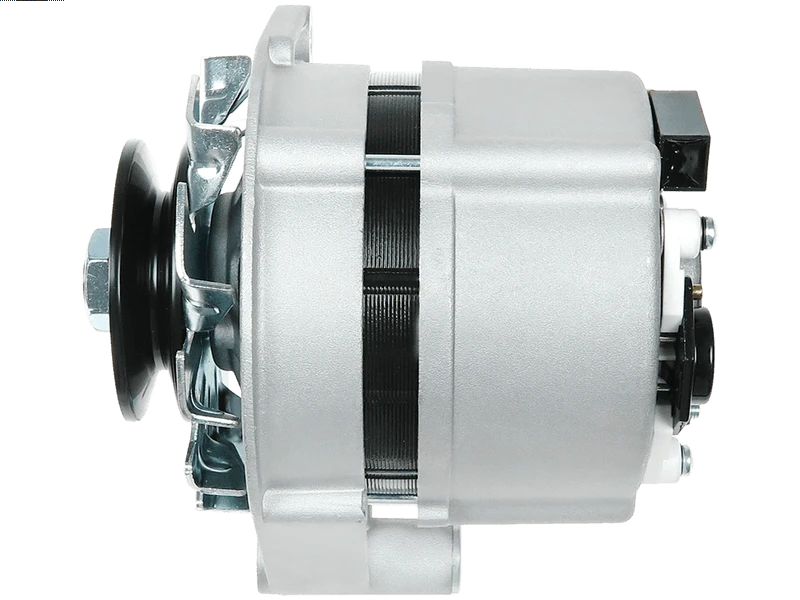

A0584 12V 33A Alternator Fits Case I.H. 1055, Case I.H. 1246 - Image 3

A0584 12V 33A Alternator Fits Case I.H. 1055, Case I.H. 1246

Price range: £104.35 through £130.03

Identify a replacement alternator using Sahibs A0584, listed at 12V 33A. Listed applications include selected Case IH 1055, Case IH 1246, Case IH 644, Case IH 744 models. Identification references include Lucas LRA00584, Bosch 120300514, Valeo 432998. Its listed 12V 33A rating provides an electrical matching point for your existing unit. Check the single-groove pulley, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your A0584 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.

SKU: A0584 Category:

Product Specification

DescriptionValue
AMP33 A
Volt12 V
No. of Grooves1 qty
Pulley Diameter46 mm
Mounting holes2 qty
Position145°
B+M10
Insulated ReturnNo
Water cooledNo
Vacuum pumpNo
Start/StopNo
Weight3.5 Kg

Cross Reference

Reference NumberBrand
DYA0584Dyno Electrics
A0004AS-PL
120300514BOSCH
120300515BOSCH
120300552BOSCH
120339514BOSCH
120339531BOSCH
986030130BOSCH
110641CARGO
F032110641CARGO
1440699CASE
3138942R91CASE
3218239EXCASE
3218239R91CASE
038520129ACHRYSLER
38520129ACHRYSLER
DRA0130DELCO
X830060011FENDT
42522730FIAT
8EL725943-001HELLA
11.201.027ISKRA / LETRIKA
11.201.096ISKRA / LETRIKA
AAG1301ISKRA / LETRIKA
AAG1311ISKRA / LETRIKA
AAG1315ISKRA / LETRIKA
AAG1328ISKRA / LETRIKA
IA0096ISKRA / LETRIKA
IA0116ISKRA / LETRIKA
1171617IVECO
1177481IVECO
1163077KHD
1163985KHD
1171617KHD
1177481KHD
29281218KHD
J1RL14X18H7612KHD
MG124MAHLE
MG528MAHLE
20130133PRESTOLITE
66021153BPRESTOLITE
6000100325RENAULT
6000130300RENAULT
6005003149RENAULT
6005700084RENAULT
432998VALEO
436265VALEO
ALTF9483EFFE
ALTL2293EFFE
ALTL229HQ3EFFE
ALTL229L3EFFE
PRAF9483EFFE
PRAL2293EFFE
PRAL229HQ3EFFE
PRAL229L3EFFE
CGB-10096AINDE
CGB-10096RAINDE
CGB-3280633AINDE
ANM32350XANDEL
AEA5184AUTOELECTRO
5710910BOMAG
5710920BOMAG
CAL21101CASCO
CAL21101ASCASCO
CAL21101ESCASCO
CAL21101GSCASCO
CAL21101OSCASCO
CAL21101RSCASCO
2031CEVAM
75568EAI
ALT1270ELECTROLOG
28-0633ELSTOCK
210885ERA
936281FAUN
9930130FRIESEN
GA339531-AGPARTS
CA76IRHC PARTS
3076RIKUHNER
3076RIMKUHNER
11.0076LAUBER
24171LUCAS
LRA00584LUCAS
LRA584LUCAS
6.06E+11MWM
936281O&K
89213403POWERMAX
9213403POWERMAX
565.002.033PSH
565.002.033.010PSH
20119101BNREAL
20119101OEREAL
RNL11201096RNL
294390200SAME
2021101SANDO
A12BH0041A2SIDAT
ALT3810SIOM
ALT3810ASIOM
STX100695STARDAX
STX101193STARDAX
61200090007STEYR
511976STILL
14949NWAI / TRANSPO
ALT20019WOODAUTO

Vehicle Applications

BrandModelEngineEngine CodeSeriesModel TypeTypeYear
CASE I.H.10550ccm DieselD-3581981 - 1983
CASE I.H.12460ccm DieselDT-3581979 -
CASE I.H.6440ccm DieselIH D-2061979 - 1986
CASE I.H.7440ccm DieselIH D-2391979 - 1984
CASE I.H.8440ccm DieselIH D-2461979 - 1985
CASE I.H.856XL0ccm DieselIH D-2681985 - 1992
CASE I.H.9550ccm DieselIH D-3581981 - 1983
DEUTZ-FAHRD28071885ccm DieselF2L9121986 - 1988
DEUTZ-FAHRD36071885ccm DieselF2L9121986 - 1988
DEUTZ-FAHRD40072827ccm DieselF3L9121980 - 1984
DEUTZ-FAHRD45062827ccm DieselF3L9121979 - 1980
DEUTZ-FAHRD52062827ccm DieselF3L9121979 - 1980
DEUTZ-FAHRD52072827ccm DieselF3L912.381980 - 1981
DEUTZ-FAHRD60073060ccm DieselF3L9131982 - 1984
DEUTZ-FAHRD62063770ccm DieselF4L9121979 - 1980
DEUTZ-FAHRD62073770ccm DieselF4L912.441980 - 1982
DEUTZ-FAHRD65073770ccm DieselF4L9121982 - 1984
DEUTZ-FAHRD68063770ccm DieselF4L9121979 - 1980
DEUTZ-FAHRD68073770ccm DieselF4L9121986 - 1988
DEUTZ-FAHRD70073770ccm DieselF4L9121986 - 1988
DEUTZ-FAHRD72063770ccm DieselF4L9121979 - 1980
DEUTZ-FAHRD72073770ccm DieselF4L9121980 - 1981
DEUTZ-FAHRD78070ccm DieselFL4912 F4L9131980 - 1984
DEUTZ-FAHRDX1105652ccm DieselF6L9121978 - 1985
DEUTZ-FAHRDX1206128ccm DieselF6L9131980 - 1985
DEUTZ-FAHRDX361885ccm DieselF2L9121978 - 1985
DEUTZ-FAHRDX502827ccm DieselF3L9121978 - 1985
DEUTZ-FAHRDX804086ccm DieselF4L9131982 - 1985
DEUTZ-FAHRDX854712ccm DieselF5L9121978 - 1985
DEUTZ-FAHRDX860ccm DieselBF4L913T1982 - 1985
DEUTZ-FAHRDX904712ccm DieselF5L9121978 - 1985
DEUTZ-FAHRDX920ccm DieselBF4L913 BF4L913T1982 - 1985
DEUTZ-FAHRIntrac 20033770ccm DieselF4L912H1979 - 1980
DEUTZ-FAHRIntrac 20043770ccm DieselF4L9121978 - 1988
DEUTZ-FAHRM1080 Combine4712ccm DieselF5L9121981 - 1988
DEUTZ-FAHRM1202 Combine5652ccm DieselF6L9121980 - 1988
DEUTZ-FAHRM980 Combine3770ccm DieselF4L9121981 - 1988
FAHRM10024712ccm DieselKHD F5L9121979 - 1981
FAHRM11025652ccm DieselF6L.9121979 - 1980
FAHRM12025652ccm Diesel5652 KHD F6L.9121979 - 1980
FAHRM6002827ccm DieselKHD F3L.9121979 - 1980
FAHRM6602827ccm DieselKHD F3L.9121980 - 1987
FAHRM7503770ccm DieselHD F4L.9121979 - 1980
FAHRM7703770ccm DieselHD F4L.9121980 - 1987
FAHRM9223770ccm DieselHD F4L.9121979 - 1981
FAHRM9803770ccm DieselHD F4L.9121981 - 1987
FENDTFarmer 200S2827ccm DieselKHD-F3L9121979 - 1988
FENDTFarmer 2032827ccm DieselKHD-F3L9121979 - 1988
FENDTFarmer 2043770ccm DieselKHD-F4L9121979 - 1988
FENDTFarmer 204P3770ccm DieselKHD-F4L9121979 - 1988
HITTNERHITTNER0ccm DieselDeutz Diter 910L022005 -
HOLDERHOLDER0ccm Diesel
INGERSOLL-RANDP100W0ccm DieselKHD F2L511
LAMBORGHINI TRACTORR603 S0ccm DieselFL-100.31976 - 1984
LINDEH20 Fork Lift0ccm DieselKHD F3L913G1984 - 1988
LINDEH25 Fork Lift0ccm DieselKHD F3L913G1984 - 1988
LINDEH30 Fork LiftDieselKHD F3L913G1984 - 1988
LINDEH35 Fork Lift3770ccm DieselKHD F4L9121981 - 1988
LINDEH40 Fork Lift3770ccm DieselKHD F4L9121981 - 1988
LINDEH70 Fork Lift5655ccm DieselKHD F6L9121981 - 1991
VM DIESEL3105M11.50ccm Diesel1986 -

Description

A0584 Replacement Alternator

The A0584 alternator is a replacement unit identified by Lucas reference LRA00584. The listed electrical rating is 12V 33A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected Case IH 1055 variants.

Key Features and Benefits

  • 12V electrical system: match the vehicle voltage before selecting a unit.
  • 33A output: compare the listed rating with the original alternator.
  • Single-groove pulley: check belt profile and alignment against the existing unit.
  • 2 mounting holes: compare the fixing pattern and unit position.
  • M10 B+ terminal: check the connection against the original unit.

Compatible Vehicles and Applications

  • Case IH 1055 – selected applications 1981–1983 (engine code D-358).
  • Case IH 1246 – selected applications 1979 – (engine code DT-358).
  • Case IH 644 – selected applications 1979–1986 (engine code IH D-206).
  • Case IH 744 – selected applications 1979–1984 (engine code IH D-239).
  • Case IH 844 – selected applications 1979–1985 (engine code IH D-246).
  • Case IH 856XL – selected applications 1985–1992 (engine code IH D-268).

These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.

OE Numbers and Cross-Reference Information

The following cross-reference numbers are associated with A0584. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.

120300514, 120300515, 120300552, 120339514, 120339531, 986030130, 432998, 436265, LRA00584, 24171, LRA584, DRA0130, 20130133, 66021153B, MG124, MG528, 11.201.027, 11.201.096, AAG1301, AAG1311, AAG1315, AAG1328, IA0096, IA0116, 038520129A, 38520129A, 6000100325, 6000130300, 6005003149, 6005700084

The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.

When Should You Replace Your Alternator?

Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.

Why Buy from Sahibs Auto Electrics?

Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying A0584 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.

Frequently Asked Questions

Will A0584 fit my Case IH 1055?

Case IH 1055 (1981–1983) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.

Does A0584 replace Lucas LRA00584?

Lucas LRA00584 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.

What specifications are listed for A0584?

The listed details include 12V, 33A output, 1 pulley groove. Compare the complete specifications on this page with the unit being replaced.

Is A0584 new or remanufactured?

Check the current product condition selection for A0584. Confirm the supplier and availability of the option you want before completing the order.

What should I compare before ordering A0584?

Compare 12V compatibility, 33A output, pulley configuration, mounting points and electrical connections with the original alternator.

Does a battery warning light prove the alternator has failed?

No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
