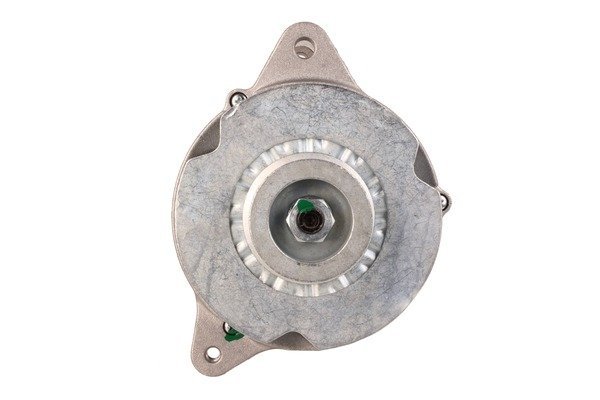

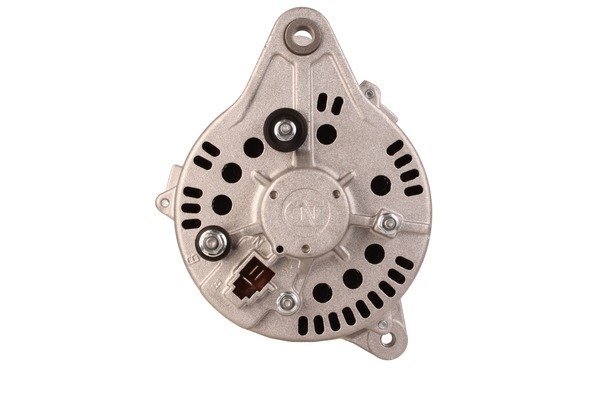

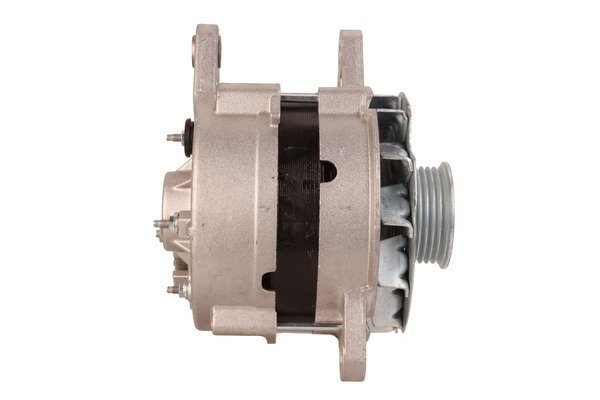

A0687 12V 50A Alternator Fits Toyota Carina, Toyota Carina II
Price range: £118.00 through £188.80
Identify a replacement alternator using Sahibs A0687, listed at 12V 50A. Listed applications include selected Toyota Carina, Toyota Carina II, Toyota Corolla, Toyota Crown models. Identification references include Lucas LRA00687, Valeo 436540, Denso 210001010. Its listed 12V 50A rating provides an electrical matching point for your existing unit. Check the 5-groove pulley, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your A0687 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| AMP | 50 A |
| Volt | 12 V |
| No. of Grooves | 5 qty |
| Pulley Diameter | 55 mm |
| Mounting holes | 3 qty |
| B+ | M6 |
| Insulated Return | No |
| Water cooled | No |
| Vacuum pump | No |
| Start/Stop | No |
| Weight | 5.1 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYA0687 | Dyno Electrics |
| 210001010 | Denso |
| 986034321 | Bosch Exchange |
| 0986CR0867 | Bosch Exchange |
| 0986UR0867 | Bosch Exchange |
| 1002110780 | Denso |
| 1002110781 | Denso |
| 1002110782 | Denso |
| 110250 | HC-Cargo |
| 113806 | HC-Cargo |
| 121000045 | Denso |
| 1210000450 | Denso |
| 1210000451 | Denso |
| 121000101 | Denso |
| 1210001010 | Denso |
| 1210001011 | Denso |
| 1210001012 | Denso |
| 140JART | RNL |
| 14672R | WAI |
| 195016050 | PSH |
| 20687N | WAI |
| 20687R | WAI |
| 2702016030 | Toyota |
| 2702016030L | Toyota |
| 2702016030R | Toyota |
| 2702016040 | Toyota |
| 2702063010 | Toyota |
| 2706016030 | Toyota |
| 40A1210001010 | Saab |
| 436540 | Valeo |
| AL216X | Bosch (USA) |
| ALT30059 | Wood Auto |
| ATA415 | ATK |
| DRA4321 | Delco Remy |
| HJA140IR | HC-Parts |
| JA140 | HC-Parts |
| JA140IR | HC-Parts |
| LRA00687 | Lucas |
| LRA687 | Lucas |
| RM0660 | Delphi |
| TRA178 | TWA |
| WOOALT30059 | Wood Auto |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| TOYOTA | Carina | 1.6 (1588ccm) Petrol | 2T | MK I | TA14 | 1976 - 1978 | |
| TOYOTA | Carina | 1.6 (1588ccm) Petrol | 2T/2TC | MK II | TA40 | 1978 - 1981 | |
| TOYOTA | Carina II | 1.6 (1587ccm) Petrol | 4ALC | MK IV | AT151 | 1983 - 1987 | |
| TOYOTA | Carina II | 1.6 (1587ccm) Petrol | 4ALC | MK IV | Liftback | AT151 | 1983 - 1987 |
| TOYOTA | Carina II | 1.6 (1587ccm) Petrol | 4AL | MK IV | AT151 | 1983 - 1987 | |
| TOYOTA | Carina II | 1.6 (1587ccm) Petrol | 4AL | MK IV | Liftback | AT151 | 1983 - 1988 |
| TOYOTA | Carina II | 1.6 (1587ccm) Petrol | 4AL | MK IV | Liftback | AT151 | 1986 - 1987 |
| TOYOTA | Corolla | 1.3 (1295ccm) Petrol | 2AL | AE80 | 1983 - 1984 | ||
| TOYOTA | Corolla | 1.6 (1587ccm) Petrol | 4AL | AE82 | 1983 - 1987 | ||
| TOYOTA | Corolla | 1.6 (1587ccm) Petrol | 4AL | Liftback | AE82 | 1983 - 1987 | |
| TOYOTA | Corolla | 1.6 (1587ccm) Petrol | 4AC | AE82 | 1984 - 1987 | ||
| TOYOTA | Corolla | 1.6 (1587ccm) Petrol | 4ALC | AE82 | 1985 - 1987 | ||
| TOYOTA | Corolla | 1.6 (1587ccm) Petrol | 4ALC | Liftback | AE82 | 1985 - 1987 | |
| TOYOTA | Corolla | 1.6 (1587ccm) Petrol | 4ALC | AE82 | 1985 - 1988 | ||
| TOYOTA | Corolla | 1.6 (1587ccm) Petrol | 4AL | Liftback | AE82 | 1985 - 1988 | |
| TOYOTA | Corolla | 1.6 (1588ccm) Petrol | 2TG | TE71 | 1980 - 1983 | ||
| TOYOTA | Crown | 2.6 (2563ccm) Petrol | 4M | MS85 | 1974 - 1979 | ||
| TOYOTA | Starlet | 1.2 (1166ccm) Petrol | 3KH | KP62 | 1978 - 1982 | ||
| TOYOTA | Starlet | 1.2 (1166ccm) Petrol | 3KH | Liftback | KP62 | 1978 - 1982 |
Description
A0687 Replacement Alternator
Choose a replacement by comparing the A0687 alternator and its Lucas reference, LRA00687, with your existing unit. The listed electrical rating is 12V 50A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected Toyota Carina 1.6 Petrol variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 50A output: compare the listed rating with the original alternator.
- 5-groove pulley: check belt profile and alignment against the existing unit.
- 3 mounting holes: compare the fixing pattern and unit position.
- M6 B+ terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Toyota Carina 1.6 Petrol – selected applications 1976–1978 (engine code 2T).
- Toyota Carina II 1.6 Petrol – selected applications 1983–1987 (engine code 4ALC).
- Toyota Corolla 1.3 Petrol – selected applications 1983–1984 (engine code 2AL).
- Toyota Crown 2.6 Petrol – selected applications 1974–1979 (engine code 4M).
- Toyota Starlet 1.2 Petrol – selected applications 1978–1982 (engine code 3KH).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with A0687. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
986034321, 0986CR0867, 0986UR0867, 436540, 210001010, 1002110780, 1002110781, 1002110782, 121000045, 1210000450, 1210000451, 121000101, 1210001010, 1210001011, 1210001012, LRA00687, LRA687, DRA4321
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Alternator?
Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying A0687 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will A0687 fit my Toyota Carina?
Toyota Carina 1.6 Petrol (1976–1978) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does A0687 replace Lucas LRA00687?
Lucas LRA00687 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for A0687?
The listed details include 12V, 50A output, 5 pulley grooves. Compare the complete specifications on this page with the unit being replaced.
Is A0687 new or remanufactured?
Check the current product condition selection for A0687. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering A0687?
Compare 12V compatibility, 50A output, pulley configuration, mounting points and electrical connections with the original alternator.
Does a battery warning light prove the alternator has failed?
No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
