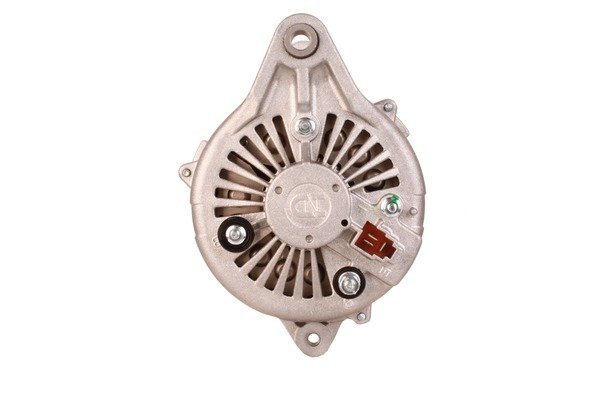

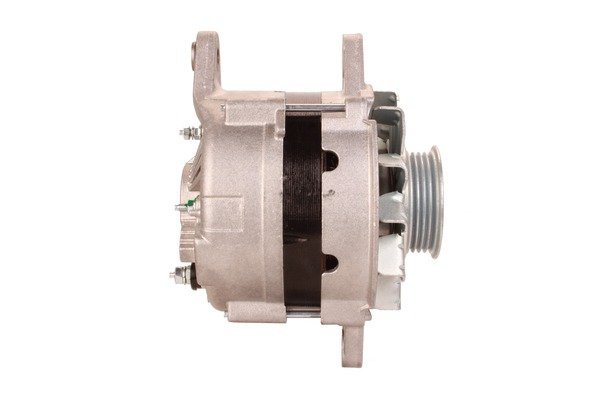

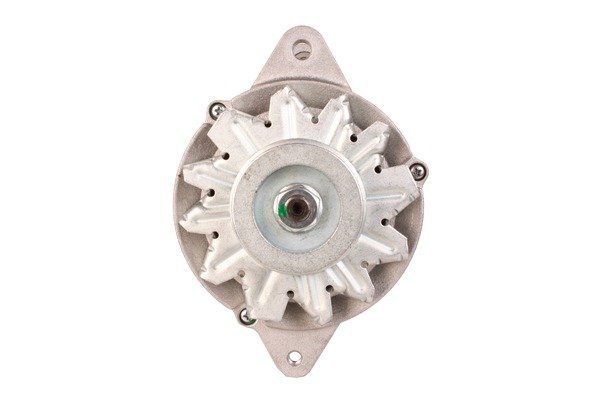

A0691 12V 50A Alternator Fits Toyota Hiace, Toyota Hilux
Price range: £89.85 through £113.55
Identify a replacement alternator using Sahibs A0691, listed at 12V 50A. Listed applications include selected Toyota Hiace, Toyota Hilux, Toyota Model F, Daihatsu Fourtrak models. Identification references include Lucas LRA00691, Valeo 436533, Denso 210000140. Its listed 12V 50A rating provides an electrical matching point for your existing unit. Check the 4-groove pulley, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your A0691 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| AMP | 50 A |
| Volt | 12 V |
| No. of Grooves | 4 qty |
| Pulley Diameter | 63 mm |
| Mounting holes | 3 qty |
| Position | 180° |
| B+ | M6 |
| Insulated Return | No |
| Water cooled | No |
| Vacuum pump | No |
| Start/Stop | No |
| Weight | 5.1 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYA0691 | Dyno Electrics |
| 401820271 | Euro Car Part |
| 210000140 | Denso |
| 210000431 | Denso |
| 21000827 | Denso |
| 210008270 | Denso |
| 210008271 | Denso |
| 986035521 | Bosch Exchange |
| 110248 | HC-Cargo |
| 121000043 | Denso |
| 1210000430 | Denso |
| 1210000431 | Denso |
| 121000044 | Denso |
| 1210000440 | Denso |
| 1210000441 | Denso |
| 1210002970 | Denso |
| 1210007500 | Denso |
| 195012055 | PSH |
| 20690R | WAI |
| 2702072010 | Toyota |
| 2702072030 | Toyota |
| 2.70E+12 | Daihatsu |
| 2702072050 | Toyota |
| 2702072060 | Toyota |
| 2702072230 | Toyota |
| 436533 | Valeo |
| ALT30033 | Wood Auto |
| ALT30144 | Wood Auto |
| ATA403 | ATK |
| HJA144IR | HC-Parts |
| JA144 | HC-Parts |
| JA144IR | HC-Parts |
| LRA00691 | Lucas |
| LRA02579 | Lucas |
| LRA2579 | Lucas |
| LRA691 | Lucas |
| WOOALT30033 | Wood Auto |
| WOOALT30144 | Wood Auto |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| A2579 | 55A | 40A | No |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| DAIHATSU | Fourtrak | 2.0 (1998ccm) Petrol | 3Y | F80/F85 | 1984 - 1991 | ||
| DAIHATSU | Fourtrak | 2.0 (1998ccm) Petrol | 3Y | F80/F85 | 1984 - 1993 | ||
| DAIHATSU | Fourtrak | 2.0 (1998ccm) Petrol | 3Y | F87 | 1986 - 1991 | ||
| DAIHATSU | Rocky | 2.0 (1998ccm) Petrol | 3Y | F80/F85 | 1984 - 1991 | ||
| DAIHATSU | Rocky | 2.0 (1998ccm) Petrol | 3Y | Pick Up | F80/F85/F87 | 1984 - 1991 | |
| DAIHATSU | Rocky | 2.2 (2237ccm) Petrol | 4Y | F98 | 1991 - 1993 | ||
| TOYOTA | Hiace | 1.8 (1812ccm) Petrol | 2Y | MK III | YH50/YH60 | 1982 - 1989 | |
| TOYOTA | Hiace | 1.8 (1812ccm) Petrol | 2Y | MK III | Commuter | YH50/YH60 | 1982 - 1989 |
| TOYOTA | Hiace | 2.0 (1998ccm) Petrol | 3Y | MK III | Commuter | YH51/YH61 | 1982 - 1989 |
| TOYOTA | Hiace | 2.0 (1998ccm) Petrol | 3Y | MK III | YH51/YH61 | 1982 - 1989 | |
| TOYOTA | Hiace | 2.2 (2237ccm) Petrol | 4Y | MK III | YH56/YH66 | 1987 - 1989 | |
| TOYOTA | Hilux | 1.8 (1812ccm) Petrol | 2Y | MK V | YN85/YN90 | 1988 - 1997 | |
| TOYOTA | Hilux | 2.0 (1998ccm) Petrol | 3Y | MK IV | YN57/YN60 | 1983 - 1988 | |
| TOYOTA | Hilux | 2.2 (2237ccm) Petrol | 4Y | MK IV | YN63/YN67 | 1985 - 1995 | |
| TOYOTA | Model F | 2.0 (1998ccm) Petrol | 3Y | YR21 | 1983 - 1985 |
Description
A0691 Replacement Alternator
The A0691 alternator is a replacement unit identified by Lucas reference LRA00691. The listed electrical rating is 12V 50A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected Toyota Hiace 1.8 Petrol variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 50A output: compare the listed rating with the original alternator.
- 4-groove pulley: check belt profile and alignment against the existing unit.
- 3 mounting holes: compare the fixing pattern and unit position.
- M6 B+ terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Toyota Hiace 1.8 Petrol – selected applications 1982–1989 (engine code 2Y).
- Toyota Hilux 1.8 Petrol – selected applications 1988–1997 (engine code 2Y).
- Toyota Model F 2.0 Petrol – selected applications 1983–1985 (engine code 3Y).
- Daihatsu Fourtrak 2.0 Petrol – selected applications 1984–1991 (engine code 3Y).
- Daihatsu Rocky 2.0 Petrol – selected applications 1984–1991 (engine code 3Y).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with A0691. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
986035521, 436533, 210000140, 210000431, 21000827, 210008270, 210008271, 121000043, 1210000430, 1210000431, 121000044, 1210000440, 1210000441, 1210002970, 1210007500, LRA00691, LRA02579, LRA2579, LRA691
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Alternator?
Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying A0691 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will A0691 fit my Toyota Hiace?
Toyota Hiace 1.8 Petrol (1982–1989) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does A0691 replace Lucas LRA00691?
Lucas LRA00691 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for A0691?
The listed details include 12V, 50A output, 4 pulley grooves. Compare the complete specifications on this page with the unit being replaced.
Is A0691 new or remanufactured?
Check the current product condition selection for A0691. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering A0691?
Compare 12V compatibility, 50A output, pulley configuration, mounting points and electrical connections with the original alternator.
Does a battery warning light prove the alternator has failed?
No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
