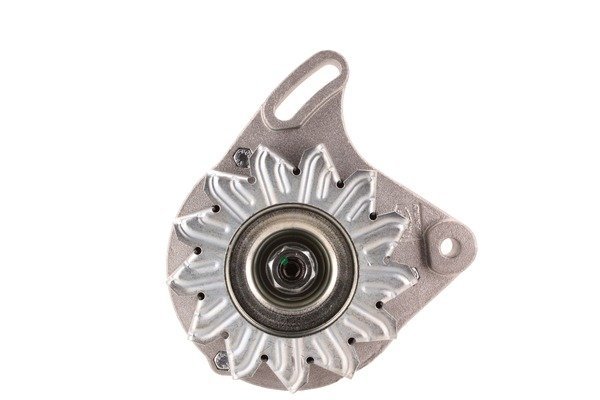

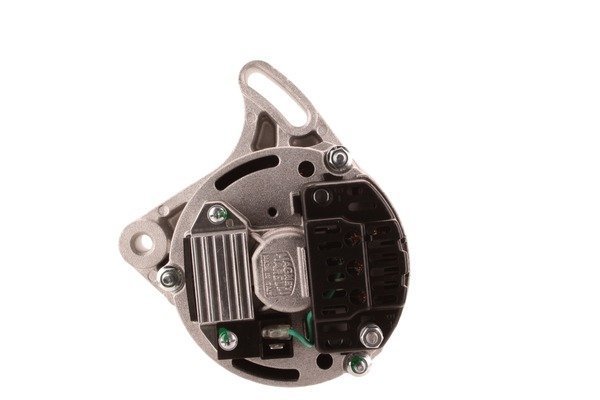

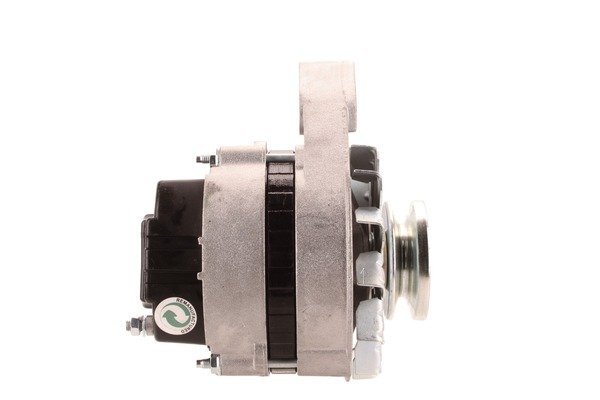

A0695 12V 45A Alternator Fits Fiat Panda, Fiat Panda Van, Fiat Tipo
Price range: £82.76 through £107.81
Sahibs A0695 is a replacement alternator with a listed 12V 45A rating. Listed applications include selected Fiat Panda, Fiat Panda Van, Fiat Tipo, Fiat Uno models. Identification references include Lucas LRA00695, Bosch 9124476327, Valeo 2518028. Its listed 12V 45A rating provides an electrical matching point for your existing unit. Check the single-groove pulley, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your A0695 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| AMP | 45 A |
| Volt | 12 V |
| No. of Grooves | 1 qty |
| Pulley Diameter | 63 mm |
| Mounting holes | 2 qty |
| Position | 101° |
| B+ | M6 |
| Insulated Return | No |
| Water cooled | No |
| Vacuum pump | No |
| Start/Stop | No |
| Weight | 4.48 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYA0695 | Dyno Electrics |
| 401650081 | Euro Car Part |
| 12850742 | KHD |
| 12851726 | KHD |
| 63320001 | Magneti Marelli |
| 63321000 | Magneti Marelli |
| 63321000010 | Magneti Marelli |
| 986035640 | Bosch Exchange |
| 986035641 | Bosch Exchange |
| 100420 | Efel |
| 111036 | HC-Cargo |
| 111081 | HC-Cargo |
| 11201735 | Mahle |
| 11572630 | Lombardini |
| 11572690 | Lombardini |
| 1157360 | Lombardini |
| 20100695 | Prestolite |
| 20222615 | Fiat Group |
| 20695R | WAI |
| 23020 | Lucas |
| 2518028 | Valeo |
| 2541135 | Valeo |
| 2541284 | Valeo |
| 4287013F1 | Agco |
| 436230 | Valeo |
| 436401 | Valeo |
| 443192 | Valeo |
| 46207933 | Fiat Group |
| 46231657 | Fiat Group |
| 46231675 | Fiat Group |
| 46261659 | Fiat Group |
| 505017045 | PSH |
| 5999868 | Fiat Group |
| 5999869 | Fiat Group |
| 63320001010 | Magneti Marelli |
| 63320102 | Magneti Marelli |
| 63320102010 | Magneti Marelli |
| 63321189 | Magneti Marelli |
| 63321189010 | Magneti Marelli |
| 71721140 | Fiat Group |
| 71721214 | Fiat Group |
| 72735431 | Mahle |
| 746069 | Valeo |
| 746869 | Valeo |
| 7683167 | Fiat Group |
| 77305410 | Fiat Group |
| 77347411 | Fiat Group |
| 9124476327 | Bosch |
| 943321067 | Magneti Marelli |
| A13E01 | Valeo |
| A13E1 | Valeo |
| A13E17 | Valeo |
| A13E30 | Valeo |
| A13E50 | Valeo |
| AAK4580 | Mahle |
| ALT12035 | Wood Auto |
| ALT12105 | Wood Auto |
| ALT7811 | Wood Auto |
| CA350IR | HC-Parts |
| DAN605 | Denso |
| DRA3409 | Delco Remy |
| DRA3409N | Delco Remy |
| DRA5641 | Delco Remy |
| DRA5641N | Delco Remy |
| ED0011573600 | Lombardini |
| F032111036 | HC-Cargo |
| HCA350IR | HC-Parts |
| IA0258 | Mahle |
| IA0735 | Mahle |
| LETIA0735 | Wood Auto |
| LRA00695 | Lucas |
| LRA03517 | Lucas |
| LRA3517 | Lucas |
| LRA695 | Lucas |
| MAHMG432 | Wood Auto |
| MAN342 | Magneti Marelli |
| MG432 | Mahle |
| RNL3564 | RNL |
| RNL3564T | RNL |
| RNLMG432 | RNL |
| VA144 | Valeo |
| WOOALT12035 | Wood Auto |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| A0558 | 45A Pulley 1GR/63 | 55A Pulley PV4/59 | No |
| B0326 | 45A Pulley 1GR/63 | 65A Pulley PV4/59 | Yes |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| FIAT | Panda | 0.8 (769ccm) Petrol | 141B000/156A4000/156A4048 | 141AA/141AI/141AM | 1986 - 1992 | ||
| FIAT | Panda | 1.0 (999ccm) Petrol | 156A048/156A3000 | Trekking | 141A/141AE | 1985 - 1992 | |
| FIAT | Panda | 1.0 (999ccm) Petrol | 176A2000 | 141AE | 1985 - 1992 | ||
| FIAT | Panda | 1.0 (999ccm) Petrol | 156A2246 | Trekking | 141AO | 1986 - 1990 | |
| FIAT | Panda | 1.0 (999ccm) Petrol | 156A2100 | 141AF | 1986 - 1992 | ||
| FIAT | Panda | 1.0 (999ccm) Petrol | 156A2100 | Trekking | 141AF | 1986 - 1989 | |
| FIAT | Panda | 1.1 (1108ccm) Petrol | 156C046 | Trekking | 141AS | 1991 - 2003 | |
| FIAT | Panda | 1.1 (1108ccm) Petrol | 176B2000/187A1000 | Trekking | 141AK/141AW53B | 1995 - 2003 | |
| FIAT | Panda Van | 0.8 (769ccm) Petrol | 141B000/156A4048 | 141AI/141AM | 1986 - 1992 | ||
| FIAT | Panda Van | 1.0 (999ccm) Petrol | 156A2100 | 141AF | 1986 - 1992 | ||
| FIAT | Panda Van | 1.0 (999ccm) Petrol | 141C2000/156A2246 | 141AJ/141AO | 1991 - 2000 | ||
| FIAT | Tipo | 1.1 (1108ccm) Petrol | 160A3000 | 160AA | 1988 - 1992 | ||
| FIAT | Uno | 1.0 (994ccm) Petrol | 146C8000 | 146E | 1993 - 2000 | ||
| FIAT | Uno | 1.0 (999ccm) Petrol | 156A2048/156A2100 | 146A/146E | 1986 - 1993 | ||
| FIAT | Uno | 1.0 (999ccm) Petrol | 156A2000 | 146E | 1989 - 1992 | ||
| FIAT | Uno | 1.1 (1108ccm) Petrol | 160A3000 | 146A/146E | 1987 - 1992 | ||
| FIAT | Uno | 1.1 (1108ccm) Petrol | 160A3000 | 146E | 1990 - 1998 | ||
| FIAT | Uno | 1.1 (1108ccm) Petrol | 156C046 | 146E | 1990 - 1993 | ||
| FIAT | Uno | 1.1 (1116ccm) Petrol | 146C3000 | 146E | 1992 - 1993 | ||
| LANCIA | Y10 (Ypsilon) | 1.0 (999ccm) Petrol | 156A2100 | 156AD | 1985 - 1991 | ||
| LANCIA | Y10 (Ypsilon) | 1.0 (999ccm) Petrol | 156A2000/156A2246 | 156AD/156AE | 1985 - 1992 | ||
| LANCIA | Y10 (Ypsilon) | 1.0 (999ccm) Petrol | 156A2000 | 156AA/156AD | 1985 - 1990 | ||
| LANCIA | Y10 (Ypsilon) | 1.0 (999ccm) Petrol | 156A2100 | 156AD | 1986 - 1989 | ||
| LANCIA | Y10 (Ypsilon) | 1.0 (999ccm) Petrol | 156A2246 | 156AE | 1987 - 1990 | ||
| LANCIA | Y10 (Ypsilon) | 1.0 (999ccm) Petrol | 156A2000 | 156AA | 1987 - 1990 | ||
| LANCIA | Y10 (Ypsilon) | 1.1 (1108ccm) Petrol | 156C000 | 156AC | 1989 - 1992 | ||
| LANCIA | Y10 (Ypsilon) | 1.1 (1108ccm) Petrol | 156C046 | 156AG | 1989 - 1992 | ||
| LANCIA | Y10 (Ypsilon) | 1.1 (1108ccm) Petrol | 156C046 | 156AG | 1992 - 1992 |
Description
A0695 Replacement Alternator
For a A0695 alternator enquiry, use Lucas reference LRA00695 alongside the vehicle and original unit details. The listed electrical rating is 12V 45A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected Fiat Panda 0.8 Petrol variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 45A output: compare the listed rating with the original alternator.
- Single-groove pulley: check belt profile and alignment against the existing unit.
- 2 mounting holes: compare the fixing pattern and unit position.
- M6 B+ terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Fiat Panda 0.8 Petrol – selected applications 1986–1992 (engine code 141B000/156A4000/156A4048).
- Fiat Panda Van 0.8 Petrol – selected applications 1986–1992 (engine code 141B000/156A4048).
- Fiat Tipo 1.1 Petrol – selected applications 1988–1992 (engine code 160A3000).
- Fiat Uno 1.0 Petrol – selected applications 1993–2000 (engine code 146C8000).
- Lancia Y10 (Ypsilon) 1.0 Petrol – selected applications 1985–1991 (engine code 156A2100).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with A0695. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
986035640, 986035641, 9124476327, 2518028, 2541135, 2541284, 436230, 436401, 443192, 746069, 746869, A13E01, A13E1, A13E17, A13E30, A13E50, VA144, DAN605, LRA00695, 23020, LRA03517, LRA3517, LRA695, DRA3409, DRA3409N, DRA5641, DRA5641N, 20100695, 11201735, 72735431, AAK4580, IA0258, IA0735, MG432
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Alternator?
Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying A0695 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will A0695 fit my Fiat Panda?
Fiat Panda 0.8 Petrol (1986–1992) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does A0695 replace Lucas LRA00695?
Lucas LRA00695 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for A0695?
The listed details include 12V, 45A output, 1 pulley groove. Compare the complete specifications on this page with the unit being replaced.
Is A0695 new or remanufactured?
Check the current product condition selection for A0695. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering A0695?
Compare 12V compatibility, 45A output, pulley configuration, mounting points and electrical connections with the original alternator.
Does a battery warning light prove the alternator has failed?
No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
