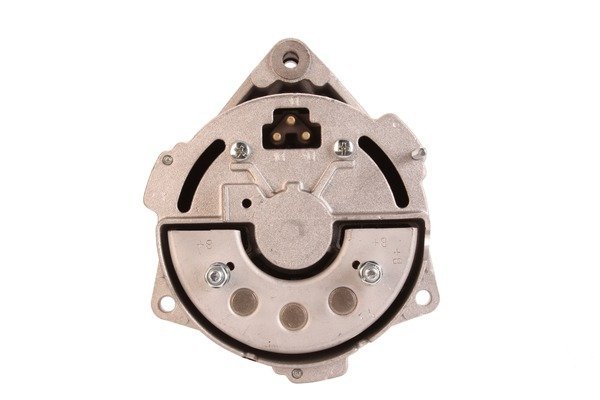

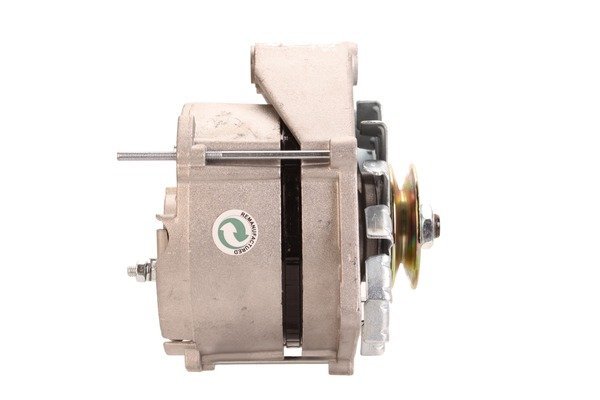

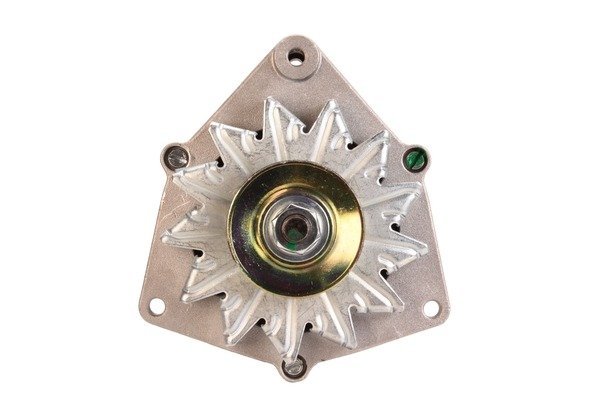

A0820 12V 35A Alternator Fits Case I.H. 1055, Mercedes-Benz 200
Price range: £156.00 through £249.60
Sahibs A0820 is a replacement alternator with a listed 12V 35A rating. Listed applications include selected Case IH 1055, Mercedes-Benz 200, Mercedes-Benz 250, Mercedes-Benz 280 models. Identification references include Lucas LRA00820, Bosch 120400526, Delco Remy DRA0150. Its listed 12V 35A rating provides an electrical matching point for your existing unit. Check the single-groove pulley, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your A0820 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| AMP | 35 A |
| Volt | 12 V |
| No. of Grooves | 1 qty |
| Pulley Diameter | 75 mm |
| Mounting holes | 3 qty |
| Position | 60° |
| B+ | M8 |
| Insulated Return | No |
| Water cooled | No |
| Vacuum pump | No |
| Start/Stop | No |
| Weight | 4.04 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYA0820 | Dyno Electrics |
| 401221191 | Euro Car Part |
| 21540702 | Mercedes-Benz |
| 31546202 | Mercedes-Benz |
| 81543202 | Mercedes-Benz |
| 120400526 | Bosch |
| 120400532 | Bosch |
| 120400533 | Bosch |
| 120400535 | Bosch |
| 120400537 | Bosch |
| 120400600 | Bosch |
| 120400601 | Bosch |
| 120400603 | Bosch |
| 120400606 | Bosch |
| 120400607 | Bosch |
| 120400608 | Bosch |
| 120400611 | Bosch |
| 120400637 | Bosch |
| 120400675 | Bosch |
| 120400716 | Bosch |
| 120400736 | Bosch |
| 120489506 | Bosch |
| 986030150 | Bosch Exchange |
| 986030170 | Bosch Exchange |
| 986031020 | Bosch Exchange |
| 1155901BO | WAI |
| 13014R | WAI |
| 555003035 | PSH |
| 6.06E+11 | MWM |
| 6.12E+12 | Volkswagen AG |
| 90156050 | Wilson |
| 943356473 | Magneti Marelli |
| A0021540702 | Mercedes-Benz |
| A0031546202 | Mercedes-Benz |
| A0081543202 | Mercedes-Benz |
| CA37 | HC-Parts |
| CA62 | HC-Parts |
| DRA0150 | Delco Remy |
| DRA0170 | Delco Remy |
| DRA1070 | Delco Remy |
| LRA00820 | Lucas |
| LRA01217 | Lucas |
| LRA02567 | Lucas |
| LRA1217 | Lucas |
| LRA2567 | Lucas |
| LRA820 | Lucas |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| CASE I.H. | 1055 | 0ccm Diesel | D-358 | 1981 - 1983 | |||
| MERCEDES-BENZ | 200 | 2.0 (1988ccm) Diesel | 615913 | W115 | 115115 | 1968 - 1973 | |
| MERCEDES-BENZ | 250 | 2.5 (2496ccm) Petrol | 114920 | W114 | 114010 | 1967 - 1972 | |
| MERCEDES-BENZ | 250 | 2.5 (2496ccm) Petrol | 114920 | W114 | 114010/114024 | 1967 - 1972 | |
| MERCEDES-BENZ | 250 | 2.5 (2496ccm) Petrol | 114980 | C114 | 114022 | 1969 - 1972 | |
| MERCEDES-BENZ | 250 | 2.5 (2496ccm) Petrol | 114920 | C114 | 114021 | 1969 - 1972 | |
| MERCEDES-BENZ | 250 | 2.8 (2778ccm) Petrol | 130923 | W114 | 114023 | 1971 - 1976 | |
| MERCEDES-BENZ | 250 | 2.8 (2778ccm) Petrol | 130923 | C114 | 114023 | 1972 - 1976 | |
| MERCEDES-BENZ | 280 | 2.8 (2778ccm) Petrol | 130980/130984 | W111 | 111041 | 1967 - 1970 | |
| MERCEDES-BENZ | 280 | 2.8 (2778ccm) Petrol | 130980 | W108 | 108018/108019 | 1968 - 1972 | |
| MERCEDES-BENZ | 280 | 2.8 (2780ccm) Petrol | 130920 | W108 | 108016 | 1967 - 1972 | |
| MERCEDES-BENZ | 300 | 2.8 (2778ccm) Petrol | 130981 | W109 | 109016 | 1968 - 1972 | |
| MERCEDES-BENZ | 300 | 6.3 (6332ccm) Petrol | 100981/100983 | W109 | 109018 | 1968 - 1972 | |
| MERCEDES-BENZ | 600 | 6.3 (6332ccm) Petrol | 100982 | W100 | Long | 100015/100016 | 1964 - 1979 |
Description
A0820 Replacement Alternator
Start your A0820 alternator comparison with the linked Lucas reference LRA00820 and the specifications shown on this page. The listed electrical rating is 12V 35A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected Case IH 1055 variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 35A output: compare the listed rating with the original alternator.
- Single-groove pulley: check belt profile and alignment against the existing unit.
- 3 mounting holes: compare the fixing pattern and unit position.
- M8 B+ terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Case IH 1055 – selected applications 1981–1983 (engine code D-358).
- Mercedes-Benz 200 2.0 Diesel – selected applications 1968–1973 (engine code 615913).
- Mercedes-Benz 250 2.5 Petrol – selected applications 1967–1972 (engine code 114920).
- Mercedes-Benz 280 2.8 Petrol – selected applications 1967–1970 (engine code 130980/130984).
- Mercedes-Benz 300 2.8 Petrol – selected applications 1968–1972 (engine code 130981).
- Mercedes-Benz 600 6.3 Petrol – selected applications 1964–1979 (engine code 100982).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with A0820. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
120400526, 120400532, 120400533, 120400535, 120400537, 120400600, 120400601, 120400603, 120400606, 120400607, 120400608, 120400611, 120400637, 120400675, 120400716, 120400736, 120489506, 986030150, 986030170, 986031020, LRA00820, LRA01217, LRA02567, LRA1217, LRA2567, LRA820, DRA0150, DRA0170, DRA1070
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Alternator?
Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying A0820 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will A0820 fit my Case IH 1055?
Case IH 1055 (1981–1983) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does A0820 replace Lucas LRA00820?
Lucas LRA00820 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for A0820?
The listed details include 12V, 35A output, 1 pulley groove. Compare the complete specifications on this page with the unit being replaced.
Is A0820 new or remanufactured?
Check the current product condition selection for A0820. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering A0820?
Compare 12V compatibility, 35A output, pulley configuration, mounting points and electrical connections with the original alternator.
Does a battery warning light prove the alternator has failed?
No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
