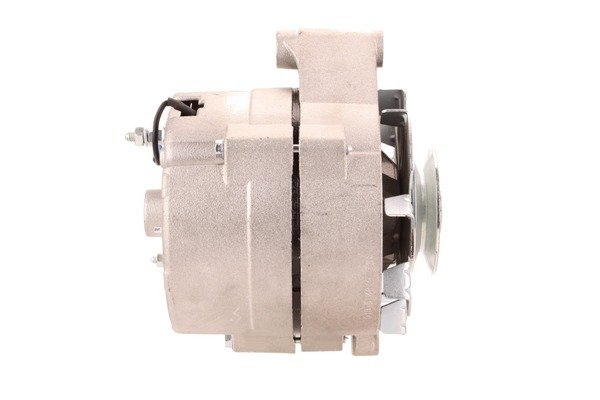

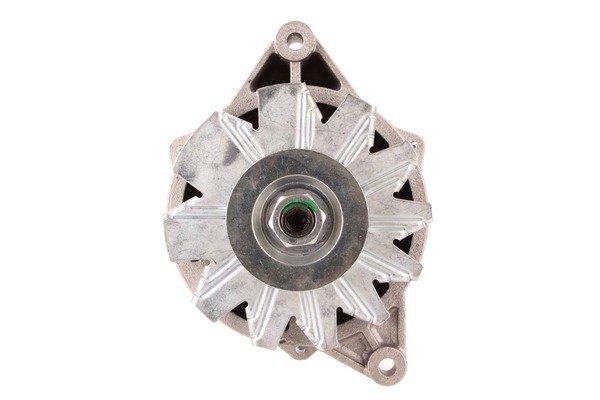

A0863 12V 55A Alternator Fits Bedford Blitz, Opel Ascona, Opel Corsa
Price range: £102.00 through £163.20
Compare the A0863 12V 55A alternator from Sahibs Auto Electrics with the unit currently fitted. Listed applications include selected Bedford Blitz, Opel Ascona, Opel Commodore, Opel Corsa models. Identification references include Lucas LRA00863, Bosch 120300536, Valeo 432842. Its listed 12V 55A rating provides an electrical matching point for your existing unit. Check the single-groove pulley, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your A0863 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| AMP | 55 A |
| Volt | 12 V |
| No. of Grooves | 1 qty |
| Pulley Diameter | 65 mm |
| Mounting holes | 2 qty |
| Position | -30° |
| B+ | M6 |
| Insulated Return | No |
| Water cooled | No |
| Vacuum pump | No |
| Start/Stop | No |
| Weight | 4.8 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYA0863 | Dyno Electrics |
| 120300536 | Bosch |
| 120400782 | Bosch |
| 120489110 | Bosch |
| 120489111 | Bosch |
| 120489504 | Bosch |
| 120489505 | Bosch |
| 120489631 | Bosch |
| 120489632 | Bosch |
| 986030830 | Bosch Exchange |
| 986030831 | Bosch Exchange |
| 1204019 | Opel |
| 1204029 | Opel |
| 1204130 | Opel |
| 1204163 | Opel |
| 1204173 | Opel |
| 135002055 | PSH |
| 16201018 | AES |
| 20269R | WAI |
| 20862R | WAI |
| 3472018 | Delco Remy |
| 3472033 | Delco Remy |
| 3472060 | Delco Remy |
| 3472222 | Delco Remy |
| 3472289 | Delco Remy |
| 432842 | Valeo |
| 436157 | Valeo |
| 90006900 | Opel |
| 90042323 | Opel |
| 943356528 | Magneti Marelli |
| 9AR2794K | Motorola |
| CA157IR | HC-Parts |
| CA42IR | HC-Parts |
| DRA0280 | Delco Remy |
| DRA0830 | Delco Remy |
| HCA42IR | HC-Parts |
| LRA00272 | Lucas |
| LRA00863 | Lucas |
| LRA272 | Lucas |
| LRA863 | Lucas |
| OAN10487 | Optimum |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| B0318 | 55A Spade Terminal D+ Delco | 70A M5 Terminal D+ Bosch Delco | No |
| A0272 | Delco | Bosch | Yes |
| A0984 | 55A Delco | 65A Bosch | Yes |
| A0110 | 55A Delco | 45A Bosch | No |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| BEDFORD | Blitz | 2.0 (1956ccm) Petrol | 20N | 97170F8 | 1985 - 1987 | ||
| OPEL | Ascona | 2.0 (1979ccm) Petrol | 20N | B | 81/87 | 1978 - 1981 | |
| OPEL | Ascona | 2.0 (1979ccm) Petrol | 20S | B | 81/86/87/88 | 1978 - 1981 | |
| OPEL | Ascona | 2.0 (1979ccm) Petrol | 20E | B | 81/86/87/88 | 1979 - 1981 | |
| OPEL | Commodore | 2.5 (2490ccm) Petrol | 25E | C | KF61 | 1978 - 1982 | |
| OPEL | Commodore | 2.5 (2490ccm) Petrol | 25S | C | LV19/LZ14 | 1980 - 1982 | |
| OPEL | Commodore | 2.5 (2490ccm) Petrol | 25S | C | KF61 | 1978 - 1982 | |
| OPEL | Commodore | 2.5 (2490ccm) Petrol | 25E | C | LV19/LZ14 | 1978 - 1982 | |
| OPEL | Corsa | 1.2 (1195ccm) Petrol | C12NZ | A | 97 | 1990 - 1992 | |
| OPEL | Corsa | 1.2 (1196ccm) Petrol | 12NV/12ST | A | 91/92/96/97 | 1986 - 1993 | |
| OPEL | Corsa | 1.2 (1196ccm) Petrol | 12S | A | 91/92/96 | 1986 - 1990 | |
| OPEL | Corsa | 1.2 (1196ccm) Petrol | 12NC | A | 93/94/98/99 | 1982 - 1990 | |
| OPEL | Corsa | 1.2 (1196ccm) Petrol | 12NC | A | 91/92/96/97 | 1986 - 1990 | |
| OPEL | Corsa | 1.2 (1196ccm) Petrol | 12NV | A | 93/94/99 | 1990 - 1993 | |
| OPEL | Corsa Van | 1.2 (1196ccm) Petrol | 12ST | A | 93 | 1985 - 1989 | |
| OPEL | Corsa Van | 1.2 (1196ccm) Petrol | E12GV | A | 93 | 1987 - 1990 | |
| OPEL | Kadett | 1.6 (1584ccm) Petrol | 16NC | C | 37/97 | 1976 - 1979 | |
| OPEL | Kadett | 1.6 (1584ccm) Petrol | 16NC | C | 93/95 | 1976 - 1979 | |
| OPEL | Rekord | 2.0 (1979ccm) Petrol | 20E | E | 16/17 | 1980 - 1984 | |
| OPEL | Rekord | 2.0 (1979ccm) Petrol | 20N | E | 16/17 | 1980 - 1982 | |
| OPEL | Rekord | 2.0 (1979ccm) Petrol | 20E | E | 64/66/67 | 1980 - 1984 | |
| OPEL | Rekord | 2.0 (1979ccm) Petrol | 20S | E | 64/66/67 | 1980 - 1986 | |
| OPEL | Rekord | 2.0 (1979ccm) Petrol | 20N | E | 67 | 1980 - 1980 | |
| OPEL | Rekord | 2.0 (1979ccm) Petrol | 20S | E | 17 | 1980 - 1986 | |
| OPEL | Rekord | 2.2 (2197ccm) Petrol | 22E | E | 64/66/67 | 1983 - 1986 | |
| OPEL | Rekord | 2.2 (2197ccm) Petrol | 22E | E | 16/17 | 1983 - 1986 |
Description
A0863 Replacement Alternator
The A0863 alternator is a replacement unit identified by Lucas reference LRA00863. The listed electrical rating is 12V 55A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected Bedford Blitz 2.0 Petrol variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 55A output: compare the listed rating with the original alternator.
- Single-groove pulley: check belt profile and alignment against the existing unit.
- 2 mounting holes: compare the fixing pattern and unit position.
- M6 B+ terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Bedford Blitz 2.0 Petrol – selected applications 1985–1987 (engine code 20N).
- Opel Ascona 2.0 Petrol – selected applications 1978–1981 (engine code 20N).
- Opel Commodore 2.5 Petrol – selected applications 1978–1982 (engine code 25E).
- Opel Corsa 1.2 Petrol – selected applications 1990–1992 (engine code C12NZ).
- Opel Corsa Van 1.2 Petrol – selected applications 1985–1989 (engine code 12ST).
- Opel Kadett 1.6 Petrol – selected applications 1976–1979 (engine code 16NC).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with A0863. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
120300536, 120400782, 120489110, 120489111, 120489504, 120489505, 120489631, 120489632, 986030830, 986030831, 432842, 436157, LRA00863, LRA00272, LRA272, LRA863, 3472018, 3472033, 3472060, 3472222, 3472289, DRA0280, DRA0830
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Alternator?
Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying A0863 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will A0863 fit my Bedford Blitz?
Bedford Blitz 2.0 Petrol (1985–1987) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does A0863 replace Lucas LRA00863?
Lucas LRA00863 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for A0863?
The listed details include 12V, 55A output, 1 pulley groove. Compare the complete specifications on this page with the unit being replaced.
Is A0863 new or remanufactured?
Check the current product condition selection for A0863. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering A0863?
Compare 12V compatibility, 55A output, pulley configuration, mounting points and electrical connections with the original alternator.
Does a battery warning light prove the alternator has failed?
No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
