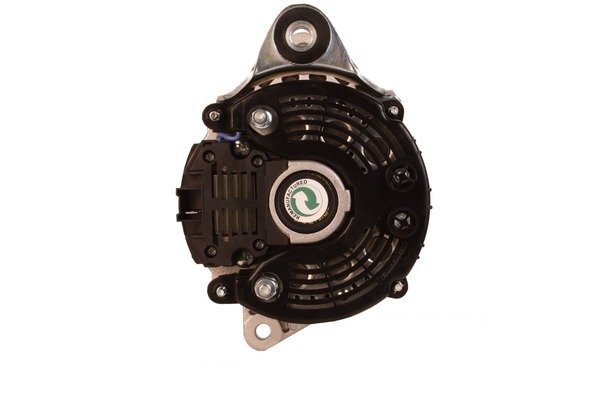

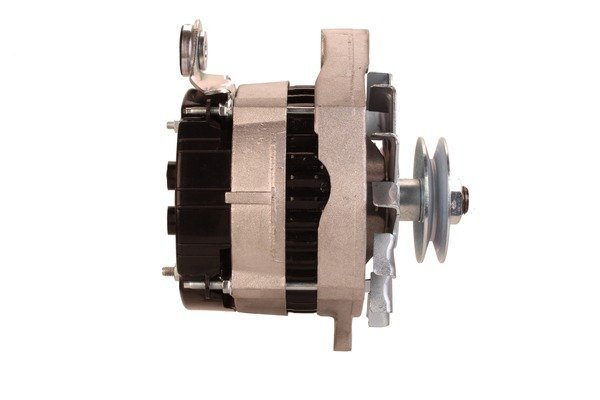

A0870 12V 50A Alternator Fits Peugeot 504, Peugeot 504 Pick Up
Price range: £105.00 through £168.00
Identify a replacement alternator using Sahibs A0870, listed at 12V 50A. Listed applications include selected Peugeot 504, Peugeot 504 Pick Up, Peugeot 505, Peugeot J7 models. Identification references include Lucas LRA00870, Bosch 120489173, Valeo 2101036. Its listed 12V 50A rating provides an electrical matching point for your existing unit. Check the single-groove pulley, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your A0870 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| AMP | 50 A |
| Volt | 12 V |
| No. of Grooves | 1 qty |
| Pulley Diameter | 66 mm |
| Mounting holes | 3 qty |
| Position | -20° |
| B+ | M6 |
| Insulated Return | No |
| Water cooled | No |
| Vacuum pump | No |
| Start/Stop | No |
| Weight | 4.5 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYA0870 | Dyno Electrics |
| 120489173 | Bosch |
| 120489174 | Bosch |
| 120489344 | Bosch |
| 986030990 | Bosch Exchange |
| 986030991 | Bosch Exchange |
| 986031851 | Bosch Exchange |
| 110894 | HC-Cargo |
| 110897 | HC-Cargo |
| 111155 | HC-Cargo |
| 14609R | WAI |
| 14954N | WAI |
| 2101036 | Valeo |
| 2183106 | Valeo |
| 225001055 | PSH |
| 432725 | Valeo |
| 432745 | Valeo |
| 433377 | Valeo |
| 433378 | Valeo |
| 433379 | Valeo |
| 433380 | Valeo |
| 451074 | Ducellier |
| 516021 | Ducellier |
| 570286 | PSA |
| 570288 | PSA |
| 570516 | PSA |
| 57052V | PSA |
| 570550 | PSA |
| 570551 | PSA |
| 570552 | PSA |
| 570553 | PSA |
| 570577 | PSA |
| 570578 | PSA |
| 570586 | PSA |
| 71212102 | Valeo |
| 71636202 | Valeo |
| 71636302 | Valeo |
| 71636802 | Valeo |
| 71636902 | Valeo |
| 71652002 | Valeo |
| 71652102 | Valeo |
| 71653102 | Valeo |
| 71653202 | Valeo |
| 746078 | Valeo |
| 9151589980 | PSA |
| 943356146 | Magneti Marelli |
| 9.43E+11 | Magneti Marelli |
| 9.44E+11 | Magneti Marelli |
| 95612088 | PSA |
| 9561208880 | PSA |
| 9561208980 | PSA |
| 9AR2681K | Motorola |
| 9AR2815 | Valeo |
| 9AR2815K | Motorola |
| 9AR2815L | Valeo |
| 9AR2998 | Valeo |
| 9AR2998K | Valeo |
| A12M10 | Valeo |
| A12M18 | Valeo |
| A12R30 | Valeo |
| A12R31 | Valeo |
| A12R33 | Valeo |
| A12R52 | Valeo |
| A13N118 | Valeo |
| A13N144 | Valeo |
| A13N224 | Valeo |
| A13N32 | Valeo |
| A13N41 | Valeo |
| A13R267 | Valeo |
| A13R268 | Valeo |
| A13R32 | Valeo |
| ALT14089 | Wood Auto |
| CA308IR | HC-Parts |
| CA331IR | HC-Parts |
| CA374IR | HC-Parts |
| DRA0992 | Delco Remy |
| DRA0993 | Delco Remy |
| DRA0994 | Delco Remy |
| DRA0995 | Delco Remy |
| DRA1771 | Delco Remy |
| DRA1851 | Delco Remy |
| LRA00379 | Lucas |
| LRA00870 | Lucas |
| LRA01202 | Lucas |
| LRA1202 | Lucas |
| LRA379 | Lucas |
| LRA870 | Lucas |
| MRA30990 | Magneti Marelli |
| NA247 | Valeo |
| NA279 | Valeo |
| VA162 | Valeo |
| WOOALT14089 | Wood Auto |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| PEUGEOT | 504 | 2.1 (2112ccm) Diesel | XD90 | A20 | 1979 - 1981 | ||
| PEUGEOT | 504 | 2.1 (2112ccm) Diesel | XD90 | Familiale | F20 | 1979 - 1981 | |
| PEUGEOT | 504 | 2.1 (2112ccm) Diesel | XD90 | Commercial | E20 | 1979 - 1981 | |
| PEUGEOT | 504 | 2.1 (2112ccm) Diesel | XD90 | Familiale | D20 | 1979 - 1981 | |
| PEUGEOT | 504 | 2.1 (2112ccm) Diesel | XD90 | M20 | 1979 - 1981 | ||
| PEUGEOT | 504 | 2.3 (2304ccm) Diesel | XD2 | Commercial | E40/E45 | 1979 - 1979 | |
| PEUGEOT | 504 | 2.3 (2304ccm) Diesel | XD2 | A40/A45/M40 | 1979 - 1983 | ||
| PEUGEOT | 504 | 2.3 (2304ccm) Diesel | XD2 | Familiale | D45/F40/F45 | 1979 - 1986 | |
| PEUGEOT | 504 Pick Up | 1.9 (1948ccm) Diesel | XD88 | Plancher | 636U20 | 1980 - 1989 | |
| PEUGEOT | 504 Pick Up | 2.3 (2304ccm) Diesel | XD2 | Plancher | 636V40/636V48 | 1980 - 1989 | |
| PEUGEOT | 505 | 2.3 (2304ccm) Diesel | XD2S | 551A | 1980 - 1986 | ||
| PEUGEOT | 505 | 2.3 (2304ccm) Diesel | XD2S | Break | 551D | 1982 - 1986 | |
| PEUGEOT | 505 | 2.5 (2498ccm) Diesel | XD3 | 551A | 1981 - 1993 | ||
| PEUGEOT | 505 | 2.5 (2498ccm) Diesel | XD3 | 551A | 1982 - 1991 | ||
| PEUGEOT | 505 | 2.5 (2498ccm) Diesel | XD3 | Break/Familiale | 551D | 1982 - 1993 | |
| PEUGEOT | 505 | 2.5 (2498ccm) Diesel | XD3 | Break/Familiale | 551D | 1983 - 1991 | |
| PEUGEOT | 505 | 2.5 (2498ccm) Diesel | XD3T | 551A | 1983 - 1990 | ||
| PEUGEOT | 505 | 2.5 (2498ccm) Diesel | XD3T | 551A | 1983 - 1989 | ||
| PEUGEOT | 505 | 2.5 (2498ccm) Diesel | XD3T | Break/Familiale | 551D | 1985 - 1991 | |
| PEUGEOT | 505 | 2.5 (2498ccm) Diesel | XD3T | Break/Familiale | 551D | 1985 - 1987 | |
| PEUGEOT | 505 | 2.5 (2498ccm) Diesel | XD3TE | 551A | 1986 - 1991 | ||
| PEUGEOT | 505 | 2.5 (2498ccm) Diesel | XD3TE | Break/Familiale | 551D | 1986 - 1991 | |
| PEUGEOT | J7 | 2.1 (2112ccm) Diesel | XDP90 | BD7005/BDS7615/BDS7645/PX43/PX44/PZ40 | 1970 - 1977 | ||
| PEUGEOT | J7 | 2.1 (2112ccm) Diesel | XDP90 | BD7045/BD7625/BD7645/PW40/PW45/PZ40 | 1970 - 1977 | ||
| PEUGEOT | J7 | 2.1 (2112ccm) Diesel | XDP90 | Plancher | BD7105/BD7135/BDT7155/BDT7165/PY40/PY48/PZ41/PZ42 | 1970 - 1980 | |
| PEUGEOT | J7 | 2.3 (2304ccm) Diesel | XD2P | PW60/PW65/PX60/PX63/PX64/PZ60 | 1977 - 1980 | ||
| PEUGEOT | J7 | 2.3 (2304ccm) Diesel | XD2P | PY60/PY66/PY68/PZ61/PZ62 | 1977 - 1980 | ||
| PEUGEOT | J7 | 2.3 (2304ccm) Diesel | XD2P | PX60/PZ60 | 1977 - 1980 | ||
| PEUGEOT | J9 | 2.3 (2304ccm) Diesel | XD2P | 888A70 | 1980 - 1982 | ||
| PEUGEOT | J9 | 2.3 (2304ccm) Diesel | XD2P | 888A73/888A75 | 1980 - 1982 | ||
| PEUGEOT | J9 | 2.3 (2304ccm) Diesel | XD2P | 888A79/888C70/888C73 | 1980 - 1982 | ||
| PEUGEOT | J9 | 2.5 (2498ccm) Diesel | XD3P | 888A79/888C70/888C73 | 1982 - 1987 | ||
| PEUGEOT | J9 | 2.5 (2498ccm) Diesel | XD3P | 888A70 | 1982 - 1987 | ||
| PEUGEOT | J9 | 2.5 (2498ccm) Diesel | XD3P | 888A73/888A75 | 1982 - 1987 |
Description
A0870 Replacement Alternator
The Sahibs A0870 alternator is associated with Lucas reference LRA00870 for replacement identification. The listed electrical rating is 12V 50A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected Peugeot 504 2.1 Diesel variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 50A output: compare the listed rating with the original alternator.
- Single-groove pulley: check belt profile and alignment against the existing unit.
- 3 mounting holes: compare the fixing pattern and unit position.
- M6 B+ terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Peugeot 504 2.1 Diesel – selected applications 1979–1981 (engine code XD90).
- Peugeot 504 Pick Up 1.9 Diesel – selected applications 1980–1989 (engine code XD88).
- Peugeot 505 2.3 Diesel – selected applications 1980–1986 (engine code XD2S).
- Peugeot J7 2.1 Diesel – selected applications 1970–1977 (engine code XDP90).
- Peugeot J9 2.3 Diesel – selected applications 1980–1982 (engine code XD2P).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with A0870. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
120489173, 120489174, 120489344, 986030990, 986030991, 986031851, 2101036, 2183106, 432725, 432745, 433377, 433378, 433379, 433380, 71212102, 71636202, 71636302, 71636802, 71636902, 71652002, 71652102, 71653102, 71653202, 746078, 9AR2815, 9AR2815L, 9AR2998, 9AR2998K, A12M10, A12M18, A12R30, A12R31, A12R33, A12R52, A13N118, A13N144, A13N224, A13N32, A13N41, A13R267, A13R268, A13R32, NA247, NA279, VA162, LRA00870, LRA00379, LRA01202, LRA1202, LRA379, LRA870, DRA0992, DRA0993, DRA0994, DRA0995, DRA1771, DRA1851
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Alternator?
Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying A0870 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will A0870 fit my Peugeot 504?
Peugeot 504 2.1 Diesel (1979–1981) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does A0870 replace Lucas LRA00870?
Lucas LRA00870 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for A0870?
The listed details include 12V, 50A output, 1 pulley groove. Compare the complete specifications on this page with the unit being replaced.
Is A0870 new or remanufactured?
Check the current product condition selection for A0870. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering A0870?
Compare 12V compatibility, 50A output, pulley configuration, mounting points and electrical connections with the original alternator.
Does a battery warning light prove the alternator has failed?
No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
