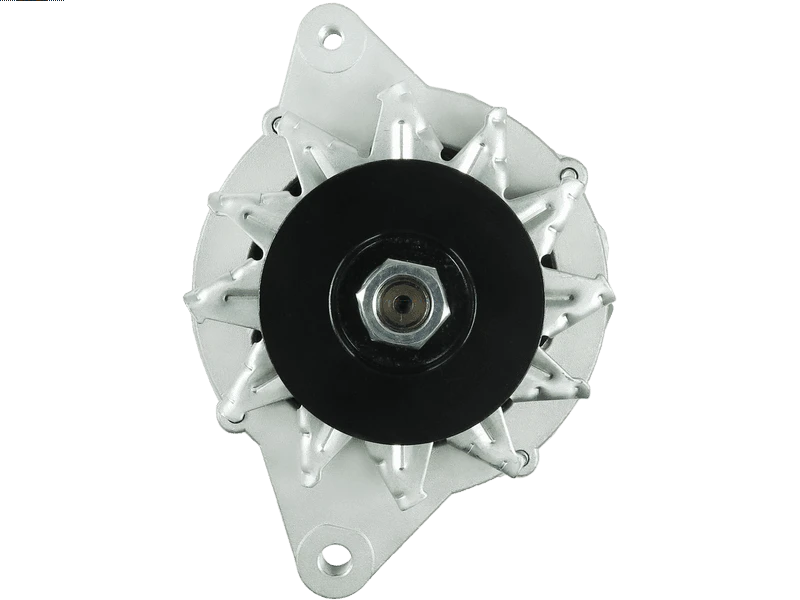

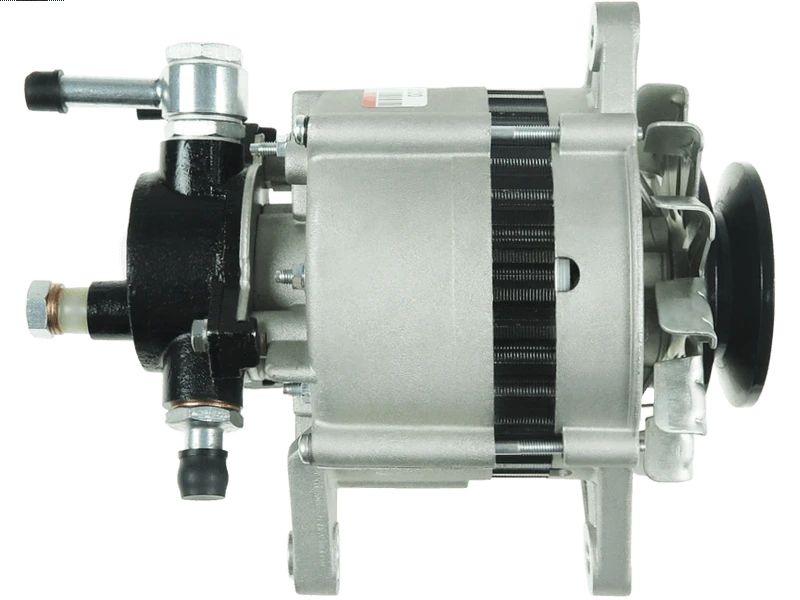

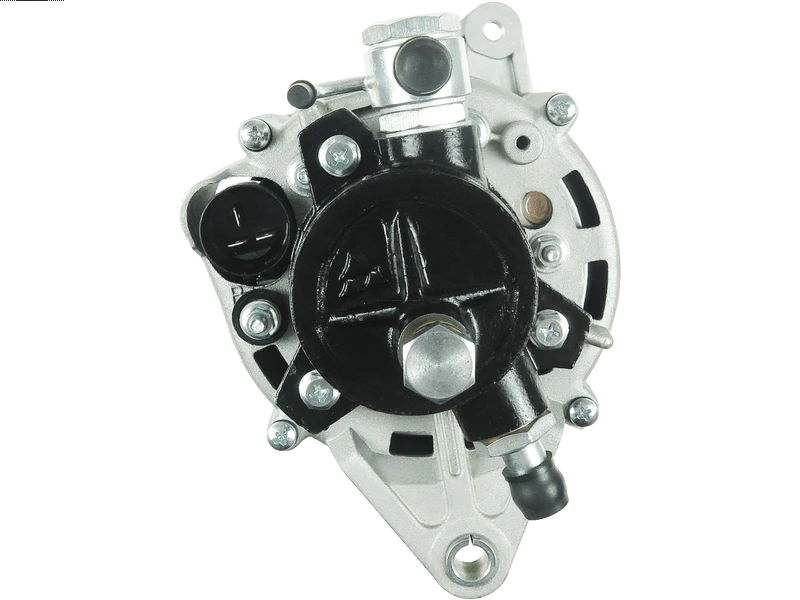

A0939 12V 70A Alternator Fits Vauxhall Nova, Vauxhall Nova Van
Price range: £115.48 through £148.92
Compare the A0939 12V 70A alternator from Sahibs Auto Electrics with the unit currently fitted. Listed applications include selected Vauxhall Nova, Vauxhall Nova Van, Isuzu Gemini, Opel Corsa models. Identification references include Lucas LRA00939, Bosch 986037811, Valeo 436724. Its listed 12V 70A rating provides an electrical matching point for your existing unit. Check the single-groove pulley, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your A0939 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| AMP | 70 A |
| Volt | 12 V |
| No. of Grooves | 1 qty |
| Pulley Diameter | 50 mm |
| Mounting holes | 3 qty |
| Position | -30° |
| B+ | M6 |
| Insulated Return | No |
| Water cooled | No |
| Vacuum pump | Yes |
| Start/Stop | No |
| Weight | 5.8 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYA0939 | Dyno Electrics |
| A2020 | AS-PL |
| 986037811 | BOSCH |
| 111187 | CARGO |
| F032111187 | CARGO |
| DRA3275 | DELCO |
| 8EL726388-001 | HELLA |
| LR170-411 | HITACHI |
| LR170-411B | HITACHI |
| LR170-411C | HITACHI |
| LR170-411D | HITACHI |
| LR170-411E | HITACHI |
| LR170-411F | HITACHI |
| LR170-411P | HITACHI |
| 8-94471-996-5 | ISUZU |
| 8944719960 | ISUZU |
| 8944719961 | ISUZU |
| 8944719963 | ISUZU |
| 8944719964 | ISUZU |
| 8970447790 | ISUZU |
| 1204062 | OPEL |
| 1204132 | OPEL |
| 6204058 | OPEL |
| 90542406 | OPEL |
| 9163940 | OPEL |
| 94471996 | OPEL |
| 9512123 | OPEL |
| 97044779 | OPEL |
| 20100939 | PRESTOLITE |
| 436724 | VALEO |
| ALTS968 | 3EFFE |
| PRAS968 | 3EFFE |
| CGB-13275 | AINDE |
| ANM35495X | ANDEL |
| 002-U900 | ASHIKA |
| AEA9139 | AUTOELECTRO |
| CAL20117AS | CASCO |
| 9350 | CEVAM |
| 56186 | EAI |
| 56287 | EAI |
| 28-1589 | ELSTOCK |
| 210288 | ERA |
| 9090003 | FRIESEN |
| JA673IR | HC PARTS |
| ALU900 | JAPANPARTS |
| 2U900 | JAPKO |
| 40673RI | KUHNER |
| 11.0673 | LAUBER |
| 11.0673M | LAUBER |
| 445722 | LOGISTIK |
| LRA00939 | LUCAS |
| LRA939 | LUCAS |
| 89213118 | POWERMAX |
| 20145711BN | REAL |
| 2020117 | SANDO |
| ALT3130 | SIOM |
| ALT5440 | SIOM |
| SA631 | SOVEREIGN |
| STX101156 | STARDAX |
| 549082 | VAUXHALL |
| R1030073 | VAUXHALL |
| 20819N | WAI / TRANSPO |
| ALT32177 | WOODAUTO |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| ISUZU | Gemini | 1.5 (1488ccm) Diesel | 4EC1 | JT500 | 1984 - 1990 | ||
| OPEL | Corsa | 1.5 (1488ccm) Diesel | 15D | A | 94/99 | 1987 - 1993 | |
| OPEL | Corsa | 1.5 (1488ccm) Diesel | 15D | A | 92/97 | 1987 - 1993 | |
| OPEL | Corsa Van | 1.5 (1488ccm) Diesel | 15D | A | 93 | 1987 - 1993 | |
| VAUXHALL | Nova | 1.5 (1488ccm) Diesel | 15D | RVLH99/RZLH94 | 1987 - 1993 | ||
| VAUXHALL | Nova | 1.5 (1488ccm) Diesel | T4EC1 | RZLH94 | 1990 - 1993 | ||
| VAUXHALL | Nova | 1.5 (1488ccm) Diesel | T4EC1 | RHL97 | 1990 - 1993 | ||
| VAUXHALL | Nova Van | 1.5 (1488ccm) Diesel | 15D | RV08 | 1990 - 1993 |
Description
A0939 Replacement Alternator
For a A0939 alternator enquiry, use Lucas reference LRA00939 alongside the vehicle and original unit details. The listed electrical rating is 12V 70A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected Vauxhall Nova 1.5 Diesel variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 70A output: compare the listed rating with the original alternator.
- Single-groove pulley: check belt profile and alignment against the existing unit.
- 3 mounting holes: compare the fixing pattern and unit position.
- M6 B+ terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Vauxhall Nova 1.5 Diesel – selected applications 1987–1993 (engine code 15D).
- Vauxhall Nova Van 1.5 Diesel – selected applications 1990–1993 (engine code 15D).
- Isuzu Gemini 1.5 Diesel – selected applications 1984–1990 (engine code 4EC1).
- Opel Corsa 1.5 Diesel – selected applications 1987–1993 (engine code 15D).
- Opel Corsa Van 1.5 Diesel – selected applications 1987–1993 (engine code 15D).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with A0939. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
986037811, 436724, LRA00939, LRA939, LR170-411, LR170-411B, LR170-411C, LR170-411D, LR170-411E, LR170-411F, LR170-411P, DRA3275, 20100939
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Alternator?
Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying A0939 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will A0939 fit my Vauxhall Nova?
Vauxhall Nova 1.5 Diesel (1987–1993) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does A0939 replace Lucas LRA00939?
Lucas LRA00939 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for A0939?
The listed details include 12V, 70A output, 1 pulley groove. Compare the complete specifications on this page with the unit being replaced.
Is A0939 new or remanufactured?
Check the current product condition selection for A0939. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering A0939?
Compare 12V compatibility, 70A output, pulley configuration, mounting points and electrical connections with the original alternator.
Does a battery warning light prove the alternator has failed?
No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
