A1096 12V 55A Alternator Fits VW Taro, Toyota Dyna, Toyota Dyna 100
Price range: £118.29 through £153.55
Sahibs A1096 is a replacement alternator with a listed 12V 55A rating. Listed applications include selected VW Taro, Toyota Dyna, Toyota Dyna 100, Toyota Dyna 150 models. Identification references include Lucas LRA01096, Bosch 986049840, Valeo 437705. Its listed 12V 55A rating provides an electrical matching point for your existing unit. Check the 2-groove pulley, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your A1096 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| AMP | 55 A |
| Volt | 12 V |
| No. of Grooves | 2 qty |
| Pulley Diameter | 51 mm |
| Mounting holes | 3 qty |
| Position | 15° |
| B+ | M6 |
| Insulated Return | No |
| Water cooled | No |
| Vacuum pump | Yes |
| Start/Stop | No |
| Weight | 7.2 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYA1096 | Dyno Electrics |
| 401820341 | Euro Car Part |
| A6135 | AS-PL |
| 986049840 | BOSCH |
| 111483 | CARGO |
| F032111483 | CARGO |
| 27020-54400-84 | DAIHATSU |
| 10021-03350 | DENSO |
| 10021-03360 | DENSO |
| 10021-03400 | DENSO |
| 10021-03460 | DENSO |
| 10021-03580 | DENSO |
| 10021-03680 | DENSO |
| 10021-03770 | DENSO |
| 10021-03810 | DENSO |
| 10021-03821 | DENSO |
| 10021-08160 | DENSO |
| 10021-15900 | DENSO |
| 12100-05100 | DENSO |
| 8EL012429-271 | HELLA |
| 27020-54160-84 | TOYOTA |
| 27020-54250 | TOYOTA |
| 27020-54351 | TOYOTA |
| 27020-54352 | TOYOTA |
| 27020-54353 | TOYOTA |
| 27020-54354 | TOYOTA |
| 27020-54354-84 | TOYOTA |
| 27020-54383 | TOYOTA |
| 27020-54700 | TOYOTA |
| 27030-54190 | TOYOTA |
| 27030-54241 | TOYOTA |
| 27030-54242 | TOYOTA |
| 27030-54243 | TOYOTA |
| 27030-54244 | TOYOTA |
| 27030-54250 | TOYOTA |
| 27030-54251 | TOYOTA |
| 27030-54252 | TOYOTA |
| 27030-54253 | TOYOTA |
| 27030-54260 | TOYOTA |
| 27030-54261 | TOYOTA |
| 27030-54262 | TOYOTA |
| 27030-54263 | TOYOTA |
| 27060-54100 | TOYOTA |
| 27060-54101 | TOYOTA |
| 437705 | VALEO |
| J2702054352 | VW |
| J2702054700 | VW |
| ALTS055 | 3EFFE |
| CGB-13518 | AINDE |
| ANM35738 | ANDEL |
| AAL1006 | APEC |
| 002-T916 | ASHIKA |
| AEB0777 | AUTOELECTRO |
| CAL40101AS | CASCO |
| 56424 | EAI |
| ALT6468 | ELECTROLOG |
| ALT6469 | ELECTROLOG |
| 27-1802 | ELSTOCK |
| 210768A | ERA |
| SA054250-A | GPARTS |
| JA777 | HC PARTS |
| J5112083 | HERTH+BUSS |
| ALT916 | JAPANPARTS |
| 2T916 | JAPKO |
| ALN0777 | KRAUF |
| 40777 | KUHNER |
| 445826 | LOGISTIK |
| SA991 | LOMBARDINI |
| LRA01096 | LUCAS |
| LRA1096 | LUCAS |
| 5540301 | MEAT & DORIA |
| NPANAL1006 | NAPA |
| 89212393 | POWERMAX |
| 195.807.055.050 | PSH |
| 195.807.055.058 | PSH |
| 195.807.055.395 | PSH |
| 20132101BN | REAL |
| ALT1019 | ROLLCO |
| 2040101 | SANDO |
| A12DE0374A2 | SIDAT |
| ALT421010 | SIOM |
| STX100232 | STARDAX |
| STX100957 | STARDAX |
| STX101222 | STARDAX |
| ALT30052 | WOODAUTO |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| A1110 | 55A Pulley 2 groove/76 Pump size 30 ccm | 45a Pulley 2 groove/60 Pump size 50 ccm | No |
| A1070 | 55A Pulley 2 groove/76 Pump size 30 ccm | 40-50A Pulley 2 groove/69 Pump zize 30 ccm | No |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| TOYOTA | Dyna | 2.4 (2446ccm) Diesel | 2L | LH80 | 1985 - 1995 | ||
| TOYOTA | Dyna 100 | 2.4 (2446ccm) Diesel | 2L | LY100 | 1995 - 1999 | ||
| TOYOTA | Dyna 150 | 2.4 (2446ccm) Diesel | 2L | LY60 | 1988 - 1995 | ||
| TOYOTA | Hilux | 2.4 (2446ccm) Diesel | 2L | MK V | LN85/LN90 | 1988 - 1997 | |
| TOYOTA | Hilux | 2.4 (2446ccm) Diesel | 2LT | MK V | LN130 | 1988 - 1997 | |
| TOYOTA | Hilux | 2.4 (2446ccm) Diesel | 2L | MK V | LN105/LN110 | 1989 - 1991 | |
| TOYOTA | Hilux | 2.4 (2446ccm) Diesel | 2L | MK V | LN85/LN90 | 1988 - 1991 | |
| TOYOTA | Hilux | 2.4 (2446ccm) Diesel | 2L | MK V | LN105/LN108/LN110 | 1991 - 1997 | |
| TOYOTA | Hilux | 2.4 (2446ccm) Diesel | 2L | MK V | LN85/LN90 | 1991 - 1997 | |
| TOYOTA | Hilux | 2.4 (2446ccm) Diesel | 2L | MK V | LN105/LN108/LN110 | 1994 - 1997 | |
| TOYOTA | Hilux | 2.4 (2446ccm) Diesel | 2L | MK V | LN90 | 1995 - 1997 | |
| TOYOTA | Hilux | 2.4 (2446ccm) Diesel | 2L | MK VI | LN145/LN150 | 1997 - 2005 | |
| VW | Taro | 2.4 (2446ccm) Diesel | 2L | 7AE/7AG/7AX | 1989 - 1997 | ||
| VW | Taro | 2.4 (2446ccm) Diesel | 2L | Syncro | 7AE/7AG/7AX | 1989 - 1997 | |
| VW | Taro | 2.4 (2446ccm) Diesel | 2L | 7AX | 1991 - 1994 | ||
| VW | Taro | 2.4 (2446ccm) Diesel | 2L | 7AE/7AG/7AX | 1994 - 1997 | ||
| VW | Taro | 2.4 (2446ccm) Diesel | 2L | Syncro | 7AE/7AG/7AX | 1994 - 1997 |
Description

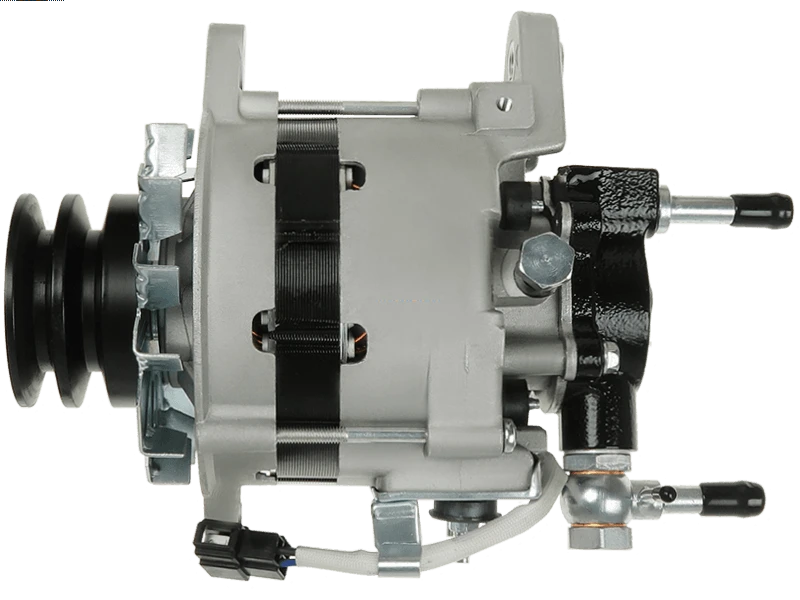

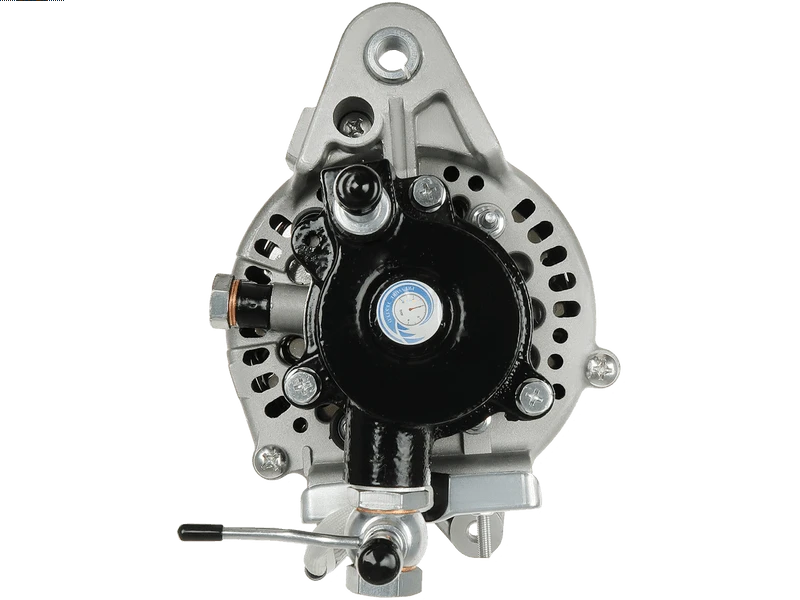

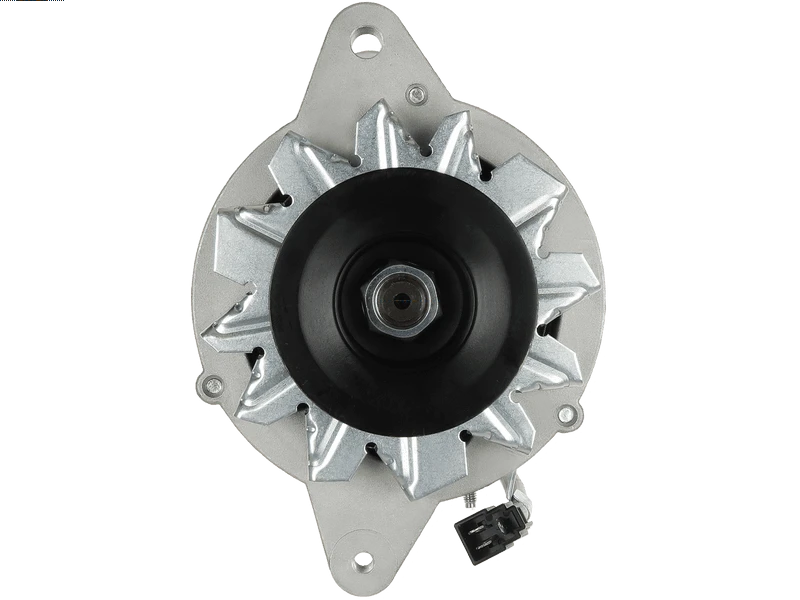

A1096 Replacement Alternator
The A1096 alternator is a replacement unit identified by Lucas reference LRA01096. The listed electrical rating is 12V 55A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected VW Taro 2.4 Diesel variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 55A output: compare the listed rating with the original alternator.
- 2-groove pulley: check belt profile and alignment against the existing unit.
- 3 mounting holes: compare the fixing pattern and unit position.
- M6 B+ terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- VW Taro 2.4 Diesel – selected applications 1989–1997 (engine code 2L).
- Toyota Dyna 2.4 Diesel – selected applications 1985–1995 (engine code 2L).
- Toyota Dyna 100 2.4 Diesel – selected applications 1995–1999 (engine code 2L).
- Toyota Dyna 150 2.4 Diesel – selected applications 1988–1995 (engine code 2L).
- Toyota Hilux 2.4 Diesel – selected applications 1988–1997 (engine code 2L).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with A1096. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
986049840, 437705, 10021-03350, 10021-03360, 10021-03400, 10021-03460, 10021-03580, 10021-03680, 10021-03770, 10021-03810, 10021-03821, 10021-08160, 10021-15900, 12100-05100, LRA01096, LRA1096
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Alternator?
Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying A1096 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will A1096 fit my VW Taro?
VW Taro 2.4 Diesel (1989–1997) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does A1096 replace Lucas LRA01096?
Lucas LRA01096 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for A1096?
The listed details include 12V, 55A output, 2 pulley grooves. Compare the complete specifications on this page with the unit being replaced.
Is A1096 new or remanufactured?
Check the current product condition selection for A1096. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering A1096?
Compare 12V compatibility, 55A output, pulley configuration, mounting points and electrical connections with the original alternator.
Does a battery warning light prove the alternator has failed?
No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
