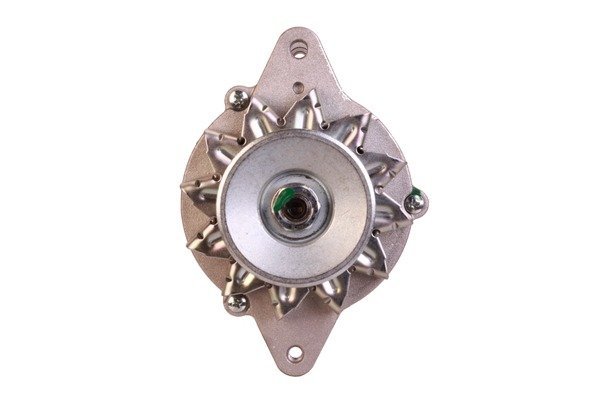

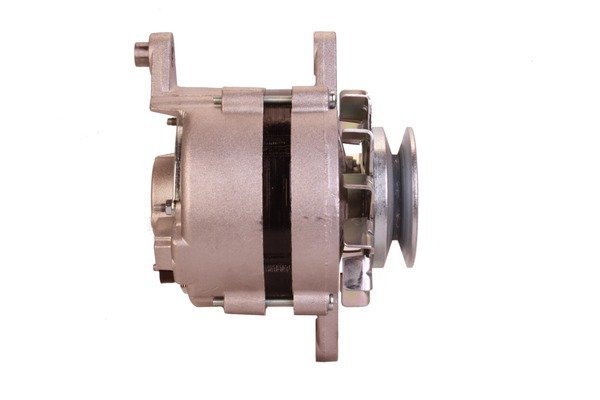

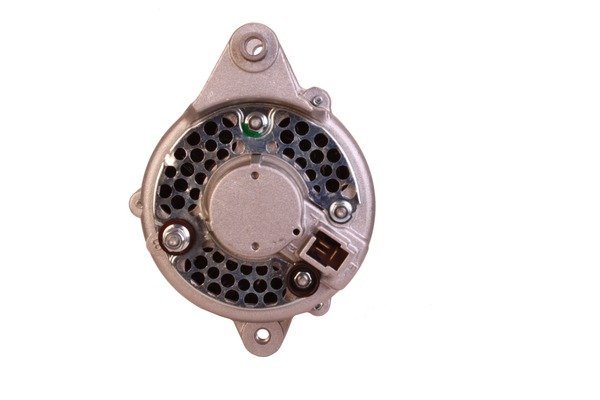

A1099 12V 30A Alternator Fits Toyota Fork Lift FG20
Price range: £125.00 through £200.00
Compare the A1099 12V 30A alternator from Sahibs Auto Electrics with the unit currently fitted. Listed applications include selected Toyota Fork Lift FG20 models. Identification references include Lucas LRA01099, Denso 210000081. Its listed 12V 30A rating provides an electrical matching point for your existing unit. Check the single-groove pulley, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your A1099 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| AMP | 30 A |
| Volt | 12 V |
| No. of Grooves | 1 qty |
| Pulley Diameter | 69 mm |
| Mounting holes | 3 qty |
| Position | 0° |
| B+ | M8 |
| Insulated Return | No |
| Water cooled | No |
| Vacuum pump | No |
| Start/Stop | No |
| Weight | 3.72 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYA1099 | Dyno Electrics |
| 210000081 | Denso |
| 210000124 | Denso |
| 210000457 | Denso |
| 210000459 | Denso |
| 210006850 | Denso |
| 210006851 | Denso |
| 210006852 | Denso |
| 210006853 | Denso |
| 210006860 | Denso |
| 210006861 | Denso |
| 210006862 | Denso |
| 210006863 | Denso |
| 21000953 | Denso |
| 110137 | HC-Cargo |
| 115001035 | PSH |
| 2702087503 | Toyota |
| 3000971 | Hyster |
| 5812001640 | Isuzu |
| 5812001641 | Isuzu |
| AIA100 | ATK |
| AUA305 | ATK |
| F032110137 | HC-Cargo |
| LRA01099 | Lucas |
| LRA1099 | Lucas |
| TRA382 | TWA |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| TOYOTA FORK LIFT | FG20 | 0ccm Diesel | 5R | 1984 - |
Description
A1099 Replacement Alternator
The Sahibs A1099 alternator is associated with Lucas reference LRA01099 for replacement identification. The listed electrical rating is 12V 30A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected Toyota Fork Lift FG20 variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 30A output: compare the listed rating with the original alternator.
- Single-groove pulley: check belt profile and alignment against the existing unit.
- 3 mounting holes: compare the fixing pattern and unit position.
- M8 B+ terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Toyota Fork Lift FG20 – selected applications 1984 – (engine code 5R).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with A1099. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
210000081, 210000124, 210000457, 210000459, 210006850, 210006851, 210006852, 210006853, 210006860, 210006861, 210006862, 210006863, 21000953, LRA01099, LRA1099
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Alternator?
Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying A1099 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will A1099 fit my Toyota Fork Lift FG20?
Toyota Fork Lift FG20 (1984 -) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does A1099 replace Lucas LRA01099?
Lucas LRA01099 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for A1099?
The listed details include 12V, 30A output, 1 pulley groove. Compare the complete specifications on this page with the unit being replaced.
Is A1099 new or remanufactured?
Check the current product condition selection for A1099. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering A1099?
Compare 12V compatibility, 30A output, pulley configuration, mounting points and electrical connections with the original alternator.
Does a battery warning light prove the alternator has failed?
No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
