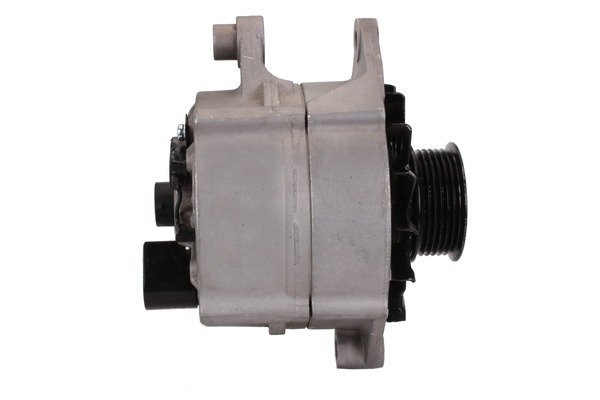

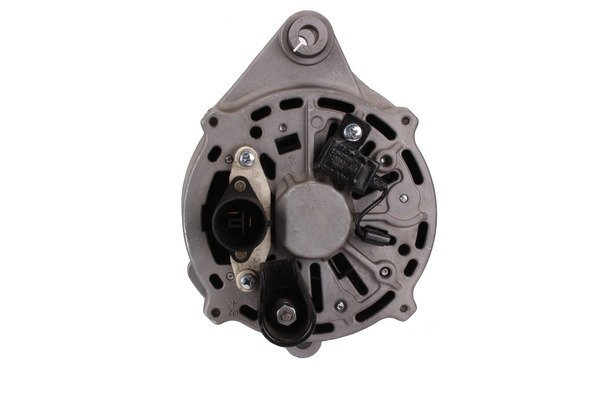

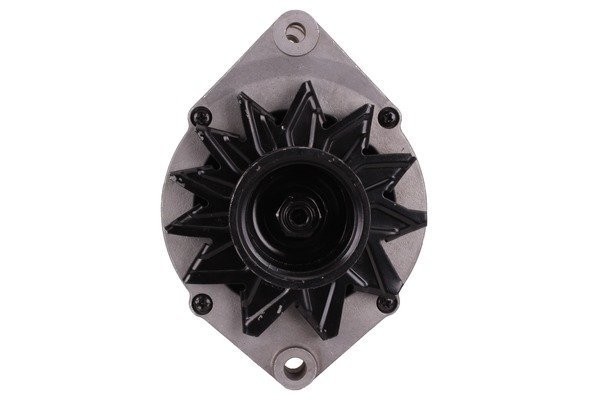

A1127 12V 120A Alternator Fits Chrysler Grand Voyager
Price range: £186.00 through £297.60
Identify a replacement alternator using Sahibs A1127, listed at 12V 120A. Listed applications include selected Chrysler Grand Voyager, Chrysler Voyager models. Identification references include Lucas LRA01127, Bosch 120450031, Chrysler 4686205. Its listed 12V 120A rating provides an electrical matching point for your existing unit. Check the 6-groove pulley, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your A1127 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| AMP | 120 A |
| Volt | 12 V |
| No. of Grooves | 6 qty |
| Pulley Diameter | 64 mm |
| Mounting holes | 3 qty |
| B+ | M6 |
| Insulated Return | No |
| Water cooled | No |
| Vacuum pump | No |
| Start/Stop | No |
| Weight | 6.05 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYA1127 | Dyno Electrics |
| 120450031 | Bosch |
| 4686205 | Chrysler |
| 22126R | WAI |
| 835004120 | PSH |
| ALT10626 | Wood Auto |
| LRA01127 | Lucas |
| LRA1127 | Lucas |
| WOOALT10626 | Wood Auto |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| A1123 | Without bolts for heating shield Pulley PV6/62 | With bolts for heating shield Different terminals Pulley PV5/58 | No |
| A1130 | 120A Without bolts for heating shield | 90A With bolts for heating shield Different terminals | No |
| A1146 | Without bolts for heating shield Without W terminal Pulley PV6/62 | With bolts for heating shield With W terminal Pulley PV5/58 Different terminals | No |
| A1173 | Without bolts for heating shield Without W terminal Pulley PV6/62 | With bolts for heating shield With W terminal Pulley PV6/65 Different terminals | No |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| CHRYSLER | Grand Voyager | 3.8 (3778ccm) Petrol | EGH | AWD | GSHC53 | 1995 - 1997 | |
| CHRYSLER | Grand Voyager | 3.8 (3778ccm) Petrol | EGH | AWD | GSHC53 | 1997 - 2001 | |
| CHRYSLER | Voyager | 3.8 (3778ccm) Petrol | EGH | AWD | GSHC52 | 1995 - 1997 | |
| CHRYSLER | Voyager | 3.8 (3778ccm) Petrol | EGH | AWD | GSHC52 | 1997 - 2001 |
Description
A1127 Replacement Alternator
For a A1127 alternator enquiry, use Lucas reference LRA01127 alongside the vehicle and original unit details. The listed electrical rating is 12V 120A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected Chrysler Grand Voyager 3.8 Petrol variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 120A output: compare the listed rating with the original alternator.
- 6-groove pulley: check belt profile and alignment against the existing unit.
- 3 mounting holes: compare the fixing pattern and unit position.
- M6 B+ terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Chrysler Grand Voyager 3.8 Petrol – selected applications 1995–1997 (engine code EGH).
- Chrysler Voyager 3.8 Petrol – selected applications 1995–1997 (engine code EGH).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with A1127. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
120450031, LRA01127, LRA1127, 4686205
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Alternator?
Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying A1127 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will A1127 fit my Chrysler Grand Voyager?
Chrysler Grand Voyager 3.8 Petrol (1995–1997) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does A1127 replace Lucas LRA01127?
Lucas LRA01127 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for A1127?
The listed details include 12V, 120A output, 6 pulley grooves. Compare the complete specifications on this page with the unit being replaced.
Is A1127 new or remanufactured?
Check the current product condition selection for A1127. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering A1127?
Compare 12V compatibility, 120A output, pulley configuration, mounting points and electrical connections with the original alternator.
Does a battery warning light prove the alternator has failed?
No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
