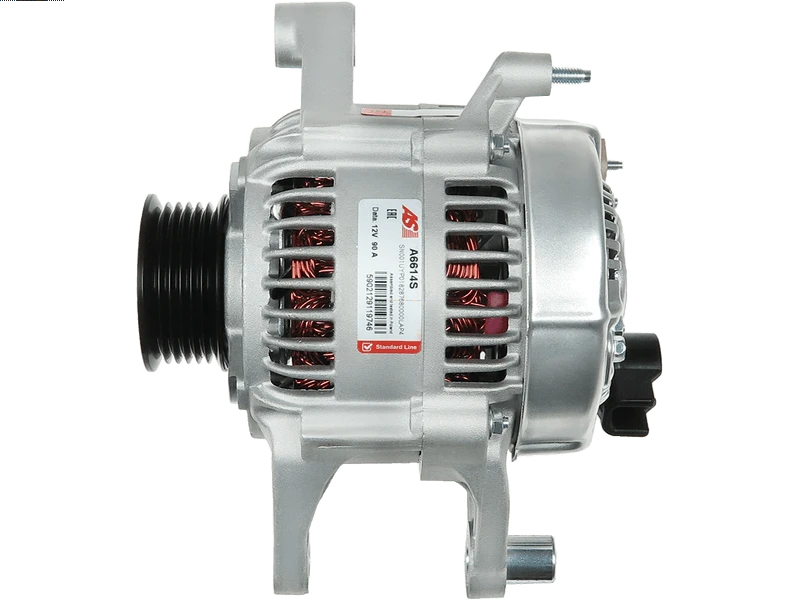

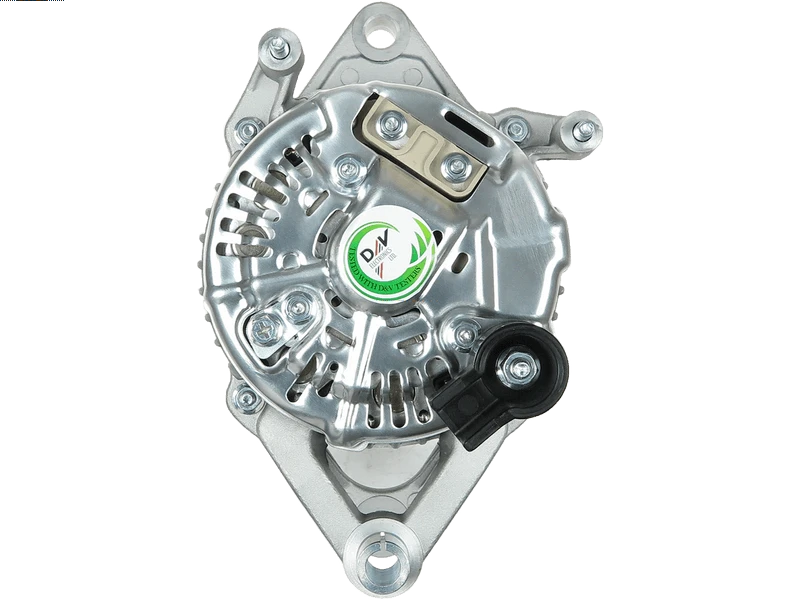

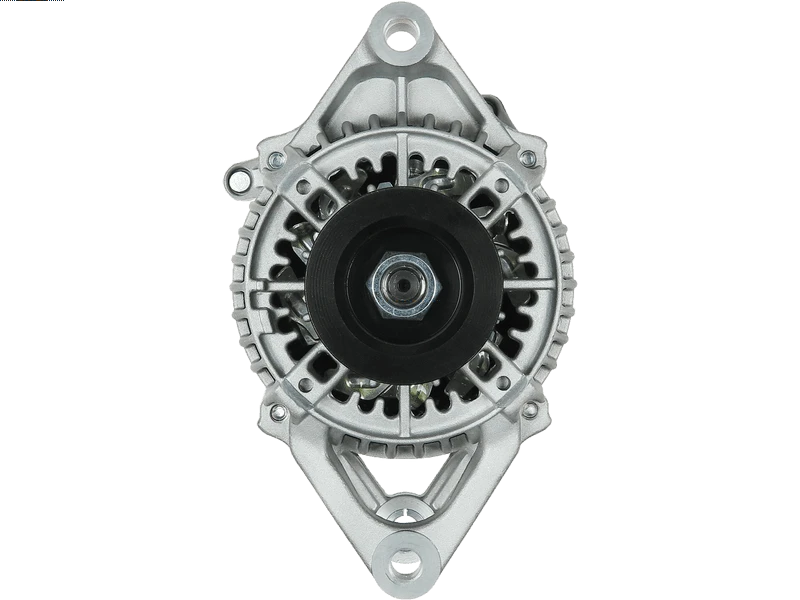

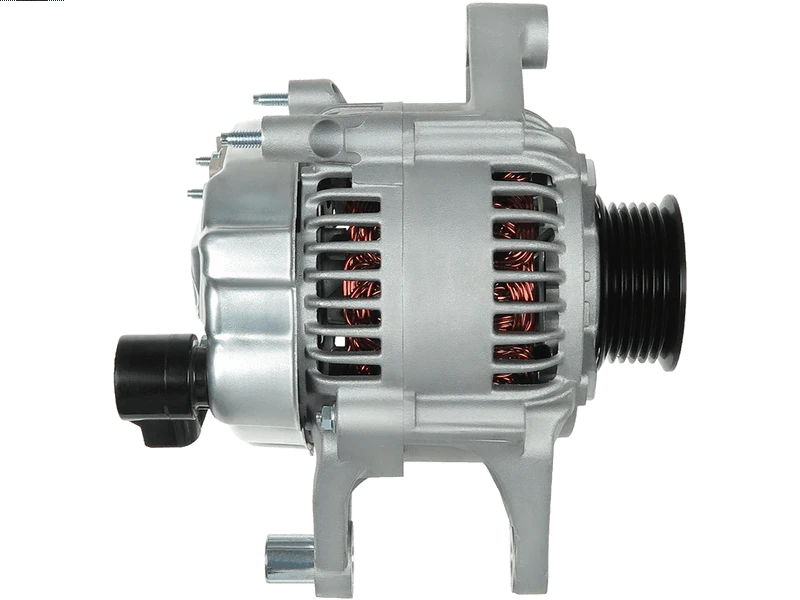

A1133 12V 90A Alternator Fits Jeep Cherokee, Jeep Cherokee Classic
Price range: £124.73 through £161.91
Sahibs A1133 is a replacement alternator with a listed 12V 90A rating. Listed applications include selected Jeep Cherokee, Jeep Cherokee Classic, Jeep Comanche, Jeep Grand Cherokee models. Identification references include Lucas LRA01133, Denso 121000-3450, Chrysler 56005684. Its listed 12V 90A rating provides an electrical matching point for your existing unit. Check the 6-groove pulley, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your A1133 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| AMP | 90 A |
| Volt | 12 V |
| No. of Grooves | 6 qty |
| Pulley Diameter | 57 mm |
| Mounting holes | 3 qty |
| Position | 180° |
| B+ | M6 |
| Insulated Return | No |
| Water cooled | No |
| Vacuum pump | No |
| Start/Stop | No |
| Weight | 5.1 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYA1133 | Dyno Electrics |
| 401830241 | Euro Car Part |
| UD16879A | AS-PL |
| 113063 | CARGO |
| F032113063 | CARGO |
| 56005684 | CHRYSLER |
| 56005685 | CHRYSLER |
| 56005685AB | CHRYSLER |
| 59005685 | CHRYSLER |
| 121000-3450 | DENSO |
| 121000-3452 | DENSO |
| 121000-3602 | DENSO |
| CGB-13788 | AINDE |
| A-8332 | DIXIE |
| ALT6084 | ELECTROLOG |
| 27-3603 | ELSTOCK |
| ALN0960 | KRAUF |
| 446842 | LOGISTIK |
| LRA01133 | LUCAS |
| LRA1133 | LUCAS |
| 835.510.090 | PSH |
| 835.510.090.460 | PSH |
| 20132272BN | REAL |
| STX100403 | STARDAX |
| STX100403R | STARDAX |
| 13341N | WAI / TRANSPO |
| 13341R | WAI / TRANSPO |
| 90-29-5122 | WILSON |
| 90-29-5122N | WILSON |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| JEEP | Cherokee | 2.5 (2464ccm) Petrol | EPE | XJ77/XJ78 | 1986 - 1998 | ||
| JEEP | Cherokee | 2.5 (2464ccm) Petrol | EPE | XJ77 | 1990 - 1996 | ||
| JEEP | Cherokee | 4.0 (3964ccm) Petrol | ERH | XJ78 | 1990 - 2001 | ||
| JEEP | Cherokee | 4.0 (3964ccm) Petrol | ERH | XJ78 | 1991 - 1998 | ||
| JEEP | Cherokee | 4.0 (3964ccm) Petrol | ERH | XJ77/XJ78 | 1995 - 2001 | ||
| JEEP | Cherokee Classic | 4.0 (3964ccm) Petrol | ERH | XJ77/XJ78 | 1999 - 2001 | ||
| JEEP | Comanche | 4.0 (3960ccm) Petrol | MX400L | Standard Cab Pickup | MJ64 | 1986 - 1992 | |
| JEEP | Comanche | 4.0 (3964ccm) Petrol | ERH | Standard Cab Pickup | MJ63 | 1987 - 1992 | |
| JEEP | Comanche | 4.0 (3964ccm) Petrol | ERH | Standard Cab Pickup | MJ64 | 1990 - 1992 | |
| JEEP | Grand Cherokee | 4.0 (3964ccm) Petrol | ERH | ZG/ZJ | 1992 - 1999 | ||
| JEEP | Grand Cherokee | 4.0 (3964ccm) Petrol | ERH | ZG/ZJ | 1993 - 1998 | ||
| JEEP | Grand Cherokee | 4.0 (3964ccm) Petrol | ERH | ZG/ZJ | 1996 - 1998 | ||
| JEEP | Wrangler | 2.5 (2464ccm) Petrol | E246L | YJ | 1991 - 1992 | ||
| JEEP | Wrangler | 2.5 (2464ccm) Petrol | EPE | TJ | 1996 - 1998 | ||
| JEEP | Wrangler | 4.0 (3964ccm) Petrol | ERH | YJ | 1991 - 1996 | ||
| JEEP | Wrangler | 4.0 (3964ccm) Petrol | ERH | TJ | 1996 - 2007 |
Description
A1133 Replacement Alternator
The Sahibs A1133 alternator is associated with Lucas reference LRA01133 for replacement identification. The listed electrical rating is 12V 90A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected Jeep Cherokee 2.5 Petrol variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 90A output: compare the listed rating with the original alternator.
- 6-groove pulley: check belt profile and alignment against the existing unit.
- 3 mounting holes: compare the fixing pattern and unit position.
- M6 B+ terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Jeep Cherokee 2.5 Petrol – selected applications 1986–1998 (engine code EPE).
- Jeep Cherokee Classic 4.0 Petrol – selected applications 1999–2001 (engine code ERH).
- Jeep Comanche 4.0 Petrol – selected applications 1986–1992 (engine code MX400L).
- Jeep Grand Cherokee 4.0 Petrol – selected applications 1992–1999 (engine code ERH).
- Jeep Wrangler 2.5 Petrol – selected applications 1991–1992 (engine code E246L).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with A1133. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
121000-3450, 121000-3452, 121000-3602, LRA01133, LRA1133, 56005684, 56005685, 56005685AB, 59005685
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Alternator?
Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying A1133 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will A1133 fit my Jeep Cherokee?
Jeep Cherokee 2.5 Petrol (1986–1998) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does A1133 replace Lucas LRA01133?
Lucas LRA01133 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for A1133?
The listed details include 12V, 90A output, 6 pulley grooves. Compare the complete specifications on this page with the unit being replaced.
Is A1133 new or remanufactured?
Check the current product condition selection for A1133. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering A1133?
Compare 12V compatibility, 90A output, pulley configuration, mounting points and electrical connections with the original alternator.
Does a battery warning light prove the alternator has failed?
No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
