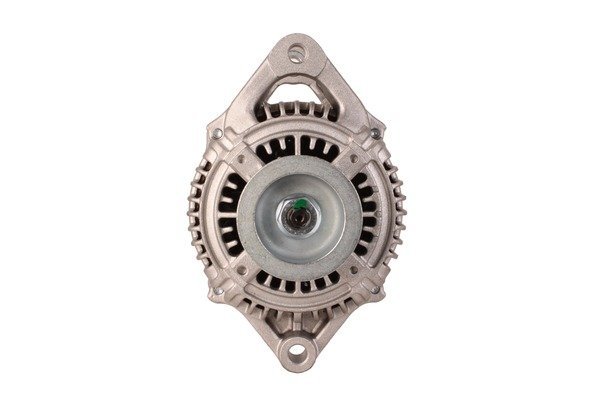

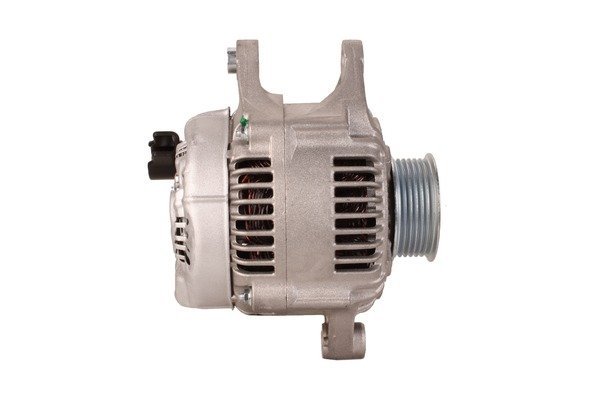

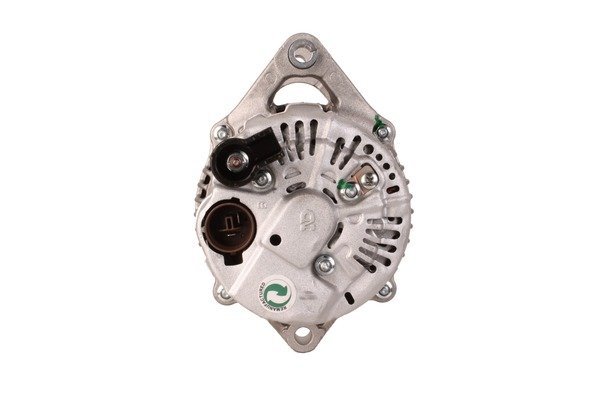

A1147 12V 120A Alternator Fits Chrysler Cirrus, Chrysler Voyager
Price range: £105.47 through £139.09
Identify a replacement alternator using Sahibs A1147, listed at 12V 120A. Listed applications include selected Chrysler Cirrus, Chrysler Grand Voyager, Chrysler Town & Country, Chrysler Voyager models. Identification references include Lucas LRA01147, Bosch F042302138, Denso 121000416. Its listed 12V 120A rating provides an electrical matching point for your existing unit. Check the 6-groove pulley, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your A1147 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| AMP | 120 A |
| Volt | 12 V |
| No. of Grooves | 6 qty |
| Pulley Diameter | 65 mm |
| Insulated Return | No |
| Water cooled | No |
| Vacuum pump | No |
| Start/Stop | No |
| Weight | 6.2 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYA1147 | Dyno Electrics |
| 401830111 | Euro Car Part |
| 04609230AA | Chrysler |
| 4727325 | Chrysler |
| 04727329AA | Volkswagen AG |
| 0986CN0266 | Bosch Exchange |
| 0986CR0266 | Bosch Exchange |
| 0986UN0266 | Bosch Exchange |
| 0986UR0266 | Bosch Exchange |
| 113070 | HC-Cargo |
| 113235 | HC-Cargo |
| 1207501ND | WAI |
| 121000416 | Denso |
| 1210004160 | Denso |
| 1210004161 | Denso |
| 1210004260 | Denso |
| 1210004261 | Denso |
| 1210004320 | Denso |
| 1210004330 | Denso |
| 1210004331 | Denso |
| 1210004332 | Denso |
| 13594N | WAI |
| 13594R | WAI |
| 13741N | WAI |
| 13765N | WAI |
| 13765R | WAI |
| 38522264 | Chrysler |
| 4609230 | Chrysler |
| 4609230AA | Chrysler |
| 4686099 | Chrysler |
| 4727221 | Chrysler |
| 4727325AA | Chrysler |
| 4727329A | Chrysler |
| 4727329AA | Chrysler |
| 5104775AA | Chrysler |
| 835507120 | PSH |
| 90295191 | Wilson |
| 90295194 | Wilson |
| 9712109416 | Denso |
| A8648 | Dixie |
| A8782 | Dixie |
| AL6525N | Bosch (USA) |
| AL6525X | Bosch (USA) |
| ALT30126 | Wood Auto |
| ALT30328 | Wood Auto |
| ALT6206 | Unipoint |
| ALT6208 | Wood Auto |
| DRZ0199 | Delco Remy |
| F032113235 | HC-Cargo |
| F042302138 | Bosch |
| F042302149 | Bosch |
| F042A02149 | Bosch |
| HJA1707IR | HC-Parts |
| JA1707 | HC-Parts |
| JA1707IR | HC-Parts |
| LRA01147 | Lucas |
| LRA02832 | Lucas |
| LRA03323 | Lucas |
| LRA1147 | Lucas |
| LRA2832 | Lucas |
| LRA3323 | Lucas |
| RNL4330ND | RNL |
| WOOALT30126 | Wood Auto |
| WOOALT30328 | Wood Auto |
| WOOALT6208 | Wood Auto |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| A1151 | 120A | 90A | No |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| CHRYSLER | Cirrus | 2.5 (2497ccm) Petrol | EEB | J56H | 1994 - 2000 | ||
| CHRYSLER | Grand Voyager | 2.4 (2429ccm) Petrol | EDZ | GSHY53/GSHZ53 | 1995 - 2001 | ||
| CHRYSLER | Grand Voyager | 2.4 (2429ccm) Petrol | EDZ | AWD | GSHC53/GSHU53 | 1997 - 2000 | |
| CHRYSLER | Town & Country | 3.8 (3778ccm) Petrol | EGH | RS53 | 2000 - 2007 | ||
| CHRYSLER | Town & Country | 3.8 (3778ccm) Petrol | EGH | AWD | RS53 | 2000 - 2004 | |
| CHRYSLER | Voyager | 2.4 (2429ccm) Petrol | EDZ | GSHY52 | 1995 - 2001 | ||
| CHRYSLER | Voyager | 3.0 (2972ccm) Petrol | EFA | NSHY52 | 1995 - 2001 | ||
| CHRYSLER | Voyager | 3.8 (3778ccm) Petrol | EGH | GSHY52 | 1997 - 2000 | ||
| DODGE | Caravan | 3.0 (2972ccm) Petrol | EFA | NS | 1995 - 2000 | ||
| DODGE | Caravan | 3.3 (3301ccm) Petrol | EGP | NS | 1995 - 1998 | ||
| DODGE | Caravan | 3.8 (3778ccm) Petrol | EGH | AWD | NS | 1995 - 1998 | |
| DODGE | Grand Caravan | 3.8 (3778ccm) Petrol | EGH | AWD | NS | 1995 - 2000 | |
| DODGE | Grand Caravan | 3.8 (3778ccm) Petrol | EGH | NS | 1995 - 2000 |
Description
A1147 Replacement Alternator
For a A1147 alternator enquiry, use Lucas reference LRA01147 alongside the vehicle and original unit details. The listed electrical rating is 12V 120A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected Chrysler Cirrus 2.5 Petrol variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 120A output: compare the listed rating with the original alternator.
- 6-groove pulley: check belt profile and alignment against the existing unit.
- Lucas LRA01147 reference: a starting point for identifying the replacement.
Compatible Vehicles and Applications
- Chrysler Cirrus 2.5 Petrol – selected applications 1994–2000 (engine code EEB).
- Chrysler Grand Voyager 2.4 Petrol – selected applications 1995–2001 (engine code EDZ).
- Chrysler Town & Country 3.8 Petrol – selected applications 2000–2007 (engine code EGH).
- Chrysler Voyager 2.4 Petrol – selected applications 1995–2001 (engine code EDZ).
- Dodge Caravan 3.0 Petrol – selected applications 1995–2000 (engine code EFA).
- Dodge Grand Caravan 3.8 Petrol – selected applications 1995–2000 (engine code EGH).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with A1147. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
0986CN0266, 0986CR0266, 0986UN0266, 0986UR0266, F042302138, F042302149, F042A02149, 121000416, 1210004160, 1210004161, 1210004260, 1210004261, 1210004320, 1210004330, 1210004331, 1210004332, 9712109416, LRA01147, LRA02832, LRA03323, LRA1147, LRA2832, LRA3323, DRZ0199, 04609230AA, 4727325, 38522264, 4609230, 4609230AA, 4686099, 4727221, 4727325AA, 4727329A, 4727329AA, 5104775AA
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Alternator?
Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying A1147 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will A1147 fit my Chrysler Cirrus?
Chrysler Cirrus 2.5 Petrol (1994–2000) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does A1147 replace Lucas LRA01147?
Lucas LRA01147 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for A1147?
The listed details include 12V, 120A output, 6 pulley grooves. Compare the complete specifications on this page with the unit being replaced.
Is A1147 new or remanufactured?
Check the current product condition selection for A1147. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering A1147?
Compare 12V compatibility, 120A output, pulley configuration, mounting points and electrical connections with the original alternator.
Does a battery warning light prove the alternator has failed?
No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
