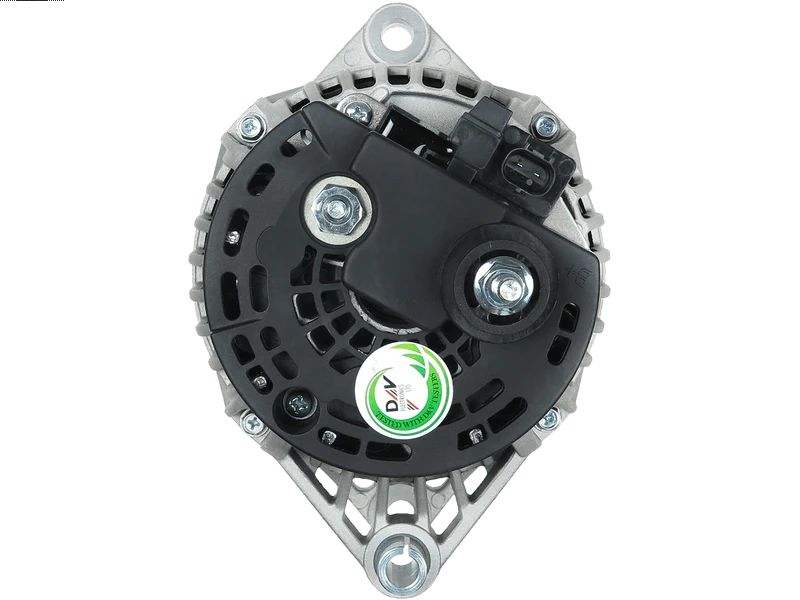

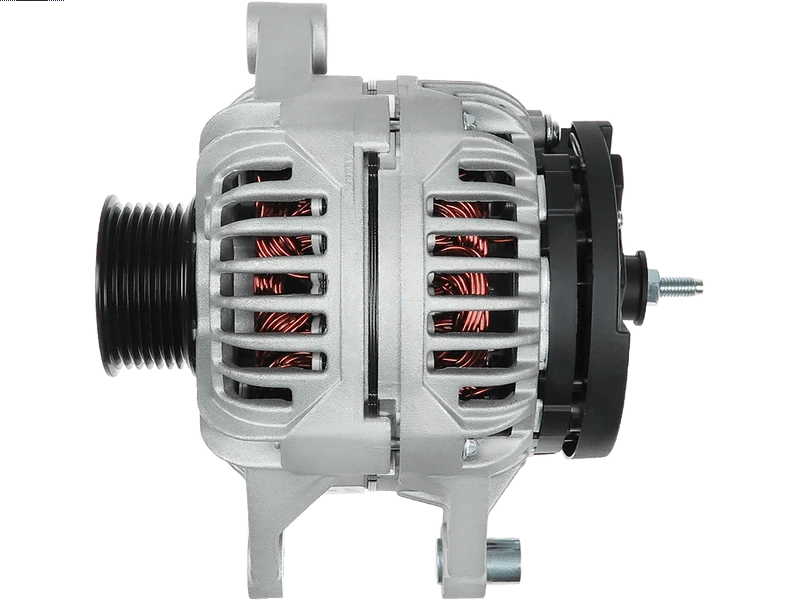

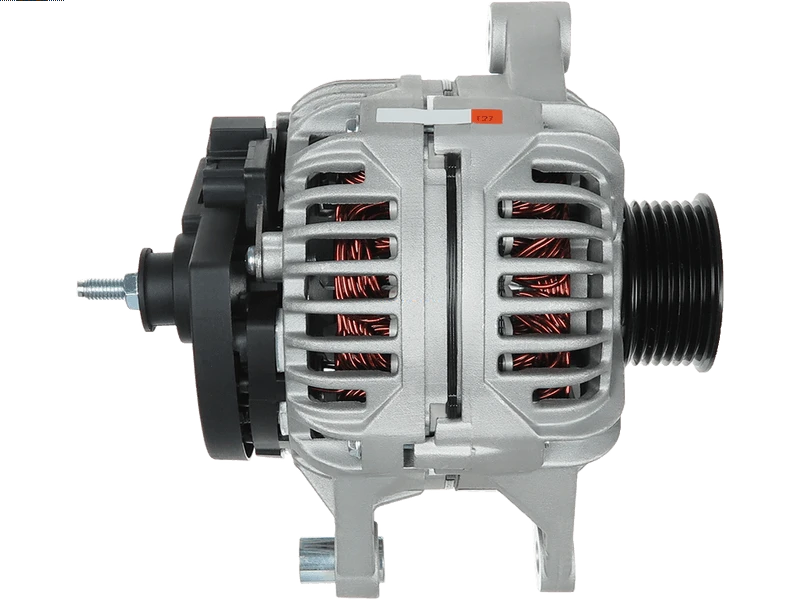

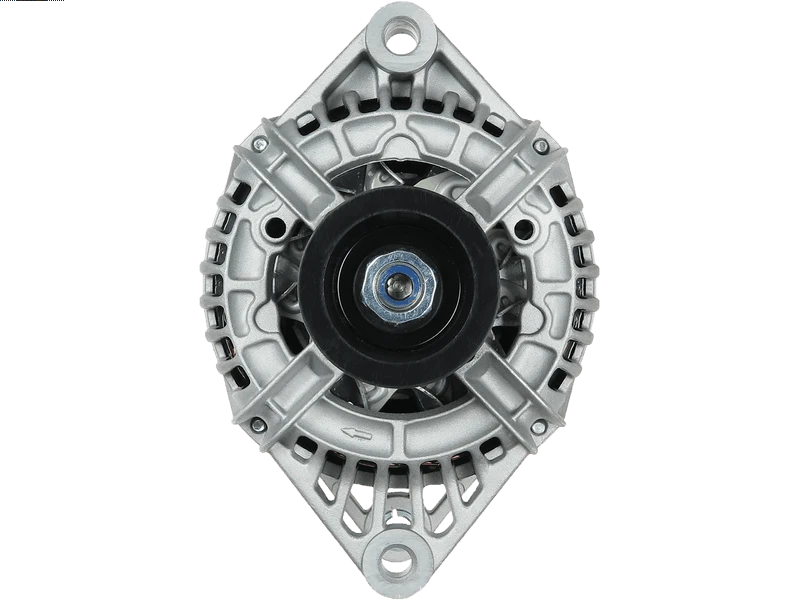

A1161 12V 136A Alternator Fits Dodge Dakota
Price range: £123.78 through £160.13
Sahibs A1161 is a replacement alternator with a listed 12V 136A rating. Listed applications include selected Dodge Dakota models. Identification references include Lucas LRA01161, Bosch 124525004, Denso 121000-4350. Its listed 12V 136A rating provides an electrical matching point for your existing unit. Check the 7-groove pulley, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your A1161 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| AMP | 136 A |
| Volt | 12 V |
| No. of Grooves | 7 qty |
| Pulley Diameter | 59 mm |
| Mounting holes | 3 qty |
| Position | 0° |
| B+ | M6 |
| Insulated Return | No |
| Water cooled | No |
| Vacuum pump | No |
| Start/Stop | No |
| Weight | 6.63 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYA1161 | Dyno Electrics |
| UD20688A | AS-PL |
| 124525004 | BOSCH |
| 6004ML0002 | BOSCH |
| 56027913AB | CHRYSLER |
| 56027913AC | CHRYSLER |
| 56028238 | CHRYSLER |
| 56028920AA | CHRYSLER |
| 121000-4350 | DENSO |
| ALTE724 | 3EFFE |
| ALTW117 | 3EFFE |
| PRAE724 | 3EFFE |
| PRAW117 | 3EFFE |
| AC-CBA5361 | ACAUTO |
| CGB-74782 | AINDE |
| L80330 | ATL AUTOTECHNIK |
| G106023 | BTS TURBO |
| 146-37119 | DIXIE |
| A-8921 | DIXIE |
| 5000461362 | DRI |
| ALT1691 | ELECTROLOG |
| 27-4782 | ELSTOCK |
| 113355 | FARCOM |
| ALN3564 | KRAUF |
| 553134RI | KUHNER |
| LRA01161 | LUCAS |
| LRA1161 | LUCAS |
| 89214094 | POWERMAX |
| 9214094 | POWERMAX |
| 835.517.132.050 | PSH |
| 835.517.132.460 | PSH |
| 835.517.132.461 | PSH |
| STX102254 | STARDAX |
| AL00270 | TMI |
| 13742N | WAI / TRANSPO |
| 13920N | WAI / TRANSPO |
| 90-15-6436 | WILSON |
| 90-29-5676 | WILSON |
| ALT10513 | WOODAUTO |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| A1165 | 136A | 117A | No |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| DODGE | Dakota | 3.9 (3908ccm) Petrol | MAGNUMV6 | Standard Cab Pickup | AN1 | 1995 - 2004 | |
| DODGE | Dakota | 3.9 (3908ccm) Petrol | MAGNUMV6 | AWD Standard Cab Pickup | AN5 | 1995 - 2004 |
Description
A1161 Replacement Alternator
Choose a replacement by comparing the A1161 alternator and its Lucas reference, LRA01161, with your existing unit. The listed electrical rating is 12V 136A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected Dodge Dakota 3.9 Petrol variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 136A output: compare the listed rating with the original alternator.
- 7-groove pulley: check belt profile and alignment against the existing unit.
- 3 mounting holes: compare the fixing pattern and unit position.
- M6 B+ terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Dodge Dakota 3.9 Petrol – selected applications 1995–2004 (engine code MAGNUMV6).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with A1161. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
124525004, 6004ML0002, 121000-4350, LRA01161, LRA1161, 56027913AB, 56027913AC, 56028238, 56028920AA
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Alternator?
Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying A1161 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will A1161 fit my Dodge Dakota?
Dodge Dakota 3.9 Petrol (1995–2004) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does A1161 replace Lucas LRA01161?
Lucas LRA01161 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for A1161?
The listed details include 12V, 136A output, 7 pulley grooves. Compare the complete specifications on this page with the unit being replaced.
Is A1161 new or remanufactured?
Check the current product condition selection for A1161. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering A1161?
Compare 12V compatibility, 136A output, pulley configuration, mounting points and electrical connections with the original alternator.
Does a battery warning light prove the alternator has failed?
No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
