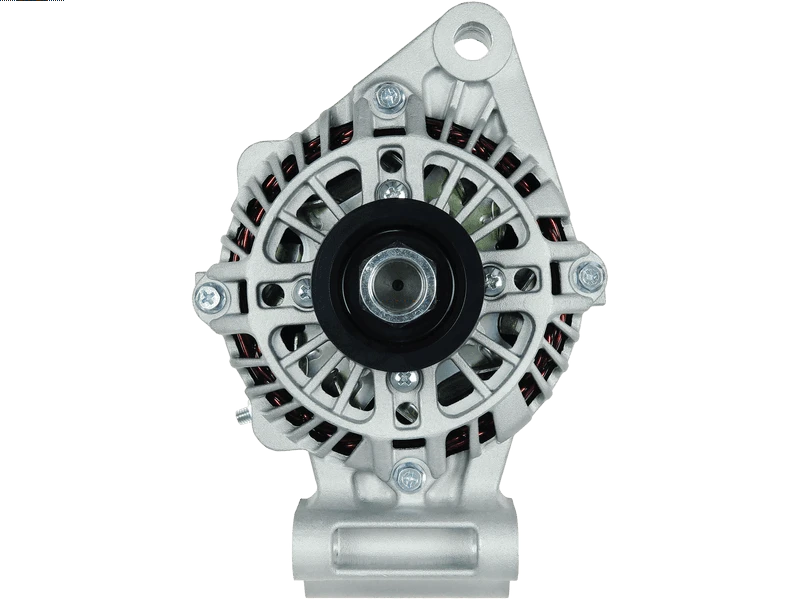

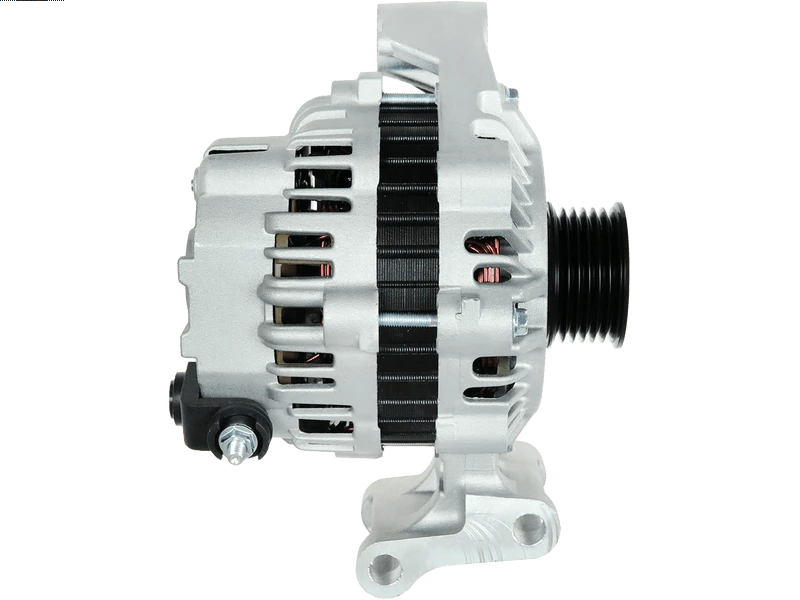

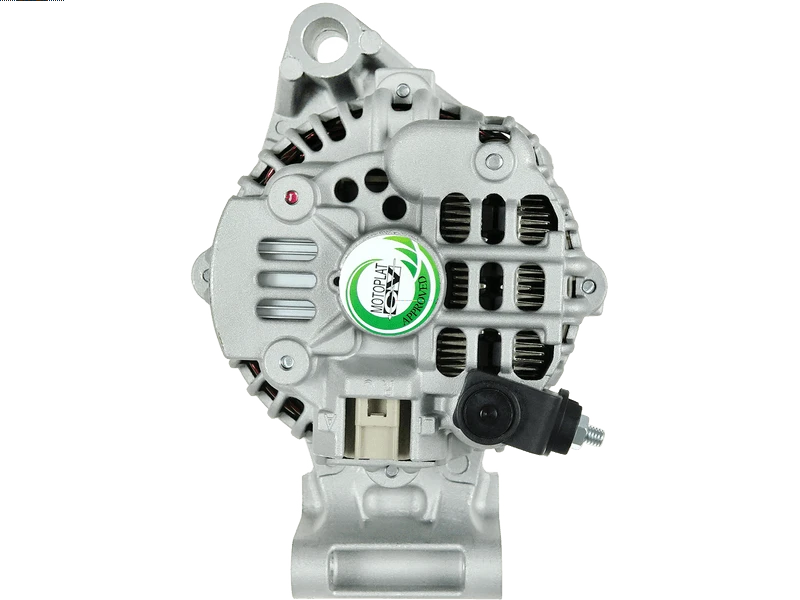

A1169 12V 90A Alternator Fits Ford Fiesta, Ford Fusion, Mazda 2
Price range: £86.25 through £115.44
Sahibs A1169 is a replacement alternator with a listed 12V 90A rating. Listed applications include selected Ford Fiesta, Ford Fusion, Mazda 2 models. Identification references include Lucas LRA01169, Bosch 986049121, Valeo 440433. Its listed 12V 90A rating provides an electrical matching point for your existing unit. Check the 6-groove pulley, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your A1169 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| AMP | 90 A |
| Volt | 12 V |
| No. of Grooves | 6 qty |
| Pulley Diameter | 49 mm |
| Mounting holes | 3 qty |
| B+ | M6 |
| Insulated Return | No |
| Water cooled | No |
| Vacuum pump | No |
| Start/Stop | No |
| Weight | 4.6 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYA1169 | Dyno Electrics |
| 401590521 | Euro Car Part |
| A5029 | AS-PL |
| 986049121 | BOSCH |
| 114129 | CARGO |
| F032114129 | CARGO |
| DRA4246 | DELCO |
| RAA15357 | DELCO |
| 1140138 | FORD |
| 1140139 | FORD |
| 1436603 | FORD |
| 1478281 | FORD |
| 1592234 | FORD |
| 1757317 | FORD |
| 2S6T-10300-DB | FORD |
| 2S6T-10300-DC | FORD |
| 2S6T-10300-DD | FORD |
| 2S6T-10300-DE | FORD |
| 2S6T10300CB | FORD |
| 2S6T10300CD | FORD |
| 2S6T10300DA | FORD |
| 2S6T10300GB | FORD |
| 2S6U-10300-GB | FORD |
| 8EL012429-821 | HELLA |
| 8EL738190-001 | HELLA |
| 9.44E+11 | MAGNETI MARELLI |
| C201-18-300 | MAZDA |
| C401-18-300 | MAZDA |
| C401-18-300A | MAZDA |
| C401-18-300B | MAZDA |
| C40118300C | MAZDA |
| A005TA7692 | MITSUBISHI |
| A005TA7792 | MITSUBISHI |
| A5TA7692 | MITSUBISHI |
| A5TA7792 | MITSUBISHI |
| 440433 | VALEO |
| ALTS294 | 3EFFE |
| PRAS294 | 3EFFE |
| ANM36466X | ANDEL |
| 002-M423 | ASHIKA |
| AEC1780 | AUTOELECTRO |
| CAL35162AS | CASCO |
| CAL35162GS | CASCO |
| CAL35162RS | CASCO |
| 4712 | CEVAM |
| 11.178 | CQ |
| 56987 | EAI |
| ALT5286 | ELECTROLOG |
| 27-4813 | ELSTOCK |
| 9090252 | FRIESEN |
| GADAN588-A | GPARTS |
| CA1780IR | HC PARTS |
| 32049121 | HERTH+BUSS |
| J5113067 | HERTH+BUSS |
| ALM423 | JAPANPARTS |
| 2M423 | JAPKO |
| 301780RI | KUHNER |
| 301780RID | KUHNER |
| CQ1010745 | LAUBER |
| 441927 | LOGISTIK |
| LRA01169 | LUCAS |
| LRA1169 | LUCAS |
| 5535291 | MEAT & DORIA |
| 89213141 | POWERMAX |
| 9213141 | POWERMAX |
| 595.588.090.130 | PSH |
| 20137261BN | REAL |
| 20137261OE | REAL |
| 20137261RC | REAL |
| ALT490 | ROLLCO |
| 2035162 | SANDO |
| 2035162.1 | SANDO |
| 2035162.2 | SANDO |
| A12MH0158A2 | SIDAT |
| SA948 | SOVEREIGN |
| STX100358 | STARDAX |
| STX100358R | STARDAX |
| STX100493 | STARDAX |
| STX100493R | STARDAX |
| 22169N | WAI / TRANSPO |
| 22169R | WAI / TRANSPO |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| A1172 | 90A | 70A | No |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| FORD | Fiesta | 1.2 (1242ccm) Petrol | M7JA/M7JB | MK V | DJ1/HJ1 | 2003 - 2008 | |
| FORD | Fiesta | 1.4 (1388ccm) Petrol | FXJA/FXJB | MK V | DJ1/HJ1 | 2001 - 2008 | |
| FORD | Fiesta | 1.6 (1596ccm) Petrol | FYJA/FYJB | MK V | DJ1/HJ1 | 2001 - 2008 | |
| FORD | Fusion | 1.4 (1388ccm) LPG (with or without Petrol) | UTJA | JU | 2010 - 2012 | ||
| FORD | Fusion | 1.4 (1388ccm) Petrol | FXJA/FXJB/FXJC | JU | 2002 - 2012 | ||
| FORD | Fusion | 1.6 (1596ccm) Petrol | FYJA/FYJB/FYJC | JU | 2002 - 2012 | ||
| MAZDA | 2 | 1.2 (1242ccm) Petrol | FUJA | DY | 2002 - 2007 | ||
| MAZDA | 2 | 1.3 (1349ccm) Petrol | ZJ04 | DY | 2003 - 2007 | ||
| MAZDA | 2 | 1.4 (1388ccm) Petrol | FXJA | DY | 2002 - 2007 | ||
| MAZDA | 2 | 1.6 (1596ccm) Petrol | FYJA | DY | 2002 - 2007 |
Description
A1169 Replacement Alternator
Start your A1169 alternator comparison with the linked Lucas reference LRA01169 and the specifications shown on this page. The listed electrical rating is 12V 90A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected Ford Fiesta 1.2 Petrol variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 90A output: compare the listed rating with the original alternator.
- 6-groove pulley: check belt profile and alignment against the existing unit.
- 3 mounting holes: compare the fixing pattern and unit position.
- M6 B+ terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Ford Fiesta 1.2 Petrol – selected applications 2003–2008 (engine code M7JA/M7JB).
- Ford Fusion 1.4 LPG (with or without Petrol) – selected applications 2010–2012 (engine code UTJA).
- Mazda 2 1.2 Petrol – selected applications 2002–2007 (engine code FUJA).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with A1169. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
986049121, 440433, LRA01169, LRA1169, A005TA7692, A005TA7792, A5TA7692, A5TA7792, DRA4246, RAA15357, 1140138, 1140139, 1436603, 1478281, 1592234, 1757317, 2S6T-10300-DB, 2S6T-10300-DC, 2S6T-10300-DD, 2S6T-10300-DE, 2S6T10300CB, 2S6T10300CD, 2S6T10300DA, 2S6T10300GB, 2S6U-10300-GB
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Alternator?
Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying A1169 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will A1169 fit my Ford Fiesta?
Ford Fiesta 1.2 Petrol (2003–2008) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does A1169 replace Lucas LRA01169?
Lucas LRA01169 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for A1169?
The listed details include 12V, 90A output, 6 pulley grooves. Compare the complete specifications on this page with the unit being replaced.
Is A1169 new or remanufactured?
Check the current product condition selection for A1169. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering A1169?
Compare 12V compatibility, 90A output, pulley configuration, mounting points and electrical connections with the original alternator.
Does a battery warning light prove the alternator has failed?
No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
