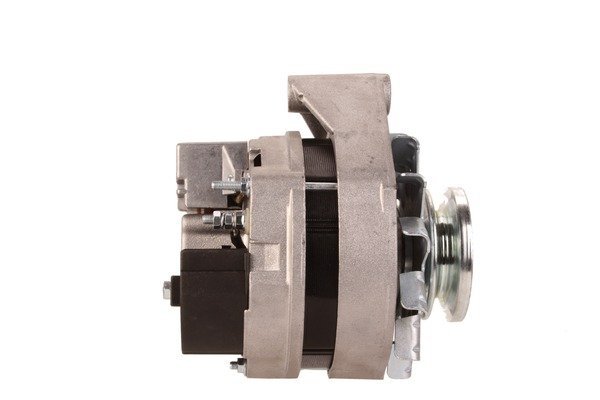

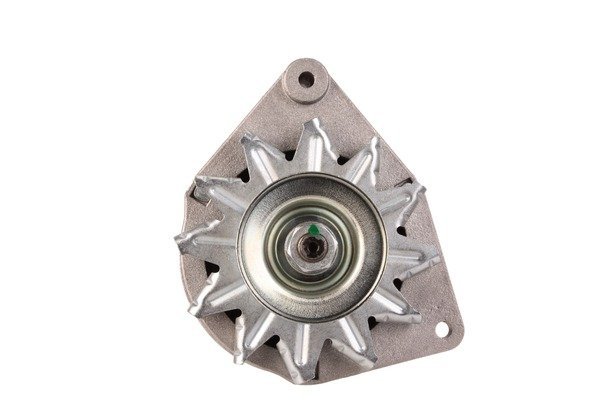

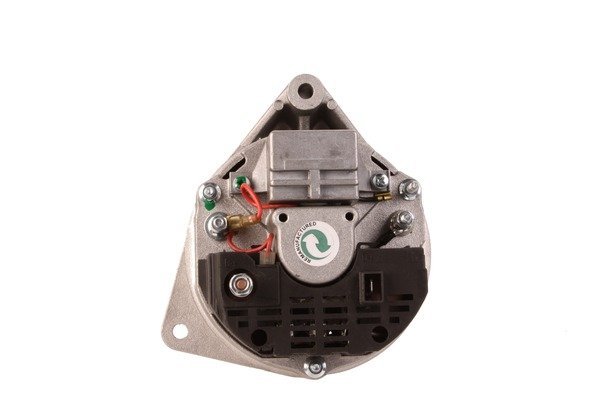

A1183 12V 45A Alternator Fits Deutz-Fahr D6807, Deutz-Fahr D7207
Price range: £142.00 through £227.20
Identify a replacement alternator using Sahibs A1183, listed at 12V 45A. Listed applications include selected Deutz-Fahr D6807, Deutz-Fahr D7207, Fendt Farmer 204, Fendt Farmer 204P models. Identification references include Lucas LRA01183, Bosch 120300514, Valeo 2927990. Its listed 12V 45A rating provides an electrical matching point for your existing unit. Check the single-groove pulley, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your A1183 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| AMP | 45 A |
| Volt | 12 V |
| No. of Grooves | 1 qty |
| Pulley Diameter | 54 mm |
| Mounting holes | 2 qty |
| Position | -60° |
| B+ | M6 |
| Insulated Return | No |
| Water cooled | No |
| Vacuum pump | No |
| Start/Stop | No |
| Weight | 3.8 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYA1183 | Dyno Electrics |
| 120300514 | Bosch |
| 120300515 | Bosch |
| 120300552 | Bosch |
| 120300554 | Bosch |
| 120339514 | Bosch |
| 120339531 | Bosch |
| 120339552 | Bosch |
| 986030130 | Bosch Exchange |
| 986030137 | Bosch Exchange |
| 110641 | HC-Cargo |
| 11201027 | Mahle |
| 11201096 | Mahle |
| 11201372 | Mahle |
| 112013T2 | Mahle |
| 11204739 | Mahle |
| 11209463 | Mahle |
| 11209647 | Mahle |
| 1177481 | Iveco |
| 14949N | WAI |
| 14949R | WAI |
| 18200372 | AES |
| 19093003 | Delco Remy |
| 24171 | Lucas |
| 2518050 | Motorola |
| 2927990 | Valeo |
| 3138942R91 | Navistar |
| 3218239R91 | Case |
| 38522071A | Chrysler |
| 42522730 | Iveco |
| 432974 | Valeo |
| 432975 | Valeo |
| 432988 | Valeo |
| 433476 | Valeo |
| 433477 | Valeo |
| 436265 | Valeo |
| 510249 | Motorola |
| 565002033 | PSH |
| 6005003146 | Renault |
| 6005003763 | Renault |
| 72514485 | Mahle |
| 72735123 | Mahle |
| 72735527 | Mahle |
| 7700004148 | Renault |
| 7700012723 | Renault |
| 7700665435 | Renault |
| 90156058 | Wilson |
| 90156094 | Wilson |
| 9120143222 | Bosch |
| 9.30E+11 | KHD |
| 943356762 | Magneti Marelli |
| 9515310 | Magneton |
| 9AR2799G | Motorola |
| A12R57 | Valeo |
| AAG1301 | Mahle |
| AAG1302 | Mahle |
| AAG1311 | Mahle |
| AAG1321 | Mahle |
| AAG1328 | Mahle |
| AAG132S | Mahle |
| AAG1362 | Mahle |
| AAG1370 | Mahle |
| AAG1376 | Mahle |
| AL901X | Bosch (USA) |
| AL905X | Bosch (USA) |
| ALT20019 | Wood Auto |
| ALTH007 | Unipoint |
| C830060011000 | Agco |
| CA76 | HC-Parts |
| CA76IR | HC-Parts |
| DRA0130 | Delco Remy |
| F032110641 | HC-Cargo |
| F042A0H007 | Bosch |
| HCA76 | HC-Parts |
| HCA76IR | HC-Parts |
| IA0096 | Mahle |
| IA0372 | Mahle |
| IA03T2 | Mahle |
| IA90372 | Mahle |
| IA9401 | Mahle |
| LEA0076 | Lucas |
| LRA00372 | Lucas |
| LRA00584 | Lucas |
| LRA01183 | Lucas |
| LRA1183 | Lucas |
| LRA372 | Lucas |
| LRA584 | Lucas |
| MAHMG124 | Wood Auto |
| MAR874 | Magneti Marelli |
| MG124 | Mahle |
| MG528 | Mahle |
| NA049 | Valeo |
| RNL11201096 | RNL |
| RNL11201096OER | RNL |
| WOOALT20019 | Wood Auto |
| X830060003000 | Fendt |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| A0584 | 45A | 33A | No |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| DEUTZ-FAHR | D6807 | 3770ccm Diesel | F4L912 | 1986 - 1988 | |||
| DEUTZ-FAHR | D7207 | 3770ccm Diesel | F4L912 | 1980 - 1981 | |||
| FENDT | Farmer 204 | 3770ccm Diesel | KHD-F4L912 | 1979 - 1988 | |||
| FENDT | Farmer 204P | 3770ccm Diesel | KHD-F4L912 | 1979 - 1988 |
Description
A1183 Replacement Alternator
Start your A1183 alternator comparison with the linked Lucas reference LRA01183 and the specifications shown on this page. The listed electrical rating is 12V 45A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected Deutz-Fahr D6807 3770ccm Diesel variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 45A output: compare the listed rating with the original alternator.
- Single-groove pulley: check belt profile and alignment against the existing unit.
- 2 mounting holes: compare the fixing pattern and unit position.
- M6 B+ terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Deutz-Fahr D6807 3770ccm Diesel – selected applications 1986–1988 (engine code F4L912).
- Deutz-Fahr D7207 3770ccm Diesel – selected applications 1980–1981 (engine code F4L912).
- Fendt Farmer 204 3770ccm Diesel – selected applications 1979–1988 (engine code KHD-F4L912).
- Fendt Farmer 204P 3770ccm Diesel – selected applications 1979–1988 (engine code KHD-F4L912).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with A1183. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
120300514, 120300515, 120300552, 120300554, 120339514, 120339531, 120339552, 986030130, 986030137, 9120143222, F042A0H007, 2927990, 432974, 432975, 432988, 433476, 433477, 436265, A12R57, NA049, LRA01183, 24171, LEA0076, LRA00372, LRA00584, LRA1183, LRA372, LRA584, 19093003, DRA0130, 11201027, 11201096, 11201372, 112013T2, 11204739, 11209463, 11209647, 72514485, 72735123, 72735527, AAG1301, AAG1302, AAG1311, AAG1321, AAG1328, AAG132S, AAG1362, AAG1370, AAG1376, IA0096, IA0372, IA03T2, IA90372, IA9401, MG124, MG528, 38522071A, 6005003146, 6005003763, 7700004148, 7700012723, 7700665435
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Alternator?
Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying A1183 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will A1183 fit my Deutz-Fahr D6807?
Deutz-Fahr D6807 3770ccm Diesel (1986–1988) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does A1183 replace Lucas LRA01183?
Lucas LRA01183 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for A1183?
The listed details include 12V, 45A output, 1 pulley groove. Compare the complete specifications on this page with the unit being replaced.
Is A1183 new or remanufactured?
Check the current product condition selection for A1183. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering A1183?
Compare 12V compatibility, 45A output, pulley configuration, mounting points and electrical connections with the original alternator.
Does a battery warning light prove the alternator has failed?
No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
