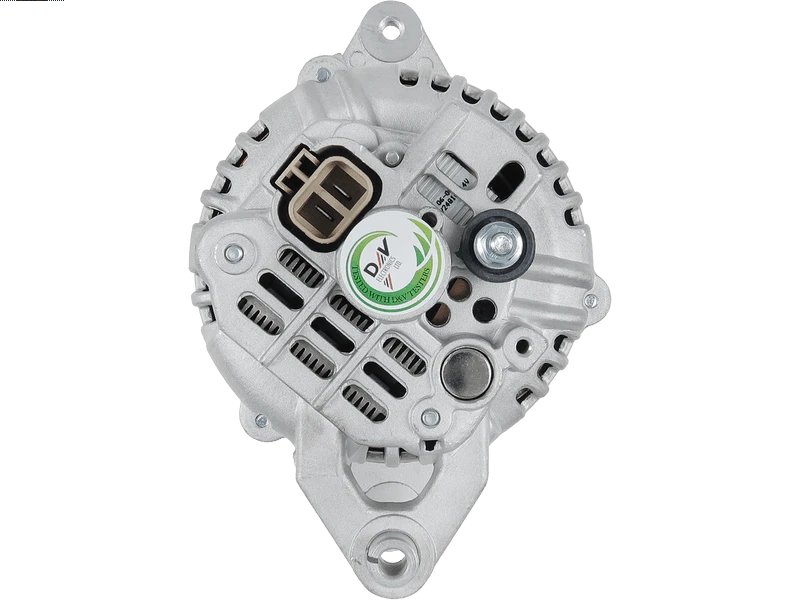

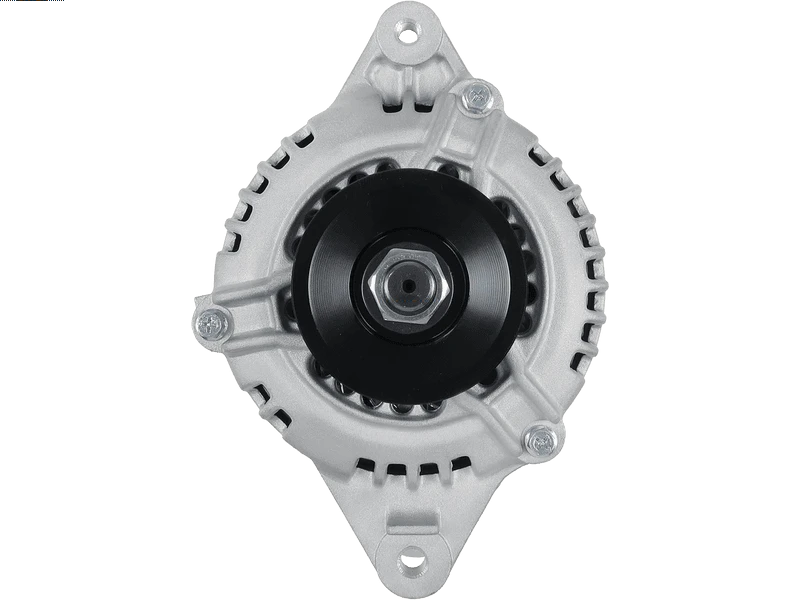

A1212 12V 50A Alternator Fits Mitsubishi Pajero
Price range: £96.88 through £126.68
Identify a replacement alternator using Sahibs A1212, listed at 12V 50A. Listed applications include selected Mitsubishi Pajero models. Identification references include Lucas LRA01212, Mitsubishi Electric A002T02471, Delco Remy DRA3313. Its listed 12V 50A rating provides an electrical matching point for your existing unit. Check the single-groove pulley, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your A1212 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| AMP | 50 A |
| Volt | 12 V |
| No. of Grooves | 1 qty |
| Pulley Diameter | 45 mm |
| Mounting holes | 3 qty |
| B+ | M6 |
| Insulated Return | No |
| Water cooled | No |
| Vacuum pump | No |
| Start/Stop | No |
| Weight | 4.66 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYA1212 | Dyno Electrics |
| UD103209A | AS-PL |
| DRA3313 | DELCO |
| A002T02471 | MITSUBISHI |
| A002T03477 | MITSUBISHI |
| A2T02471 | MITSUBISHI |
| A2T03477 | MITSUBISHI |
| MD108509 | MITSUBISHI |
| MD110318 | MITSUBISHI |
| ALT0A10 | 3EFFE |
| 226128502 | DRI |
| 56367 | EAI |
| 28-0777 | ELSTOCK |
| 12060141 | EUROTEC |
| 40770RI | KUHNER |
| LRA01212 | LUCAS |
| LRA1212 | LUCAS |
| 89213220 | POWERMAX |
| 9213220 | POWERMAX |
| 155.963.050.609 | PSH |
| MI8010 | SNRA |
| STX100576 | STARDAX |
| 367ST65 | STARTCAR |
| AL00524 | TMI |
| 14432R | WAI / TRANSPO |
| 90-27-3057 | WILSON |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| A0707 | 50A | 65A Pulley | No |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| MITSUBISHI | Pajero | 2.6 (2555ccm) Petrol | 4G54/G54B | MK I | L042G | 1986 - 1990 |
Description
A1212 Replacement Alternator
The Sahibs A1212 alternator is associated with Lucas reference LRA01212 for replacement identification. The listed electrical rating is 12V 50A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected Mitsubishi Pajero 2.6 Petrol variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 50A output: compare the listed rating with the original alternator.
- Single-groove pulley: check belt profile and alignment against the existing unit.
- 3 mounting holes: compare the fixing pattern and unit position.
- M6 B+ terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Mitsubishi Pajero 2.6 Petrol – selected applications 1986–1990 (engine code 4G54/G54B).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with A1212. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
LRA01212, LRA1212, A002T02471, A002T03477, A2T02471, A2T03477, MD108509, MD110318, DRA3313
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Alternator?
Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying A1212 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will A1212 fit my Mitsubishi Pajero?
Mitsubishi Pajero 2.6 Petrol (1986–1990) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does A1212 replace Lucas LRA01212?
Lucas LRA01212 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for A1212?
The listed details include 12V, 50A output, 1 pulley groove. Compare the complete specifications on this page with the unit being replaced.
Is A1212 new or remanufactured?
Check the current product condition selection for A1212. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering A1212?
Compare 12V compatibility, 50A output, pulley configuration, mounting points and electrical connections with the original alternator.
Does a battery warning light prove the alternator has failed?
No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
