A1220 12V 60A Alternator Fits Nissan Bluebird, Nissan Cherry
Price range: £104.00 through £166.40

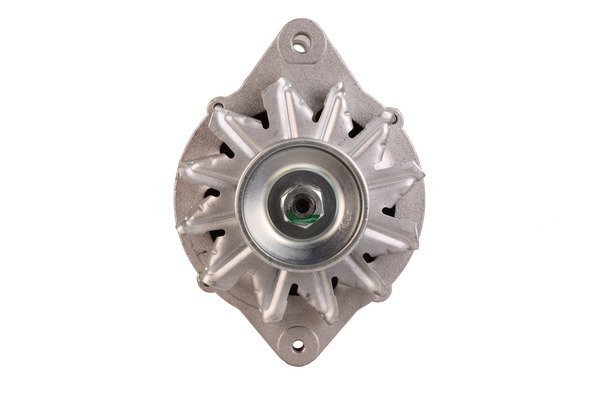

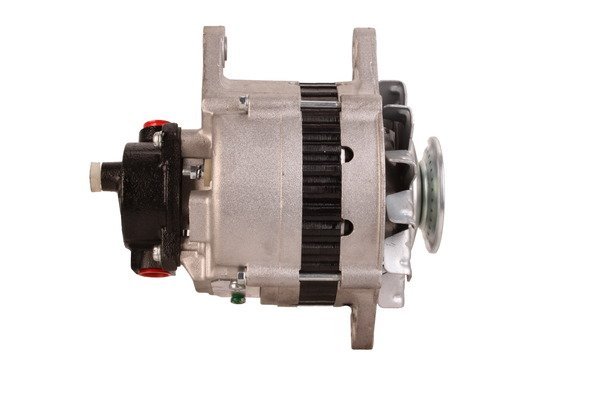

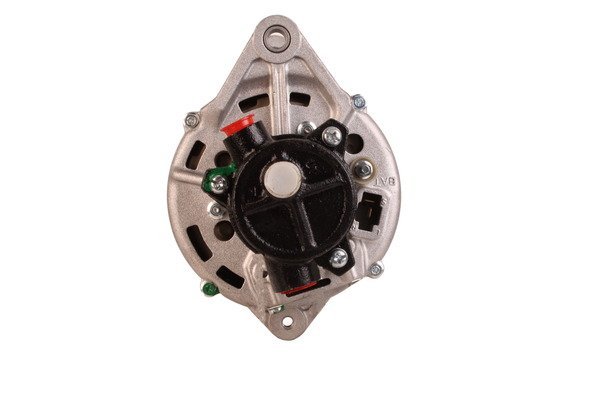

Sahibs A1220 is a replacement alternator with a listed 12V 60A rating. Listed applications include selected Nissan Bluebird, Nissan Cherry, Nissan Laurel, Nissan Sunny models. Identification references include Lucas LRA01220, Valeo 437870, Hitachi LR150148. Its listed 12V 60A rating provides an electrical matching point for your existing unit. Check the single-groove pulley, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your A1220 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| AMP | 60 A |
| Volt | 12 V |
| No. of Grooves | 1 qty |
| Pulley Diameter | 72 mm |
| Mounting holes | 2 qty |
| Position | 0° |
| B+ | M5 |
| Insulated Return | No |
| Water cooled | No |
| Vacuum pump | No |
| Start/Stop | No |
| Weight | 6.5 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYA1220 | Dyno Electrics |
| 110704 | HC-Cargo |
| 14613N | WAI |
| 14613R | WAI |
| 165807060 | PSH |
| 2310011H00 | Nissan |
| 2310017S05 | Nissan |
| 23100W1802 | Nissan |
| 23100W1805 | Nissan |
| 23100W3400 | Nissan |
| 437870 | Valeo |
| ADA343 | ATK |
| DRA3045 | Delco Remy |
| DRA3045N | Delco Remy |
| DRA3319 | Delco Remy |
| JA183IR | HC-Parts |
| JA779IR | HC-Parts |
| LR150148 | Hitachi |
| LR150148C | Hitachi |
| LR15079 | Hitachi |
| LR160107 | Hitachi |
| LR160108 | Hitachi |
| LR160674 | Hitachi |
| LR16067E | Hitachi |
| LR16067G | Hitachi |
| LR16096 | Hitachi |
| LR16096C | Hitachi |
| LRA01220 | Lucas |
| LRA1220 | Lucas |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| NISSAN | Bluebird | 2.0 (1952ccm) Diesel | LD20 | 910 | 1983 - 1983 | ||
| NISSAN | Bluebird | 2.0 (1952ccm) Diesel | LD20T | 910 | 1983 - 1983 | ||
| NISSAN | Cherry | 1.7 (1681ccm) Diesel | CD17 | MK II | N12 | 1982 - 1986 | |
| NISSAN | Laurel | 2.8 (2793ccm) Diesel | LD28 | C31 | 1981 - 1984 | ||
| NISSAN | Sunny | 1.7 (1681ccm) Diesel | CD17 | MK V | B11 | 1982 - 1990 | |
| NISSAN | Sunny Estate/Wagon | 1.7 (1681ccm) Diesel | CD17 | MK V | Traveller | B11 | 1982 - 1986 |
Description
A1220 Replacement Alternator
Start your A1220 alternator comparison with the linked Lucas reference LRA01220 and the specifications shown on this page. The listed electrical rating is 12V 60A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected Nissan Bluebird 2.0 Diesel variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 60A output: compare the listed rating with the original alternator.
- Single-groove pulley: check belt profile and alignment against the existing unit.
- 2 mounting holes: compare the fixing pattern and unit position.
- M5 B+ terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Nissan Bluebird 2.0 Diesel – selected applications 1983–1983 (engine code LD20).
- Nissan Cherry 1.7 Diesel – selected applications 1982–1986 (engine code CD17).
- Nissan Laurel 2.8 Diesel – selected applications 1981–1984 (engine code LD28).
- Nissan Sunny 1.7 Diesel – selected applications 1982–1990 (engine code CD17).
- Nissan Sunny Estate/Wagon 1.7 Diesel – selected applications 1982–1986 (engine code CD17).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with A1220. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
437870, LRA01220, LRA1220, LR150148, LR150148C, LR15079, LR160107, LR160108, LR160674, LR16067E, LR16067G, LR16096, LR16096C, DRA3045, DRA3045N, DRA3319
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Alternator?
Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying A1220 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will A1220 fit my Nissan Bluebird?
Nissan Bluebird 2.0 Diesel (1983–1983) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does A1220 replace Lucas LRA01220?
Lucas LRA01220 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for A1220?
The listed details include 12V, 60A output, 1 pulley groove. Compare the complete specifications on this page with the unit being replaced.
Is A1220 new or remanufactured?
Check the current product condition selection for A1220. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering A1220?
Compare 12V compatibility, 60A output, pulley configuration, mounting points and electrical connections with the original alternator.
Does a battery warning light prove the alternator has failed?
No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
