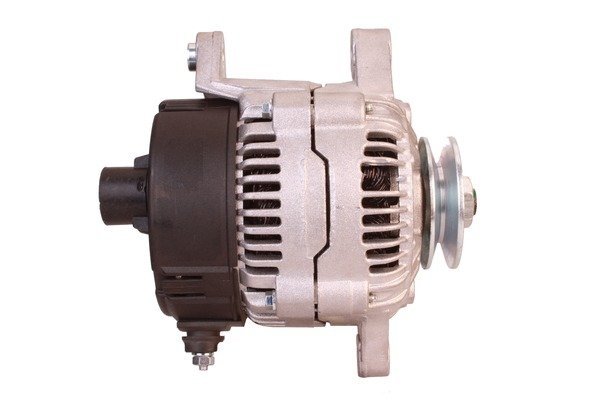

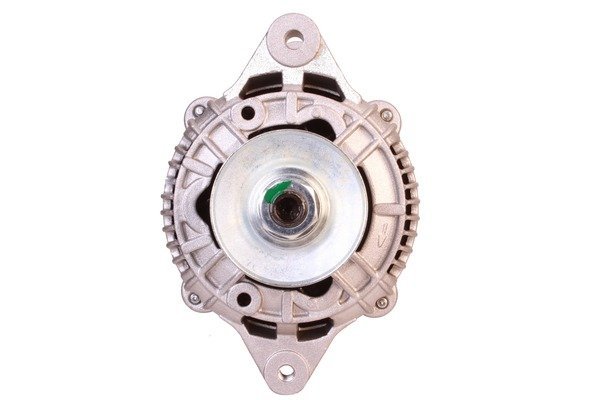

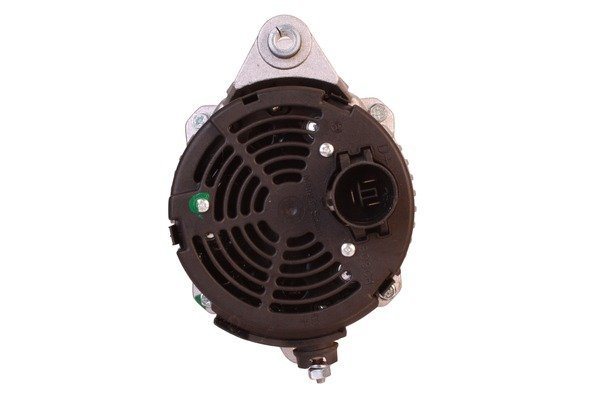

A1280 12V 60A Alternator Fits Suzuki Swift
Price range: £117.57 through £151.62
The A1280 12V 60A Alternator is a replacement charging unit from Sahibs Auto Electrics. Listed applications include selected Suzuki Swift models. Identification references include Lucas LRA01280, Bosch 9120334328, Valeo 437163. Its listed 12V 60A rating provides an electrical matching point for your existing unit. Check the single-groove pulley, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your A1280 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| AMP | 60 A |
| Volt | 12 V |
| No. of Grooves | 1 qty |
| Pulley Diameter | 69 mm |
| Mounting holes | 3 qty |
| Position | 180° |
| B+ | M6 |
| Insulated Return | No |
| Water cooled | No |
| Vacuum pump | No |
| Start/Stop | No |
| Weight | 4.9 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYA1280 | Dyno Electrics |
| 986035460 | Bosch Exchange |
| 986035461 | Bosch Exchange |
| 0986CN0189 | Bosch Exchange |
| 0986CR0189 | Bosch Exchange |
| 0986CR0193 | Bosch Exchange |
| 0986UN2021 | Bosch Exchange |
| 0986UR0189 | Bosch Exchange |
| 100211141 | Denso |
| 1002111410 | Denso |
| 1002111411 | Denso |
| 1002111412 | Denso |
| 1002111413 | Denso |
| 1002111530 | Denso |
| 100211155 | Denso |
| 1002111550 | Denso |
| 1002111551 | Denso |
| 1002111552 | Denso |
| 1002111553 | Denso |
| 1002112200 | Denso |
| 1002112201 | Denso |
| 1002114060 | Denso |
| 100211407 | Denso |
| 1002114070 | Denso |
| 1002114071 | Denso |
| 1002114072 | Denso |
| 1002114073 | Denso |
| 1002116270 | Denso |
| 1002116722 | Denso |
| 1002116723 | Denso |
| 1002116931 | Denso |
| 1002116932 | Denso |
| 1002116933 | Denso |
| 110965 | HC-Cargo |
| 111606 | HC-Cargo |
| 14684N | WAI |
| 14684R | WAI |
| 185504045 | PSH |
| 2.71E+11 | Toyota |
| 3140051A10R | RNL |
| 314006084 | Suzuki |
| 3140060B1 | Suzuki |
| 3140082110 | Suzuki |
| 3140082111 | Suzuki |
| 3140082610 | Suzuki |
| 3140082611 | Suzuki |
| 3140082C20 | Suzuki |
| 3140083010 | Suzuki |
| 3140083011 | Suzuki |
| 3140086010 | Suzuki |
| 31400A86010 | Suzuki |
| 31400B83010 | Suzuki |
| 31400M80030 | Suzuki |
| 437163 | Valeo |
| 473163 | Valeo |
| 572195 | Valeo |
| 90295060 | Wilson |
| 90295064 | Wilson |
| 90295068 | Wilson |
| 90295183 | Wilson |
| 9120334328 | Bosch |
| A003T34782 | Mitsubishi |
| A007T01771 | Mitsubishi |
| A3T34782 | Mitsubishi |
| A7T01771 | Mitsubishi |
| AL430N | Bosch (USA) |
| AL430X | Bosch (USA) |
| ALT30218 | Wood Auto |
| ALT30296 | Wood Auto |
| ALT5021 | Wood Auto |
| AZA416 | ATK |
| DRA3119 | Delco Remy |
| DRA3497 | Delco Remy |
| F032110965 | HC-Cargo |
| F042302008 | Bosch |
| HJA188IR | HC-Parts |
| JA188IR | HC-Parts |
| JA802IR | HC-Parts |
| LEA0567 | Lucas |
| LRA00549 | Lucas |
| LRA01280 | Lucas |
| LRA02685 | Lucas |
| LRA1280 | Lucas |
| LRA2685 | Lucas |
| LRA549 | Lucas |
| MRA51804 | Magneti Marelli |
| OAN10668 | Optimum |
| RNL1002111550 | RNL |
| TRA031 | TWA |
| WOOALT30218 | Wood Auto |
| WOOALT30296 | Wood Auto |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| A0549 | 60A | 45A | No |
| A1854 | 60A | 70A | Yes |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| SUZUKI | Swift | 1.3 (1324ccm) Petrol | G13A | MK I | SA413AA53F/SA413AA53S | 1984 - 1989 | |
| SUZUKI | Swift | 1.3 (1324ccm) Petrol | G13A | MK I | SA413AA51F/SA413AA51S | 1984 - 1989 | |
| SUZUKI | Swift | 1.3 (1324ccm) Petrol | G13A | MK I | SA413AA53S | 1986 - 1989 |
Description
A1280 Replacement Alternator
Start your A1280 alternator comparison with the linked Lucas reference LRA01280 and the specifications shown on this page. The listed electrical rating is 12V 60A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected Suzuki Swift 1.3 Petrol variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 60A output: compare the listed rating with the original alternator.
- Single-groove pulley: check belt profile and alignment against the existing unit.
- 3 mounting holes: compare the fixing pattern and unit position.
- M6 B+ terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Suzuki Swift 1.3 Petrol – selected applications 1984–1989 (engine code G13A).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with A1280. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
986035460, 986035461, 0986CN0189, 0986CR0189, 0986CR0193, 0986UN2021, 0986UR0189, 9120334328, F042302008, 437163, 473163, 572195, 100211141, 1002111410, 1002111411, 1002111412, 1002111413, 1002111530, 100211155, 1002111550, 1002111551, 1002111552, 1002111553, 1002112200, 1002112201, 1002114060, 100211407, 1002114070, 1002114071, 1002114072, 1002114073, 1002116270, 1002116722, 1002116723, 1002116931, 1002116932, 1002116933, LRA01280, LEA0567, LRA00549, LRA02685, LRA1280, LRA2685, LRA549, A003T34782, A007T01771, A3T34782, A7T01771, DRA3119, DRA3497
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Alternator?
Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying A1280 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will A1280 fit my Suzuki Swift?
Suzuki Swift 1.3 Petrol (1984–1989) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does A1280 replace Lucas LRA01280?
Lucas LRA01280 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for A1280?
The listed details include 12V, 60A output, 1 pulley groove. Compare the complete specifications on this page with the unit being replaced.
Is A1280 new or remanufactured?
Check the current product condition selection for A1280. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering A1280?
Compare 12V compatibility, 60A output, pulley configuration, mounting points and electrical connections with the original alternator.
Does a battery warning light prove the alternator has failed?
No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
