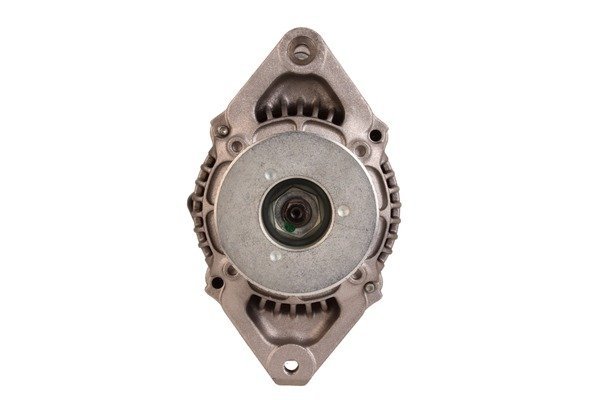

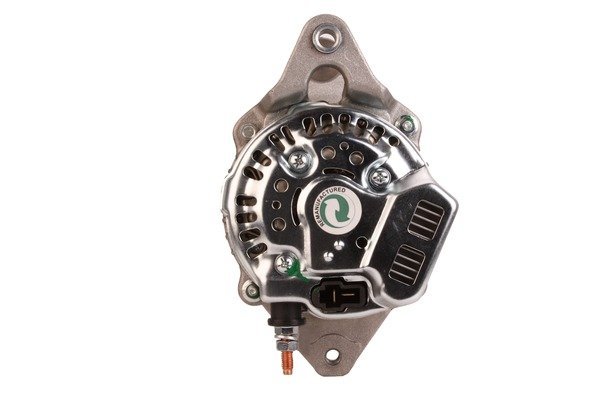

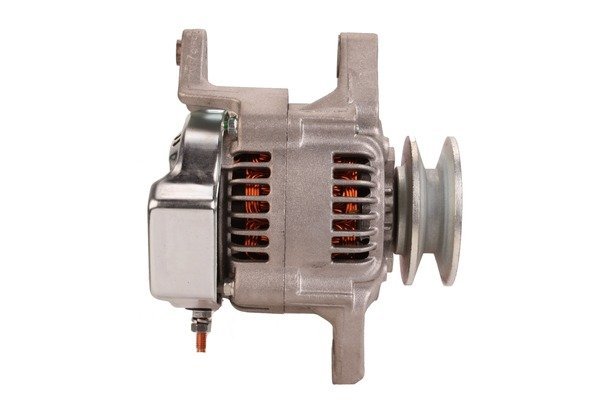

A1298 Alternator Fits Toyota Fork Lift 5FD20, Toyota Fork Lift 5FD23
Price range: £117.57 through £151.62
Compare the A1298 alternator from Sahibs Auto Electrics with the unit currently fitted. Listed applications include selected Toyota Fork Lift 5FD20, Toyota Fork Lift 5FD23, Toyota Fork Lift 5FG33 models. Identification references include Lucas LRA01298, Bosch F042302070, Denso 1002114000. Compare the existing electrical rating with the current product specifications before choosing a replacement. Check the single-groove pulley, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your A1298 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| No. of Grooves | 1 qty |
| Pulley Diameter | 75 mm |
| Mounting holes | 3 qty |
| Position | 0° |
| B+ | M6 |
| Insulated Return | No |
| Water cooled | No |
| Vacuum pump | No |
| Start/Stop | No |
| Weight | 3.4 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYA1298 | Dyno Electrics |
| 0986AN0570 | Bosch Exchange |
| 0986UN0429 | Bosch Exchange |
| 1002114000 | Denso |
| 1002114001 | Denso |
| 1002114002 | Denso |
| 1002114003 | Denso |
| 1002114004 | Denso |
| 110564 | HC-Cargo |
| 1194601ND | WAI |
| 12182N | WAI |
| 12182R | WAI |
| 195577040 | PSH |
| 2706078301 | Toyota |
| 2.71E+11 | Toyota |
| 3049393 | Hyster |
| 8LHA3087U | Prestolite |
| 90295173 | Wilson |
| AL5044N | Bosch (USA) |
| ALT30320 | Wood Auto |
| ALT5095 | Wood Auto |
| ATA506 | ATK |
| BXD1333N | Bosch (USA) |
| DRA3449 | Delco Remy |
| F032110564 | HC-Cargo |
| F042302070 | Bosch |
| JA792IR | HC-Parts |
| LEA0257 | Lucas |
| LRA01298 | Lucas |
| LRA1298 | Lucas |
| RNL1002114000 | RNL |
| WOOALT30320 | Wood Auto |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| A1630 | 40A | 50A | Yes |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| TOYOTA FORK LIFT | 5FD20 | 0ccm Diesel | 1Z | 1986 - 1989 | |||
| TOYOTA FORK LIFT | 5FD23 | 0ccm Diesel | 1Z | 1986 - 1989 | |||
| TOYOTA FORK LIFT | 5FG33 | 0ccm Diesel | 3F | 1988 - 1994 |
Description
A1298 Replacement Alternator
The Sahibs A1298 alternator is associated with Lucas reference LRA01298 for replacement identification. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected Toyota Fork Lift 5FD20 variants.
Key Features and Benefits
- Single-groove pulley: check belt profile and alignment against the existing unit.
- 3 mounting holes: compare the fixing pattern and unit position.
- M6 B+ terminal: check the connection against the original unit.
- Lucas LRA01298 reference: a starting point for identifying the replacement.
Compatible Vehicles and Applications
- Toyota Fork Lift 5FD20 – selected applications 1986–1989 (engine code 1Z).
- Toyota Fork Lift 5FD23 – selected applications 1986–1989 (engine code 1Z).
- Toyota Fork Lift 5FG33 – selected applications 1988–1994 (engine code 3F).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with A1298. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
0986AN0570, 0986UN0429, F042302070, 1002114000, 1002114001, 1002114002, 1002114003, 1002114004, LRA01298, LEA0257, LRA1298, DRA3449, 8LHA3087U
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Alternator?
Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying A1298 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will A1298 fit my Toyota Fork Lift 5FD20?
Toyota Fork Lift 5FD20 (1986–1989) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does A1298 replace Lucas LRA01298?
Lucas LRA01298 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for A1298?
The listed details include 1 pulley groove. Compare the complete specifications on this page with the unit being replaced.
Is A1298 new or remanufactured?
Check the current product condition selection for A1298. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering A1298?
Compare pulley configuration, mounting points and electrical connections with the original alternator.
Does a battery warning light prove the alternator has failed?
No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
