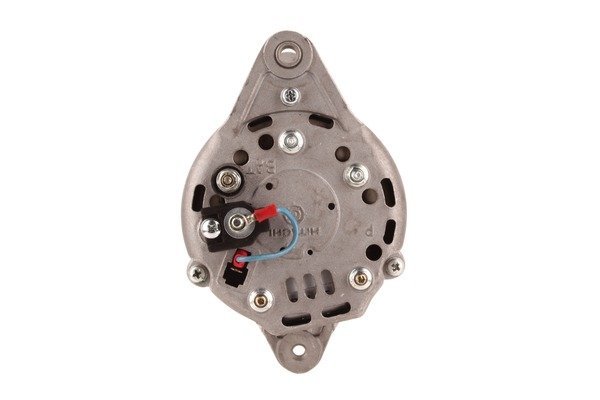

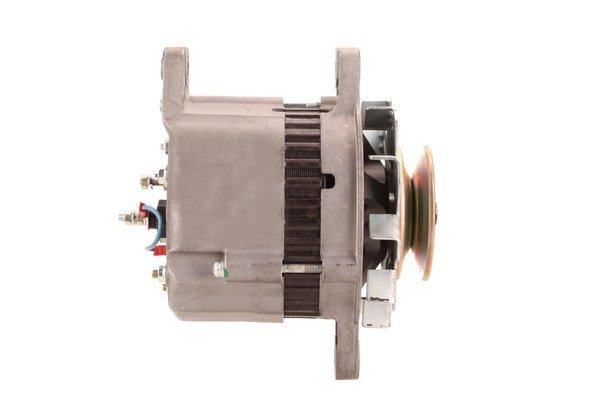

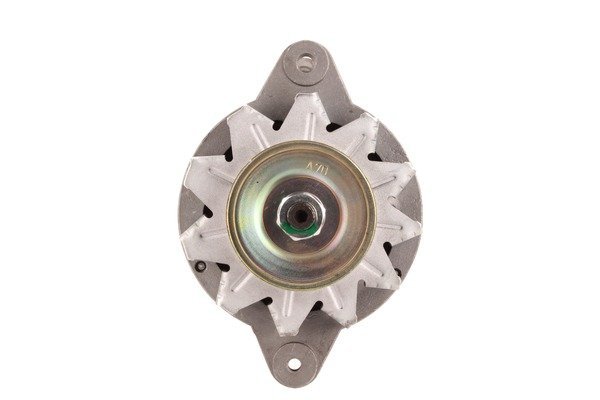

A1331 12V 35A Alternator Fits Yanmar Marine 1GM, Yanmar Marine 2GM
Price range: £131.67 through £167.00
The A1331 12V 35A Alternator is a replacement charging unit from Sahibs Auto Electrics. Listed applications include selected Yanmar Marine 1GM, Yanmar Marine 2GM, Yanmar Marine 2GM-F, Yanmar Marine 3GM models. Identification references include Lucas LRA01331, Valeo 436530, Mitsubishi Electric 32A6800200. Its listed 12V 35A rating provides an electrical matching point for your existing unit. Check the single-groove pulley, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your A1331 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| AMP | 35 A |
| Volt | 12 V |
| No. of Grooves | 1 qty |
| Pulley Diameter | 74 mm |
| Mounting holes | 3 qty |
| B+ | M5 |
| Insulated Return | No |
| Water cooled | No |
| Vacuum pump | No |
| Start/Stop | No |
| Weight | 3.6 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYA1331 | Dyno Electrics |
| 2630400 | JCB |
| 2631200 | JCB |
| 986034310 | Bosch Exchange |
| 986034311 | Bosch Exchange |
| 0986CR0076 | Bosch Exchange |
| 0986UR0076 | Bosch Exchange |
| 10511747 | Delco Remy |
| 110254 | HC-Cargo |
| 112270 | HC-Cargo |
| 12108N | WAI |
| 12109N | WAI |
| 12115N | WAI |
| 12140077201 | Yanmar |
| 12817077200 | Yanmar |
| 12817077201 | Yanmar |
| 12817177200 | Yanmar |
| 1282001HI2 | WAI |
| 12827077200 | Yanmar |
| 1310962 | Hyster |
| 14411250 | YALE |
| 145007040 | PSH |
| 14597N | WAI |
| 14597R | WAI |
| 14687N | WAI |
| 185046200 | Perkins |
| 185046201 | Perkins |
| 20106 | API |
| 20130177 | Prestolite |
| 2310091109 | Nissan |
| 23100B9802 | Nissan |
| 2702018011 | Toyota |
| 3114943 | Hyster |
| 3282883M91 | Massey Ferguson |
| 32A6800200 | Mitsubishi |
| 3446818100 | Mitsubishi |
| 3446818200 | Mitsubishi |
| 3446828100 | Mitsubishi |
| 3446828200 | Mitsubishi |
| 436530 | Valeo |
| 482818300 | Mazda |
| 518250 | Toro |
| 5568656723 | Schaeff |
| 561034 | Valeo |
| 5812003281 | Isuzu |
| 5812003380 | Isuzu |
| 5812003381 | Isuzu |
| 5812003400 | Isuzu |
| 5812003410 | Isuzu |
| 5812003411 | Isuzu |
| 5812003490 | Isuzu |
| 605421 | Toro |
| 65812003380 | Iseki |
| 6.58E+11 | Iseki |
| 65812003380A | Iseki |
| 65812003490 | Iseki |
| 866400 | Toro |
| 8941538821 | Isuzu |
| 8941717780 | Isuzu |
| 8944237560 | Isuzu |
| 901455890 | YALE |
| 90251062 | Wilson |
| 90273023 | Wilson |
| 90273025 | Wilson |
| 90273125 | Wilson |
| A001T23377 | Mitsubishi |
| A001T23377A | Mitsubishi |
| A001T25077 | Mitsubishi |
| A001T25083 | Mitsubishi |
| A001T25087 | Mitsubishi |
| A001T25095 | Mitsubishi |
| A001T25097 | Mitsubishi |
| A001T25099 | Mitsubishi |
| A001T31371 | Mitsubishi |
| A001T31374 | Mitsubishi |
| A001T31377 | Mitsubishi |
| A001T33277 | Mitsubishi |
| A002T25077 | Mitsubishi |
| A1T23377 | Mitsubishi |
| A1T23377A | Mitsubishi |
| A1T25077 | Mitsubishi |
| A1T25083 | Mitsubishi |
| A1T25087 | Mitsubishi |
| A1T25095 | Mitsubishi |
| A1T25097 | Mitsubishi |
| A1T25099 | Mitsubishi |
| A1T31371 | Mitsubishi |
| A1T31374 | Mitsubishi |
| A1T31377 | Mitsubishi |
| A1T33277 | Mitsubishi |
| A2T25077 | Mitsubishi |
| A8518 | Dixie |
| A8829 | Dixie |
| ACA805 | ATK |
| ACA806 | ATK |
| AL380X | Bosch (USA) |
| ALT23002 | Wood Auto |
| ALT31010 | Wood Auto |
| ALT31275 | Wood Auto |
| AMA378 | ATK |
| D40118300 | Mazda |
| D40118300A | Mazda |
| D40118300XA | Mazda |
| D50118300 | Mazda |
| DRA4311 | Delco Remy |
| F032112270 | HC-Cargo |
| F85118300 | Mazda |
| G61218300 | Mazda |
| GD204293E | Hitachi |
| GD205008E | Hitachi |
| GE0118300 | Mazda |
| H61218300 | Mazda |
| HJA116IR | HC-Parts |
| JA116 | HC-Cargo |
| JA116IR | HC-Parts |
| LR1190923B | Hitachi |
| LR12015 | Hitachi |
| LR12015C | Hitachi |
| LR135104 | Hitachi |
| LR135105 | Hitachi |
| LR135115 | Hitachi |
| LR135116 | Hitachi |
| LR135118 | Hitachi |
| LR135124 | Hitachi |
| LR135125 | Hitachi |
| LR135126 | Hitachi |
| LR135127 | Hitachi |
| LR135127N | Hitachi |
| LR135128 | Hitachi |
| LR13521 | Hitachi |
| LR13558B | Hitachi |
| LR13574 | Hitachi |
| LR13574B | Hitachi |
| LR13586 | Hitachi |
| LR13586B | Hitachi |
| LR13586C | Hitachi |
| LR13586F | Hitachi |
| lr13595 | Hitachi |
| LR13595B | Hitachi |
| LR13595BN | Hitachi |
| LR13595BR | Hitachi |
| LRA00685 | Lucas |
| LRA01191 | Lucas |
| LRA01331 | Lucas |
| LRA01826 | Lucas |
| LRA1191 | Lucas |
| LRA1331 | Lucas |
| LRA1826 | Lucas |
| LRA685 | Lucas |
| RNLLR135105 | RNL |
| SBA185046201 | Ford |
| TRA230 | TWA |
| WOOALT23002 | Wood Auto |
| WOOALT31010 | Wood Auto |
| WOOALT31275 | Wood Auto |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| A1191 | M5 D+ | R-L Plug | No |
| A1272 | 1-Pole | 2-Pole | No |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| YANMAR MARINE | 1GM | 318ccm Diesel | 1980 - 1984 | ||||
| YANMAR MARINE | 2GM | 0ccm Diesel | 1980 - 1984 | ||||
| YANMAR MARINE | 2GM-F | 0ccm Diesel | 1980 - 1984 | ||||
| YANMAR MARINE | 3GM | 0ccm Diesel | 1980 - 1984 | ||||
| YANMAR MARINE | 3GM-F | 0ccm Diesel | 1980 - 1984 | ||||
| YANMAR MARINE | 3HM35 | 0ccm Diesel | 1984 - 1993 | ||||
| YANMAR MARINE | 3HM-F | 0ccm Diesel | 1980 - 1984 |
Description
A1331 Replacement Alternator
Start your A1331 alternator comparison with the linked Lucas reference LRA01331 and the specifications shown on this page. The listed electrical rating is 12V 35A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected Yanmar Marine 1GM 318ccm Diesel variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 35A output: compare the listed rating with the original alternator.
- Single-groove pulley: check belt profile and alignment against the existing unit.
- 3 mounting holes: compare the fixing pattern and unit position.
- M5 B+ terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Yanmar Marine 1GM 318ccm Diesel – selected applications 1980–1984.
- Yanmar Marine 2GM – selected applications 1980–1984.
- Yanmar Marine 2GM-F – selected applications 1980–1984.
- Yanmar Marine 3GM – selected applications 1980–1984.
- Yanmar Marine 3GM-F – selected applications 1980–1984.
- Yanmar Marine 3HM35 – selected applications 1984–1993.
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with A1331. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
986034310, 986034311, 0986CR0076, 0986UR0076, 436530, 561034, LRA01331, LRA00685, LRA01191, LRA01826, LRA1191, LRA1331, LRA1826, LRA685, 32A6800200, 3446818100, 3446818200, 3446828100, 3446828200, A001T23377, A001T23377A, A001T25077, A001T25083, A001T25087, A001T25095, A001T25097, A001T25099, A001T31371, A001T31374, A001T31377, A001T33277, A002T25077, A1T23377, A1T23377A, A1T25077, A1T25083, A1T25087, A1T25095, A1T25097, A1T25099, A1T31371, A1T31374, A1T31377, A1T33277, A2T25077, GD204293E, GD205008E, LR1190923B, LR12015, LR12015C, LR135104, LR135105, LR135115, LR135116, LR135118, LR135124, LR135125, LR135126, LR135127, LR135127N, LR135128, LR13521, LR13558B, LR13574, LR13574B, LR13586, LR13586B, LR13586C, LR13586F, lr13595, LR13595B, LR13595BN, LR13595BR, 10511747, DRA4311, 20130177, SBA185046201, 185046200, 185046201, 3282883M91
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Alternator?
Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying A1331 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will A1331 fit my Yanmar Marine 1GM?
Yanmar Marine 1GM 318ccm Diesel (1980–1984) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does A1331 replace Lucas LRA01331?
Lucas LRA01331 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for A1331?
The listed details include 12V, 35A output, 1 pulley groove. Compare the complete specifications on this page with the unit being replaced.
Is A1331 new or remanufactured?
Check the current product condition selection for A1331. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering A1331?
Compare 12V compatibility, 35A output, pulley configuration, mounting points and electrical connections with the original alternator.
Does a battery warning light prove the alternator has failed?
No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
