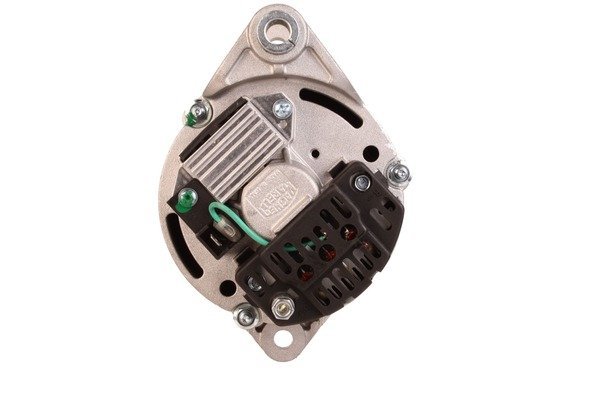

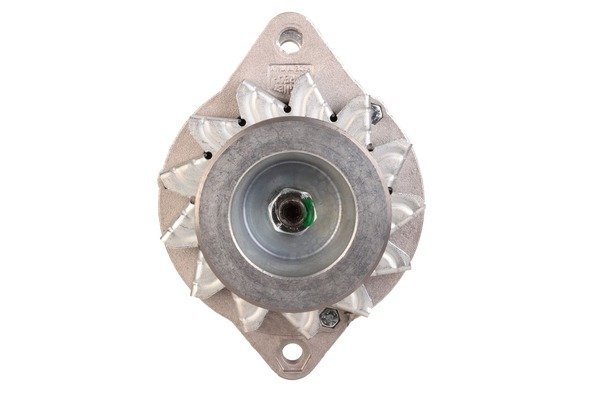

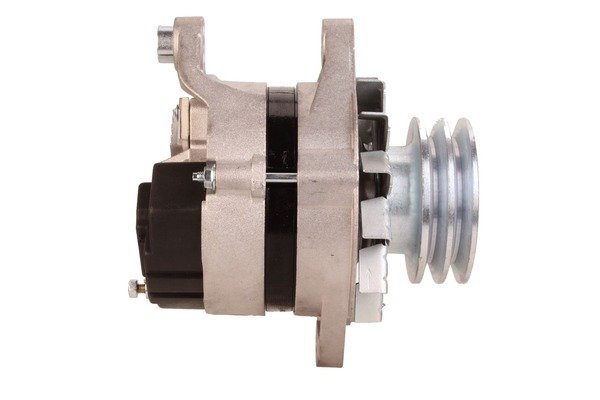

A1352 12V 65A Alternator Fits Fiat Croma, Fiat Ducato 15
Price range: £98.55 through £125.69
Compare the A1352 12V 65A alternator from Sahibs Auto Electrics with the unit currently fitted. Listed applications include selected Fiat Croma, Fiat Ducato 15, Fiat Ducato 18, Fiat-Agri 100.9 models. Identification references include Lucas LRA01352, Bosch 120488225, Valeo 2565994. Its listed 12V 65A rating provides an electrical matching point for your existing unit. Check the single-groove pulley, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your A1352 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| AMP | 65 A |
| Volt | 12 V |
| No. of Grooves | 1 qty |
| Pulley Diameter | 92 mm |
| Mounting holes | 3 qty |
| Position | 0° |
| B+ | M6 |
| Insulated Return | No |
| Water cooled | No |
| Vacuum pump | No |
| Start/Stop | No |
| Weight | 5.5 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYA1352 | Dyno Electrics |
| 108447 | KHD |
| 120488225 | Bosch |
| 120488250 | Bosch |
| 120488251 | Bosch |
| 120489152 | Bosch |
| 120489153 | Bosch |
| 120489212 | Bosch |
| 120489219 | Bosch |
| 120489338 | Bosch |
| 038522068A | Chrysler |
| 63305802 | Magneti Marelli |
| 63307801 | Magneti Marelli |
| 63307802 | Magneti Marelli |
| 63320049 | Magneti Marelli |
| 63320049010 | Magneti Marelli |
| 63321099 | Magneti Marelli |
| 763320049 | Magneti Marelli |
| 986035630 | Bosch Exchange |
| 986035631 | Bosch Exchange |
| 105001065 | PSH |
| 111166 | HC-Cargo |
| 19025064 | Delco Remy |
| 20130207 | Prestolite |
| 2565994 | Valeo |
| 2565995 | Valeo |
| 2929510 | Valeo |
| 2943925 | Fiat Group |
| 294392500 | Same |
| 38522068A | Chrysler |
| 436237 | Valeo |
| 46231758 | Fiat Group |
| 4763249 | KHD |
| 4772668 | Fiat Group |
| 4798447 | Iveco |
| 4798449 | Iveco |
| 4798489 | Fiat Group |
| 4808506 | Fiat Group |
| 4808511 | Fiat Group |
| 4849155 | Fiat Group |
| 4849157 | Fiat Group |
| 63305822 | Magneti Marelli |
| 63305832 | Magneti Marelli |
| 63305842 | Magneti Marelli |
| 63307822 | Magneti Marelli |
| 63307832 | Magneti Marelli |
| 63307862 | Magneti Marelli |
| 63320015 | Magneti Marelli |
| 63320015010 | Magneti Marelli |
| 63321020 | Magneti Marelli |
| 63321022 | Magneti Marelli |
| 63321031 | Magneti Marelli |
| 63321031010 | Magneti Marelli |
| 63321099010 | Magneti Marelli |
| 63321146 | Magneti Marelli |
| 77452410 | Fiat Group |
| 943320049 | Magneti Marelli |
| 943321020 | Magneti Marelli |
| 943321021 | Magneti Marelli |
| AAK4176 | Mahle |
| AL925X | Bosch (USA) |
| ALT12129 | Wood Auto |
| ALT26002 | Wood Auto |
| ALT4040 | Unipoint |
| ALTH225 | Unipoint |
| C000900010060 | Agco |
| CA355IR | HC-Parts |
| DAN2044 | Denso |
| DAN604 | Denso |
| DRA5630 | Delco Remy |
| F042A0H225 | Bosch |
| HCA355IR | HC-Parts |
| LEA0618 | Lucas |
| LETIA0329 | Wood Auto |
| LRA00752 | Lucas |
| LRA00929 | Lucas |
| LRA01352 | Lucas |
| LRA1352 | Lucas |
| LRA752 | Lucas |
| LRA929 | Lucas |
| MAHMG521 | Wood Auto |
| MAN771 | Magneti Marelli |
| MAR274 | Magneti Marelli |
| PRE20130207 | Wood Auto |
| RNL63320049 | RNL |
| RNL63320049V2 | RNL |
| RNLMG521 | RNL |
| WOOALT26002 | Wood Auto |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| A0975 | 65A | 55A Pulley | No |
| A1568 | 65A Double pulley | 65A With out pulley With W terminal | No |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| FIAT | Croma | 2.5 (2499ccm) Diesel | 814497S | 154LI | 1991 - 1996 | ||
| FIAT | Ducato 15 | 2.4 (2445ccm) Diesel | 814061 | Supercoach | 280E | 1986 - 1990 | |
| FIAT | Ducato 18 | 2.4 (2445ccm) Diesel | 814061 | Supercoach | 280E | 1986 - 1990 | |
| FIAT-AGRI | 100.9 | 5419ccm Diesel | 8065.06 | 1983 - 1991 | |||
| FIAT-AGRI | 110.9 | 0ccm Diesel | 8065.05.220 | 1986 - 1994 | |||
| FIAT-AGRI | 115.9 | 0ccm Diesel | 8065.05.000 | 1983 - 1990 | |||
| FIAT-AGRI | 1180 | 0ccm Diesel | 8065.04.217 | 1983 - 1984 | |||
| FIAT-AGRI | 1280 | 0ccm Diesel | 8065.24.300 | 1983 - 1984 | |||
| FIAT-AGRI | 130.9 | 0ccm Diesel | 8065.25.010 | 1983 - 1984 | |||
| FIAT-AGRI | 1380 | 0ccm Diesel | 8065 | 1983 - 1984 | |||
| FIAT-AGRI | 140.9 | 5861ccm Diesel | 8065.25 | 1983 - 1990 | |||
| FIAT-AGRI | 1580 | 0ccm Diesel | 8365.05.500 | 1983 - 1984 | |||
| FIAT-AGRI | 160.9 | 0ccm Diesel | 8365.25 | 1983 - 1990 | |||
| FIAT-AGRI | 180.9 | 0ccm Diesel | 8365.25 | 1983 - 1990 | |||
| FIAT-AGRI | 1880 | 0ccm Diesel | 8365.25.500 | 1979 - 1984 | |||
| FIAT-AGRI | 880.5 | 0ccm Diesel | 8055.04.200 | 1980 - 1984 | |||
| FIAT-AGRI | 90.9 | 4.9 (0ccm) Diesel | 1983 - 1991 | ||||
| FIAT-AGRI | 980 | 0ccm Diesel | Fiat 8065.02 | 1983 - 1984 | |||
| FIAT-AGRI | F100 Winner | 5861ccm Diesel | 8065.05 | 1990 - 1993 | |||
| FIAT-AGRI | F110 Winner | 5861ccm Diesel | 8065.05 | 1990 - 1996 | |||
| FIAT-AGRI | F115 Winner | 5861ccm Diesel | 8065.05 | 1993 - 1996 | |||
| FIAT-AGRI | F120 Winner | 5861ccm Diesel | 8065.05 | 1990 - 1993 | |||
| FIAT-AGRI | F130 Winner | 5861ccm Diesel | 8065.25A | 1990 - 1993 | |||
| FIAT-AGRI | F130 Winner | 5861ccm Diesel | 8065.2 | 1993 - 1996 | |||
| LANCIA | Thema | 2.4 (2445ccm) Diesel | 814491 | S.W. | 834AO | 1987 - 1990 | |
| LANCIA | Thema | 2.5 (2499ccm) Diesel | 814497/814497S/814497Y | 834AE/834AM/834FE | 1988 - 1994 | ||
| LANCIA | Thema | 2.5 (2499ccm) Diesel | 814497S | 834AM | 1988 - 1992 | ||
| LANCIA | Thema | 2.5 (2499ccm) Diesel | 814497S | S.W. | 834AM | 1988 - 1992 | |
| LANCIA | Thema | 2.5 (2499ccm) Diesel | 814497/814497Y | S.W. | 834AE/834FE | 1988 - 1994 |
Description
A1352 Replacement Alternator
For a A1352 alternator enquiry, use Lucas reference LRA01352 alongside the vehicle and original unit details. The listed electrical rating is 12V 65A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected Fiat Croma 2.5 Diesel variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 65A output: compare the listed rating with the original alternator.
- Single-groove pulley: check belt profile and alignment against the existing unit.
- 3 mounting holes: compare the fixing pattern and unit position.
- M6 B+ terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Fiat Croma 2.5 Diesel – selected applications 1991–1996 (engine code 814497S).
- Fiat Ducato 15 2.4 Diesel – selected applications 1986–1990 (engine code 814061).
- Fiat Ducato 18 2.4 Diesel – selected applications 1986–1990 (engine code 814061).
- Fiat-Agri 100.9 5419ccm Diesel – selected applications 1983–1991 (engine code 8065.06).
- Fiat-Agri 110.9 – selected applications 1986–1994 (engine code 8065.05.220).
- Fiat-Agri 115.9 – selected applications 1983–1990 (engine code 8065.05.000).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with A1352. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
120488225, 120488250, 120488251, 120489152, 120489153, 120489212, 120489219, 120489338, 986035630, 986035631, F042A0H225, 2565994, 2565995, 2929510, 436237, DAN2044, DAN604, LRA01352, LEA0618, LRA00752, LRA00929, LRA1352, LRA752, LRA929, 19025064, DRA5630, 20130207, AAK4176, 038522068A, 38522068A
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Alternator?
Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying A1352 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will A1352 fit my Fiat Croma?
Fiat Croma 2.5 Diesel (1991–1996) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does A1352 replace Lucas LRA01352?
Lucas LRA01352 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for A1352?
The listed details include 12V, 65A output, 1 pulley groove. Compare the complete specifications on this page with the unit being replaced.
Is A1352 new or remanufactured?
Check the current product condition selection for A1352. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering A1352?
Compare 12V compatibility, 65A output, pulley configuration, mounting points and electrical connections with the original alternator.
Does a battery warning light prove the alternator has failed?
No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
