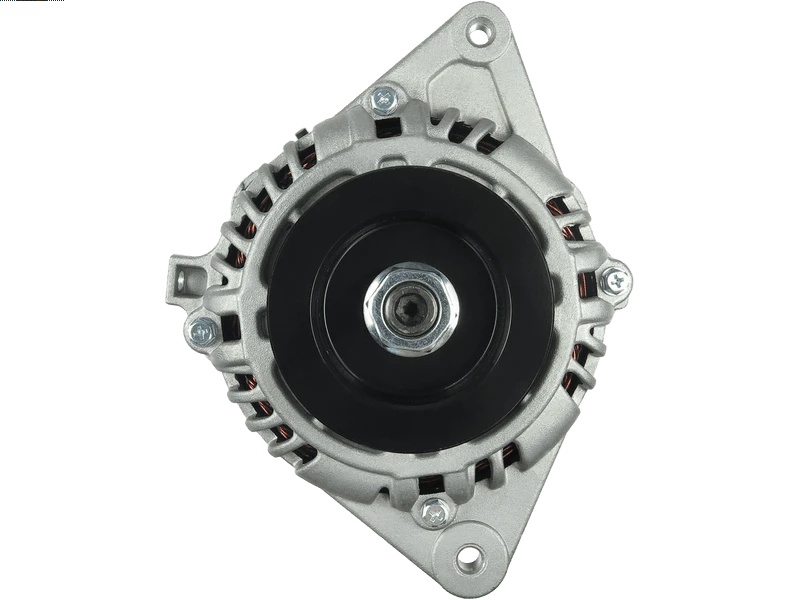

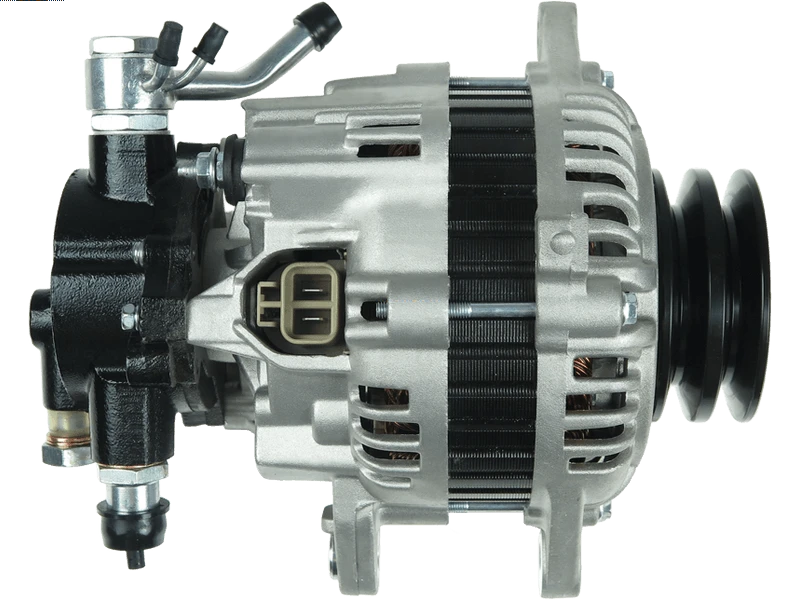

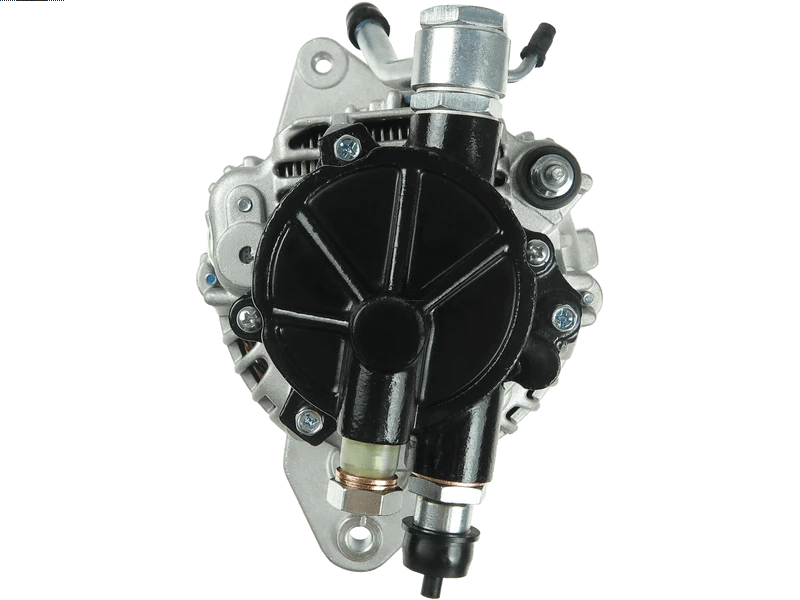

A1471 12V 75A Alternator Fits Mitsubishi L300
Price range: £160.00 through £178.53
Compare the A1471 12V 75A alternator from Sahibs Auto Electrics with the unit currently fitted. Listed applications include selected Mitsubishi L300 models. Identification references include Lucas LRA01471, Bosch 986080260, Mitsubishi Electric A003T04999. Its listed 12V 75A rating provides an electrical matching point for your existing unit. Check the 2-groove pulley, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your A1471 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| AMP | 75 A |
| Volt | 12 V |
| No. of Grooves | 2 qty |
| Pulley Diameter | 60 mm |
| Insulated Return | No |
| Water cooled | No |
| Vacuum pump | Yes |
| Start/Stop | No |
| Weight | 7.61 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYA1471 | Dyno Electrics |
| 401690261 | Euro Car Part |
| A5346 | AS-PL |
| UD12292A | AS-PL |
| 986080260 | BOSCH |
| DRA3883 | DELCO |
| 8EL012429-851 | HELLA |
| 8EL737169-001 | HELLA |
| A003T04999 | MITSUBISHI |
| A003T06099 | MITSUBISHI |
| A3T0059 | MITSUBISHI |
| A3T04999 | MITSUBISHI |
| A3T06099 | MITSUBISHI |
| MD135825 | MITSUBISHI |
| MD147246 | MITSUBISHI |
| 20130141 | PRESTOLITE |
| ALTF463 | 3EFFE |
| ANM36103X | ANDEL |
| AEA2236 | AUTOELECTRO |
| CAL35145AS | CASCO |
| 9020 | CEVAM |
| 57235 | EAI |
| 28-2511 | ELSTOCK |
| JA1130IR | HC PARTS |
| 401130RI | KUHNER |
| 11.113 | LAUBER |
| 445750 | LOGISTIK |
| LRA01471 | LUCAS |
| LRA1471 | LUCAS |
| 9213200 | POWERMAX |
| 155.607.075.130 | PSH |
| 155.607.075.265 | PSH |
| 155.607.075.360 | PSH |
| 155.607.075.870 | PSH |
| 20137541BN | REAL |
| 2035145 | SANDO |
| ALT371450 | SIOM |
| ALT6320 | SIOM |
| STX101373 | STARDAX |
| 12628R | WAI / TRANSPO |
| ALT31053 | WOODAUTO |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| A1383 | Different pump connections | No | |
| A1556 | 8MM Mounting holes | 10MM Mounting holes Pulley | No |
| A1471 | LRB00236 | No |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| MITSUBISHI | L300 | 2.5 (2477ccm) Diesel | 4D56(SOHC8VPENA) | P05V/P15V | 1991 - 1994 | ||
| MITSUBISHI | L300 | 2.5 (2477ccm) Diesel | 4D56 | P05W/P15W | 1991 - 1996 | ||
| MITSUBISHI | L300 | 2.5 (2477ccm) Diesel | 4D56(SOHC8VPENA) | P05W/P15W | 1991 - 1994 | ||
| MITSUBISHI | L300 | 2.5 (2477ccm) Diesel | 4D56T | P25W | 1991 - 1996 | ||
| MITSUBISHI | L300 | 2.5 (2477ccm) Diesel | 4D56T | P45V | 1991 - 1996 |
Description
A1471 Replacement Alternator
For a A1471 alternator enquiry, use Lucas reference LRA01471 alongside the vehicle and original unit details. The listed electrical rating is 12V 75A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected Mitsubishi L300 2.5 Diesel variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 75A output: compare the listed rating with the original alternator.
- 2-groove pulley: check belt profile and alignment against the existing unit.
- Lucas LRA01471 reference: a starting point for identifying the replacement.
Compatible Vehicles and Applications
- Mitsubishi L300 2.5 Diesel – selected applications 1991–1994 (engine code 4D56(SOHC8VPENA)).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with A1471. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
986080260, LRA01471, LRA1471, A003T04999, A003T06099, A3T0059, A3T04999, A3T06099, MD135825, MD147246, DRA3883, 20130141
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Alternator?
Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying A1471 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will A1471 fit my Mitsubishi L300?
Mitsubishi L300 2.5 Diesel (1991–1994) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does A1471 replace Lucas LRA01471?
Lucas LRA01471 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for A1471?
The listed details include 12V, 75A output, 2 pulley grooves. Compare the complete specifications on this page with the unit being replaced.
Is A1471 new or remanufactured?
Check the current product condition selection for A1471. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering A1471?
Compare 12V compatibility, 75A output, pulley configuration, mounting points and electrical connections with the original alternator.
Does a battery warning light prove the alternator has failed?
No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
