A1489 12V 40A Alternator Fits Daihatsu Cuore
Price range: £107.30 through £138.38

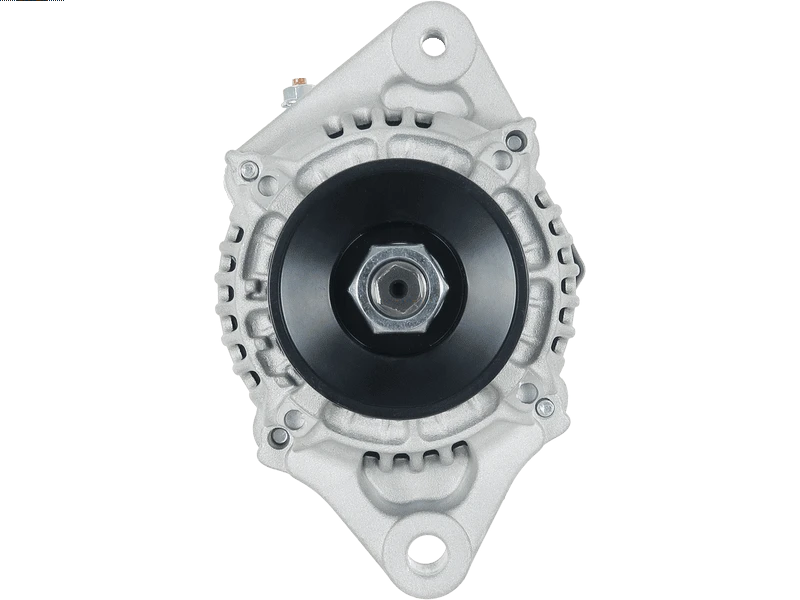

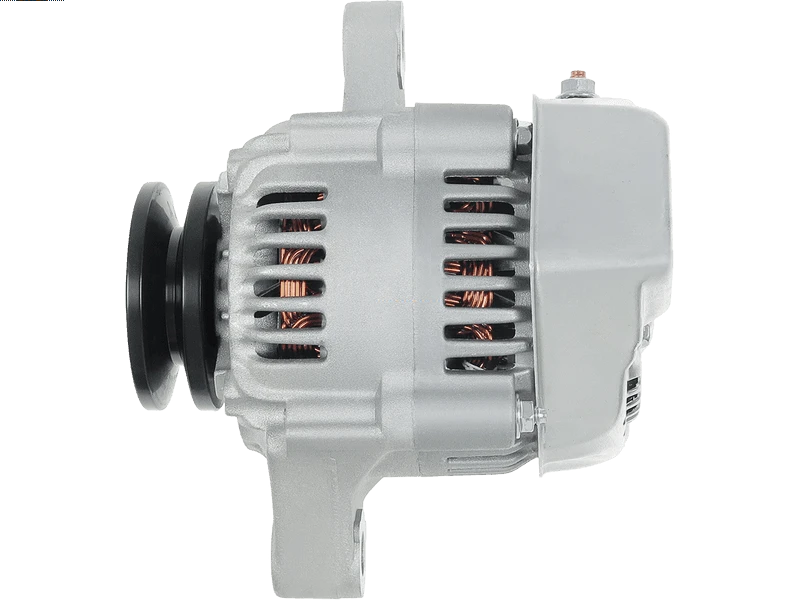

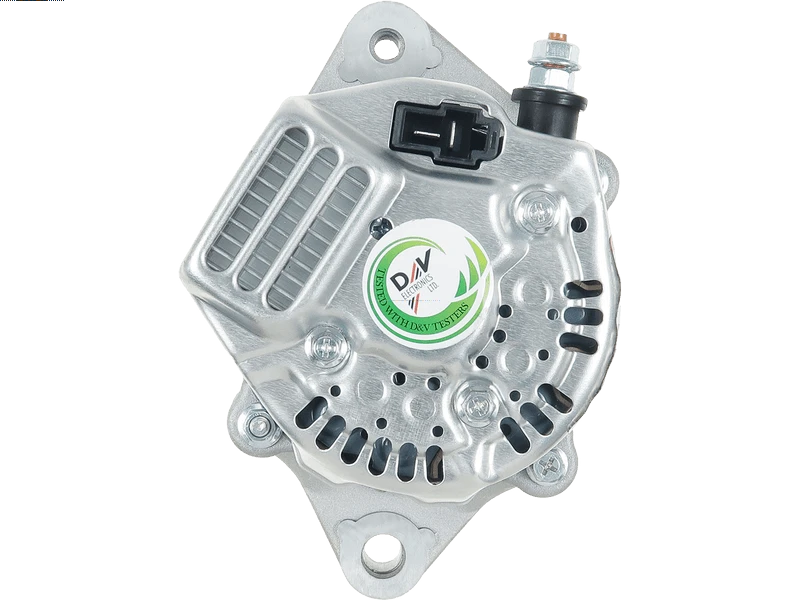

The A1489 12V 40A Alternator is a replacement charging unit from Sahibs Auto Electrics. Listed applications include selected Daihatsu Cuore models. Identification references include Lucas LRA01489, Denso 100211-4620, Delco Remy DRA3827. Its listed 12V 40A rating provides an electrical matching point for your existing unit. Check the single-groove pulley, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your A1489 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| AMP | 40 A |
| Volt | 12 V |
| No. of Grooves | 1 qty |
| Pulley Diameter | 40 mm |
| Mounting holes | 2 qty |
| Position | 15° |
| B+ | M6 |
| Insulated Return | No |
| Water cooled | No |
| Vacuum pump | No |
| Start/Stop | No |
| Weight | 2.91 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYA1489 | Dyno Electrics |
| UD103172A | AS-PL |
| DRA3827 | DELCO |
| 100211-4620 | DENSO |
| 100211-4621 | DENSO |
| 100211-4630 | DENSO |
| 100211-4631 | DENSO |
| 27060-87211 | TOYOTA |
| 27060-87212 | TOYOTA |
| ALTS819 | 3EFFE |
| 28-2536CT | AINDE |
| CGB-13827 | AINDE |
| ANM36047 | ANDEL |
| L69080 | ATL AUTOTECHNIK |
| ADN188A | AUTOTEAM |
| G101374 | BTS TURBO |
| G105228 | BTS TURBO |
| CAL40188AS | CASCO |
| 217115402 | DRI |
| 56752 | EAI |
| ALT6202 | ELECTROLOG |
| 28-2536 | ELSTOCK |
| 12060035 | EUROTEC |
| 3110209 | HENKEL PARTS |
| 3110210 | HENKEL PARTS |
| 20040188AV | ITAB AUTOMOTIVE |
| ALN1358 | KRAUF |
| 401358RI | KUHNER |
| 446407 | LOGISTIK |
| LRA01489 | LUCAS |
| LRA1489 | LUCAS |
| 89213073 | POWERMAX |
| 9213073 | POWERMAX |
| IR6856 | PROTECH |
| 115.515.040.050 | PSH |
| 20132881BN | REAL |
| 2040188 | SANDO |
| A12DE0622A2 | SIDAT |
| ALT421880A | SIOM |
| DH8021 | SNRA |
| 752ST65 | STARTCAR |
| AL01203 | TMI |
| 12530N | WAI / TRANSPO |
| 70-29-12530 | WILSON |
| 90-29-5504 | WILSON |
| ALT30222 | WOODAUTO |
| WOOALT30222 | WOODAUTO |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| DAIHATSU | Cuore | 0.8 (847ccm) Petrol | ED | MK III | L201 | 1990 - 1994 |
Description
A1489 Replacement Alternator
The A1489 alternator is a replacement unit identified by Lucas reference LRA01489. The listed electrical rating is 12V 40A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected Daihatsu Cuore 0.8 Petrol variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 40A output: compare the listed rating with the original alternator.
- Single-groove pulley: check belt profile and alignment against the existing unit.
- 2 mounting holes: compare the fixing pattern and unit position.
- M6 B+ terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Daihatsu Cuore 0.8 Petrol – selected applications 1990–1994 (engine code ED).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with A1489. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
100211-4620, 100211-4621, 100211-4630, 100211-4631, LRA01489, LRA1489, DRA3827
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Alternator?
Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying A1489 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will A1489 fit my Daihatsu Cuore?
Daihatsu Cuore 0.8 Petrol (1990–1994) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does A1489 replace Lucas LRA01489?
Lucas LRA01489 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for A1489?
The listed details include 12V, 40A output, 1 pulley groove. Compare the complete specifications on this page with the unit being replaced.
Is A1489 new or remanufactured?
Check the current product condition selection for A1489. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering A1489?
Compare 12V compatibility, 40A output, pulley configuration, mounting points and electrical connections with the original alternator.
Does a battery warning light prove the alternator has failed?
No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
