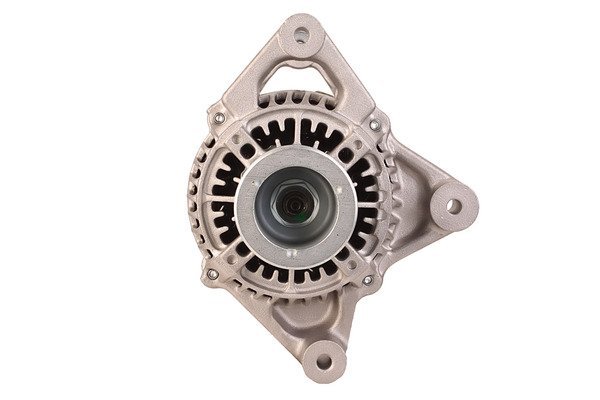

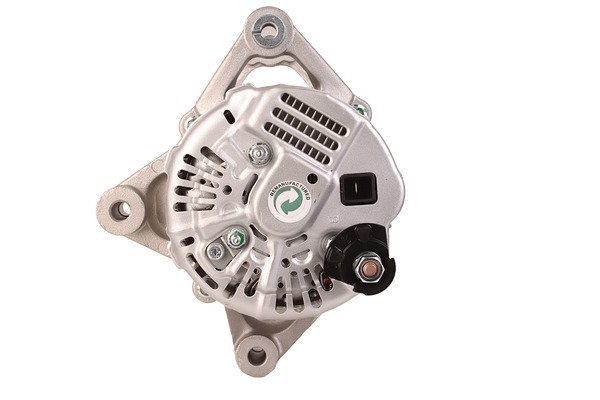

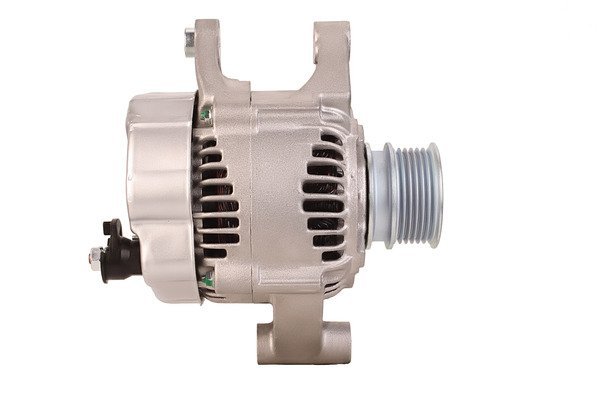

A1536 12V 100A Alternator Fits Renault Laguna, Volvo S40, Volvo V40
Price range: £127.37 through £167.96
Identify a replacement alternator using Sahibs A1536, listed at 12V 100A. Listed applications include selected Renault Laguna, Volvo S40, Volvo V40 models. Identification references include Lucas LRA01536, Bosch 120465012, Valeo 437516. Its listed 12V 100A rating provides an electrical matching point for your existing unit. Check the 6-groove pulley, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your A1536 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| AMP | 100 A |
| Volt | 12 V |
| No. of Grooves | 6 qty |
| Pulley Diameter | 57 mm |
| Mounting holes | 4 qty |
| Position | -13° |
| B+ | M8 |
| Insulated Return | No |
| Water cooled | No |
| Vacuum pump | No |
| Start/Stop | No |
| Weight | 5.4 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYA1536 | Dyno Electrics |
| 401660721 | Euro Car Part |
| 120465012 | Bosch |
| 123213005 | Bosch |
| 123213006 | Bosch |
| 123500004 | Bosch |
| 123505014 | Bosch |
| 123545001 | Bosch |
| 986038630 | Bosch Exchange |
| 986038631 | Bosch Exchange |
| 986040370 | Bosch Exchange |
| 986040371 | Bosch Exchange |
| 986040377 | Bosch Exchange |
| 1002115570 | Denso |
| 1012115570 | Denso |
| 1012115571 | Denso |
| 1012119000 | Denso |
| 111734 | HC-Cargo |
| 1220801BO | WAI |
| 1220802BO | WAI |
| 13800R | WAI |
| 20110219 | Prestolite |
| 22536R | WAI |
| 3523422 | Volvo |
| 437516 | Valeo |
| 5003975 | Volvo |
| 5003996 | Volvo |
| 63731088 | Magneti Marelli |
| 8111634 | Volvo |
| 815506100 | PSH |
| 8602082 | Volvo |
| 90156314 | Wilson |
| 9130002 | Volvo |
| 9130003 | Volvo |
| 9130217 | Volvo |
| 9130274 | Volvo |
| 9130485 | Volvo |
| 9162424 | Volvo |
| 9162683 | Volvo |
| AL0053X | Bosch (USA) |
| ALT10552 | Wood Auto |
| ALT2063 | Wood Auto |
| B120411114 | Bosch |
| CA1088IR | HC-Parts |
| CA1822IR | HC-Parts |
| DRB0370 | Delco Remy |
| F042A01072 | Bosch |
| HCA1088IR | HC-Parts |
| HCA1822IR | HC-Parts |
| LRA01536 | Lucas |
| LRA1536 | Lucas |
| LRB00219 | Lucas |
| LRB219 | Lucas |
| MQA1088 | Magneti Marelli |
| RAA21481 | Delco Remy |
| RNL4037 | RNL |
| RNL505014 | RNL |
| TRA267 | TWA |
| WOOALT10552 | Wood Auto |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| B0375 | 100A | 80A | No |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| RENAULT | Laguna | 2.0 (1948ccm) Petrol | N7Q704 | PHASE I | B56M | 1995 - 2001 | |
| RENAULT | Laguna | 2.0 (1948ccm) Petrol | N7Q700/N7Q704 | PHASE I | B56D/B56M | 1995 - 2001 | |
| VOLVO | S40 | 1.6 (1587ccm) Petrol | B4164S | I | 644 | 1997 - 1999 | |
| VOLVO | S40 | 1.6 (1587ccm) Petrol | B4164S2 | I | 644 | 1999 - 2003 | |
| VOLVO | S40 | 1.8 (1731ccm) Petrol | B4184S/B4184S3 | I | 644 | 1995 - 1999 | |
| VOLVO | S40 | 1.8 (1783ccm) Petrol | B4184S2 | I | 644 | 1999 - 2003 | |
| VOLVO | S40 | 2.0 (1948ccm) Petrol | B4204S/B4204S2 | I | 644 | 1995 - 2003 | |
| VOLVO | S40 | 2.0 (1948ccm) Petrol | B4204S | I | 644 | 1995 - 1999 | |
| VOLVO | V40 | 1.6 (1587ccm) Petrol | B4164S | I | 645 | 1997 - 1999 | |
| VOLVO | V40 | 1.6 (1587ccm) Petrol | B4164S2 | I | 645 | 1999 - 2004 | |
| VOLVO | V40 | 1.8 (1731ccm) Petrol | B4184S/B4184S3 | I | 645 | 1995 - 1999 | |
| VOLVO | V40 | 1.8 (1783ccm) Petrol | B4184S2 | I | 645 | 1999 - 2004 | |
| VOLVO | V40 | 1.9 (1855ccm) Petrol | B4194T/B4194T2 | I | 645 | 1997 - 2000 | |
| VOLVO | V40 | 2.0 (1948ccm) Petrol | B4204S | I | 645 | 1996 - 1999 | |
| VOLVO | V40 | 2.0 (1948ccm) Petrol | B4204S/B4204S2 | I | 645 | 1996 - 2004 | |
| VOLVO | V40 | 2.0 (1948ccm) Petrol | B4204T | I | 645 | 1997 - 2004 | |
| VOLVO | V40 | 2.0 (1948ccm) Petrol | B4204T2 | I | 645 | 1999 - 2001 | |
| VOLVO | V40 | 2.0 (1948ccm) Petrol | B4204T5 | I | 645 | 2000 - 2004 | |
| VOLVO | V40 | 2.0 (1948ccm) Petrol | B4204T3 | I | 645 | 2001 - 2004 |
Description
A1536 Replacement Alternator
Choose a replacement by comparing the A1536 alternator and its Lucas reference, LRA01536, with your existing unit. The listed electrical rating is 12V 100A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected Renault Laguna 2.0 Petrol variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 100A output: compare the listed rating with the original alternator.
- 6-groove pulley: check belt profile and alignment against the existing unit.
- 4 mounting holes: compare the fixing pattern and unit position.
- M8 B+ terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Renault Laguna 2.0 Petrol – selected applications 1995–2001 (engine code N7Q704).
- Volvo S40 1.6 Petrol – selected applications 1997–1999 (engine code B4164S).
- Volvo V40 1.6 Petrol – selected applications 1997–1999 (engine code B4164S).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with A1536. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
120465012, 123213005, 123213006, 123500004, 123505014, 123545001, 986038630, 986038631, 986040370, 986040371, 986040377, B120411114, F042A01072, 437516, 1002115570, 1012115570, 1012115571, 1012119000, LRA01536, LRA1536, LRB00219, LRB219, DRB0370, RAA21481, 20110219
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Alternator?
Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying A1536 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will A1536 fit my Renault Laguna?
Renault Laguna 2.0 Petrol (1995–2001) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does A1536 replace Lucas LRA01536?
Lucas LRA01536 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for A1536?
The listed details include 12V, 100A output, 6 pulley grooves. Compare the complete specifications on this page with the unit being replaced.
Is A1536 new or remanufactured?
Check the current product condition selection for A1536. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering A1536?
Compare 12V compatibility, 100A output, pulley configuration, mounting points and electrical connections with the original alternator.
Does a battery warning light prove the alternator has failed?
No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
