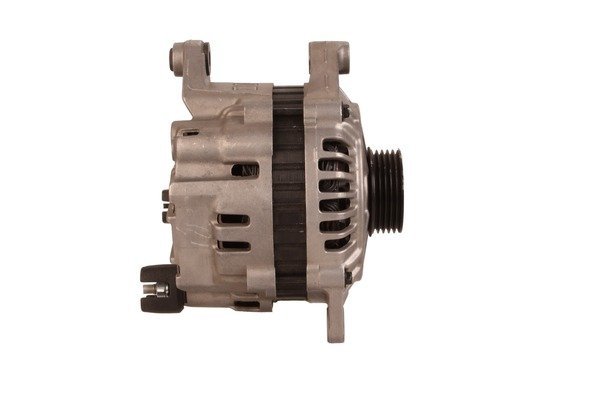

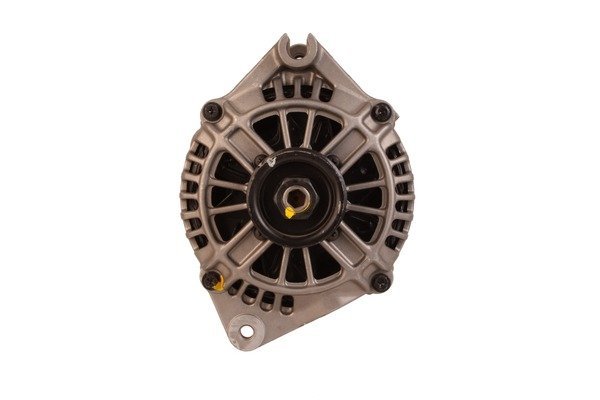

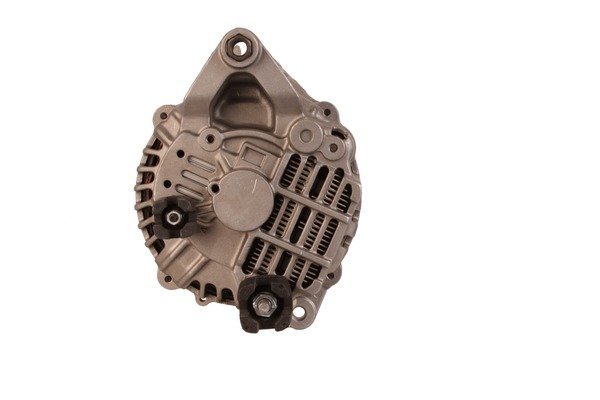

A1561 12V 90A Alternator Fits Peugeot 605, Citroën XM
Price range: £104.16 through £138.67
Sahibs A1561 is a replacement alternator with a listed 12V 90A rating. Listed applications include selected Peugeot 605, CitroËN XM models. Identification references include Lucas LRA01561, Valeo 437998, Mitsubishi Electric A003TA0592. Its listed 12V 90A rating provides an electrical matching point for your existing unit. Check the 5-groove pulley, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your A1561 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| AMP | 90 A |
| Volt | 12 V |
| No. of Grooves | 5 qty |
| Pulley Diameter | 56 mm |
| Mounting holes | 3 qty |
| Position | 20° |
| B+ | M8 |
| Insulated Return | No |
| Water cooled | No |
| Vacuum pump | No |
| Start/Stop | No |
| Weight | 5.8 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYA1561 | Dyno Electrics |
| 112231 | HC-Cargo |
| 225537090 | PSH |
| 22684R | WAI |
| 437998 | Valeo |
| 57053B | PSA |
| 5705A4 | PSA |
| 5705C7 | PSA |
| 95667750 | PSA |
| 9603552680 | PSA |
| 9610870980 | PSA |
| 9615735880 | PSA |
| 9617002980 | PSA |
| A003TA0592 | Mitsubishi |
| A003TA0592C | Mitsubishi |
| A003TA0592D | Mitsubishi |
| A003TA0592E | Mitsubishi |
| A004T00891 | Mitsubishi |
| A004T00891C | Mitsubishi |
| A004T00891D | Mitsubishi |
| A004T00891E | Mitsubishi |
| A004T02892 | Mitsubishi |
| A004T02892A | Mitsubishi |
| A004T03292 | Mitsubishi |
| A004T03292A | Mitsubishi |
| A004T03292B | Mitsubishi |
| A004TA0094 | Mitsubishi |
| A3TA0592 | Mitsubishi |
| A3TA0592C | Mitsubishi |
| A3TA0592D | Mitsubishi |
| A3TA0592E | Mitsubishi |
| A4T00891 | Mitsubishi |
| A4T00891C | Mitsubishi |
| A4T00891D | Mitsubishi |
| A4T00891E | Mitsubishi |
| A4T02892 | Mitsubishi |
| A4T02892A | Mitsubishi |
| A4T03292 | Mitsubishi |
| A4T03292A | Mitsubishi |
| A4T03292B | Mitsubishi |
| A4TA0094 | Mitsubishi |
| ALT31109 | Wood Auto |
| LRA01561 | Lucas |
| LRA1561 | Lucas |
| WOOALT31109 | Wood Auto |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| A0764 | 90A M8 B+ M5 D+ | 80A M6 B+ Spade Terminal D+ Pulley | No |
| B0180 | 90A Mitsubishi | 70A Valeo Pulley | No |
| A1764 | 90A M6 B+ | 70A M8 B+ Pulley Placing of terminals | No |
| A1263 | 90A M8 B+ M5 D+ Mitsubishi | 70A M6 B+ Spade Terminal D+ Pulley Valeo | No |
| B0184 | 90A Mitsubishi | 80A Pulley Valeo | No |
| B0183 | 90A Mitsubishi | 70A Valeo Pulley | No |
| A1576 | 90A M8 B+ M5 D+ Pulley | 80A M6 B+ Spade Terminal D+ | No |
| B0119 | 90A M8 B+ M5 D+ Mitsubishi | 55A M6 B+ Spade Terminal D+ Valeo | No |
| A2769 | 90A | 80A Pulley | No |
| A2600 | 90A M8 B+ M5 D+ | 80A M6 B+ Spade Terminal D+ Pulley | No |
| A1428 | M8 B+ M5 D+ Mitsubishi | M6 B+ Spade Terminal D+ Pulley Valeo | No |
| A0471 | 90A M8 B+ M5 D+ | 50A M6 B+ Spade Terminal D+ Pulley | No |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| CITROËN | XM | 2.1 (2138ccm) Diesel | XUD11A | Y3 | 1989 - 1994 | ||
| CITROËN | XM | 3.0 (2963ccm) Petrol | ZPJ4UKZ | Y3 | 1989 - 1994 | ||
| CITROËN | XM | 3.0 (2963ccm) Petrol | ZPJ4UKZ | Y3 | 1990 - 1994 | ||
| CITROËN | XM | 3.0 (2975ccm) Petrol | ZPJZ | Y3 | 1989 - 1994 | ||
| CITROËN | XM | 3.0 (2975ccm) Petrol | ZPJZ4 | Y3 | 1989 - 1994 | ||
| PEUGEOT | 605 | 2.0 (1998ccm) Petrol | XU102C | 6BR5A2 | 1989 - 1993 | ||
| PEUGEOT | 605 | 2.0 (1998ccm) Petrol | XU10J2 | 6BRFZ2/6BRFZ4 | 1989 - 1993 | ||
| PEUGEOT | 605 | 2.0 (1998ccm) Petrol | XU10MZ | 6BR2B2 | 1990 - 1999 | ||
| PEUGEOT | 605 | 2.0 (1998ccm) Petrol | XU10J2TE | 6BRGX2/6BRGX4 | 1995 - 1999 | ||
| PEUGEOT | 605 | 2.0 (1998ccm) Petrol | XU10J2TE | 6BGRX2/6BGRX4/6BRGY2/6BRGY4 | 1995 - 1999 | ||
| PEUGEOT | 605 | 2.1 (2088ccm) Diesel | XUD11ATE/XUD11BTE | 6BP8B2/6BP8B4/6BP8C2/6BP8C4/6BPHZ2/6BPHZ4 | 1989 - 1993 | ||
| PEUGEOT | 605 | 2.1 (2138ccm) Diesel | XUD11A | 6BP9A2/6BP9Z2 | 1989 - 1995 | ||
| PEUGEOT | 605 | 3.0 (2963ccm) Petrol | ZPJ4UKZ | 6BUKZ2 | 1989 - 1993 | ||
| PEUGEOT | 605 | 3.0 (2963ccm) Petrol | ZPJUKZ | 6BUFZ2/6BUFZ4 | 1989 - 1999 |
Description
A1561 Replacement Alternator
The Sahibs A1561 alternator is associated with Lucas reference LRA01561 for replacement identification. The listed electrical rating is 12V 90A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected Peugeot 605 2.0 Petrol variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 90A output: compare the listed rating with the original alternator.
- 5-groove pulley: check belt profile and alignment against the existing unit.
- 3 mounting holes: compare the fixing pattern and unit position.
- M8 B+ terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Peugeot 605 2.0 Petrol – selected applications 1989–1993 (engine code XU102C).
- CitroËN XM 2.1 Diesel – selected applications 1989–1994 (engine code XUD11A).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with A1561. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
437998, LRA01561, LRA1561, A003TA0592, A003TA0592C, A003TA0592D, A003TA0592E, A004T00891, A004T00891C, A004T00891D, A004T00891E, A004T02892, A004T02892A, A004T03292, A004T03292A, A004T03292B, A004TA0094, A3TA0592, A3TA0592C, A3TA0592D, A3TA0592E, A4T00891, A4T00891C, A4T00891D, A4T00891E, A4T02892, A4T02892A, A4T03292, A4T03292A, A4T03292B, A4TA0094
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Alternator?
Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying A1561 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will A1561 fit my Peugeot 605?
Peugeot 605 2.0 Petrol (1989–1993) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does A1561 replace Lucas LRA01561?
Lucas LRA01561 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for A1561?
The listed details include 12V, 90A output, 5 pulley grooves. Compare the complete specifications on this page with the unit being replaced.
Is A1561 new or remanufactured?
Check the current product condition selection for A1561. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering A1561?
Compare 12V compatibility, 90A output, pulley configuration, mounting points and electrical connections with the original alternator.
Does a battery warning light prove the alternator has failed?
No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
