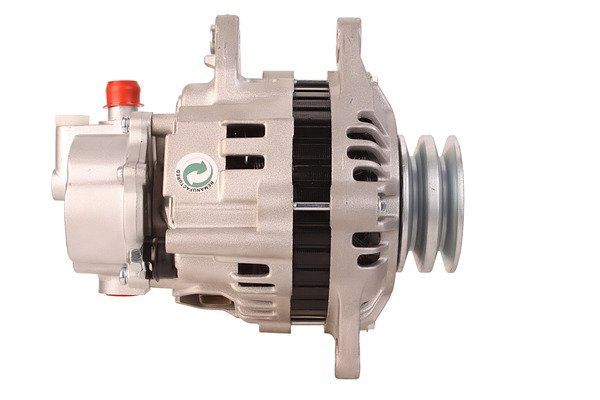

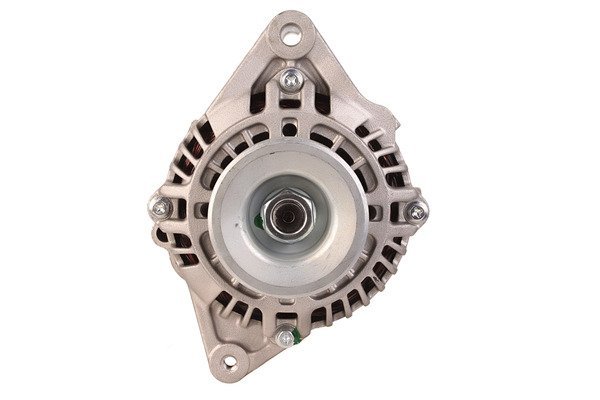

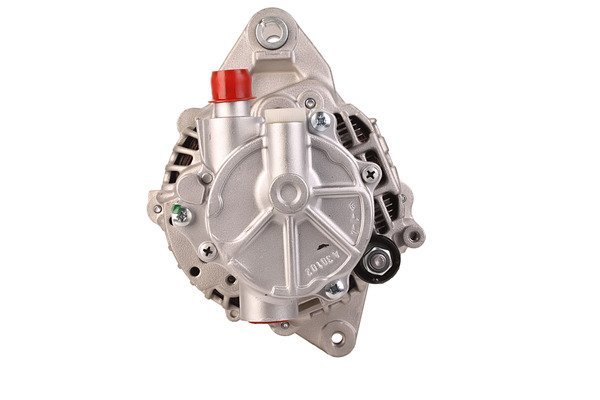

A1573 12V 65A Alternator Fits Mitsubishi L300, Mitsubishi L400
Price range: £132.55 through £173.33
Identify a replacement alternator using Sahibs A1573, listed at 12V 65A. Listed applications include selected Mitsubishi L300, Mitsubishi L400 models. Identification references include Lucas LRA01573, Mitsubishi Electric A002TN0299, Delco Remy DRA1749. Its listed 12V 65A rating provides an electrical matching point for your existing unit. Check the 2-groove pulley, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your A1573 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| AMP | 65 A |
| Volt | 12 V |
| No. of Grooves | 2 qty |
| Pulley Diameter | 78.2 mm |
| Mounting holes | 3 qty |
| Position | 20° |
| B+ | M8 |
| Insulated Return | No |
| Water cooled | No |
| Vacuum pump | No |
| Start/Stop | No |
| Weight | 6.2 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYA1573 | Dyno Electrics |
| 986080840 | Bosch Exchange |
| 112065 | HC-Cargo |
| 12648R | WAI |
| 155610065 | PSH |
| 3730042710 | Hyundai |
| A002TN0299 | Mitsubishi |
| A002TN0599 | Mitsubishi |
| A002TN1299 | Mitsubishi |
| A002TN1299ZT | Mitsubishi |
| A003TN0199 | Mitsubishi |
| A2TN0299 | Mitsubishi |
| A2TN0599 | Mitsubishi |
| A2TN1299 | Mitsubishi |
| A2TN1299ZT | Mitsubishi |
| A3TN0199 | Mitsubishi |
| ACA993 | ATK |
| ACA993M | ATK |
| ALT31121 | Wood Auto |
| DRA1749 | Delco Remy |
| DRA3868 | Delco Remy |
| HJA1411IR | HC-Parts |
| JA1411IR | HC-Parts |
| LRA01573 | Lucas |
| LRA01913 | Lucas |
| LRA01918 | Lucas |
| LRA02002 | Lucas |
| LRA1573 | Lucas |
| LRA1913 | Lucas |
| LRA1918 | Lucas |
| LRA2002 | Lucas |
| MD309849 | Mitsubishi |
| MD314235 | Mitsubishi |
| MD315430 | Mitsubishi |
| MD315432 | Mitsubishi |
| MD332546 | Mitsubishi |
| MD332547 | Mitsubishi |
| MD334546 | Mitsubishi |
| TRA097 | TWA |
| WOOALT31121 | Wood Auto |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| A1913 | 65A | 90A | Yes |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| MITSUBISHI | L300 | 2.5 (2477ccm) Diesel | 4D56 | P05W/P15W | 1996 - 2003 | ||
| MITSUBISHI | L300 | 2.5 (2477ccm) Diesel | 4D56T | P25W | 1996 - 2004 | ||
| MITSUBISHI | L300 | 2.5 (2477ccm) Diesel | 4D56T | P45V | 1996 - 2003 | ||
| MITSUBISHI | L400 | 2.5 (2477ccm) Diesel | 4D56 | PA5W | 1994 - 2001 |
Description
A1573 Replacement Alternator
The Sahibs A1573 alternator is associated with Lucas reference LRA01573 for replacement identification. The listed electrical rating is 12V 65A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected Mitsubishi L300 2.5 Diesel variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 65A output: compare the listed rating with the original alternator.
- 2-groove pulley: check belt profile and alignment against the existing unit.
- 3 mounting holes: compare the fixing pattern and unit position.
- M8 B+ terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Mitsubishi L300 2.5 Diesel – selected applications 1996–2003 (engine code 4D56).
- Mitsubishi L400 2.5 Diesel – selected applications 1994–2001 (engine code 4D56).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with A1573. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
986080840, LRA01573, LRA01913, LRA01918, LRA02002, LRA1573, LRA1913, LRA1918, LRA2002, A002TN0299, A002TN0599, A002TN1299, A002TN1299ZT, A003TN0199, A2TN0299, A2TN0599, A2TN1299, A2TN1299ZT, A3TN0199, MD309849, MD314235, MD315430, MD315432, MD332546, MD332547, MD334546, DRA1749, DRA3868
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Alternator?
Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying A1573 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will A1573 fit my Mitsubishi L300?
Mitsubishi L300 2.5 Diesel (1996–2003) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does A1573 replace Lucas LRA01573?
Lucas LRA01573 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for A1573?
The listed details include 12V, 65A output, 2 pulley grooves. Compare the complete specifications on this page with the unit being replaced.
Is A1573 new or remanufactured?
Check the current product condition selection for A1573. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering A1573?
Compare 12V compatibility, 65A output, pulley configuration, mounting points and electrical connections with the original alternator.
Does a battery warning light prove the alternator has failed?
No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
