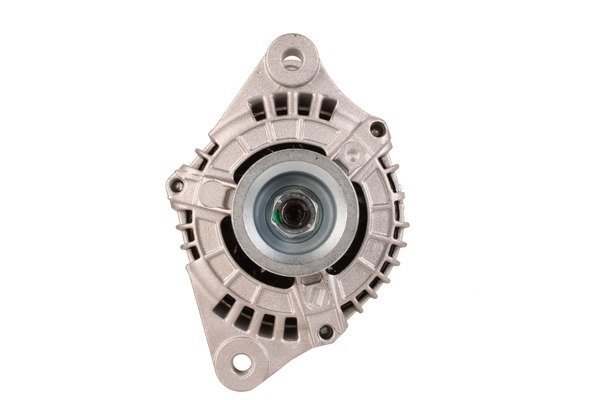

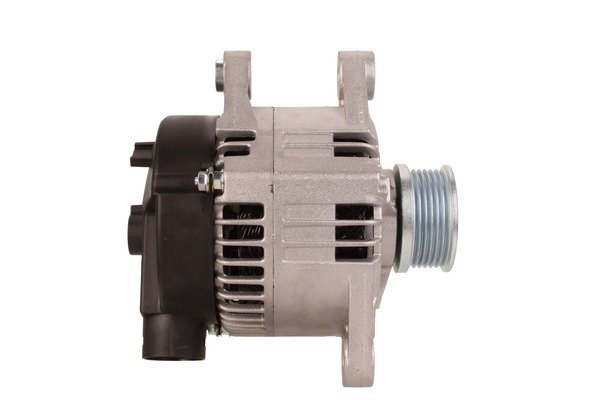

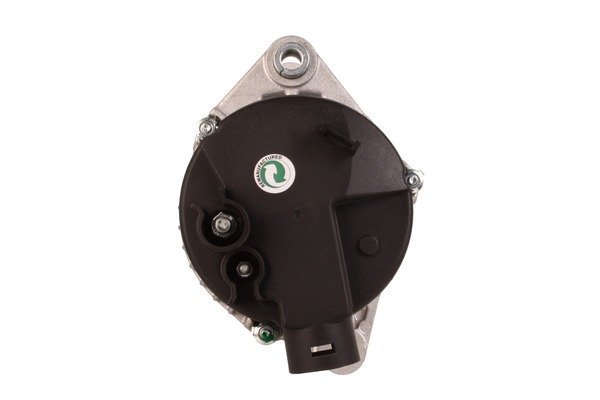

A1586 12V 85A Alternator Fits Fiat Brava, Fiat Bravo, Fiat Marea
Price range: £100.37 through £132.97
Compare the A1586 12V 85A alternator from Sahibs Auto Electrics with the unit currently fitted. Listed applications include selected Fiat Brava, Fiat Bravo, Fiat Marea, Fiat Marea S.W./Weekend models. Identification references include Lucas LRA01586, Valeo 437652, Denso DAN634. Its listed 12V 85A rating provides an electrical matching point for your existing unit. Compare the pulley, connections and mounting arrangement with your existing alternator. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your A1586 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| AMP | 85 A |
| Volt | 12 V |
| Insulated Return | No |
| Water cooled | No |
| Vacuum pump | No |
| Start/Stop | No |
| Weight | 6.1 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYA1586 | Dyno Electrics |
| 63321803010 | Magneti Marelli |
| 111410 | HC-Cargo |
| 124063 | RNL |
| 23069N | WAI |
| 23069R | WAI |
| 42412679 | Magneti Marelli |
| 437652 | Valeo |
| 439563 | Valeo |
| 46430533 | Fiat Group |
| 46445660 | Fiat Group |
| 46457327 | Fiat Group |
| 46735837 | Magneti Marelli |
| 46740243 | Fiat Group |
| 46765837 | Fiat Group |
| 505503085 | PSH |
| 63320333 | Magneti Marelli |
| 63320333010 | Magneti Marelli |
| 63321310 | Magneti Marelli |
| 63321310010 | Magneti Marelli |
| 63321313 | Magneti Marelli |
| 63321313010 | Magneti Marelli |
| 63321316 | Magneti Marelli |
| 63321355 | Magneti Marelli |
| 63321355010 | Magneti Marelli |
| 63321419 | Magneti Marelli |
| 63321419010 | Magneti Marelli |
| 63321436 | Magneti Marelli |
| 63321436010 | Magneti Marelli |
| 63321506 | Magneti Marelli |
| 63321803 | Magneti Marelli |
| 943321313 | Magneti Marelli |
| ALT12042 | Wood Auto |
| ALT12081 | Wood Auto |
| CA1189IR | HC-Parts |
| DAN634 | Denso |
| DRA3403 | Delco Remy |
| DRA3455 | Delco Remy |
| DRA4207 | Delco Remy |
| H647379C | Valeo |
| HCA1189IR | HC-Parts |
| LRA01582 | Lucas |
| LRA01586 | Lucas |
| LRA02088 | Lucas |
| LRA1582 | Lucas |
| LRA1586 | Lucas |
| LRA2088 | Lucas |
| MAN1100 | Magneti Marelli |
| RNL63321316 | RNL |
| RNL63321803 | RNL |
| RNL63321803T | RNL |
| WOOALT12042 | Wood Auto |
| WOOALT12081 | Wood Auto |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| B0330 | 85A With air stud | 75A Without air stud | No |
| B0328 | 85A With air stud | 65A Without air stud | No |
| A2331 | 85A Pulley wuthout clutch PV6/60 With air stud | 65A Clutch pulley PV6/62 Without air stud | No |
| A2709 | With air stud | Without air stud | No |
| A1582 | M6 D+ plug 0244 With air stud | M5 D+ plug 0230 Without air stud | No |
| A2711 | 85A | 75A | No |
| A2088 | 85A | 100A | Yes |
| B0425 | 85A With air stud | 100A Without air stud | No |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| FIAT | Brava | 1.8 (1747ccm) Petrol | 182A2000 | 182BC | 1995 - 1998 | ||
| FIAT | Brava | 1.9 (1910ccm) Diesel | 182A7000/182B9000 | 182BF/182BV1AA | 1996 - 2002 | ||
| FIAT | Brava | 1.9 (1910ccm) Diesel | 182A8000 | 182BI | 1996 - 2001 | ||
| FIAT | Bravo | 1.8 (1747ccm) Petrol | 182A2000 | 182AC | 1995 - 1998 | ||
| FIAT | Bravo | 1.9 (1910ccm) Diesel | 182A7000/182B9000 | 182AF/182AV1AA | 1996 - 2002 | ||
| FIAT | Bravo | 1.9 (1910ccm) Diesel | 182A8000 | 182AI | 1996 - 2001 | ||
| FIAT | Marea | 1.8 (1747ccm) Petrol | 182A2000 | 185AXC/185AXC1A | 1996 - 2000 | ||
| FIAT | Marea | 1.9 (1910ccm) Diesel | 182A8000 | 185AXF/185AXF1A | 1996 - 2000 | ||
| FIAT | Marea | 1.9 (1910ccm) Diesel | 182A7000 | 185AXE | 1996 - 1999 | ||
| FIAT | Marea S.W./Weekend | 1.9 (1910ccm) Diesel | 182A8000 | 185BXF/185BXF1A | 1996 - 2000 |
Description
A1586 Replacement Alternator
Choose a replacement by comparing the A1586 alternator and its Lucas reference, LRA01586, with your existing unit. The listed electrical rating is 12V 85A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected Fiat Brava 1.8 Petrol variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 85A output: compare the listed rating with the original alternator.
- Lucas LRA01586 reference: a starting point for identifying the replacement.
- SKU A1586: use this code when requesting parts support.
Compatible Vehicles and Applications
- Fiat Brava 1.8 Petrol – selected applications 1995–1998 (engine code 182A2000).
- Fiat Bravo 1.8 Petrol – selected applications 1995–1998 (engine code 182A2000).
- Fiat Marea 1.8 Petrol – selected applications 1996–2000 (engine code 182A2000).
- Fiat Marea S.W./Weekend 1.9 Diesel – selected applications 1996–2000 (engine code 182A8000).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with A1586. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
437652, 439563, H647379C, DAN634, LRA01586, LRA01582, LRA02088, LRA1582, LRA1586, LRA2088, DRA3403, DRA3455, DRA4207
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Alternator?
Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying A1586 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will A1586 fit my Fiat Brava?
Fiat Brava 1.8 Petrol (1995–1998) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does A1586 replace Lucas LRA01586?
Lucas LRA01586 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for A1586?
The listed details include 12V, 85A output. Compare the complete specifications on this page with the unit being replaced.
Is A1586 new or remanufactured?
Check the current product condition selection for A1586. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering A1586?
Compare 12V compatibility, 85A output, pulley configuration, mounting points and electrical connections with the original alternator.
Does a battery warning light prove the alternator has failed?
No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
