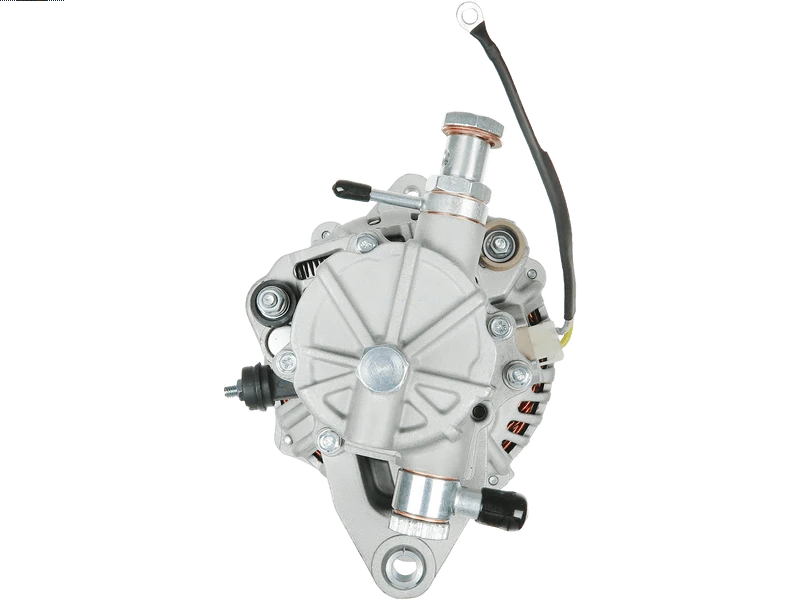

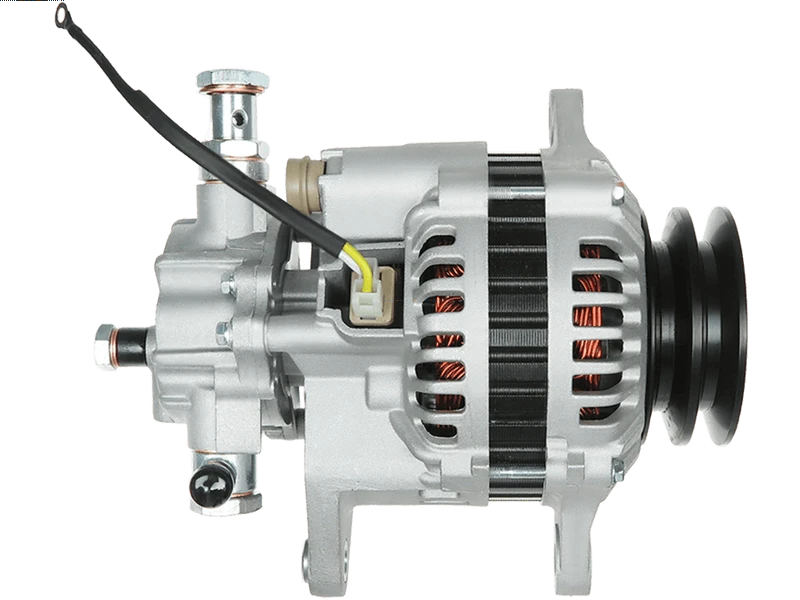

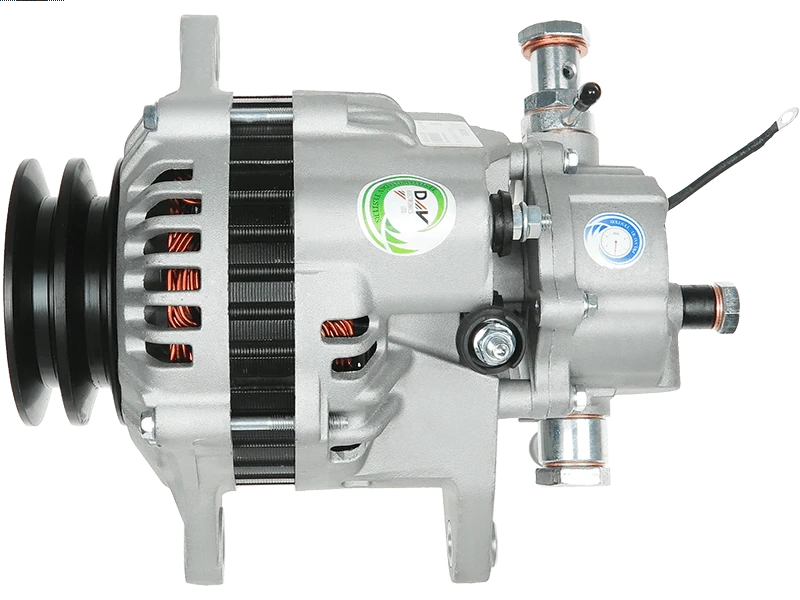

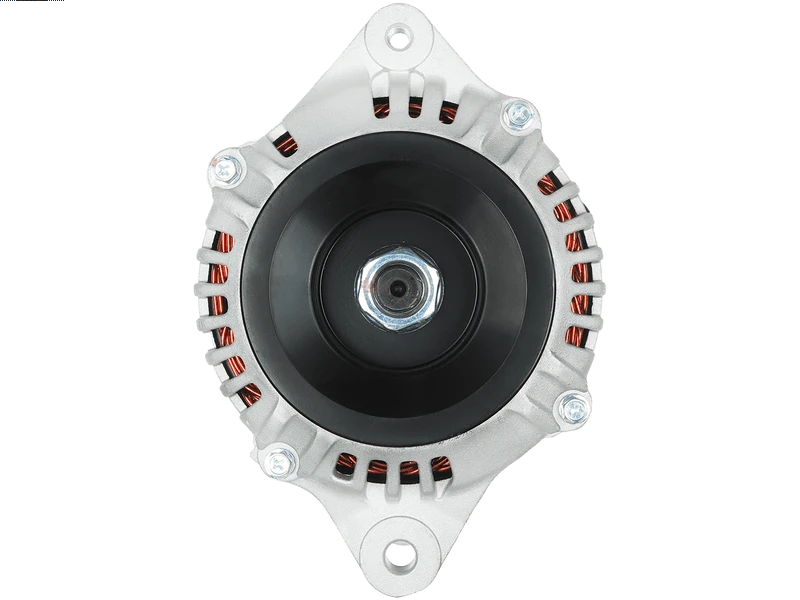

A1680 12V 90A Alternator Fits Nissan Serena, Nissan Vanette Cargo
Price range: £165.82 through £213.83
Compare the A1680 12V 90A alternator from Sahibs Auto Electrics with the unit currently fitted. Listed applications include selected Nissan Serena, Nissan Vanette Cargo, Nissan Vanette E, Ldv Cub models. Identification references include Lucas LRA01680, Bosch 986049850, Delco Remy DA5344. Its listed 12V 90A rating provides an electrical matching point for your existing unit. Check the 2-groove pulley, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your A1680 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| AMP | 90 A |
| Volt | 12 V |
| No. of Grooves | 2 qty |
| Pulley Diameter | 67 mm |
| Mounting holes | 3 qty |
| Position | 0° |
| B+ | M6 |
| Insulated Return | No |
| Water cooled | No |
| Vacuum pump | Yes |
| Start/Stop | No |
| Weight | 7.4 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYA1680 | Dyno Electrics |
| 401701041 | Euro Car Part |
| A5435S | AS-PL |
| UD21172A | AS-PL |
| 986049850 | BOSCH |
| 6033GB5007 | BOSCH |
| 6033GB5009 | BOSCH |
| 9120335002 | BOSCH |
| 113786 | CARGO |
| F032113786 | CARGO |
| DA5344 | DELCO |
| DRA4234 | DELCO |
| 8EL011711-721 | HELLA |
| 8EL737800-001 | HELLA |
| 23100-7C000 | NISSAN |
| 23100-7C001 | NISSAN |
| 23100-7C600 | NISSAN |
| ALTS161 | 3EFFE |
| PRAS161 | 3EFFE |
| CGB-82905 | AINDE |
| AEB1525 | AUTOELECTRO |
| CAL45110AS | CASCO |
| CAL45110GS | CASCO |
| CAL45110OS | CASCO |
| 9160 | CEVAM |
| 56676 | EAI |
| 57553 | EAI |
| 28-2905 | ELSTOCK |
| JA1525IR | HC PARTS |
| J5111112 | HERTH+BUSS |
| ALB1525 | KRAUF |
| 401525RI | KUHNER |
| 401525RIV | KUHNER |
| 446843 | LOGISTIK |
| LRA01680 | LUCAS |
| LRA1680 | LUCAS |
| 89212936 | POWERMAX |
| 9212936 | POWERMAX |
| 165.828.090.000 | PSH |
| 165.828.090.265 | PSH |
| 165.828.090.360 | PSH |
| 165.828.090.460 | PSH |
| 165.828.090.605 | PSH |
| 20117011BN | REAL |
| 20117011OE | REAL |
| 20117011RE | REAL |
| 2045110 | SANDO |
| 2045110.1 | SANDO |
| 2045110.4 | SANDO |
| STX100792 | STARDAX |
| 22680R | WAI / TRANSPO |
| ALT10189 | WOODAUTO |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| B0315 | 90A L-S plug 0007 | 90A M5 D+ | No |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| LDV | Cub | 2.3 (2283ccm) Diesel | LD23 | LC23M | 1996 - 2001 | ||
| NISSAN | Serena | 2.3 (2283ccm) Diesel | LD23 | C23M | 1994 - 2001 | ||
| NISSAN | Vanette Cargo | 2.3 (2283ccm) Diesel | LD23 | C23M | 1994 - 2001 | ||
| NISSAN | Vanette Cargo | 2.3 (2283ccm) Diesel | LD23 | C23M | 1996 - 2002 | ||
| NISSAN | Vanette E | 2.3 (2283ccm) Diesel | LD23 | C23M | 1994 - 2001 | ||
| NISSAN | Vanette E | 2.3 (2283ccm) Diesel | LD23 | C23M | 1996 - 2002 |
Description
A1680 Replacement Alternator
Start your A1680 alternator comparison with the linked Lucas reference LRA01680 and the specifications shown on this page. The listed electrical rating is 12V 90A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected Nissan Serena 2.3 Diesel variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 90A output: compare the listed rating with the original alternator.
- 2-groove pulley: check belt profile and alignment against the existing unit.
- 3 mounting holes: compare the fixing pattern and unit position.
- M6 B+ terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Nissan Serena 2.3 Diesel – selected applications 1994–2001 (engine code LD23).
- Nissan Vanette Cargo 2.3 Diesel – selected applications 1994–2001 (engine code LD23).
- Nissan Vanette E 2.3 Diesel – selected applications 1994–2001 (engine code LD23).
- Ldv Cub 2.3 Diesel – selected applications 1996–2001 (engine code LD23).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with A1680. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
986049850, 6033GB5007, 6033GB5009, 9120335002, LRA01680, LRA1680, DA5344, DRA4234
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Alternator?
Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying A1680 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will A1680 fit my Nissan Serena?
Nissan Serena 2.3 Diesel (1994–2001) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does A1680 replace Lucas LRA01680?
Lucas LRA01680 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for A1680?
The listed details include 12V, 90A output, 2 pulley grooves. Compare the complete specifications on this page with the unit being replaced.
Is A1680 new or remanufactured?
Check the current product condition selection for A1680. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering A1680?
Compare 12V compatibility, 90A output, pulley configuration, mounting points and electrical connections with the original alternator.
Does a battery warning light prove the alternator has failed?
No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
