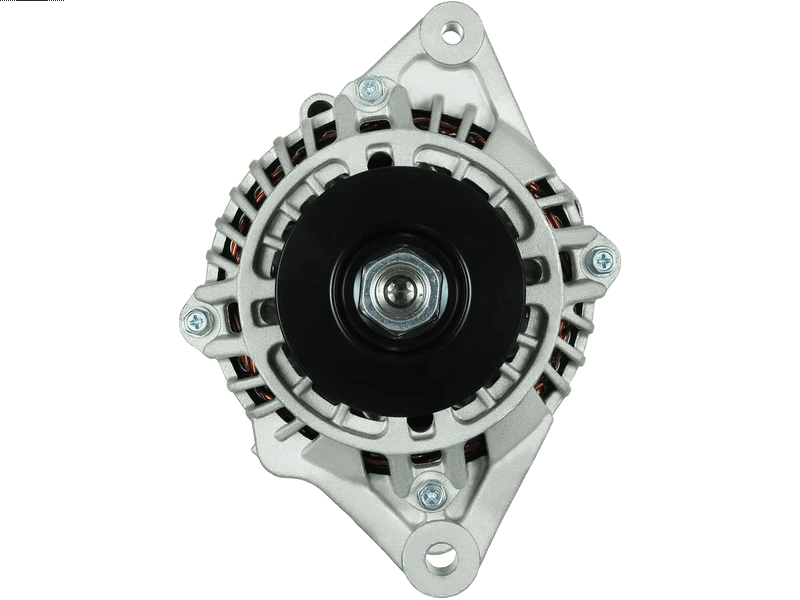

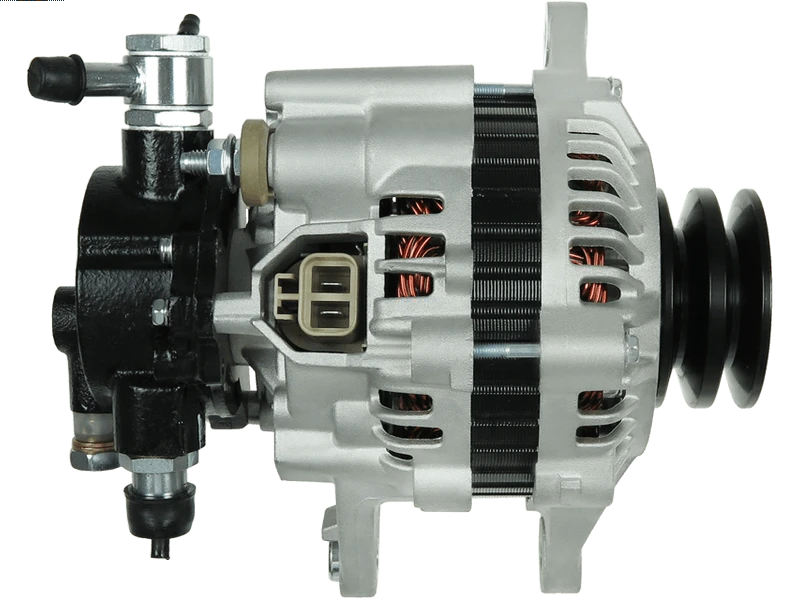

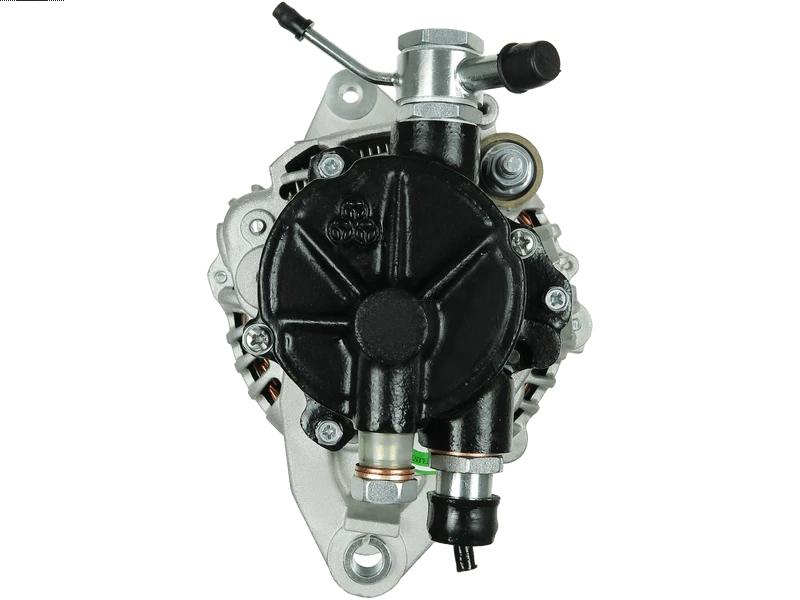

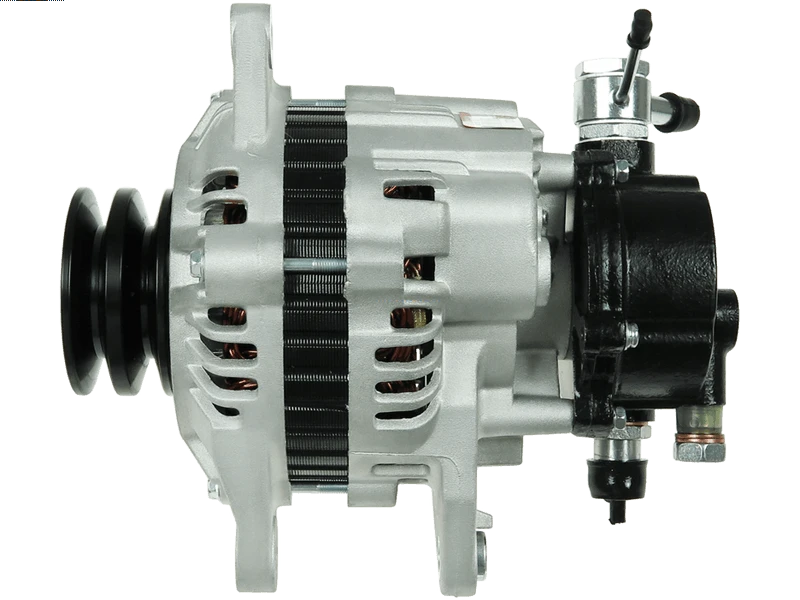

A1717 12V 80A Alternator Fits Mitsubishi Challenger, Mitsubishi L200
Price range: £114.27 through £150.68
Sahibs A1717 is a replacement alternator with a listed 12V 80A rating. Listed applications include selected Mitsubishi Challenger, Mitsubishi L200, Mitsubishi L400, Mitsubishi Montero Sport models. Identification references include Lucas LRA01717, Bosch 986045601, Mitsubishi Electric A002TN1798. Its listed 12V 80A rating provides an electrical matching point for your existing unit. Check the 2-groove pulley, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your A1717 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| AMP | 80 A |
| Volt | 12 V |
| No. of Grooves | 2 qty |
| Pulley Diameter | 46 mm |
| Mounting holes | 3 qty |
| Position | 20° |
| B+ | M8 |
| Insulated Return | No |
| Water cooled | No |
| Vacuum pump | Yes |
| Start/Stop | No |
| Weight | 6.2 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYA1717 | Dyno Electrics |
| 401690431 | Euro Car Part |
| A5025 | AS-PL |
| 986045601 | BOSCH |
| 112355 | CARGO |
| F032112355 | CARGO |
| DRA0095 | DELCO |
| 8EL011711-181 | HELLA |
| 8EL737828-001 | HELLA |
| A002TN1798 | MITSUBISHI |
| A002TN1798A | MITSUBISHI |
| A002TN1798AM | MITSUBISHI |
| A002TN1798AT | MITSUBISHI |
| A002TN1798ZT | MITSUBISHI |
| A2TN1798 | MITSUBISHI |
| A2TN1798A | MITSUBISHI |
| A2TN1798AM | MITSUBISHI |
| A2TN1798AT | MITSUBISHI |
| A2TN1798ZT | MITSUBISHI |
| MD340419 | MITSUBISHI |
| MD366052 | MITSUBISHI |
| 20130147 | PRESTOLITE |
| ALTS013 | 3EFFE |
| PRAS013 | 3EFFE |
| CGB-14560 | AINDE |
| ANM32315X | ANDEL |
| CAL35166AS | CASCO |
| CAL35166GS | CASCO |
| 9340 | CEVAM |
| 11.1533 | CQ |
| 11.1533M | CQ |
| ALT5430 | ELECTROLOG |
| 28-2980 | ELSTOCK |
| 210595 | ERA |
| AG0420 | GHIBAUDI |
| JA1533IR | HC PARTS |
| ALM1533 | KRAUF |
| 401533RI | KUHNER |
| 401533RIL | KUHNER |
| 401533RIV | KUHNER |
| 446569 | LOGISTIK |
| LRA01717 | LUCAS |
| LRA1717 | LUCAS |
| 89213510 | POWERMAX |
| 20137661BN | REAL |
| 20137661OE | REAL |
| RNLA2TN1798 | RNL |
| 2035166 | SANDO |
| 2035166.1 | SANDO |
| A12MH0472A2 | SIDAT |
| ALT371660 | SIOM |
| STX100064 | STARDAX |
| STX100064R | STARDAX |
| AX6151 | STARLINE |
| 12644R | WAI / TRANSPO |
| ALT31079 | WOODAUTO |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| A2714 | 80A Pulley 2GR/72 | 65A Pulley 2GR/78 | No |
| B0236 | 80A Pulley 2GR/72 | 75A Pulley 2GR/77 | No |
| A2205 | 80A Pulley 2GR/72 | 75A Pulley 2GR/77 | No |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| MITSUBISHI | Challenger | 2.5 (2477ccm) Diesel | 4D56 | K94W | 1998 - 2009 | ||
| MITSUBISHI | L200 | 2.5 (2477ccm) Diesel | 4D56(SOHC8VPENA) | K64T | 1996 - 2005 | ||
| MITSUBISHI | L200 | 2.5 (2477ccm) Diesel | 4D56 | K74T | 1996 - 2007 | ||
| MITSUBISHI | L200 | 2.5 (2477ccm) Diesel | 4D56T | K74T | 2001 - 2007 | ||
| MITSUBISHI | L200 | 2.5 (2477ccm) Diesel | 4D56 | K74T | 2001 - 2005 | ||
| MITSUBISHI | L400 | 2.5 (2477ccm) Diesel | 4D56 | PA5W | 1994 - 2001 | ||
| MITSUBISHI | Montero Sport | 2.5 (2477ccm) Diesel | 4D56 | K94W | 1998 - 2009 | ||
| MITSUBISHI | Montero Sport | 2.5 (2477ccm) Diesel | 4D56 | K94W | 2002 - 2009 | ||
| MITSUBISHI | Montero Sport | 2.5 (2477ccm) Diesel | 4D56T | K94W | 2003 - 2009 | ||
| MITSUBISHI | Pajero Sport | 2.5 (2477ccm) Diesel | 4D56 | MK I | K94W | 1998 - 2009 | |
| MITSUBISHI | Pajero Sport | 2.5 (2477ccm) Diesel | 4D56 | MK I | K94W | 2000 - 2009 | |
| MITSUBISHI | Pajero Sport | 2.5 (2477ccm) Diesel | 4D56T | MK I | K94W | 2003 - 2009 | |
| MITSUBISHI | Shogun Sport | 2.5 (2477ccm) Diesel | 4D56 | K94W | 2000 - 2006 | ||
| MITSUBISHI | Shogun Sport | 2.5 (2477ccm) Diesel | 4D56 | K94W | 2001 - 2006 | ||
| MITSUBISHI | Shogun Sport Van | 2.5 (2477ccm) Diesel | 4D56 | K94W | 1999 - 2008 | ||
| MITSUBISHI | Sport Wagon | 2.5 (2477ccm) Diesel | 4D56 | K94W | 1998 - 2009 | ||
| MITSUBISHI | Sport Wagon | 2.5 (2477ccm) Diesel | 4D56T | K94W | 2003 - 2009 | ||
| MITSUBISHI | Strakar | 2.5 (2477ccm) Diesel | 4D56(SOHC8VPENA) | K64T | 1996 - 2001 | ||
| MITSUBISHI | Strakar | 2.5 (2477ccm) Diesel | 4D56 | K74T | 2001 - 2005 |
Description
A1717 Replacement Alternator
Choose a replacement by comparing the A1717 alternator and its Lucas reference, LRA01717, with your existing unit. The listed electrical rating is 12V 80A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected Mitsubishi Challenger 2.5 Diesel variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 80A output: compare the listed rating with the original alternator.
- 2-groove pulley: check belt profile and alignment against the existing unit.
- 3 mounting holes: compare the fixing pattern and unit position.
- M8 B+ terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Mitsubishi Challenger 2.5 Diesel – selected applications 1998–2009 (engine code 4D56).
- Mitsubishi L200 2.5 Diesel – selected applications 1996–2005 (engine code 4D56(SOHC8VPENA)).
- Mitsubishi L400 2.5 Diesel – selected applications 1994–2001 (engine code 4D56).
- Mitsubishi Montero Sport 2.5 Diesel – selected applications 1998–2009 (engine code 4D56).
- Mitsubishi Pajero Sport 2.5 Diesel – selected applications 1998–2009 (engine code 4D56).
- Mitsubishi Shogun Sport 2.5 Diesel – selected applications 2000–2006 (engine code 4D56).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with A1717. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
986045601, LRA01717, LRA1717, A002TN1798, A002TN1798A, A002TN1798AM, A002TN1798AT, A002TN1798ZT, A2TN1798, A2TN1798A, A2TN1798AM, A2TN1798AT, A2TN1798ZT, MD340419, MD366052, DRA0095, 20130147
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Alternator?
Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying A1717 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will A1717 fit my Mitsubishi Challenger?
Mitsubishi Challenger 2.5 Diesel (1998–2009) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does A1717 replace Lucas LRA01717?
Lucas LRA01717 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for A1717?
The listed details include 12V, 80A output, 2 pulley grooves. Compare the complete specifications on this page with the unit being replaced.
Is A1717 new or remanufactured?
Check the current product condition selection for A1717. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering A1717?
Compare 12V compatibility, 80A output, pulley configuration, mounting points and electrical connections with the original alternator.
Does a battery warning light prove the alternator has failed?
No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
