A1726 12V 80A Alternator Fits Mazda 323, Mazda 323F, Mazda 323P
Price range: £101.88 through £134.97
The A1726 12V 80A Alternator is a replacement charging unit from Sahibs Auto Electrics. Listed applications include selected Mazda 323, Mazda 323F, Mazda 323P, Mazda 626 models. Identification references include Lucas LRA01726, Bosch 986045521, Mitsubishi Electric A002TA1099. Its listed 12V 80A rating provides an electrical matching point for your existing unit. Check the 2-groove pulley, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your A1726 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| AMP | 80 A |
| Volt | 12 V |
| No. of Grooves | 2 qty |
| Pulley Diameter | 64 mm |
| Mounting holes | 3 qty |
| Position | -10° |
| B+ | M8 |
| Insulated Return | No |
| Water cooled | No |
| Vacuum pump | No |
| Start/Stop | No |
| Weight | 5.5 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYA1726 | Dyno Electrics |
| 401680551 | Euro Car Part |
| A5019 | AS-PL |
| 986045521 | BOSCH |
| 113785 | CARGO |
| F032113785 | CARGO |
| DA4973 | DELCO |
| DRA3863 | DELCO |
| RAA14974 | DELCO |
| 8EL737743-001 | HELLA |
| LR190-731 | HITACHI |
| LR190-731B | HITACHI |
| 9.43E+11 | MAGNETI MARELLI |
| 9.44E+11 | MAGNETI MARELLI |
| Mar-55 | MAGNETI MARELLI |
| MRA90124 | MAGNETI MARELLI |
| RF1S-18-300 | MAZDA |
| RFIS-18-300 | MAZDA |
| WL01-18-300 | MAZDA |
| WL11-18-300 | MAZDA |
| WL11-18-300A | MAZDA |
| A002TA1099 | MITSUBISHI |
| A002TA1099A | MITSUBISHI |
| A002TB1298 | MITSUBISHI |
| A002TB1298AM | MITSUBISHI |
| A002TB1299 | MITSUBISHI |
| A2TA1099 | MITSUBISHI |
| A2TA1099A | MITSUBISHI |
| A2TB1298 | MITSUBISHI |
| A2TB1298AM | MITSUBISHI |
| A2TB1299 | MITSUBISHI |
| ALTS323 | 3EFFE |
| CGB-13863 | AINDE |
| ANM36083X | ANDEL |
| 002-M414 | ASHIKA |
| AEB1515 | AUTOELECTRO |
| CAL35107 | CASCO |
| CAL35107AS | CASCO |
| CAL35107ES | CASCO |
| CAL35107GS | CASCO |
| CAL35107OS | CASCO |
| CAL35107RS | CASCO |
| 9051 | CEVAM |
| 57075 | EAI |
| ALT5182 | ELECTROLOG |
| 28-2998 | ELSTOCK |
| 210531 | ERA |
| AG0337 | GHIBAUDI |
| JA1513IR | HC PARTS |
| JA1515IR | HC PARTS |
| J5113045 | HERTH+BUSS |
| ALM414 | JAPANPARTS |
| 2M414 | JAPKO |
| ALM1515 | KRAUF |
| 401515RI | KUHNER |
| 441885 | LOGISTIK |
| LRA01726 | LUCAS |
| LRA1726 | LUCAS |
| 5535526 | MEAT & DORIA |
| 145.528.080 | PSH |
| 145.528.080.130 | PSH |
| 145.528.080.415 | PSH |
| 20137701BN | REAL |
| 20137701OE | REAL |
| RNLA2TB1298 | RNL |
| 2035107 | SANDO |
| A12MH0164A2 | SIDAT |
| ALT6500 | SIOM |
| STX100034 | STARDAX |
| STX100034R | STARDAX |
| STX101526 | STARDAX |
| 22634R | WAI / TRANSPO |
| 23064R | WAI / TRANSPO |
| MITA2TB1298 | WOODAUTO |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| A1850 | Pulley 2GR/92 Angle of groove | Pulley 2GR/92 Angle of groove | No |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| MAZDA | 323 | 2.0 (1998ccm) Diesel | RF4F | MK VIII | BJ12 | 1998 - 2003 | |
| MAZDA | 323 | 2.0 (1998ccm) Diesel | RF1S | MK VIII | BJ12 | 1998 - 2004 | |
| MAZDA | 323 | 2.0 (1998ccm) Diesel | RF4F | MK VIII | BJ12 | 2000 - 2002 | |
| MAZDA | 323F | 2.0 (1998ccm) Diesel | RF4F | MK VIII | Fastbreak | BJ14 | 1998 - 2001 |
| MAZDA | 323F | 2.0 (1998ccm) Diesel | RF1G | MK VIII | Fastbreak | BJ14 | 1998 - 2004 |
| MAZDA | 323F | 2.0 (1998ccm) Diesel | RF2A/RF4F | MK VIII | Fastbreak | BJ14 | 2000 - 2003 |
| MAZDA | 323P | 2.0 (1998ccm) Diesel | RF1G | MK VII | Practical | BA1 | 1997 - 1999 |
| MAZDA | 626 | 2.0 (1998ccm) Diesel | RF2A | MK VI | GF14 | 1997 - 2002 | |
| MAZDA | 626 | 2.0 (1998ccm) Diesel | RF2A | MK VI | GF12 | 1997 - 2002 | |
| MAZDA | 626 | 2.0 (1998ccm) Diesel | RF3F | MK VI | GF14 | 1998 - 2002 | |
| MAZDA | 626 | 2.0 (1998ccm) Diesel | RF3F | MK VI | GF12 | 1999 - 2002 | |
| MAZDA | 626 | 2.0 (1998ccm) Diesel | RF4F | MK VI | GF14 | 2000 - 2002 | |
| MAZDA | 626 | 2.0 (1998ccm) Diesel | RF4F | MK VI | GF12 | 2000 - 2002 | |
| MAZDA | 626 Estate/Wagon | 2.0 (1998ccm) Diesel | RF2A | MK VI | GW19 | 1998 - 2002 | |
| MAZDA | 626 Estate/Wagon | 2.0 (1998ccm) Diesel | RF3F | MK VI | GW19 | 1999 - 2002 | |
| MAZDA | 626 Estate/Wagon | 2.0 (1998ccm) Diesel | RF4F | MK VI | GW19 | 2000 - 2002 | |
| MAZDA | Premacy | 2.0 (1998ccm) Diesel | RF3F | CP19 | 1999 - 2000 | ||
| MAZDA | Premacy | 2.0 (1998ccm) Diesel | RF2A/RF4F | CP19 | 2000 - 2005 |
Description

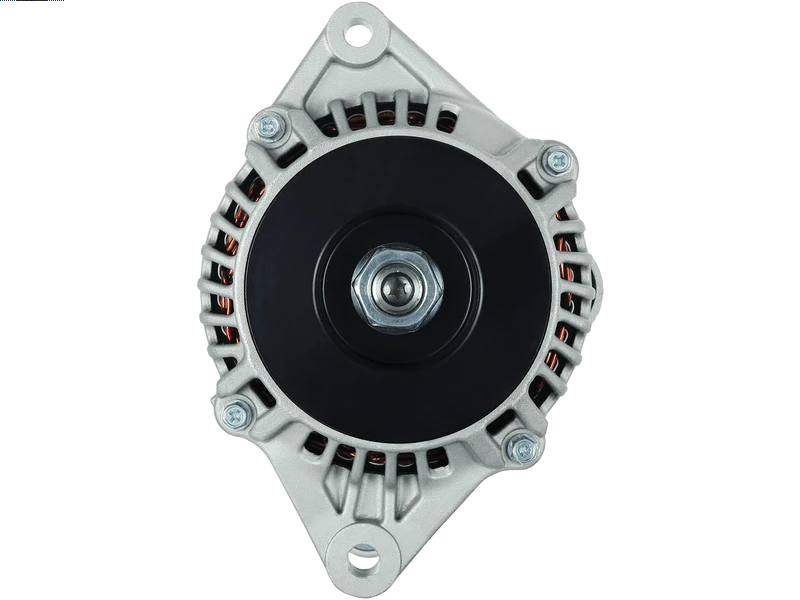

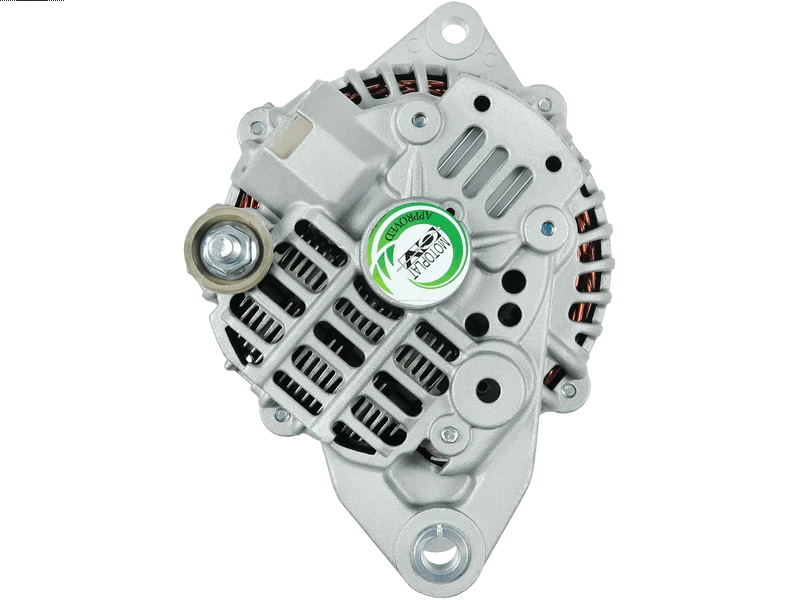

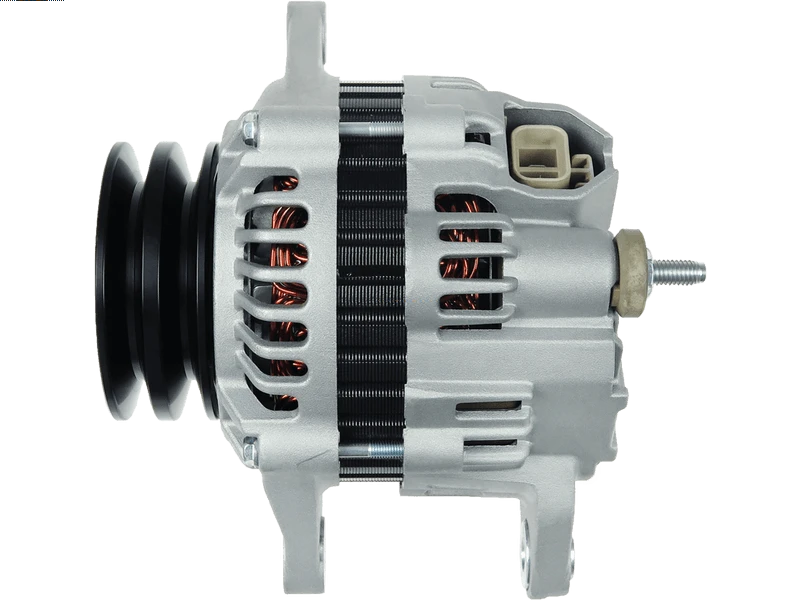

A1726 Replacement Alternator
The A1726 alternator is a replacement unit identified by Lucas reference LRA01726. The listed electrical rating is 12V 80A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected Mazda 323 2.0 Diesel variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 80A output: compare the listed rating with the original alternator.
- 2-groove pulley: check belt profile and alignment against the existing unit.
- 3 mounting holes: compare the fixing pattern and unit position.
- M8 B+ terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Mazda 323 2.0 Diesel – selected applications 1998–2003 (engine code RF4F).
- Mazda 323F 2.0 Diesel – selected applications 1998–2001 (engine code RF4F).
- Mazda 323P 2.0 Diesel – selected applications 1997–1999 (engine code RF1G).
- Mazda 626 2.0 Diesel – selected applications 1997–2002 (engine code RF2A).
- Mazda 626 Estate/Wagon 2.0 Diesel – selected applications 1998–2002 (engine code RF2A).
- Mazda Premacy 2.0 Diesel – selected applications 1999–2000 (engine code RF3F).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with A1726. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
986045521, LRA01726, LRA1726, A002TA1099, A002TA1099A, A002TB1298, A002TB1298AM, A002TB1299, A2TA1099, A2TA1099A, A2TB1298, A2TB1298AM, A2TB1299, LR190-731, LR190-731B, LR190731, DA4973, DRA3863, RAA14974
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Alternator?
Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying A1726 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will A1726 fit my Mazda 323?
Mazda 323 2.0 Diesel (1998–2003) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does A1726 replace Lucas LRA01726?
Lucas LRA01726 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for A1726?
The listed details include 12V, 80A output, 2 pulley grooves. Compare the complete specifications on this page with the unit being replaced.
Is A1726 new or remanufactured?
Check the current product condition selection for A1726. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering A1726?
Compare 12V compatibility, 80A output, pulley configuration, mounting points and electrical connections with the original alternator.
Does a battery warning light prove the alternator has failed?
No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
