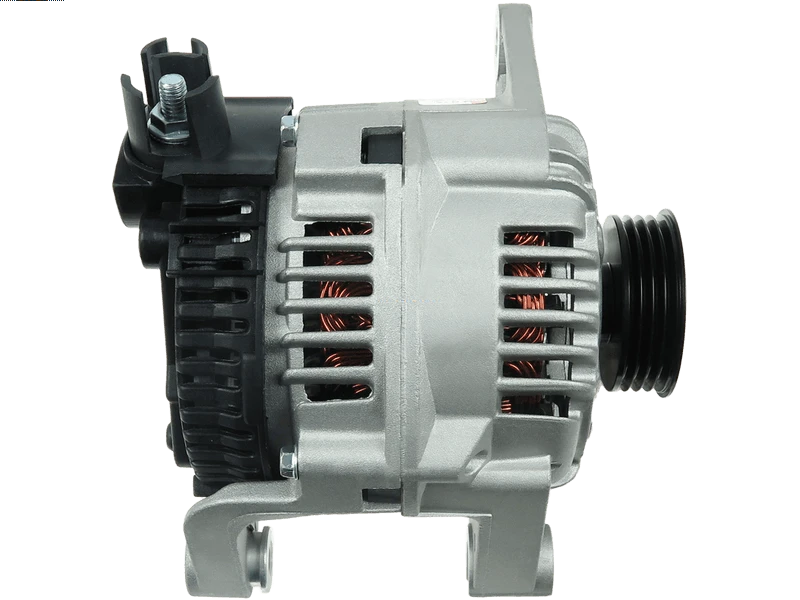

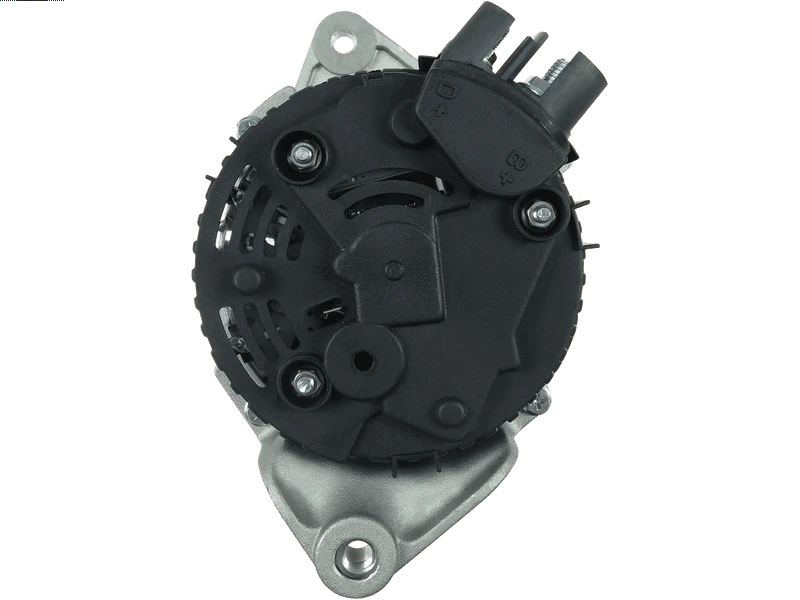

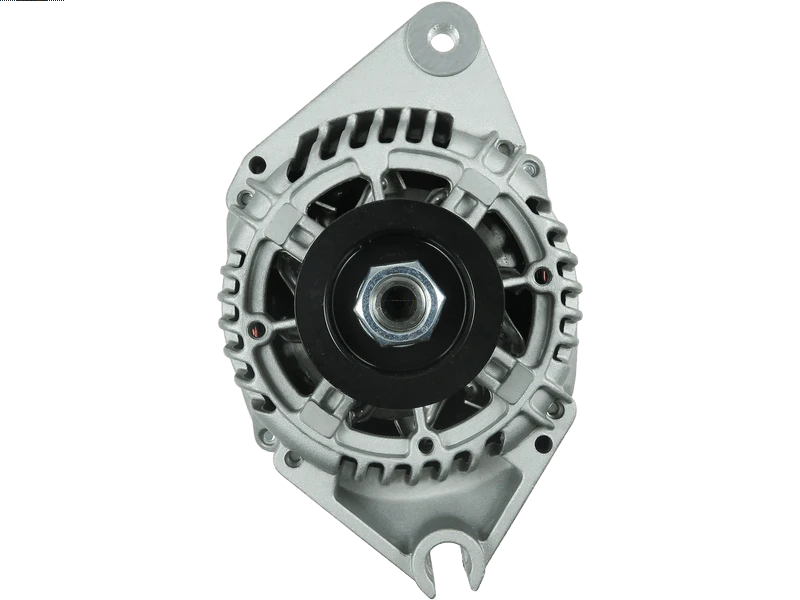

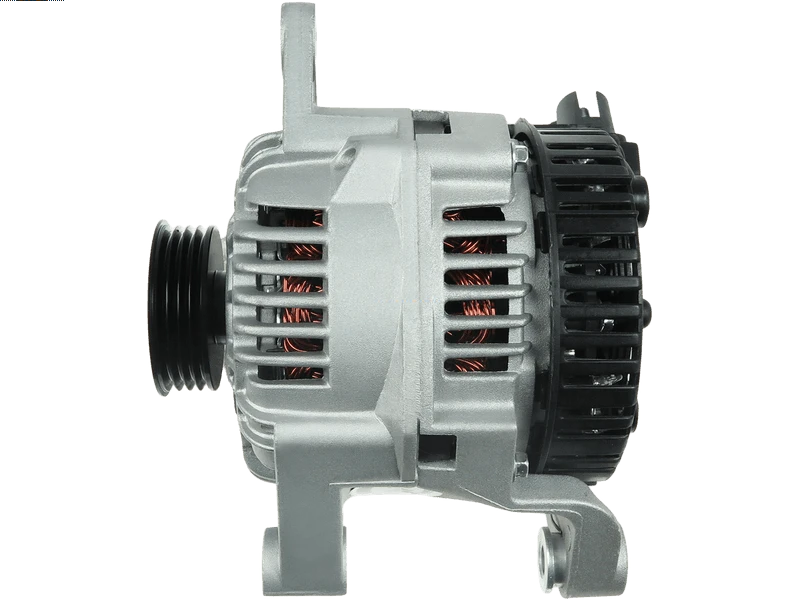

A1764 12V 70A Alternator Fits Peugeot 405
Price range: £115.25 through £149.60
Compare the A1764 12V 70A alternator from Sahibs Auto Electrics with the unit currently fitted. Listed applications include selected Peugeot 405 models. Identification references include Lucas LRA01764, Bosch 986038750, Valeo 433188. Its listed 12V 70A rating provides an electrical matching point for your existing unit. Check the 4-groove pulley, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your A1764 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| AMP | 70 A |
| Volt | 12 V |
| No. of Grooves | 4 qty |
| Pulley Diameter | 56 mm |
| Mounting holes | 3 qty |
| Position | 20° |
| B+ | M8 |
| Insulated Return | No |
| Water cooled | No |
| Vacuum pump | No |
| Start/Stop | No |
| Weight | 4.95 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYA1764 | Dyno Electrics |
| UD12269A | AS-PL |
| 986038750 | BOSCH |
| DRA3237 | DELCO |
| DRA3244 | DELCO |
| 9612264280 | FIAT |
| 9.43E+11 | MAGNETI MARELLI |
| 9.44E+11 | MAGNETI MARELLI |
| MG387 | MAHLE |
| A2T17491 | MITSUBISHI |
| 5701A7 | PEUGEOT |
| 5.70E+05 | PEUGEOT |
| 5705-E4 | PEUGEOT |
| 5705-H5 | PEUGEOT |
| 5705-HK | PEUGEOT |
| 57050000 | PEUGEOT |
| 5705F3 | PEUGEOT |
| 5705F5 | PEUGEOT |
| 5705F6 | PEUGEOT |
| 5705G2 | PEUGEOT |
| 5705H9 | PEUGEOT |
| 5705JR | PEUGEOT |
| 5705N6 | PEUGEOT |
| 5705P1 | PEUGEOT |
| 5705T8 | PEUGEOT |
| 5705Y1 | PEUGEOT |
| 93072440 | PEUGEOT |
| 95667744 | PEUGEOT |
| 95667747 | PEUGEOT |
| 95668061 | PEUGEOT |
| 96072439 | PEUGEOT |
| 9607243980 | PEUGEOT |
| 96072440 | PEUGEOT |
| 9607244080 | PEUGEOT |
| 96072440R | PEUGEOT |
| 96076408 | PEUGEOT |
| 96122573 | PEUGEOT |
| 96122596 | PEUGEOT |
| 96122642 | PEUGEOT |
| 96122642R | PEUGEOT |
| 96134944 | PEUGEOT |
| 96134966 | PEUGEOT |
| 96169460 | PEUGEOT |
| 35214445 | PRESTOLITE |
| 433188 | VALEO |
| 436259 | VALEO |
| A11VI18 | VALEO |
| ALTF484 | 3EFFE |
| ANM35464X | ANDEL |
| AEA1283 | AUTOELECTRO |
| CAL15153AS | CASCO |
| 4088 | CEVAM |
| 56222 | EAI |
| ALT00740 | ELECTROLOG |
| ALT0440 | ELECTROLOG |
| 28-3562 | ELSTOCK |
| 210824 | ERA |
| CA648IR | HC PARTS |
| 32038781 | HERTH+BUSS |
| 301324RI | KUHNER |
| 301324RIB | KUHNER |
| 30648RI | KUHNER |
| 30820RI | KUHNER |
| 11.0648 | LAUBER |
| 440795 | LOGISTIK |
| LRA01764 | LUCAS |
| LRA1764 | LUCAS |
| 89212193 | POWERMAX |
| 225.504.070.000 | PSH |
| 225.504.070.505 | PSH |
| 20179351BN | REAL |
| 2015153 | SANDO |
| ALT171530 | SIOM |
| ALT7590 | SIOM |
| STX100168 | STARDAX |
| STX100168R | STARDAX |
| STX100428 | STARDAX |
| STX100428R | STARDAX |
| STX101136 | STARDAX |
| STX101244 | STARDAX |
| STX102108 | STARDAX |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| B0180 | Pulley PV4/56 Placing of terminals | Pulley PV6/56 Placing of terminals | No |
| A0764 | 70A M8 B+ terminal Placing of terminals | 80A M6 B+ terminal Placing of terminals | No |
| B0184 | 70A Pulley PV4/56 Placing of terminals | 80A Pulley PV6/63 Placing of terminals | No |
| A0471 | 70A M8 B+ terminal Placing af terminals | 50A M6 B+ terminal Placing of terminals | No |
| A1263 | M8 B+ Placing of terminals | M6 B+ Placing of terminals | No |
| A1428 | 70A M8 B+ terminal Placing af terminals | 90A M6 B+ terminal Placing of terminals | No |
| A1576 | 70A Pulley PV4/56 M8 B+ terminal Placing of terminals | 80A Pulley PV5/62 M6 B+ terminal Placing of terminals | No |
| B0119 | 70A Pulley PV4/56 M8 B+ terminal Placing of terminals | 55A Pulley PV5/54 M6 B+ terminal Placing of terminals | No |
| A2769 | 70A Pulley PV4/56 Placing of terminals | 80A Pulley PV6/56 Placing of terminals | No |
| A1561 | 70A Pulley PV4/56 Placing of terminals | 90A Pulley PV5/56 Placing of terminals | No |
| A2600 | 70A Pulley PV4/56 M8 B+ terminal Placing of terminals | 80A Pulley PV4/61 M6 B+ terminal Placing of terminals | No |
| B0183 | Pulley PV4/56 Placing of terminals | Pulley PV6/63 Placing of terminals | No |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| PEUGEOT | 405 | 1.6 (1580ccm) Petrol | XU5JP/XU5M | 4BBDY2/4BBDY4/4BBFZ2/4BBFZ4 | 1992 - 1994 |
Description
A1764 Replacement Alternator
The Sahibs A1764 alternator is associated with Lucas reference LRA01764 for replacement identification. The listed electrical rating is 12V 70A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected Peugeot 405 1.6 Petrol variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 70A output: compare the listed rating with the original alternator.
- 4-groove pulley: check belt profile and alignment against the existing unit.
- 3 mounting holes: compare the fixing pattern and unit position.
- M8 B+ terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Peugeot 405 1.6 Petrol – selected applications 1992–1994 (engine code XU5JP/XU5M).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with A1764. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
986038750, 433188, 436259, A11VI18, LRA01764, LRA1764, A2T17491, DRA3237, DRA3244, 35214445, MG387, 5701A7, 570000, 5705-E4, 5705-H5, 5705-HK, 57050000, 5705F3, 5705F5, 5705F6, 5705G2, 5705H5, 5705H9, 5705HK, 5705JR, 5705N6, 5705P1, 5705T8, 5705Y1, 93072440, 95667744, 95667747, 95668061, 96072439, 9607243980, 96072440, 9607244080, 96072440R, 96076408, 96122573, 96122596, 96122642, 96122642R, 96134944, 96134966, 96169460
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Alternator?
Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying A1764 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will A1764 fit my Peugeot 405?
Peugeot 405 1.6 Petrol (1992–1994) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does A1764 replace Lucas LRA01764?
Lucas LRA01764 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for A1764?
The listed details include 12V, 70A output, 4 pulley grooves. Compare the complete specifications on this page with the unit being replaced.
Is A1764 new or remanufactured?
Check the current product condition selection for A1764. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering A1764?
Compare 12V compatibility, 70A output, pulley configuration, mounting points and electrical connections with the original alternator.
Does a battery warning light prove the alternator has failed?
No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
