A1770 12V 60A Alternator Fits Vauxhall Monterey, Fiat Brava
Price range: £100.05 through £131.94

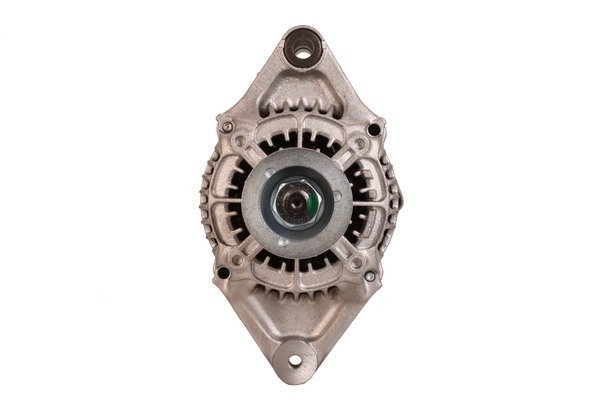

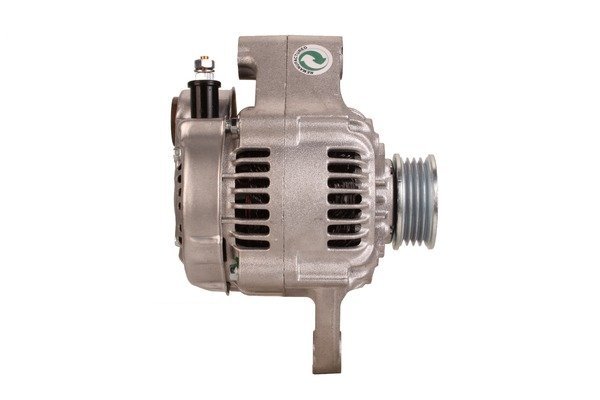

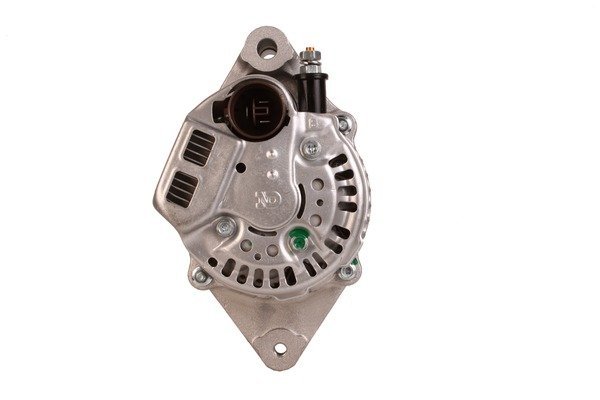

The A1770 12V 60A Alternator is a replacement charging unit from Sahibs Auto Electrics. Listed applications include selected Vauxhall Monterey, Fiat Brava, Isuzu Trooper, Opel Monterey models. Identification references include Lucas LRA01770, Bosch F042302041, Denso 1002110830. Its listed 12V 60A rating provides an electrical matching point for your existing unit. Check the 4-groove pulley, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your A1770 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| AMP | 60 A |
| Volt | 12 V |
| No. of Grooves | 4 qty |
| Pulley Diameter | 50 mm |
| Mounting holes | 2 qty |
| B+ | M6 |
| Insulated Return | No |
| Water cooled | No |
| Vacuum pump | No |
| Start/Stop | No |
| Weight | 3.3 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYA1770 | Dyno Electrics |
| 401720871 | Euro Car Part |
| 986044981 | Bosch Exchange |
| 0986AN0684 | Bosch Exchange |
| 0986CR0197 | Bosch Exchange |
| 0986UR0197 | Bosch Exchange |
| 1002110830 | Denso |
| 1002119730 | Denso |
| 1002119731 | Denso |
| 1002119732 | Denso |
| 1012002022 | Denso |
| 1012110830 | Denso |
| 1012112020 | Denso |
| 1012112021 | Denso |
| 1012112022 | Denso |
| 1012112360 | Denso |
| 1012114210 | Denso |
| 1012115031 | Denso |
| 10464180 | Delco Remy |
| 113076 | HC-Cargo |
| 1188301ND | WAI |
| 1204125 | Opel |
| 13521N | WAI |
| 13521R | WAI |
| 135557075 | PSH |
| 8970348990 | Isuzu |
| 8970348991 | Isuzu |
| 8970348992 | Isuzu |
| 8970425521 | Isuzu |
| 8970425852 | Isuzu |
| 8970428522 | Isuzu |
| 8971211800 | Isuzu |
| 8971211801 | Isuzu |
| 8971211930 | Isuzu |
| 8971671572 | Isuzu |
| 897348990 | Isuzu |
| 897348991 | Isuzu |
| 897348992 | Isuzu |
| 90295204 | Wilson |
| A8471 | Dixie |
| AL4432X | Bosch (USA) |
| ALT30306 | Wood Auto |
| ALT5052 | Wood Auto |
| BXD1274N | Bosch (USA) |
| DRA4085 | Delco Remy |
| F042302041 | Bosch |
| F042A02041 | Bosch |
| LEA0604 | Lucas |
| LRA01766 | Lucas |
| LRA01770 | Lucas |
| LRA1766 | Lucas |
| LRA1770 | Lucas |
| RNL9730ND | RNL |
| WOOALT30306 | Wood Auto |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| A1766 | 60A | 75A | Yes |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| FIAT | Brava | 1.9 (1910ccm) Diesel | 182A7000/182B9000 | 182BF/182BV1AA | 1996 - 2002 | ||
| ISUZU | Trooper | 3.2 (3165ccm) Petrol | 6VD1(SOHC) | II | UB | 1991 - 1998 | |
| OPEL | Monterey | 3.2 (3165ccm) Petrol | 6VD1(SOHC) | UBS | 1991 - 1998 | ||
| VAUXHALL | Monterey | 3.2 (3165ccm) Petrol | 6VD1(SOHC) | UBS | 1994 - 1998 |
Description
A1770 Replacement Alternator
Start your A1770 alternator comparison with the linked Lucas reference LRA01770 and the specifications shown on this page. The listed electrical rating is 12V 60A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected Vauxhall Monterey 3.2 Petrol variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 60A output: compare the listed rating with the original alternator.
- 4-groove pulley: check belt profile and alignment against the existing unit.
- 2 mounting holes: compare the fixing pattern and unit position.
- M6 B+ terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Vauxhall Monterey 3.2 Petrol – selected applications 1994–1998 (engine code 6VD1(SOHC)).
- Fiat Brava 1.9 Diesel – selected applications 1996–2002 (engine code 182A7000/182B9000).
- Isuzu Trooper 3.2 Petrol – selected applications 1991–1998 (engine code 6VD1(SOHC)).
- Opel Monterey 3.2 Petrol – selected applications 1991–1998 (engine code 6VD1(SOHC)).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with A1770. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
986044981, 0986AN0684, 0986CR0197, 0986UR0197, F042302041, F042A02041, 1002110830, 1002119730, 1002119731, 1002119732, 1012002022, 1012110830, 1012112020, 1012112021, 1012112022, 1012112360, 1012114210, 1012115031, LRA01770, LEA0604, LRA01766, LRA1766, LRA1770, 10464180, DRA4085
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Alternator?
Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying A1770 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will A1770 fit my Vauxhall Monterey?
Vauxhall Monterey 3.2 Petrol (1994–1998) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does A1770 replace Lucas LRA01770?
Lucas LRA01770 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for A1770?
The listed details include 12V, 60A output, 4 pulley grooves. Compare the complete specifications on this page with the unit being replaced.
Is A1770 new or remanufactured?
Check the current product condition selection for A1770. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering A1770?
Compare 12V compatibility, 60A output, pulley configuration, mounting points and electrical connections with the original alternator.
Does a battery warning light prove the alternator has failed?
No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
