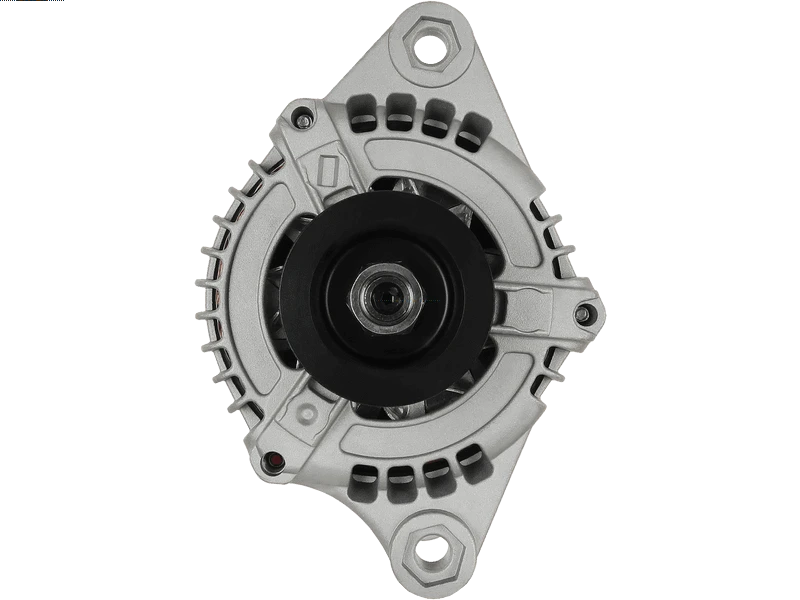

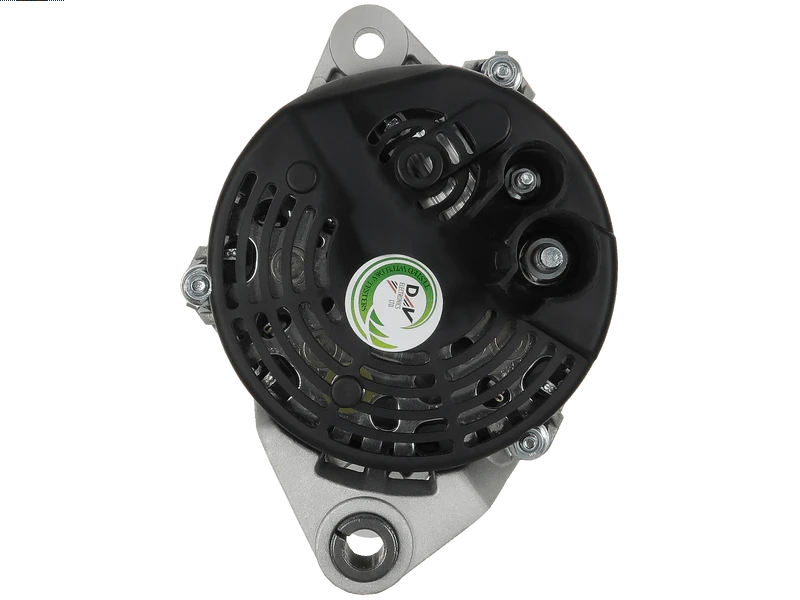

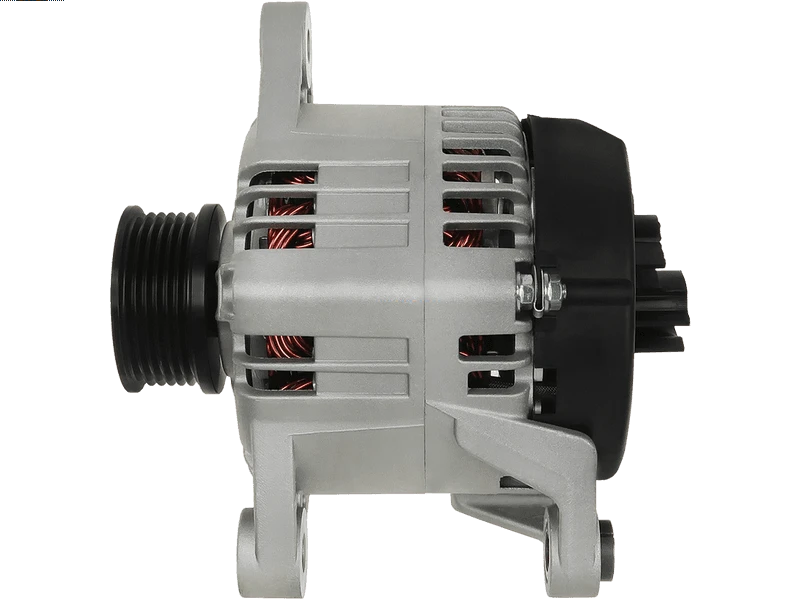

A1779 12V 85A Alternator Fits Peugeot Expert, Citroën Jumpy
Price range: £100.45 through £135.22
The A1779 12V 85A Alternator is a replacement charging unit from Sahibs Auto Electrics. Listed applications include selected Peugeot Expert, CitroËN Jumpy, Fiat Ducato 10, Fiat Palio models. Identification references include Lucas LRA01779, Bosch 986046480, Denso DAN621. Its listed 12V 85A rating provides an electrical matching point for your existing unit. Check the 6-groove pulley, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your A1779 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| AMP | 85 A |
| Volt | 12 V |
| No. of Grooves | 6 qty |
| Pulley Diameter | 62 mm |
| Mounting holes | 3 qty |
| Position | 20° |
| B+ | M8 |
| Insulated Return | No |
| Water cooled | No |
| Vacuum pump | No |
| Start/Stop | No |
| Weight | 6.1 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYA1779 | Dyno Electrics |
| A4049 | AS-PL |
| 986046480 | BOSCH |
| 111568 | CARGO |
| F032111568 | CARGO |
| DRA3766 | DELCO |
| DAN621 | DENSO |
| DAN624 | DENSO |
| 1304491080 | FIAT |
| 1312390080 | FIAT |
| 46420966 | FIAT |
| 46425517 | FIAT |
| 46425518 | FIAT |
| 46430112 | FIAT |
| 46434931 | FIAT |
| 46442777 | FIAT |
| 46521851 | FIAT |
| 46532168 | FIAT |
| 46774413 | FIAT |
| 7769840 | FIAT |
| 8EL737219-001 | HELLA |
| 63321227 | MAGNETI MARELLI |
| 63321332 | MAGNETI MARELLI |
| 63321453 | MAGNETI MARELLI |
| 63321485 | MAGNETI MARELLI |
| 63321489 | MAGNETI MARELLI |
| 63321792 | MAGNETI MARELLI |
| 57057T | PEUGEOT |
| 5705GW | PEUGEOT |
| 5705S0 | PEUGEOT |
| 20110418 | PRESTOLITE |
| ALTF045 | 3EFFE |
| ALTL215 | 3EFFE |
| ANM35986X | ANDEL |
| STA0155R | BOVEZ |
| CAL30101AS | CASCO |
| CAL30101GS | CASCO |
| CAL30101OS | CASCO |
| CAL30182GS | CASCO |
| CAL30192AS | CASCO |
| CAL30192GS | CASCO |
| 4616 | CEVAM |
| 56537 | EAI |
| ALT90001 | ELECTROLOG |
| ALT9061 | ELECTROLOG |
| ALT9095 | ELECTROLOG |
| 28-3580 | ELSTOCK |
| 28-4613 | ELSTOCK |
| 28-4929 | ELSTOCK |
| 210215 | ERA |
| 210355 | ERA |
| 9090328 | FRIESEN |
| GA321332-A | GPARTS |
| CA1199IR | HC PARTS |
| 301199RI | KUHNER |
| 301199RIM | KUHNER |
| 301348RI | KUHNER |
| 301348RIM | KUHNER |
| 11.1199 | LAUBER |
| LRA01779 | LUCAS |
| LRA02811 | LUCAS |
| LRA1779 | LUCAS |
| LRA2811 | LUCAS |
| 89213340 | POWERMAX |
| 9213340 | POWERMAX |
| 20104101BN | REAL |
| 20104101OE | REAL |
| 20104281OE | REAL |
| 20104291BN | REAL |
| 20104291OE | REAL |
| 2030101 | SANDO |
| 2030182 | SANDO |
| 2030192 | SANDO |
| A12MA1137A2 | SIDAT |
| ALT2240 | SIOM |
| ALT321820 | SIOM |
| STX100320 | STARDAX |
| STX100539 | STARDAX |
| STX100654 | STARDAX |
| STX101458 | STARDAX |
| ALT12052 | WOODAUTO |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| A2159 | 85A | 100A | Yes |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| CITROËN | Jumpy | 1.6 (1581ccm) Petrol | 220A2000 | U6UT | 1995 - 2000 | ||
| CITROËN | Jumpy | 1.6 (1581ccm) Petrol | 220A2000 | U6UG | 1995 - 2000 | ||
| FIAT | Ducato 10 | 1.9 (1929ccm) Diesel | 230A2000 | 230 | 1994 - 1998 | ||
| FIAT | Ducato 10 | 1.9 (1929ccm) Diesel | 230A2000 | Panorama | 230 | 1994 - 1998 | |
| FIAT | Palio | 1.7 (1698ccm) Diesel | 176B3000 | 178BXN1AAM | 1996 - 2002 | ||
| FIAT | Palio | 1.7 (1698ccm) Diesel | 176A5000 | 178BXN1A | 2001 - 2012 | ||
| FIAT | Palio | 1.7 (1698ccm) Diesel | 176A3000 | 178B | 2002 - 2012 | ||
| FIAT | Palio Weekend | 1.7 (1698ccm) Diesel | 176A3000 | 173/178DXH1A | 1996 - 2000 | ||
| FIAT | Punto | 1.7 (1698ccm) Diesel | 176A3000 | 176AG/176CG | 1994 - 1999 | ||
| FIAT | Punto | 1.7 (1698ccm) Diesel | 176A5000 | 176AF | 1994 - 1997 | ||
| FIAT | Punto | 1.7 (1698ccm) Diesel | 176B3000 | 176AI | 1994 - 1997 | ||
| FIAT | Punto Van | 1.7 (1698ccm) Diesel | 176B3000 | 176AI | 1996 - 2000 | ||
| FIAT | Punto Van | 1.7 (1698ccm) Diesel | 176A5000 | 176AF | 1996 - 1999 | ||
| FIAT | Punto Van | 1.7 (1698ccm) Diesel | 176B7000 | 176AT | 1997 - 2000 | ||
| FIAT | Strada Pick Up | 1.7 (1698ccm) Diesel | 176A3000 | 178EXH | 2000 - 2004 | ||
| PEUGEOT | Expert | 1.6 (1581ccm) Petrol | 220A2000 | 222AA2 | 1995 - 2000 | ||
| PEUGEOT | Expert | 1.6 (1581ccm) Petrol | 220A2000 | Plancher | 223AA2 | 1995 - 2000 | |
| PEUGEOT | Expert | 1.6 (1581ccm) Petrol | 220A2000 | 224AA2 | 1996 - 2000 |
Description
A1779 Replacement Alternator
For a A1779 alternator enquiry, use Lucas reference LRA01779 alongside the vehicle and original unit details. The listed electrical rating is 12V 85A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected Peugeot Expert 1.6 Petrol variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 85A output: compare the listed rating with the original alternator.
- 6-groove pulley: check belt profile and alignment against the existing unit.
- 3 mounting holes: compare the fixing pattern and unit position.
- M8 B+ terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Peugeot Expert 1.6 Petrol – selected applications 1995–2000 (engine code 220A2000).
- CitroËN Jumpy 1.6 Petrol – selected applications 1995–2000 (engine code 220A2000).
- Fiat Ducato 10 1.9 Diesel – selected applications 1994–1998 (engine code 230A2000).
- Fiat Palio 1.7 Diesel – selected applications 1996–2002 (engine code 176B3000).
- Fiat Palio Weekend 1.7 Diesel – selected applications 1996–2000 (engine code 176A3000).
- Fiat Punto 1.7 Diesel – selected applications 1994–1999 (engine code 176A3000).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with A1779. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
986046480, DAN621, DAN624, LRA01779, LRA02811, LRA1779, LRA2811, DRA3766, 20110418, 57057T, 5705GW, 5705S0
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Alternator?
Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying A1779 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will A1779 fit my Peugeot Expert?
Peugeot Expert 1.6 Petrol (1995–2000) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does A1779 replace Lucas LRA01779?
Lucas LRA01779 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for A1779?
The listed details include 12V, 85A output, 6 pulley grooves. Compare the complete specifications on this page with the unit being replaced.
Is A1779 new or remanufactured?
Check the current product condition selection for A1779. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering A1779?
Compare 12V compatibility, 85A output, pulley configuration, mounting points and electrical connections with the original alternator.
Does a battery warning light prove the alternator has failed?
No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
