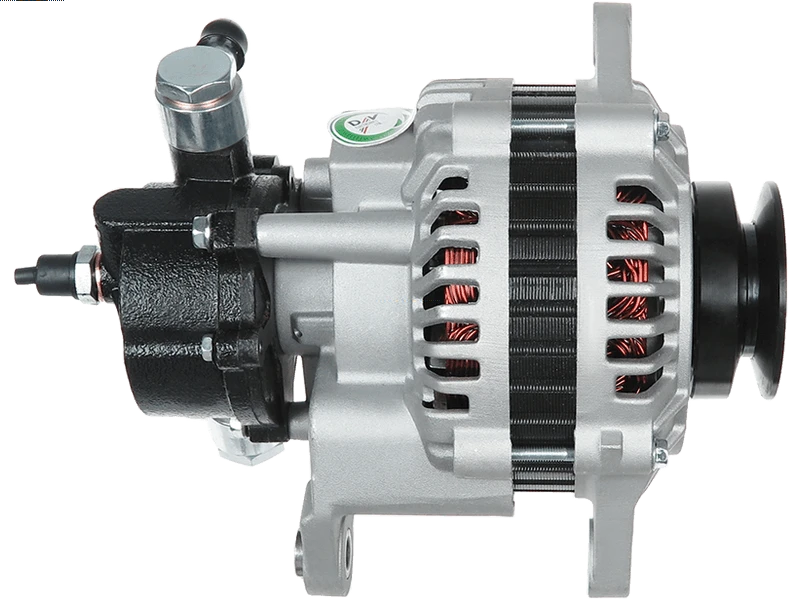

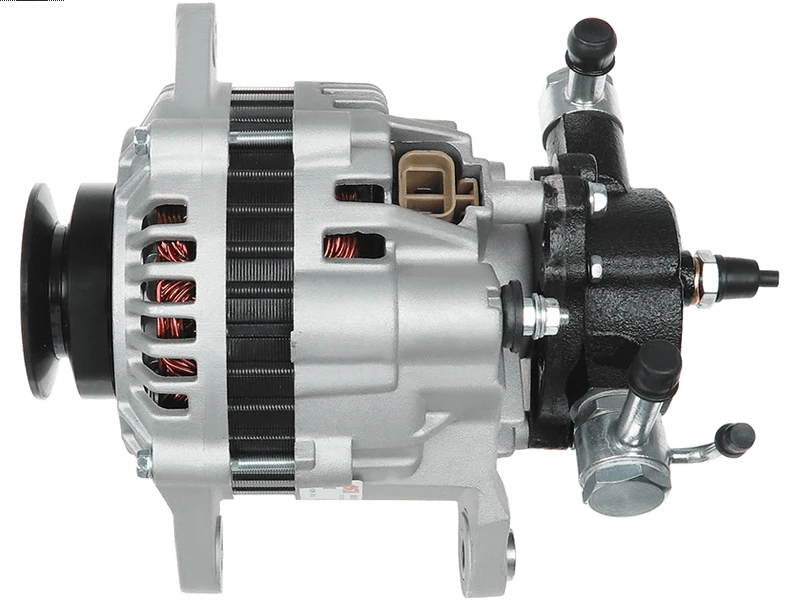

A1818 12V 70A Alternator Fits Suzuki Escudo, Suzuki Grand Escudo
Price range: £138.61 through £181.26
Sahibs A1818 is a replacement alternator with a listed 12V 70A rating. Listed applications include selected Suzuki Escudo, Suzuki Grand Escudo, Suzuki Grand Vitara, Suzuki Vitara models. Identification references include Lucas LRA01818, Bosch 0986JR0131, Valeo 437822. Its listed 12V 70A rating provides an electrical matching point for your existing unit. Check the single-groove pulley, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your A1818 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| AMP | 70 A |
| Volt | 12 V |
| No. of Grooves | 1 qty |
| Pulley Diameter | 45 mm |
| Mounting holes | 3 qty |
| B+ | M6 |
| Insulated Return | No |
| Water cooled | No |
| Vacuum pump | Yes |
| Start/Stop | No |
| Weight | 5.88 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYA1818 | Dyno Electrics |
| 401810061 | Euro Car Part |
| A5101 | AS-PL |
| UD02289A | AS-PL |
| 0986JR0131 | BOSCH |
| F042A0H090 | BOSCH |
| 112332 | CARGO |
| F032112332 | CARGO |
| DRA3929 | DELCO |
| 8EL012429-711 | HELLA |
| 8EL737726-001 | HELLA |
| 9.43E+11 | MAGNETI MARELLI |
| 9.44E+11 | MAGNETI MARELLI |
| MARC1430 | MAGNETI MARELLI |
| MRA51815 | MAGNETI MARELLI |
| RFJ5-18-300 | MAZDA |
| RFJ5-18-300A | MAZDA |
| RFJ5-18-300B | MAZDA |
| A002T80378 | MITSUBISHI |
| A002T82378 | MITSUBISHI |
| A2T80378 | MITSUBISHI |
| A2T82378 | MITSUBISHI |
| 20130184 | PRESTOLITE |
| 31400-77E90 | SUZUKI |
| 437822 | VALEO |
| ALTS160 | 3EFFE |
| CGB-13929 | AINDE |
| CGB-83638 | AINDE |
| ANM36149X | ANDEL |
| 002-M411 | ASHIKA |
| AEB1430 | AUTOELECTRO |
| CAL35157AS | CASCO |
| CAL35157GS | CASCO |
| 9093 | CEVAM |
| 11.143 | CQ |
| 57365 | EAI |
| ALT5447 | ELECTROLOG |
| 28-3638 | ELSTOCK |
| 210962A | ERA |
| 9051815 | FRIESEN |
| AG0419 | GHIBAUDI |
| JA1430IR | HC PARTS |
| J5118015 | HERTH+BUSS |
| ALM411 | JAPANPARTS |
| 2M411 | JAPKO |
| ALM1430 | KRAUF |
| 401430RI | KUHNER |
| 401430RIP | KUHNER |
| 401430RIV | KUHNER |
| 446627 | LOGISTIK |
| LRA01818 | LUCAS |
| LRA1818 | LUCAS |
| 5535211 | MEAT & DORIA |
| 89213030 | POWERMAX |
| 185.601.070.058 | PSH |
| 185.601.070.130 | PSH |
| 185.601.070.360 | PSH |
| 20137751BN | REAL |
| 20137751OE | REAL |
| 2035157 | SANDO |
| 2035157.1 | SANDO |
| A12MH1201A2 | SIDAT |
| ALT371570 | SIOM |
| SA804 | SOVEREIGN |
| STX101502 | STARDAX |
| STX110213 | STARDAX |
| STX110213R | STARDAX |
| 22818R | WAI / TRANSPO |
| ALT31177 | WOODAUTO |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| SUZUKI | Escudo | 2.0 (1998ccm) Diesel | RFS | AWD | SV420 | 1994 - 1998 | |
| SUZUKI | Grand Escudo | 2.0 (1998ccm) Diesel | RFM | AWD | SQ420WD32V | 1998 - 2003 | |
| SUZUKI | Grand Vitara | 2.0 (1998ccm) Diesel | RFM | MK I | AWD | SQ420WD/SQ420WD2 | 1998 - 2003 |
| SUZUKI | Grand Vitara | 2.0 (1998ccm) Diesel | RFM | MK I | AWD | SQ420WD2 | 2000 - 2005 |
| SUZUKI | Vitara | 2.0 (1998ccm) Diesel | RFS | AWD Commercial | SV420D031V | 1995 - 1998 | |
| SUZUKI | Vitara | 2.0 (1998ccm) Diesel | RFM | AWD | SV420D031V | 1995 - 1998 |
Description
A1818 Replacement Alternator
Choose a replacement by comparing the A1818 alternator and its Lucas reference, LRA01818, with your existing unit. The listed electrical rating is 12V 70A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected Suzuki Escudo 2.0 Diesel variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 70A output: compare the listed rating with the original alternator.
- Single-groove pulley: check belt profile and alignment against the existing unit.
- 3 mounting holes: compare the fixing pattern and unit position.
- M6 B+ terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Suzuki Escudo 2.0 Diesel – selected applications 1994–1998 (engine code RFS).
- Suzuki Grand Escudo 2.0 Diesel – selected applications 1998–2003 (engine code RFM).
- Suzuki Grand Vitara 2.0 Diesel – selected applications 1998–2003 (engine code RFM).
- Suzuki Vitara 2.0 Diesel – selected applications 1995–1998 (engine code RFS).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with A1818. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
0986JR0131, F042A0H090, 437822, LRA01818, LRA1818, A002T80378, A002T82378, A2T80378, A2T82378, DRA3929, 20130184
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Alternator?
Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying A1818 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will A1818 fit my Suzuki Escudo?
Suzuki Escudo 2.0 Diesel (1994–1998) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does A1818 replace Lucas LRA01818?
Lucas LRA01818 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for A1818?
The listed details include 12V, 70A output, 1 pulley groove. Compare the complete specifications on this page with the unit being replaced.
Is A1818 new or remanufactured?
Check the current product condition selection for A1818. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering A1818?
Compare 12V compatibility, 70A output, pulley configuration, mounting points and electrical connections with the original alternator.
Does a battery warning light prove the alternator has failed?
No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
