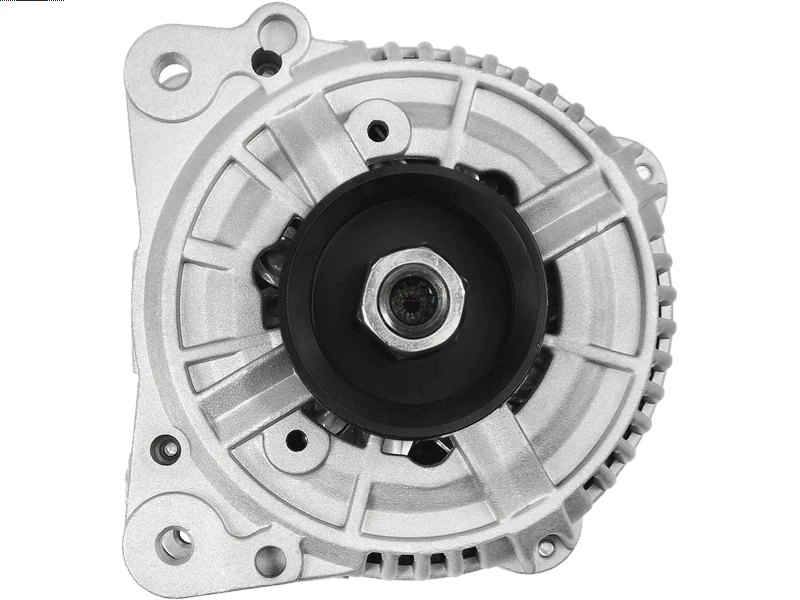

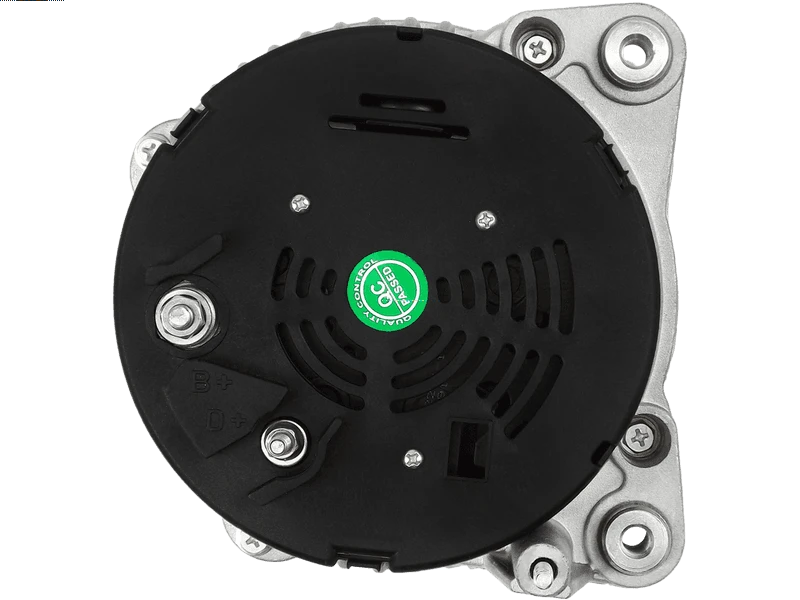

A1821 12V 115A Alternator Fits Chrysler Grand Voyager, Dodge Caravan
Price range: £139.41 through £184.69
Compare the A1821 12V 115A alternator from Sahibs Auto Electrics with the unit currently fitted. Listed applications include selected Chrysler Grand Voyager, Chrysler Voyager, Dodge Caravan models. Identification references include Lucas LRA01821, Bosch 123510037, Delco Remy DRZ0200. Its listed 12V 115A rating provides an electrical matching point for your existing unit. Check the 7-groove pulley, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your A1821 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| AMP | 115 A |
| Volt | 12 V |
| No. of Grooves | 7 qty |
| Pulley Diameter | 56 mm |
| Mounting holes | 4 qty |
| Position | -90° |
| B+ | M8 |
| Insulated Return | No |
| Water cooled | No |
| Vacuum pump | No |
| Start/Stop | No |
| Weight | 7.1 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYA1821 | Dyno Electrics |
| 401830521 | Euro Car Part |
| A0376 | AS-PL |
| UD02245A | AS-PL |
| 123510037 | BOSCH |
| 038522288F | CHRYSLER |
| 4727206 | CHRYSLER |
| 05014342AB | CHRYSLER |
| 385221288F | CHRYSLER |
| 38522288F | CHRYSLER |
| 38522303 | CHRYSLER |
| KRL014342AB | CHRYSLER |
| DRZ0200 | DELCO |
| DZ1310 | DELCO |
| 9.44E+11 | MAGNETI MARELLI |
| MRA90136 | MAGNETI MARELLI |
| ALTS794 | 3EFFE |
| ANM92420X | ANDEL |
| CAL10282GS | CASCO |
| CAL10282RS | CASCO |
| 4041 | CEVAM |
| 56721 | EAI |
| ALT1562 | ELECTROLOG |
| 28-3645 | ELSTOCK |
| 209067 | ERA |
| CA1478IR | HC PARTS |
| ALB1478 | KRAUF |
| 441625 | LOGISTIK |
| LRA01821 | LUCAS |
| LRA1821 | LUCAS |
| 89212575 | POWERMAX |
| 835.501.115 | PSH |
| 20101282OE | REAL |
| 20101282RC | REAL |
| 310843 | RHIAG |
| 2010282.1 | SANDO |
| 2010282.2 | SANDO |
| ALT122820 | SIOM |
| STX101517 | STARDAX |
| STX101547 | STARDAX |
| UNIT BOM 220-335 | WAI / TRANSPO |
| BOS0123510037 | WOODAUTO |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| A2014 | Pulley without clutch PV7/56 | Clutch pulley PV6/56 | No |
| A3469 | Pulley PV7/56 | Pulley PV6/56 | No |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| CHRYSLER | Grand Voyager | 2.5 (2499ccm) Diesel | ENC | AWD | GSHC53 | 1995 - 1998 | |
| CHRYSLER | Grand Voyager | 2.5 (2499ccm) Diesel | ENC | GSHY53/GSHZ53 | 1995 - 1998 | ||
| CHRYSLER | Voyager | 2.5 (2499ccm) Diesel | ENC | GSHY52/GSHZ52 | 1995 - 1998 | ||
| DODGE | Caravan | 2.5 (2499ccm) Diesel | ENC | NS | 1997 - 1998 |
Description
A1821 Replacement Alternator
Start your A1821 alternator comparison with the linked Lucas reference LRA01821 and the specifications shown on this page. The listed electrical rating is 12V 115A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected Chrysler Grand Voyager 2.5 Diesel variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 115A output: compare the listed rating with the original alternator.
- 7-groove pulley: check belt profile and alignment against the existing unit.
- 4 mounting holes: compare the fixing pattern and unit position.
- M8 B+ terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Chrysler Grand Voyager 2.5 Diesel – selected applications 1995–1998 (engine code ENC).
- Chrysler Voyager 2.5 Diesel – selected applications 1995–1998 (engine code ENC).
- Dodge Caravan 2.5 Diesel – selected applications 1997–1998 (engine code ENC).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with A1821. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
123510037, LRA01821, LRA1821, DRZ0200, DZ1310, 038522288F, 4727206, 05014342AB, 385221288F, 38522288F, 38522303, KRL014342AB
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Alternator?
Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying A1821 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will A1821 fit my Chrysler Grand Voyager?
Chrysler Grand Voyager 2.5 Diesel (1995–1998) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does A1821 replace Lucas LRA01821?
Lucas LRA01821 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for A1821?
The listed details include 12V, 115A output, 7 pulley grooves. Compare the complete specifications on this page with the unit being replaced.
Is A1821 new or remanufactured?
Check the current product condition selection for A1821. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering A1821?
Compare 12V compatibility, 115A output, pulley configuration, mounting points and electrical connections with the original alternator.
Does a battery warning light prove the alternator has failed?
No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
