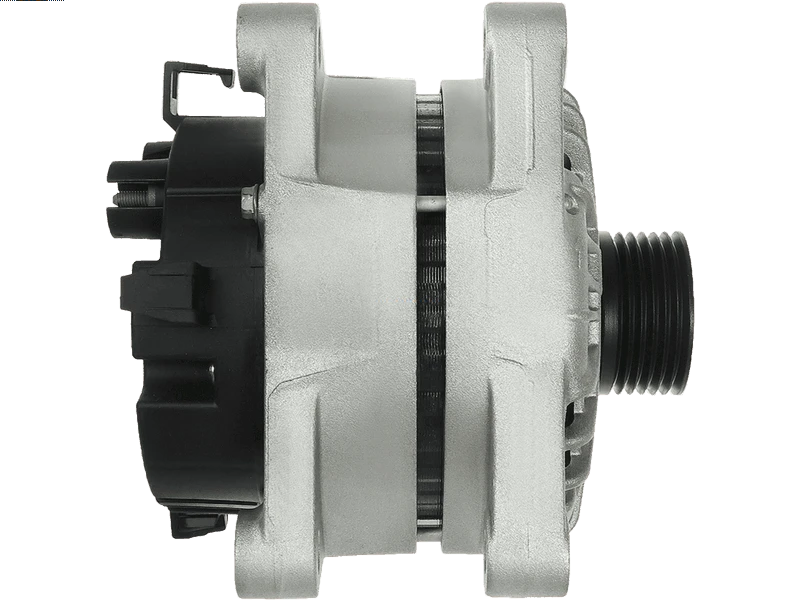

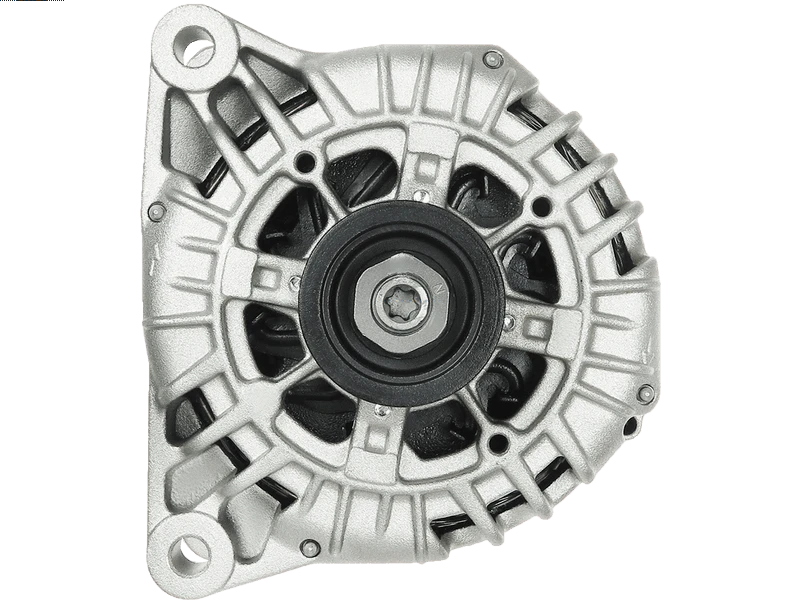

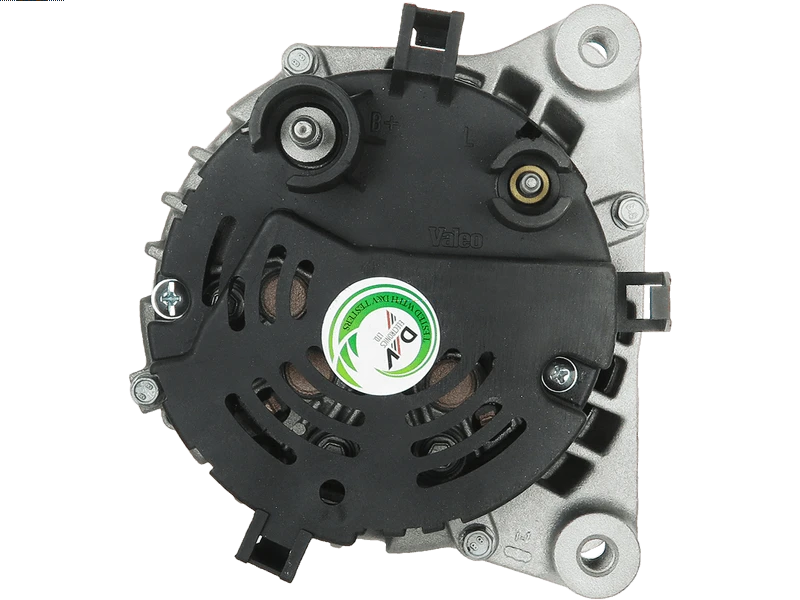

A1872 12V 120A Alternator Fits Peugeot 407, Peugeot 407 Coupe
Price range: £93.57 through £123.96
The A1872 12V 120A Alternator is a replacement charging unit from Sahibs Auto Electrics. Listed applications include selected Peugeot 407, Peugeot 407 Coupe, Peugeot 407 SW, Peugeot 807 models. Identification references include Lucas LRA01872, Bosch 986045211, Valeo 2541967. Its listed 12V 120A rating provides an electrical matching point for your existing unit. Check the 6-groove pulley, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your A1872 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| AMP | 120 A |
| Volt | 12 V |
| No. of Grooves | 6 qty |
| Pulley Diameter | 51 mm |
| Mounting holes | 4 qty |
| Position | -80° |
| B+ | M8 |
| Insulated Return | No |
| Water cooled | No |
| Vacuum pump | No |
| Start/Stop | No |
| Weight | 6.1 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYA1872 | Dyno Electrics |
| 401747231 | Euro Car Part |
| 986045211 | BOSCH |
| DA4835 | DELCO |
| DRA3725 | DELCO |
| 9637185880 | FIAT |
| 8EL737590-001 | HELLA |
| 9.44E+11 | MAGNETI MARELLI |
| MRA45211 | MAGNETI MARELLI |
| 57056A | PEUGEOT |
| 57057N | PEUGEOT |
| 57057P | PEUGEOT |
| 5705GT | PEUGEOT |
| 9632489280 | PEUGEOT |
| 9634475880 | PEUGEOT |
| 7711134528 | RENAULT |
| 2541967 | VALEO |
| 2541967A | VALEO |
| 2542298 | VALEO |
| 2542298A | VALEO |
| 436749 | VALEO |
| 437328 | VALEO |
| A13VI201 | VALEO |
| SG12S019 | VALEO |
| ALTF252 | 3EFFE |
| PRAF252 | 3EFFE |
| AEC1392 | AUTOELECTRO |
| STA0530R | BOVEZ |
| 4016 | CEVAM |
| 56647 | EAI |
| 28-3734 | ELSTOCK |
| CA1392IR | HC PARTS |
| ALV1392 | KRAUF |
| 301392RIR | KUHNER |
| 301392RIV | KUHNER |
| 441539 | LOGISTIK |
| LRA01872 | LUCAS |
| LRA1872 | LUCAS |
| 575.582.120.500 | PSH |
| 575.582.120.505 | PSH |
| STX100785 | STARDAX |
| 22872R | WAI / TRANSPO |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| CITROËN | C5 | 3.0 (2946ccm) Petrol | ES9J4S | DCXFXC/DCXFXF | 2000 - 2004 | ||
| CITROËN | C5 | 3.0 (2946ccm) Petrol | ES9J4S | DCXFXF | 2001 - 2004 | ||
| CITROËN | C5 | 3.0 (2946ccm) Petrol | ES9AHP | RCXFUJ | 2004 - 2008 | ||
| CITROËN | C5 | 3.0 (2946ccm) Petrol | ES9A | RCXFUJ | 2004 - 2008 | ||
| CITROËN | C5 Estate/Break | 3.0 (2946ccm) Petrol | ES9J4S | DEXFXC/DEXFXF | 2001 - 2004 | ||
| CITROËN | C5 Estate/Break | 3.0 (2946ccm) Petrol | ES9J4SHP | DEXFXH/DEXFXR | 2003 - 2004 | ||
| CITROËN | C5 Estate/Break | 3.0 (2946ccm) Petrol | ES9A | REXFUJ | 2004 - 2007 | ||
| CITROËN | C5 Estate/Break | 3.0 (2946ccm) Petrol | ES9A | REXFUJ | 2004 - 2008 | ||
| CITROËN | C6 | 3.0 (2946ccm) Petrol | ES9A | TDXFVJ | 2005 - 2012 | ||
| CITROËN | C8 | 3.0 (2946ccm) Petrol | ES9J4S | EAXFWF/EBXFWF | 2002 - 2010 | ||
| CITROËN | C8 | 3.0 (2946ccm) Petrol | ES9J4S | EAXFWF/EBXFWF | 2003 - 2007 | ||
| LANCIA | Phedra | 3.0 (2946ccm) Petrol | XFW | 179BXD11 | 2002 - 2006 | ||
| PEUGEOT | 407 | 3.0 (2946ccm) Petrol | ES9A | 6DXFVJ | 2004 - 2010 | ||
| PEUGEOT | 407 Coupe | 3.0 (2946ccm) Petrol | ES9A | 6JXFVH/6JXFVJ | 2005 - 2010 | ||
| PEUGEOT | 407 SW | 3.0 (2946ccm) Petrol | ES9A | 6EXFVJ | 2004 - 2010 | ||
| PEUGEOT | 807 | 3.0 (2946ccm) Petrol | ES9J4S | EAXFWF/EAXFXF/EBXFXF | 2002 - 2006 | ||
| RENAULT | Clio RS V6 | 3.0 (2946ccm) Petrol | L7X760 | PHASE II | CB1A | 2000 - 2003 | |
| RENAULT | Espace | 3.0 (2946ccm) Petrol | L7X727 | PHASE III | Monospace | JE0G/JE0R | 1998 - 2001 |
| RENAULT | Grand Espace | 3.0 (2946ccm) Petrol | L7X727 | PHASE III | Monospace | JE0G/JE0R | 1998 - 2001 |
| RENAULT | Laguna | 2.9 (2946ccm) Petrol | L7X700/L7X701 | PHASE I | B56V | 1997 - 2001 | |
| RENAULT | Laguna | 2.9 (2946ccm) Petrol | L7X731 | PHASE II | BG01/BG02/BG0D/BG0Y | 2001 - 2007 | |
| RENAULT | Laguna Estate/Break | 2.9 (2946ccm) Petrol | L7X700/L7X701 | PHASE I | Nevada | K56V | 1997 - 2001 |
| RENAULT | Laguna Estate/Break | 2.9 (2946ccm) Petrol | L7X731/L7X733 | PHASE II | Grandtour | KG0D/KG0Y | 2001 - 2007 |
| RENAULT | Safrane | 3.0 (2963ccm) Petrol | Z7X755 | PHASE II | B54M | 1998 - 2000 |
Description
A1872 Replacement Alternator
Start your A1872 alternator comparison with the linked Lucas reference LRA01872 and the specifications shown on this page. The listed electrical rating is 12V 120A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected Peugeot 407 3.0 Petrol variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 120A output: compare the listed rating with the original alternator.
- 6-groove pulley: check belt profile and alignment against the existing unit.
- 4 mounting holes: compare the fixing pattern and unit position.
- M8 B+ terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Peugeot 407 3.0 Petrol – selected applications 2004–2010 (engine code ES9A).
- Peugeot 407 Coupe 3.0 Petrol – selected applications 2005–2010 (engine code ES9A).
- Peugeot 407 SW 3.0 Petrol – selected applications 2004–2010 (engine code ES9A).
- Peugeot 807 3.0 Petrol – selected applications 2002–2006 (engine code ES9J4S).
- CitroËN C5 3.0 Petrol – selected applications 2000–2004 (engine code ES9J4S).
- CitroËN C5 Estate/Break 3.0 Petrol – selected applications 2001–2004 (engine code ES9J4S).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with A1872. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
986045211, 2541967, 2541967A, 2542298, 2542298A, 436749, 437328, A13VI201, SG12S019, LRA01872, LRA1872, DA4835, DRA3725, 7711134528, 57056A, 57057N, 57057P, 5705GT, 9632489280, 9634475880
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Alternator?
Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying A1872 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will A1872 fit my Peugeot 407?
Peugeot 407 3.0 Petrol (2004–2010) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does A1872 replace Lucas LRA01872?
Lucas LRA01872 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for A1872?
The listed details include 12V, 120A output, 6 pulley grooves. Compare the complete specifications on this page with the unit being replaced.
Is A1872 new or remanufactured?
Check the current product condition selection for A1872. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering A1872?
Compare 12V compatibility, 120A output, pulley configuration, mounting points and electrical connections with the original alternator.
Does a battery warning light prove the alternator has failed?
No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
