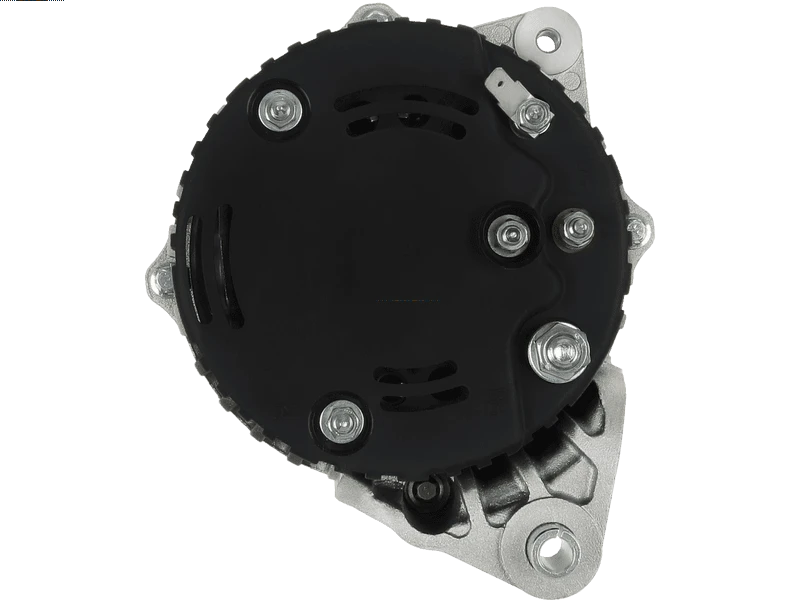

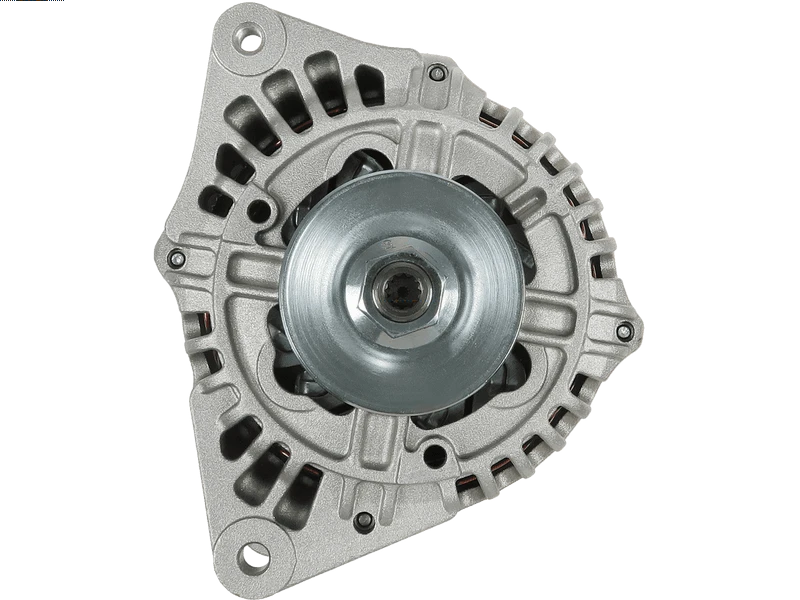

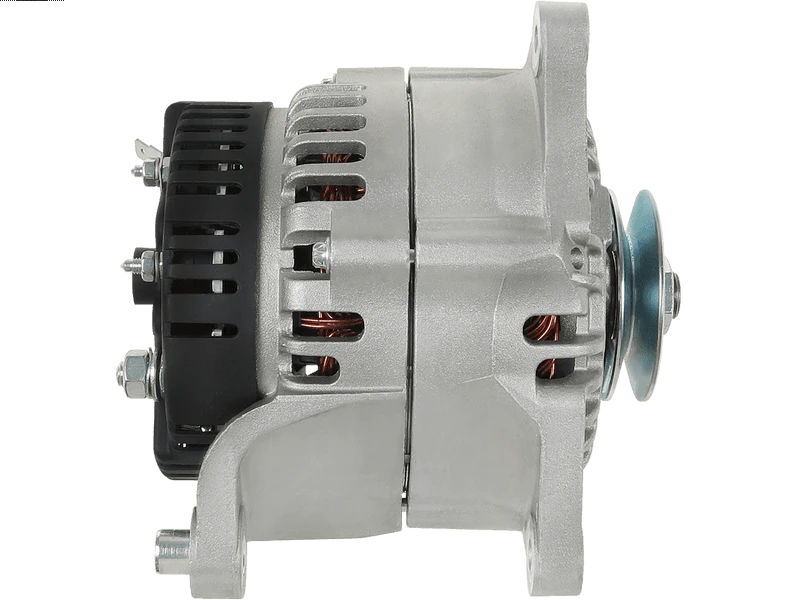

A4248 80A Alternator Fits Jcb 515.4, Liebherr 507
Price range: £153.51 through £194.84
The A4248 80A Alternator is a replacement charging unit from Sahibs Auto Electrics. Listed applications include selected JCB 515.4, Liebherr 507 models. Identification references include Lucas LRA04248, Mahle 72735448, Iskra / Letrika 11.203.168. Its listed 80A rating provides an electrical matching point for your existing unit. Check the single-groove pulley, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your A4248 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| AMP | 80 A |
| No. of Grooves | 1 qty |
| Pulley Diameter | 38.5 mm |
| Mounting holes | 3 qty |
| Position | -60° |
| Insulated Return | No |
| Water cooled | No |
| Vacuum pump | No |
| Start/Stop | No |
| Weight | 5.2 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYA4248 | Dyno Electrics |
| UD810756(LETRIKA)A | AS-PL |
| 1183431 | DEUTZ |
| 4114721 | DEUTZ |
| 4115325 | DEUTZ |
| 4118041 | DEUTZ |
| 11.203.168 | ISKRA / LETRIKA |
| 11.203.854 | ISKRA / LETRIKA |
| 11.203.886 | ISKRA / LETRIKA |
| 11.204.039 | ISKRA / LETRIKA |
| AAK5383 | ISKRA / LETRIKA |
| AAK5762 | ISKRA / LETRIKA |
| AAK5766 | ISKRA / LETRIKA |
| AAK5796 | ISKRA / LETRIKA |
| IA1394 | ISKRA / LETRIKA |
| 72735448 | MAHLE |
| MG449 | MAHLE |
| AIS187 | AUTOTEAM |
| CAL21187GS | CASCO |
| 588116802 | DRI |
| ALT79474 | ELECTROLOG |
| 28-7857 | ELSTOCK |
| 113862 | FARCOM |
| 20021187OV | ITAB AUTOMOTIVE |
| ALI2175 | KRAUF |
| 555041RIM | KUHNER |
| LRA04248 | LUCAS |
| LRA4248 | LUCAS |
| 515.504.080.310 | PSH |
| 20119781OE | REAL |
| 282-30315 | ROBERT'S |
| 2021187.1 | SANDO |
| ALT231870 | SIOM |
| AL03773 | TMI |
| WG2043735 | WILMINK GROUP |
| MAHMG449 | WOODAUTO |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| JCB | 515.4 | 2290ccm Diesel | DEUTZ D2009L04 | 2010 - | |||
| LIEBHERR | 507 | 2294ccm Diesel | DEUTZ TD2009L4 | 2010 - |
Description
A4248 Replacement Alternator
Choose a replacement by comparing the A4248 alternator and its Lucas reference, LRA04248, with your existing unit. The listed electrical rating is 80A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected JCB 515.4 2290ccm Diesel variants.
Key Features and Benefits
- 80A output: compare the listed rating with the original alternator.
- Single-groove pulley: check belt profile and alignment against the existing unit.
- 3 mounting holes: compare the fixing pattern and unit position.
- Lucas LRA04248 reference: a starting point for identifying the replacement.
Compatible Vehicles and Applications
- JCB 515.4 2290ccm Diesel – selected applications 2010 – (engine code DEUTZ D2009L04).
- Liebherr 507 2294ccm Diesel – selected applications 2010 – (engine code DEUTZ TD2009L4).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with A4248. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
LRA04248, LRA4248, 72735448, MG449, 11.203.168, 11.203.854, 11.203.886, 11.204.039, AAK5383, AAK5762, AAK5766, AAK5796, IA1394
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Alternator?
Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying A4248 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will A4248 fit my JCB 515.4?
JCB 515.4 2290ccm Diesel (2010 -) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does A4248 replace Lucas LRA04248?
Lucas LRA04248 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for A4248?
The listed details include 80A output, 1 pulley groove. Compare the complete specifications on this page with the unit being replaced.
Is A4248 new or remanufactured?
Check the current product condition selection for A4248. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering A4248?
Compare 80A output, pulley configuration, mounting points and electrical connections with the original alternator.
Does a battery warning light prove the alternator has failed?
No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
