A4297 12V 60A Alternator Fits John Deere 4100, John Deere 4110
Price range: £120.41 through £152.82

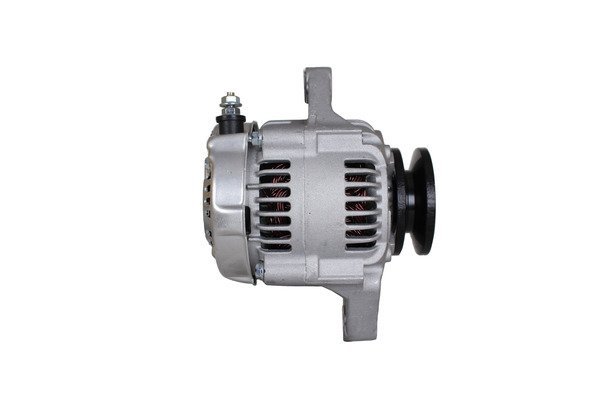

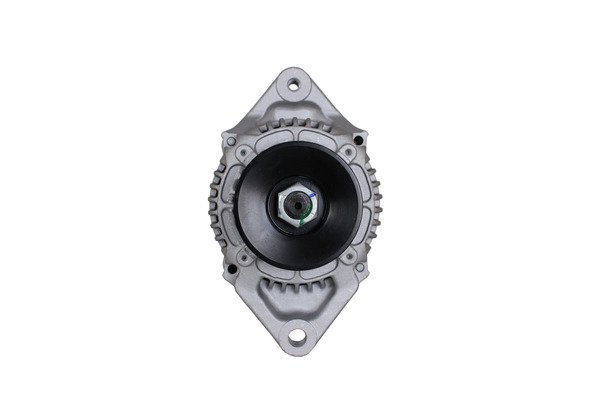

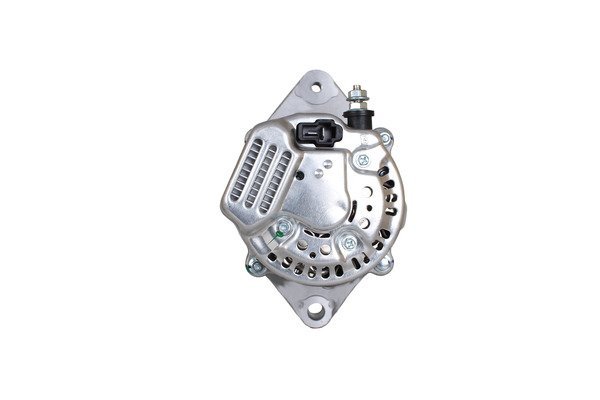

Sahibs A4297 is a replacement alternator with a listed 12V 60A rating. Listed applications include selected John Deere 4100, John Deere 4110 models. Identification references include Lucas LRA04297, Denso 1012112590. Its listed 12V 60A rating provides an electrical matching point for your existing unit. Check the single-groove pulley, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your A4297 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| AMP | 60 A |
| Volt | 12 V |
| No. of Grooves | 1 qty |
| Pulley Diameter | 69 mm |
| Mounting holes | 2 qty |
| Position | 180° |
| B+ | M6 |
| Insulated Return | No |
| Water cooled | No |
| Vacuum pump | No |
| Start/Stop | No |
| Weight | 3.1 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYA4297 | Dyno Electrics |
| 1012112590 | Denso |
| 1012112591 | Denso |
| 1012112840 | Denso |
| 115320 | HC-Cargo |
| 11559N | WAI |
| 11691N | WAI |
| 12996177200 | Yanmar |
| 14606118 | Dixie |
| 1599869 | Hyster |
| 635526055 | PSH |
| A80127 | Dixie |
| ALT30575 | Wood Auto |
| ALT30599 | Wood Auto |
| F032115320 | HC-Cargo |
| LRA04297 | Lucas |
| LRA4297 | Lucas |
| LS15270 | John Deere |
| RNL1012112591 | RNL |
| WOOALT30575 | Wood Auto |
| WOOALT30599 | Wood Auto |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| JOHN DEERE | 4100 | 1006ccm Diesel | 3TNE74 | 1998 - 2002 | |||
| JOHN DEERE | 4110 | 1006ccm Diesel | 3TNE74 | 2002 - 2006 |
Description
A4297 Replacement Alternator
The Sahibs A4297 alternator is associated with Lucas reference LRA04297 for replacement identification. The listed electrical rating is 12V 60A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected John Deere 4100 1006ccm Diesel variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 60A output: compare the listed rating with the original alternator.
- Single-groove pulley: check belt profile and alignment against the existing unit.
- 2 mounting holes: compare the fixing pattern and unit position.
- M6 B+ terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- John Deere 4100 1006ccm Diesel – selected applications 1998–2002 (engine code 3TNE74).
- John Deere 4110 1006ccm Diesel – selected applications 2002–2006 (engine code 3TNE74).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with A4297. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
1012112590, 1012112591, 1012112840, LRA04297, LRA4297
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Alternator?
Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying A4297 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will A4297 fit my John Deere 4100?
John Deere 4100 1006ccm Diesel (1998–2002) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does A4297 replace Lucas LRA04297?
Lucas LRA04297 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for A4297?
The listed details include 12V, 60A output, 1 pulley groove. Compare the complete specifications on this page with the unit being replaced.
Is A4297 new or remanufactured?
Check the current product condition selection for A4297. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering A4297?
Compare 12V compatibility, 60A output, pulley configuration, mounting points and electrical connections with the original alternator.
Does a battery warning light prove the alternator has failed?
No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
