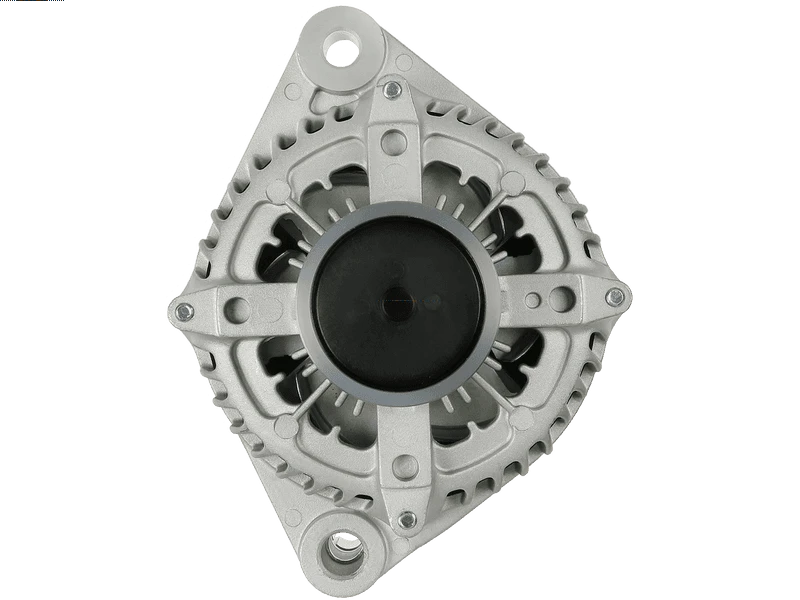

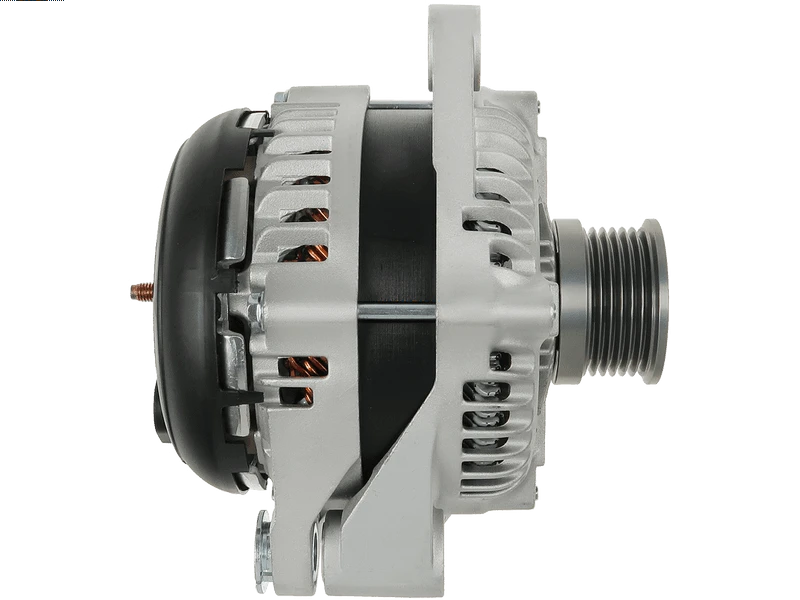

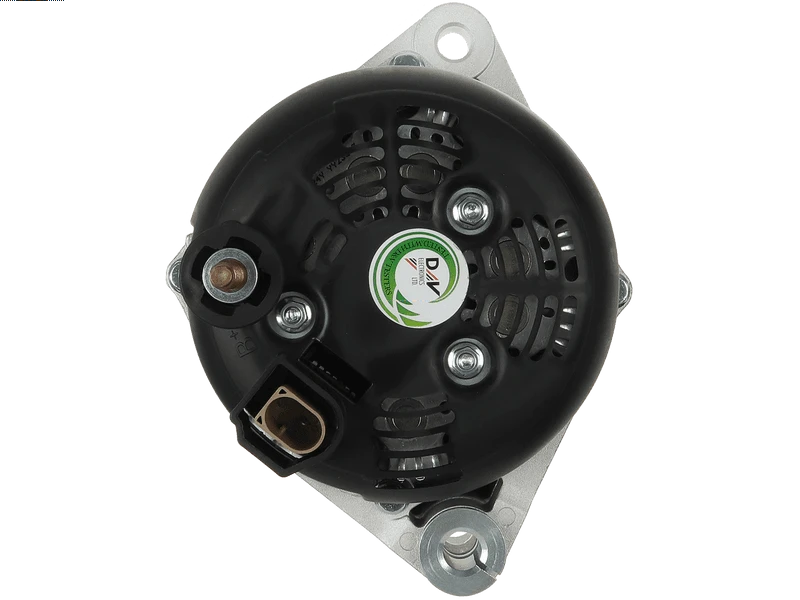

A4502 12V 180A Alternator Fits Alfa Romeo Giulietta, Fiat 500L
Price range: £152.15 through £204.82
Identify a replacement alternator using Sahibs A4502, listed at 12V 180A. Listed applications include selected Alfa Romeo Giulietta, Fiat 500L, Fiat 500X, Fiat Doblo models. Identification references include Lucas LRA04502, Denso 104211-0280. Its listed 12V 180A rating provides an electrical matching point for your existing unit. Check the 6-groove pulley, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your A4502 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| AMP | 180 A |
| Volt | 12 V |
| No. of Grooves | 6 qty |
| Pulley Diameter | 54 mm |
| Mounting holes | 2 qty |
| B+ | M8 |
| Insulated Return | No |
| Water cooled | No |
| Vacuum pump | No |
| Start/Stop | No |
| Weight | 7.29 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYA4502 | Dyno Electrics |
| A6707S | AS-PL |
| UD20998A | AS-PL |
| 104211-0280 | DENSO |
| 104211-1180 | DENSO |
| 104211-1271 | DENSO |
| 52067418 | FIAT |
| 52083172 | FIAT |
| 55280473 | FIAT |
| 71798219 | FIAT |
| CAL40A45AS | CASCO |
| CAL40A45GS | CASCO |
| 40736 | CEVAM |
| K68348758AB | DODGE |
| K68457601AA | DODGE |
| 28-8611 | ELSTOCK |
| 68348758AB | JEEP |
| ALN3622 | KRAUF |
| 555317RI | KUHNER |
| 555317RID | KUHNER |
| LRA04502 | LUCAS |
| LRA4502 | LUCAS |
| 505.939.180.058 | PSH |
| 505.939.180.050 | PSH |
| 2013254ABN | REAL |
| 2013254AOE | REAL |
| 290-10619 | ROBERT'S |
| 2040A45.0 | SANDO |
| 2040A45.1 | SANDO |
| A12DE1333 | SIDAT |
| 21617-OS | WAI / TRANSPO |
| 21617N | WAI / TRANSPO |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| ALFA ROMEO | Giulietta | 1.6 (1598ccm) Diesel | 55280444/940C1000 | 940FYB1A | 2019 - 2020 | ||
| FIAT | 500L | 1.6 (1598ccm) Diesel | 55280444/940C1000/955A3000 | Living/Trekking | 199LYE1B | 2019 - | |
| FIAT | 500X | 1.6 (1598ccm) Diesel | 55260384/55280444 | Cross | 334AXA1B | 2018 - | |
| FIAT | 500X | 1.6 (1598ccm) Diesel | 55260384/55280444 | Cross | 334AXA11/334AXA1B | 2018 - | |
| FIAT | 500X | 2.0 (1956ccm) Diesel | 55263088 | Cross | 334AX | 2018 - 2018 | |
| FIAT | Doblo | 1.6 (1598ccm) Diesel | 198A3000/263A8000/55280444 | 263AXD1B/263AXX1B | 2010 - 2023 | ||
| FIAT | Doblo Cargo | 1.6 (1598ccm) Diesel | 198A3000/263A8000/46346020/55280444 | 263WXD1B/263WXR1B/263WXX1B/263WYD1B/263ZXD1B/263ZXR1B/263ZXX1B/263ZYD1B | 2010 - | ||
| FIAT | Doblo Cargo | 1.6 (1598ccm) Diesel | 198A3000/263A8000/55280444 | Pick-Up/Platform | 263HXD1B/263HXR1B/263HXX1B/263YXD1B/263YXR1B/263YXX1B | 2010 - 2023 | |
| FIAT | Pratico | 1.6 (1598ccm) Diesel | 55280444/940C1000 | Pick-Up | 263HXN1B/263HXV1B | 2016 - 2023 | |
| FIAT | Tipo | 1.6 (1598ccm) Diesel | 55260384 | 356SX1G1B | 2019 - 2020 | ||
| FIAT | Tipo | 1.6 (1598ccm) Diesel | 55260384 | 356SXG1B | 2019 - 2020 | ||
| FIAT | Tipo | 1.6 (1598ccm) Diesel | 55260384/55280444 | 356HXG11 | 2019 - 2020 | ||
| FIAT | Tipo | 1.6 (1598ccm) Diesel | 55260384/55280444 | 356HXG1B | 2019 - 2020 | ||
| FIAT | Tipo | 1.6 (1598ccm) Diesel | 55260384/55280444 | 356WXG11 | 2019 - 2020 | ||
| FIAT | Tipo | 1.6 (1598ccm) Diesel | 55260384/55280444 | 356WXG1B | 2019 - 2020 | ||
| JEEP | Cherokee | 2.2 (2184ccm) Diesel | EBV | KL | 2018 - | ||
| JEEP | Compass | 1.6 (1598ccm) Diesel | EJJ(55260384) | M6/MP | 2017 - | ||
| JEEP | Compass | 2.0 (1956ccm) Diesel | EBS(55263088) | MP | 2017 - | ||
| JEEP | Renegade | 1.6 (1598ccm) Diesel | 55280444/EJK(55263113) | BU | 2019 - 2019 | ||
| JEEP | Renegade | 1.6 (1598ccm) Diesel | EJJ(55260384) | BU | 2019 - 2019 | ||
| JEEP | Renegade | 1.6 (1598ccm) Diesel | 46346020 | BV | 2020 - | ||
| JEEP | Renegade | 1.6 (1598ccm) Diesel | 46346020 | BV | 2022 - | ||
| JEEP | Renegade | 2.0 (1956ccm) Diesel | 55283099/EBT(55263088) | B1/BU | 2019 - 2019 | ||
| JEEP | Renegade | 2.0 (1956ccm) Diesel | 55283099/55284064/EBT(55263087)/EBT(55263088) | B1/BU | 2019 - 2019 | ||
| JEEP | Renegade | 2.0 (1956ccm) Diesel | EBT(55263087) | B1/BU | 2019 - 2019 |
Description
A4502 Replacement Alternator
The A4502 alternator is a replacement unit identified by Lucas reference LRA04502. The listed electrical rating is 12V 180A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected Alfa Romeo Giulietta 1.6 Diesel variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 180A output: compare the listed rating with the original alternator.
- 6-groove pulley: check belt profile and alignment against the existing unit.
- 2 mounting holes: compare the fixing pattern and unit position.
- M8 B+ terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Alfa Romeo Giulietta 1.6 Diesel – selected applications 2019–2020 (engine code 55280444/940C1000).
- Fiat 500L 1.6 Diesel – selected applications 2019 – (engine code 55280444/940C1000/955A3000).
- Fiat 500X 1.6 Diesel – selected applications 2018 – (engine code 55260384/55280444).
- Fiat Doblo 1.6 Diesel – selected applications 2010–2023 (engine code 198A3000/263A8000/55280444).
- Fiat Doblo Cargo 1.6 Diesel – selected applications 2010 – (engine code 198A3000/263A8000/46346020/55280444).
- Fiat Pratico 1.6 Diesel – selected applications 2016–2023 (engine code 55280444/940C1000).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with A4502. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
104211-0280, 104211-1180, 104211-1271, LRA04502, LRA4502
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Alternator?
Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying A4502 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will A4502 fit my Alfa Romeo Giulietta?
Alfa Romeo Giulietta 1.6 Diesel (2019–2020) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does A4502 replace Lucas LRA04502?
Lucas LRA04502 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for A4502?
The listed details include 12V, 180A output, 6 pulley grooves. Compare the complete specifications on this page with the unit being replaced.
Is A4502 new or remanufactured?
Check the current product condition selection for A4502. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering A4502?
Compare 12V compatibility, 180A output, pulley configuration, mounting points and electrical connections with the original alternator.
Does a battery warning light prove the alternator has failed?
No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
