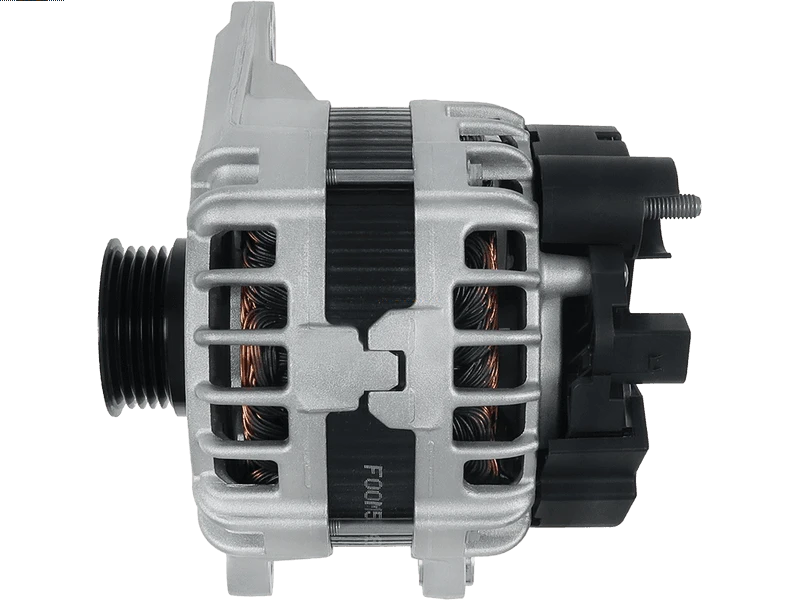

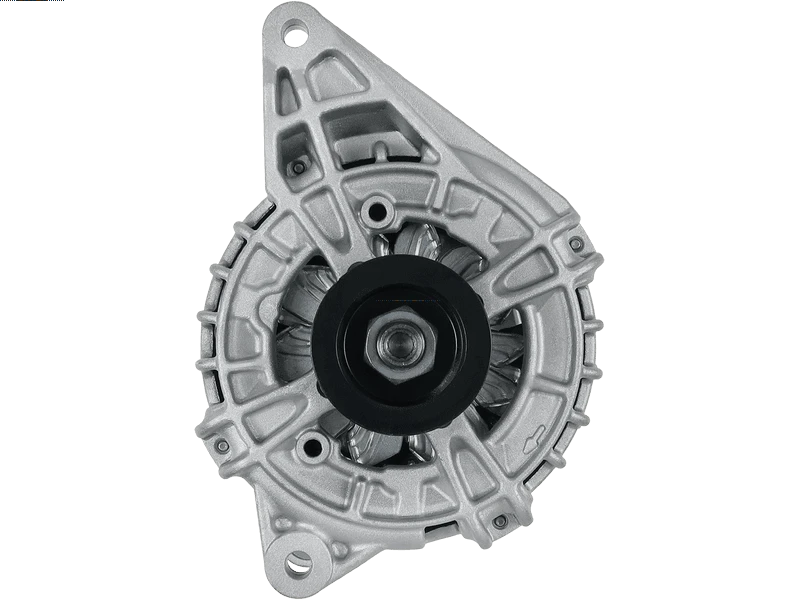

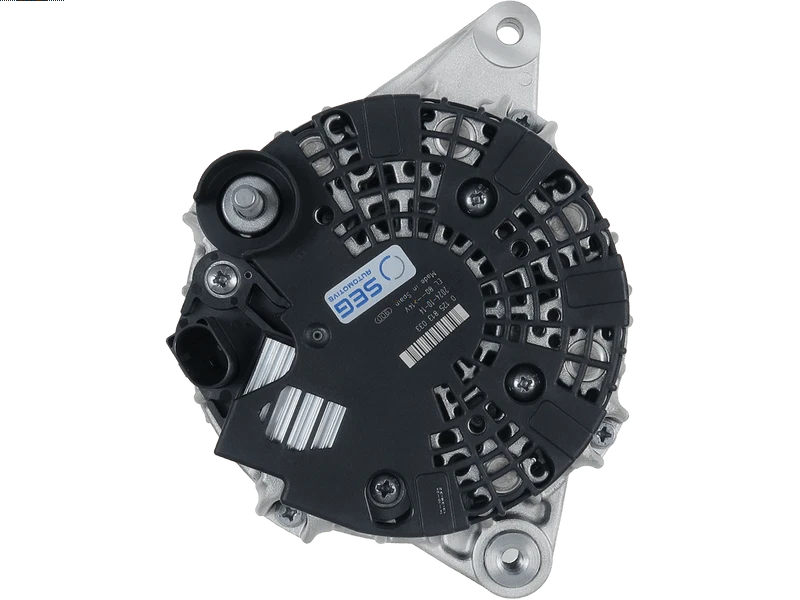

A4603 12V 230A Alternator Fits Mercedes-Benz Sprinter 211D
Price range: £157.05 through £210.21
Sahibs A4603 is a replacement alternator with a listed 12V 230A rating. Listed applications include selected Mercedes-Benz Sprinter 211D, Mercedes-Benz Sprinter 214D, Mercedes-Benz Sprinter 215D, Mercedes-Benz Sprinter 311D models. Identification references include Lucas LRA04603, Bosch 125813033. Its listed 12V 230A rating provides an electrical matching point for your existing unit. Check the 5-groove pulley, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your A4603 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| AMP | 230 A |
| Volt | 12 V |
| No. of Grooves | 5 qty |
| Pulley Diameter | 54 mm |
| Mounting holes | 3 qty |
| B+ | M8 |
| Insulated Return | No |
| Water cooled | No |
| Vacuum pump | No |
| Start/Stop | No |
| Weight | 7.4 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYA4603 | Dyno Electrics |
| UD05037(SEG)A | AS-PL |
| 125813033 | BOSCH |
| 125813034 | BOSCH |
| 9065400 | MERCEDES |
| 6519035400 | MERCEDES |
| 6519065400 | MERCEDES |
| A0009065400 | MERCEDES |
| A6519035400 | MERCEDES |
| A6519065400 | MERCEDES |
| ANM100496 | ANDEL |
| AEK4603 | AUTOELECTRO |
| G101194 | BTS TURBO |
| CAL10A88GS | CASCO |
| 40826 | CEVAM |
| 2255322302 | DRI |
| 58261 | EAI |
| 28-8712 | ELSTOCK |
| 115586 | FARCOM |
| H55101339G | HOFFER |
| 556831RIS | KUHNER |
| LRA04603 | LUCAS |
| LRA4603 | LUCAS |
| 55101339G | MEAT & DORIA |
| 555.302.230.280 | PSH |
| 2010188AOE | REAL |
| 2010A88.1 | SANDO |
| A12BH1344 | SIDAT |
| ALT12A880 | SIOM |
| ME8192 | SNRA |
| AL04592 | TMI |
| 21769N | WAI / TRANSPO |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| MERCEDES-BENZ | Sprinter 211D | 2.2 (2143ccm) Diesel | 651950/651958 | B907/B910 | 910621/910623 | 2018 - 2021 | |
| MERCEDES-BENZ | Sprinter 211D | 2.2 (2143ccm) Diesel | 651950/651958 | B907/B910 | 910121/910123 | 2018 - 2021 | |
| MERCEDES-BENZ | Sprinter 214D | 2.2 (2143ccm) Diesel | 651950/651958 | B907/B910 | 910621/910623 | 2018 - 2021 | |
| MERCEDES-BENZ | Sprinter 214D | 2.2 (2143ccm) Diesel | 651950/651958 | B907/B910 | 910121/910123 | 2018 - 2021 | |
| MERCEDES-BENZ | Sprinter 215D | 2.0 (1950ccm) Diesel | 654920 | B907/B910 | 910621/910623 | 2021 - 2025 | |
| MERCEDES-BENZ | Sprinter 215D | 2.0 (1950ccm) Diesel | 654920 | B907/B910 | 910121/910123 | 2021 - | |
| MERCEDES-BENZ | Sprinter 311D | 2.2 (2143ccm) Diesel | 651950/651958 | B907/B910 | 910631/910633 | 2018 - 2021 | |
| MERCEDES-BENZ | Sprinter 311D | 2.2 (2143ccm) Diesel | 651950/651958 | B907/B910 | 910131/910133 | 2018 - 2021 | |
| MERCEDES-BENZ | Sprinter 314D | 2.2 (2143ccm) Diesel | 651950/651958 | B907/B910 | 910030/910131/910133 | 2018 - 2021 | |
| MERCEDES-BENZ | Sprinter 314D | 2.2 (2143ccm) Diesel | 651950/651958 | B907/B910 | 910631/910633 | 2018 - 2021 | |
| MERCEDES-BENZ | Sprinter 315D | 2.0 (1950ccm) Diesel | 654920 | B907/B910 | 910631/910633 | 2021 - 2025 | |
| MERCEDES-BENZ | Sprinter 317D | 2.2 (2143ccm) Diesel | 651958 | B907/B910 | 910030 | 2018 - 2021 | |
| MERCEDES-BENZ | Sprinter 318D | 2.2 (2143ccm) Diesel | 651958 | B907/B910 | 910030 | 2018 - 2021 | |
| MERCEDES-BENZ | Sprinter 411D | 2.2 (2143ccm) Diesel | 651950/651958 | B907/B910 | 910641/910643 | 2018 - 2021 | |
| MERCEDES-BENZ | Sprinter 411D | 2.2 (2143ccm) Diesel | 651950/651958 | B907/B910 | 910141/910143 | 2018 - 2021 | |
| MERCEDES-BENZ | Sprinter 414D | 2.2 (2143ccm) Diesel | 651950/651958 | B907/B910 | 910040/910141/910143 | 2018 - 2021 | |
| MERCEDES-BENZ | Sprinter 414D | 2.2 (2143ccm) Diesel | 651950/651958 | B907/B910 | 910641/910643 | 2018 - 2021 | |
| MERCEDES-BENZ | Sprinter 415D | 2.0 (1950ccm) Diesel | 654920 | B907/B910 | 910641/910643 | 2021 - 2025 | |
| MERCEDES-BENZ | Sprinter 417D | 2.2 (2143ccm) Diesel | 651958 | B907/B910 | 910040 | 2018 - 2021 | |
| MERCEDES-BENZ | Sprinter 418D | 2.2 (2143ccm) Diesel | 651958 | B907/B910 | 910040 | 2018 - 2021 |
Description
A4603 Replacement Alternator
The Sahibs A4603 alternator is associated with Lucas reference LRA04603 for replacement identification. The listed electrical rating is 12V 230A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected Mercedes-Benz Sprinter 211D 2.2 Diesel variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 230A output: compare the listed rating with the original alternator.
- 5-groove pulley: check belt profile and alignment against the existing unit.
- 3 mounting holes: compare the fixing pattern and unit position.
- M8 B+ terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Mercedes-Benz Sprinter 211D 2.2 Diesel – selected applications 2018–2021 (engine code 651950/651958).
- Mercedes-Benz Sprinter 214D 2.2 Diesel – selected applications 2018–2021 (engine code 651950/651958).
- Mercedes-Benz Sprinter 215D 2.0 Diesel – selected applications 2021–2025 (engine code 654920).
- Mercedes-Benz Sprinter 311D 2.2 Diesel – selected applications 2018–2021 (engine code 651950/651958).
- Mercedes-Benz Sprinter 314D 2.2 Diesel – selected applications 2018–2021 (engine code 651950/651958).
- Mercedes-Benz Sprinter 315D 2.0 Diesel – selected applications 2021–2025 (engine code 654920).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with A4603. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
125813033, 125813034, LRA04603, LRA4603
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Alternator?
Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying A4603 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will A4603 fit my Mercedes-Benz Sprinter 211D?
Mercedes-Benz Sprinter 211D 2.2 Diesel (2018–2021) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does A4603 replace Lucas LRA04603?
Lucas LRA04603 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for A4603?
The listed details include 12V, 230A output, 5 pulley grooves. Compare the complete specifications on this page with the unit being replaced.
Is A4603 new or remanufactured?
Check the current product condition selection for A4603. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering A4603?
Compare 12V compatibility, 230A output, pulley configuration, mounting points and electrical connections with the original alternator.
Does a battery warning light prove the alternator has failed?
No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
