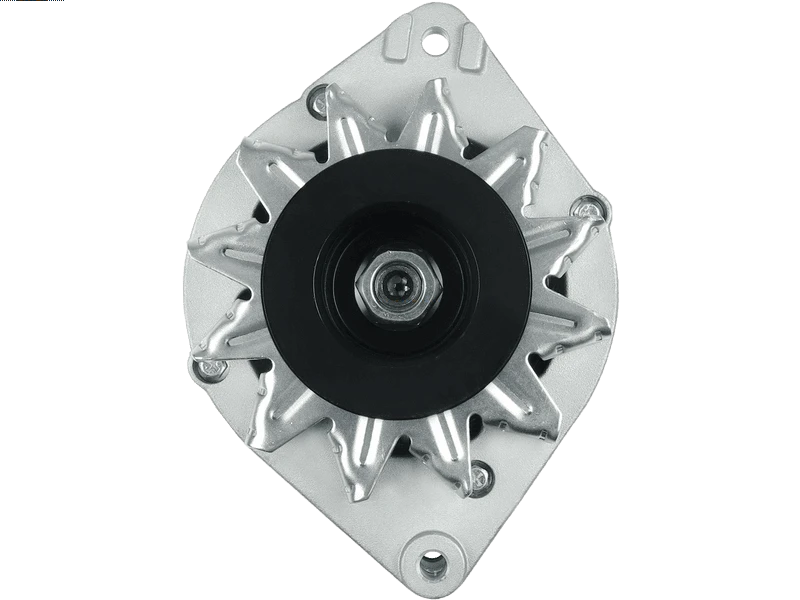

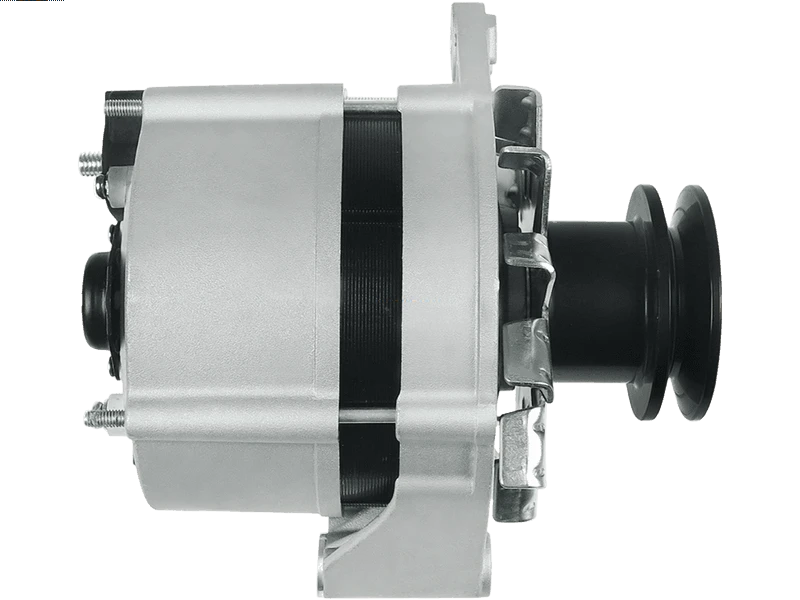

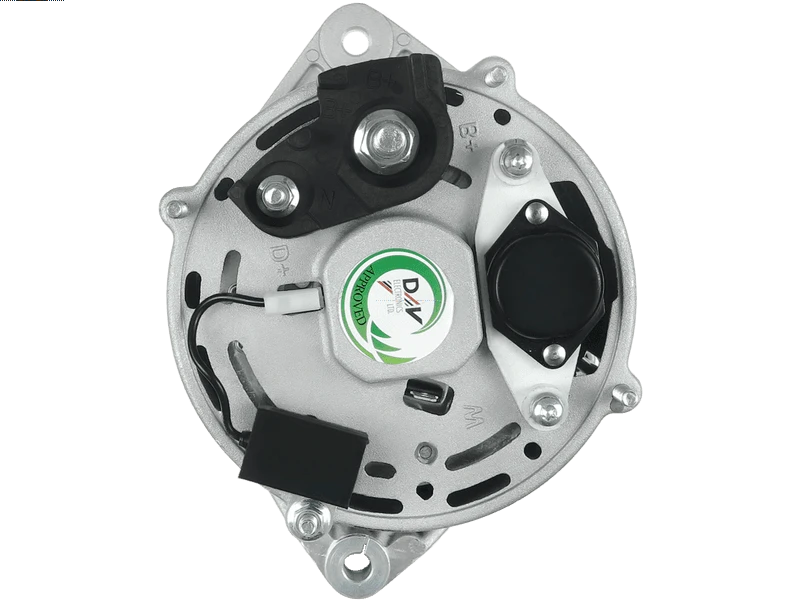

B0129 12V 65A Alternator Fits VW Caravelle, VW Transporter
Price range: £71.21 through £95.31
Identify a replacement alternator using Sahibs B0129, listed at 12V 65A. Listed applications include selected VW Caravelle, VW Transporter models. Identification references include Lucas LRB00129, Bosch 120489434, Valeo 436225. Its listed 12V 65A rating provides an electrical matching point for your existing unit. Check the single-groove pulley, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your B0129 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| AMP | 65 A |
| Volt | 12 V |
| No. of Grooves | 1 qty |
| Pulley Diameter | 47 mm |
| Insulated Return | No |
| Water cooled | No |
| Vacuum pump | No |
| Start/Stop | No |
| Weight | 4.9 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYB0129 | Dyno Electrics |
| 401440281 | Euro Car Part |
| A0141 | AS-PL |
| 120489434 | BOSCH |
| 120489435 | BOSCH |
| 986034560 | BOSCH |
| 111287 | CARGO |
| F032111287 | CARGO |
| 1516554R | DAF |
| DRA4560 | DELCO |
| 8EL725721-001 | HELLA |
| 11.201.211 | ISKRA / LETRIKA |
| 11.201.611 | ISKRA / LETRIKA |
| AAK1179 | ISKRA / LETRIKA |
| AAK3510 | ISKRA / LETRIKA |
| IA0211 | ISKRA / LETRIKA |
| MG 375 | MAHLE |
| MG 401 | MAHLE |
| 20100983 | PRESTOLITE |
| 20110129 | PRESTOLITE |
| 436225 | VALEO |
| 036903017G | VW |
| 036903017GX | VW |
| 068903017M | VW |
| 068903017MX | VW |
| 068903031C | VW |
| 068903031D | VW |
| 068903031L | VW |
| 068903031S | VW |
| 068903031SX | VW |
| 68903315 | VW |
| ALTS610 | 3EFFE |
| ALTS610L | 3EFFE |
| PRAS610 | 3EFFE |
| PRAS610L | 3EFFE |
| ANM36780X | ANDEL |
| AEA1229 | AUTOELECTRO |
| CAL10191AS | CASCO |
| 4369 | CEVAM |
| 55769 | EAI |
| ALT79049 | ELECTROLOG |
| 28-2961 | ELSTOCK |
| 210108 | ERA |
| 9034560 | FRIESEN |
| CA319IR | HC PARTS |
| 32034560 | HERTH+BUSS |
| 30139RIM | KUHNER |
| 30319RI | KUHNER |
| 11.0319 | LAUBER |
| 440466 | LOGISTIK |
| LRB00129 | LUCAS |
| LRB129 | LUCAS |
| 89213665 | POWERMAX |
| 9213665 | POWERMAX |
| 20101191BN | REAL |
| 311159 | RHIAG |
| RNL3456 | RNL |
| 2010191 | SANDO |
| ALT3170 | SIOM |
| ALT3170A | SIOM |
| STX100731 | STARDAX |
| STX101011 | STARDAX |
| 23588N | WAI / TRANSPO |
| 23588R | WAI / TRANSPO |
| ALT10289 | WOODAUTO |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| A0774 | Pulley 1GR/67 Pulley off set 53MM With W terminal | Pulley 1GR/66 Pulley off set 21MM Without W terminal | No |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| VW | Caravelle | 1.6 (1588ccm) Diesel | CS | T3 | 255/256 | 1985 - 1987 | |
| VW | Caravelle | 1.6 (1588ccm) Diesel | JX | T3 | 255/256 | 1984 - 1992 | |
| VW | Caravelle | 1.6 (1588ccm) Diesel | JX | T3 | Syncro | 255/256 | 1985 - 1990 |
| VW | Caravelle | 1.7 (1715ccm) Diesel | KY | T3 | 255 | 1986 - 1992 | |
| VW | Transporter | 1.6 (1588ccm) Diesel | CS | T3 | 245/246/247/248 | 1985 - 1987 | |
| VW | Transporter | 1.6 (1588ccm) Diesel | CS | T3 | 251/252/254 | 1985 - 1987 | |
| VW | Transporter | 1.6 (1588ccm) Diesel | JX | T3 | 245/246 | 1984 - 1992 | |
| VW | Transporter | 1.6 (1588ccm) Diesel | JX | T3 | Combi | 245/246/252/253/254 | 1984 - 1992 |
| VW | Transporter | 1.6 (1588ccm) Diesel | JX | T3 | Syncro | 253 | 1985 - 1992 |
| VW | Transporter | 1.6 (1588ccm) Diesel | JX | T3 | Syncro | 245/246/247/248 | 1987 - 1992 |
| VW | Transporter | 1.7 (1715ccm) Diesel | KY | T3 | 245/246/251/252 | 1984 - 1992 | |
| VW | Transporter | 1.7 (1715ccm) Diesel | KY | T3 | 245/246/247/248 | 1985 - 1992 |
Description
B0129 Replacement Alternator
Start your B0129 alternator comparison with the linked Lucas reference LRB00129 and the specifications shown on this page. The listed electrical rating is 12V 65A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected VW Caravelle 1.6 Diesel variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 65A output: compare the listed rating with the original alternator.
- Single-groove pulley: check belt profile and alignment against the existing unit.
- Lucas LRB00129 reference: a starting point for identifying the replacement.
Compatible Vehicles and Applications
- VW Caravelle 1.6 Diesel – selected applications 1985–1987 (engine code CS).
- VW Transporter 1.6 Diesel – selected applications 1985–1987 (engine code CS).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with B0129. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
120489434, 120489435, 986034560, 436225, LRB00129, LRB129, DRA4560, 20100983, 20110129, MG 375, MG 401, 11.201.211, 11.201.611, AAK1179, AAK3510, IA0211, 1516554R
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Alternator?
Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying B0129 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will B0129 fit my VW Caravelle?
VW Caravelle 1.6 Diesel (1985–1987) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does B0129 replace Lucas LRB00129?
Lucas LRB00129 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for B0129?
The listed details include 12V, 65A output, 1 pulley groove. Compare the complete specifications on this page with the unit being replaced.
Is B0129 new or remanufactured?
Check the current product condition selection for B0129. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering B0129?
Compare 12V compatibility, 65A output, pulley configuration, mounting points and electrical connections with the original alternator.
Does a battery warning light prove the alternator has failed?
No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
