B0135 24V 80A Alternator Fits Volvo Bus B7F, Volvo Bus B7L
Price range: £84.22 through £115.69
Compare the B0135 24V 80A alternator from Sahibs Auto Electrics with the unit currently fitted. Listed applications include selected Volvo Bus B7F, Volvo Bus B7L, Volvo Bus B7R, Volvo Construction Equipment L330D models. Identification references include Lucas LRB00135, Bosch 120468037, Valeo 436590. Its listed 24V 80A rating provides an electrical matching point for your existing unit. Compare the pulley, connections and mounting arrangement with your existing alternator. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your B0135 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| AMP | 80 A |
| Volt | 24 V |
| Mounting holes | 2 qty |
| Position | -20° |
| B+ | M8 |
| Insulated Return | No |
| Water cooled | No |
| Vacuum pump | No |
| Start/Stop | No |
| Weight | 6.5 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYB0135 | Dyno Electrics |
| A0010 | AS-PL |
| 120468037 | BOSCH |
| 120468114 | BOSCH |
| 986037760 | BOSCH |
| 112803 | CARGO |
| F032112803 | CARGO |
| 1516636R | DAF |
| 19025103 | DELCO |
| DRA7760 | DELCO |
| V836659517 | FENDT |
| 8EL012584-351 | HELLA |
| 8EL731714-001 | HELLA |
| 11.209.416 | ISKRA / LETRIKA |
| AAN3107 | ISKRA / LETRIKA |
| IA9407 | ISKRA / LETRIKA |
| 72735441 | MAHLE |
| MG442 | MAHLE |
| 860562 | PRESTOLITE |
| 5010252192 | RENAULT |
| 436590 | VALEO |
| 1089862 | VOLVO |
| 1621048 | VOLVO |
| 21048170 | VOLVO |
| 21727740 | VOLVO |
| 5003398 | VOLVO |
| 8113912 | VOLVO |
| 85000480 | VOLVO |
| 85000712 | VOLVO |
| 85000716 | VOLVO |
| 9001089862 | VOLVO |
| ALTL264 | 3EFFE |
| CGB-17760 | AINDE |
| ANM39980X | ANDEL |
| CAL10620AS | CASCO |
| CAL10620ES | CASCO |
| 2394 | CEVAM |
| 18.0853 | CQ |
| 18.0853M | CQ |
| 75883 | EAI |
| ALT1114 | ELECTROLOG |
| ALT79816 | ELECTROLOG |
| 48-1826 | ELSTOCK |
| 210300A | ERA |
| 9937760 | FRIESEN |
| AG0096 | GHIBAUDI |
| CA853IR | HC PARTS |
| ALB0853 | KRAUF |
| 30853RI | KUHNER |
| 30853RIP | KUHNER |
| 30853RIX | KUHNER |
| 441000 | LOGISTIK |
| LRB00135 | LUCAS |
| LRB135 | LUCAS |
| 5610064 | MEAT & DORIA |
| 89213552 | POWERMAX |
| 816.003.080.010 | PSH |
| 816.003.080.018 | PSH |
| 816.003.080.461 | PSH |
| 20101026BN | REAL |
| 20101026EL | REAL |
| 220-10162 | ROBERT'S |
| ALT2006 | ROLLCO |
| 2010620 | SANDO |
| 2010620.3 | SANDO |
| A24BH0077A2 | SIDAT |
| ALT126200 | SIOM |
| 12571N | WAI / TRANSPO |
| ALT0111 | WOODAUTO |
| ALT10394 | WOODAUTO |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| VOLVO BUS | B7F | 7100ccm Diesel | D7.. | 1999 - | |||
| VOLVO BUS | B7L | 0ccm Diesel | D7C | 1999 - | |||
| VOLVO BUS | B7R | 7100ccm Diesel | D7.. | 1997 - | |||
| VOLVO CONSTRUCTION EQUIPMENT | L330D | 16120ccm Diesel | TD164KAE | 2000 - 2002 | |||
| VOLVO TRUCK | F12 | 0ccm Diesel | TD122.. | 1987 - 1994 | |||
| VOLVO TRUCK | F12 | 0ccm Diesel | TD121.. | 1988 - 1994 | |||
| VOLVO TRUCK | F12 | 0ccm Diesel | TD123.. | 1992 - 1994 | |||
| VOLVO TRUCK | F16 | 0ccm Diesel | TD162.. | 1987 - 1994 | |||
| VOLVO TRUCK | F16 | 0ccm Diesel | TD163ES | 1991 - 1994 | |||
| VOLVO TRUCK | FL 180 | 5480ccm Diesel | D6B180 | 2000 - 2006 | |||
| VOLVO TRUCK | FL 220 | 5480ccm Diesel | D6B220 | 2000 - 2006 | |||
| VOLVO TRUCK | FL 250 | 5480ccm Diesel | D6B250 | 2000 - 2006 | |||
| VOLVO TRUCK | FL6 | 0ccm Diesel | D6A210 | 1995 - 2000 | |||
| VOLVO TRUCK | FL6 | 0ccm Diesel | D6A250 | 1995 - 2000 | |||
| VOLVO TRUCK | FL6 | 0ccm Diesel | D6A180 | 1995 - 2000 | |||
| VOLVO TRUCK | FL6 | 0ccm Diesel | D6A230 | 1995 - 2000 | |||
| VOLVO TRUCK | FS7 | 0ccm Diesel | TD73E.. | 1991 - 1996 | |||
| VOLVO TRUCK | FS7 | 0ccm Diesel | D7B.. | 1994 - 1996 |
Description
B0135 Replacement Alternator
Start your B0135 alternator comparison with the linked Lucas reference LRB00135 and the specifications shown on this page. The listed electrical rating is 24V 80A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected Volvo Bus B7F 7100ccm Diesel variants.
Key Features and Benefits
- 24V electrical system: match the vehicle voltage before selecting a unit.
- 80A output: compare the listed rating with the original alternator.
- 2 mounting holes: compare the fixing pattern and unit position.

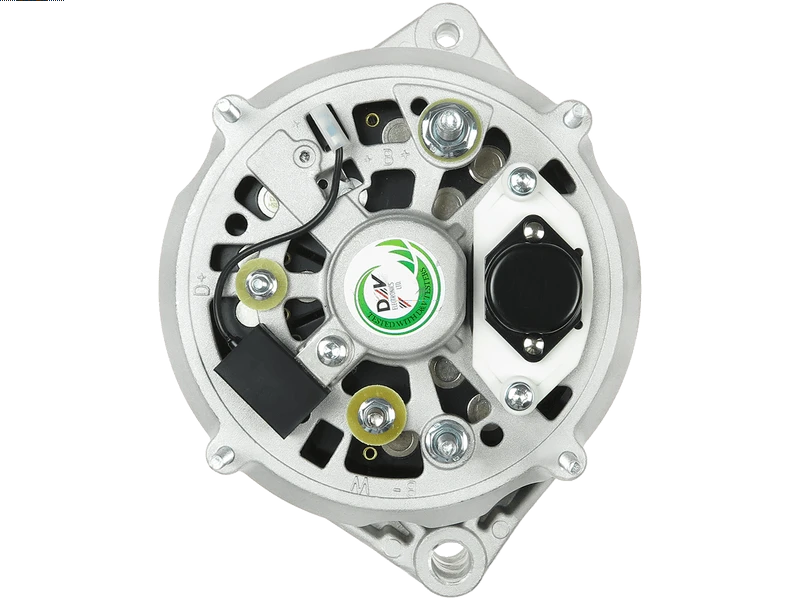

- M8 B+ terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Volvo Bus B7F 7100ccm Diesel – selected applications 1999 – (engine code D7..).
- Volvo Bus B7L – selected applications 1999 – (engine code D7C).
- Volvo Bus B7R 7100ccm Diesel – selected applications 1997 – (engine code D7..).
- Volvo Construction Equipment L330D 16120ccm Diesel – selected applications 2000–2002 (engine code TD164KAE).
- Volvo Truck F12 – selected applications 1987–1994 (engine code TD122..).
- Volvo Truck F16 – selected applications 1987–1994 (engine code TD162..).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with B0135. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
120468037, 120468114, 986037760, 436590, LRB00135, LRB135, 19025103, DRA7760, 860562, 72735441, MG442, 11.209.416, AAN3107, IA9407, 5010252192, 1516636R
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Alternator?
Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying B0135 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will B0135 fit my Volvo Bus B7F?
Volvo Bus B7F 7100ccm Diesel (1999 -) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does B0135 replace Lucas LRB00135?
Lucas LRB00135 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for B0135?
The listed details include 24V, 80A output. Compare the complete specifications on this page with the unit being replaced.
Is B0135 new or remanufactured?
Check the current product condition selection for B0135. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering B0135?
Compare 24V compatibility, 80A output, pulley configuration, mounting points and electrical connections with the original alternator.
Does a battery warning light prove the alternator has failed?
No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
