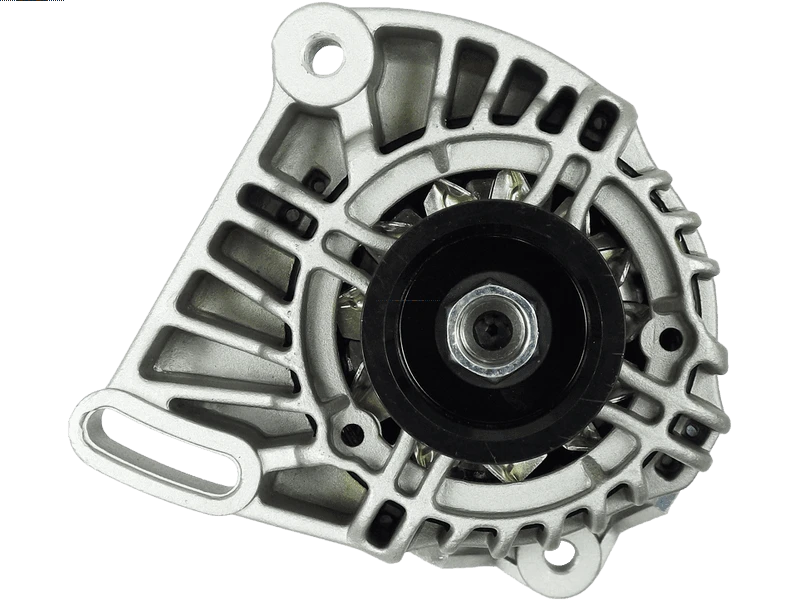

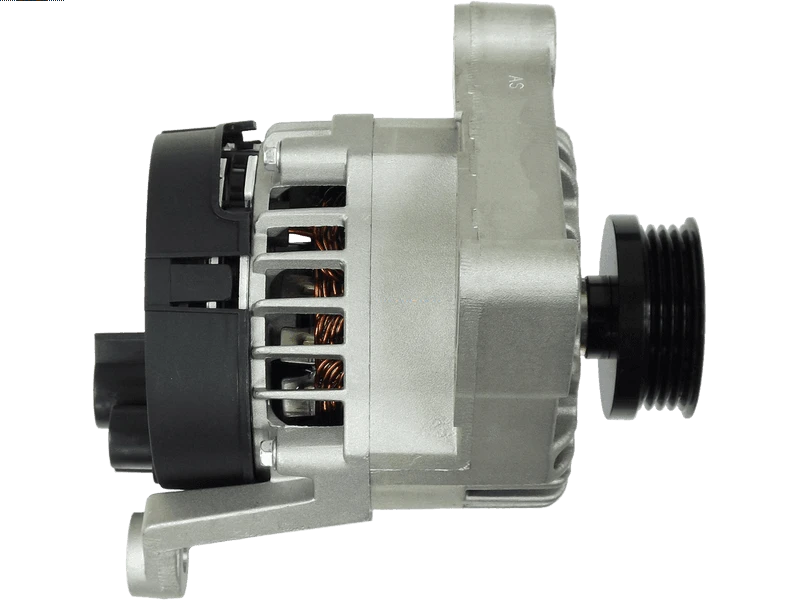

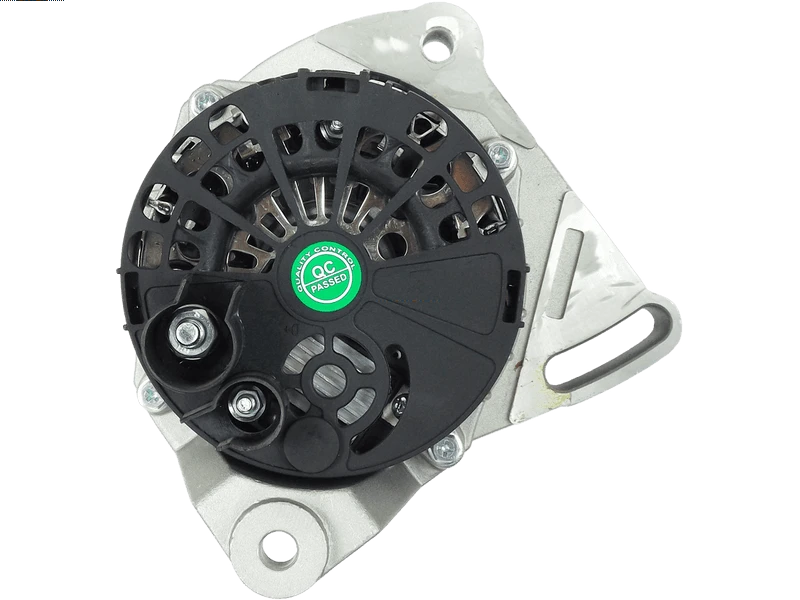

B0215 12V 65A Alternator Fits Fiat Doblo, Fiat Doblo Cargo
Price range: £90.05 through £117.75
The B0215 12V 65A Alternator is a replacement charging unit from Sahibs Auto Electrics. Listed applications include selected Fiat Doblo, Fiat Doblo Cargo, Fiat Palio, Fiat Palio Weekend models. Identification references include Lucas LRB00215, Bosch 986048541, Valeo 200172. Its listed 12V 65A rating provides an electrical matching point for your existing unit. Check the 4-groove pulley, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your B0215 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| AMP | 65 A |
| Volt | 12 V |
| No. of Grooves | 4 qty |
| Pulley Diameter | 60 mm |
| Mounting holes | 3 qty |
| B+ | M8 |
| Insulated Return | No |
| Water cooled | No |
| Vacuum pump | No |
| Start/Stop | No |
| Weight | 5.1 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYB0215 | Dyno Electrics |
| 401650911 | Euro Car Part |
| A4111 | AS-PL |
| UD02337A | AS-PL |
| 986048541 | BOSCH |
| 113537 | CARGO |
| F032113537 | CARGO |
| DA4524 | DELCO |
| DRA3414 | DELCO |
| DAN630 | DENSO |
| 46231693 | FIAT |
| 46231695 | FIAT |
| 46407644 | FIAT |
| 46407646 | FIAT |
| 46416343 | FIAT |
| 46419297 | FIAT |
| 46420960 | FIAT |
| 46420961 | FIAT |
| 46430524 | FIAT |
| 46519138 | FIAT |
| 46530060 | FIAT |
| 46559015 | FIAT |
| 46758244 | FIAT |
| 46800157 | FIAT |
| 46800158 | FIAT |
| 46813059 | FIAT |
| 46813065 | FIAT |
| 46816031 | FIAT |
| 51700670 | FIAT |
| 51859047 | FIAT |
| 5895028 | FIAT |
| 5895033 | FIAT |
| 7715541 | FIAT |
| 7779820 | FIAT |
| 7779915 | FIAT |
| 8EL012427-041 | HELLA |
| 63321747010 | MAGNETI MARELLI |
| 63731153010 | MAGNETI MARELLI |
| 63321234 | MAGNETI MARELLI |
| 63321236 | MAGNETI MARELLI |
| 63321280 | MAGNETI MARELLI |
| 63321302 | MAGNETI MARELLI |
| 63321602 | MAGNETI MARELLI |
| 63321605 | MAGNETI MARELLI |
| 63321747 | MAGNETI MARELLI |
| 63321870 | MAGNETI MARELLI |
| 9.43E+11 | MAGNETI MARELLI |
| 9.44E+11 | MAGNETI MARELLI |
| MAN1041 | MAGNETI MARELLI |
| 9-Mar | MAGNETI MARELLI |
| MRA90022 | MAGNETI MARELLI |
| 200172 | VALEO |
| 436481 | VALEO |
| 440493 | VALEO |
| 443139 | VALEO |
| 746056 | VALEO |
| ALTF437 | 3EFFE |
| ALTF437M | 3EFFE |
| ALTF437U | 3EFFE |
| PRAF437 | 3EFFE |
| PRAF437M | 3EFFE |
| PRAF437U | 3EFFE |
| AI-90141 | AINDE |
| AAL1638 | APEC |
| AEA2215 | AUTOELECTRO |
| STA0054R | BOVEZ |
| CAL30134AS | CASCO |
| CAL30134GS | CASCO |
| 4617 | CEVAM |
| 56769 | EAI |
| ALT00757 | ELECTROLOG |
| ALT6580 | ELECTROLOG |
| 28-2734 | ELSTOCK |
| 210019 | ERA |
| 210237 | ERA |
| 210348 | ERA |
| 210355 | ERA |
| GA321747M-R | GPARTS |
| CA1153IR | HC PARTS |
| 20030100AV | ITAB AUTOMOTIVE |
| 20030100OV | ITAB AUTOMOTIVE |
| ALE1153 | KRAUF |
| 301153RI | KUHNER |
| LRB00215 | LUCAS |
| LRB215 | LUCAS |
| NPANAL1638 | NAPA |
| 89213102 | POWERMAX |
| 505.536.065.050 | PSH |
| 505.536.065.550 | PSH |
| 20104431BN | REAL |
| 20104431OE | REAL |
| 2030134 | SANDO |
| 2030134.1 | SANDO |
| ALT2570 | SIOM |
| ALT2570A | SIOM |
| STX100015 | STARDAX |
| STX100015R | STARDAX |
| STX100022 | STARDAX |
| STX100022R | STARDAX |
| STX100032 | STARDAX |
| STX100032R | STARDAX |
| STX100266 | STARDAX |
| STX100266R | STARDAX |
| STX100305 | STARDAX |
| STX100305R | STARDAX |
| STX100320 | STARDAX |
| STX100323 | STARDAX |
| STX100323R | STARDAX |
| 23756N | WAI / TRANSPO |
| ALT12018 | WOODAUTO |
| DENDAN630 | WOODAUTO |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| B0148 | Pulley off set 30MM | Pulley off set 22MM | No |
| A3265 | 65A | 75A | Yes |
| A2099 | 65A Pulley off set 30MM | 75A Pulley off set 22MM | No |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| FIAT | Doblo | 1.2 (1242ccm) Petrol | 223A5000 | 223AXA1A | 2000 - 2005 | ||
| FIAT | Doblo Cargo | 1.2 (1242ccm) Petrol | 223A5000 | 223ZXA1A | 2001 - 2004 | ||
| FIAT | Palio | 1.2 (1242ccm) Petrol | 178B5000 | 178AXG1AAT/178BXG1AAT | 1996 - 2002 | ||
| FIAT | Palio | 1.2 (1242ccm) Petrol | 178B7045/188A4000 | 178AYA1A/178BXU1A/178BXU1AAR/178BYA1A/178BYA1AAT | 1997 - 2002 | ||
| FIAT | Palio | 1.2 (1242ccm) Petrol | 178E2000 | 178AXZ1A/178BXZ1A | 1999 - 2000 | ||
| FIAT | Palio Weekend | 1.2 (1242ccm) Petrol | 178B5000 | 178DXG1A/178DXG1AAP/178DXG1AAT | 1996 - 2001 | ||
| FIAT | Palio Weekend | 1.2 (1242ccm) Petrol | 178C4066/188A4000 | 178AYA1A08/178BYA1A08/178DXS1AAI/178DYA1A/178DYA1AAP/178DYA1AAT | 1997 - 2004 | ||
| FIAT | Palio Weekend | 1.3 (1242ccm) Petrol | 178D6011/188A5000 | 178DYE1A/178DYE1AAP/178DYE1AAT | 2001 - 2004 | ||
| FIAT | Punto | 1.1 (1108ccm) Petrol | 176A6000/176B2000 | 176AA/176AH/176AQ | 1993 - 1999 | ||
| FIAT | Punto | 1.2 (1242ccm) Petrol | 176A7000 | 176AB/176BB | 1993 - 1997 | ||
| FIAT | Punto | 1.2 (1242ccm) Petrol | 176A8000 | 176AC | 1993 - 1998 | ||
| FIAT | Punto | 1.2 (1242ccm) Petrol | 176B1000/176B4000 | 176AP/176AQ/176AR/176BB | 1993 - 1999 | ||
| FIAT | Punto | 1.2 (1242ccm) Petrol | 176A7000 | 176AB/176BB | 1994 - 1997 | ||
| FIAT | Punto | 1.2 (1242ccm) Petrol | 176B4000 | 176AR/176BR | 1995 - 1999 | ||
| FIAT | Punto Van | 1.1 (1108ccm) Petrol | 176B2000 | 176AQ | 1996 - 2000 | ||
| LANCIA | Y (Ypsilon) | 1.2 (1242ccm) Petrol | 188A4000/840A3000 | 840AA1A/840AF1A | 1995 - 2000 |
Description
B0215 Replacement Alternator
The Sahibs B0215 alternator is associated with Lucas reference LRB00215 for replacement identification. The listed electrical rating is 12V 65A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected Fiat Doblo 1.2 Petrol variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 65A output: compare the listed rating with the original alternator.
- 4-groove pulley: check belt profile and alignment against the existing unit.
- 3 mounting holes: compare the fixing pattern and unit position.
- M8 B+ terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Fiat Doblo 1.2 Petrol – selected applications 2000–2005 (engine code 223A5000).
- Fiat Doblo Cargo 1.2 Petrol – selected applications 2001–2004 (engine code 223A5000).
- Fiat Palio 1.2 Petrol – selected applications 1996–2002 (engine code 178B5000).
- Fiat Palio Weekend 1.2 Petrol – selected applications 1996–2001 (engine code 178B5000).
- Fiat Punto 1.1 Petrol – selected applications 1993–1999 (engine code 176A6000/176B2000).
- Fiat Punto Van 1.1 Petrol – selected applications 1996–2000 (engine code 176B2000).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with B0215. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
986048541, 200172, 436481, 440493, 443139, 746056, DAN630, LRB00215, LRB215, DA4524, DRA3414
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Alternator?
Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying B0215 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will B0215 fit my Fiat Doblo?
Fiat Doblo 1.2 Petrol (2000–2005) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does B0215 replace Lucas LRB00215?
Lucas LRB00215 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for B0215?
The listed details include 12V, 65A output, 4 pulley grooves. Compare the complete specifications on this page with the unit being replaced.
Is B0215 new or remanufactured?
Check the current product condition selection for B0215. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering B0215?
Compare 12V compatibility, 65A output, pulley configuration, mounting points and electrical connections with the original alternator.
Does a battery warning light prove the alternator has failed?
No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
