B0289 12V 110A Alternator Fits Renault Laguna
Price range: £90.31 through £121.57

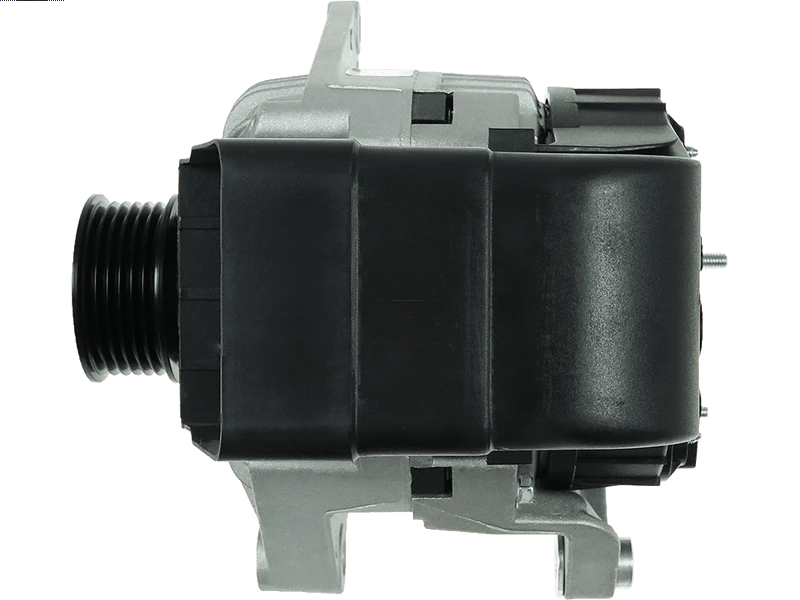

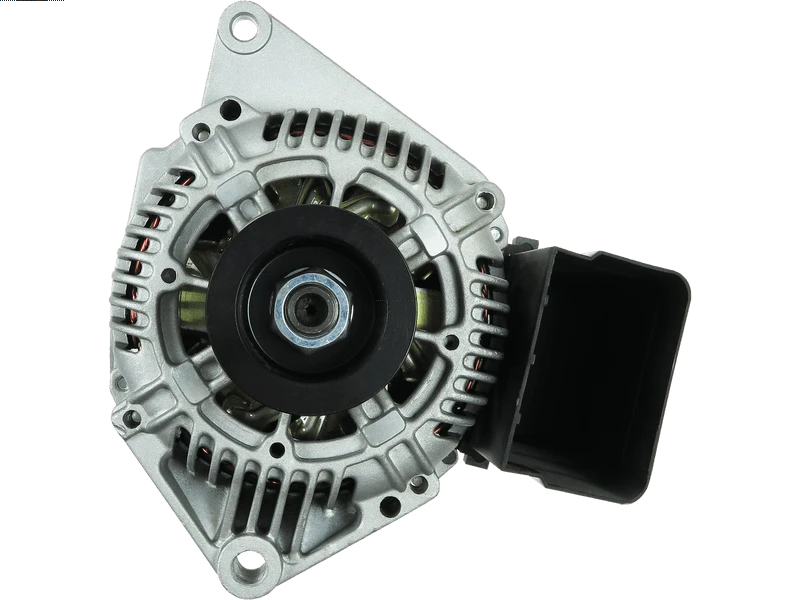

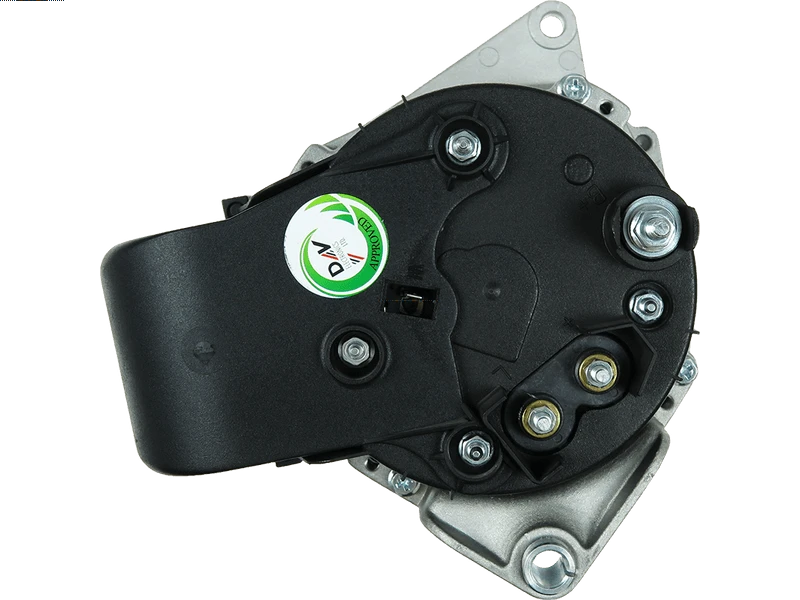

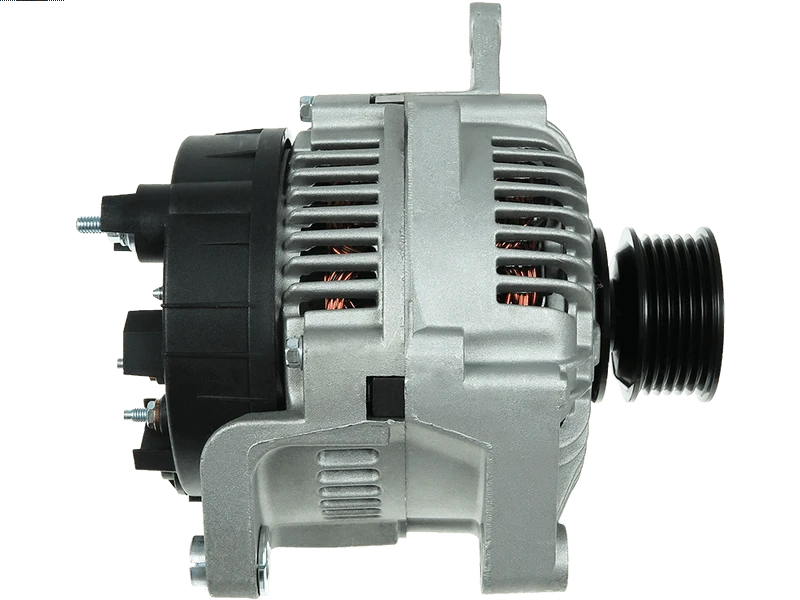

Compare the B0289 12V 110A alternator from Sahibs Auto Electrics with the unit currently fitted. Listed applications include selected Renault Laguna, Renault Laguna Estate/Break models. Identification references include Lucas LRB00289, Bosch 986040071, Valeo 2541625. Its listed 12V 110A rating provides an electrical matching point for your existing unit. Check the 6-groove pulley, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your B0289 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| AMP | 110 A |
| Volt | 12 V |
| No. of Grooves | 6 qty |
| Pulley Diameter | 55 mm |
| Mounting holes | 3 qty |
| Position | -25° |
| B+ | M6 |
| Insulated Return | No |
| Water cooled | No |
| Vacuum pump | No |
| Start/Stop | No |
| Weight | 5.8 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYB0289 | Dyno Electrics |
| UD12281A | AS-PL |
| 986040071 | BOSCH |
| DRA3363 | DELCO |
| 8EL012427-171 | HELLA |
| 8EL732697-001 | HELLA |
| 9.43E+11 | MAGNETI MARELLI |
| 9.44E+11 | MAGNETI MARELLI |
| 24-Mar | MAGNETI MARELLI |
| 20110289 | PRESTOLITE |
| 7700803325 | RENAULT |
| 7700827344 | RENAULT |
| 7701499544 | RENAULT |
| 2541625 | VALEO |
| 2541625A | VALEO |
| 2541625E | VALEO |
| 2541625H | VALEO |
| 436471 | VALEO |
| 439020 | VALEO |
| A13VI62 | VALEO |
| ALTS926 | 3EFFE |
| CGB-13363 | AINDE |
| ANM35583X | ANDEL |
| AEA2289 | AUTOELECTRO |
| CAL15122 | CASCO |
| CAL15122AS | CASCO |
| CAL15122ES | CASCO |
| CAL15122GS | CASCO |
| CAL15122OS | CASCO |
| CAL15122RS | CASCO |
| 4401 | CEVAM |
| 56315 | EAI |
| ALT00354 | ELECTROLOG |
| ALT00775 | ELECTROLOG |
| 28-2627 | ELSTOCK |
| 210534 | ERA |
| 9040071 | FRIESEN |
| CA914IR | HC PARTS |
| 30914RI | KUHNER |
| 11.0914 | LAUBER |
| 11.3106 | LAUBER |
| 441061 | LOGISTIK |
| LRB00289 | LUCAS |
| LRB289 | LUCAS |
| 89213319 | POWERMAX |
| 9213319 | POWERMAX |
| 575.505.080 | PSH |
| 575.505.110 | PSH |
| 575.505.110.965 | PSH |
| 20179221BN | REAL |
| 20179221OE | REAL |
| 2015122 | SANDO |
| ALT171640 | SIOM |
| ALT4600 | SIOM |
| STX101115 | STARDAX |
| STX101290 | STARDAX |
| 21205N | WAI / TRANSPO |
| UNIT BOM 208-790 | WAI / TRANSPO |
| ALT10096 | WOODAUTO |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| B0204 | 110A | 80A | No |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| RENAULT | Laguna | 2.2 (2188ccm) Diesel | G8T706/G8T752/G8T790/G8T792/G8T794 | PHASE I | B562/B566/B56F/B56P | 1993 - 1997 | |
| RENAULT | Laguna Estate/Break | 2.2 (2188ccm) Diesel | G8T706/G8T752/G8T790/G8T792/G8T794 | PHASE I | Nevada/Sport Tourer | K562/K566/K56F | 1995 - 1997 |
Description
B0289 Replacement Alternator
Start your B0289 alternator comparison with the linked Lucas reference LRB00289 and the specifications shown on this page. The listed electrical rating is 12V 110A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected Renault Laguna 2.2 Diesel variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 110A output: compare the listed rating with the original alternator.
- 6-groove pulley: check belt profile and alignment against the existing unit.
- 3 mounting holes: compare the fixing pattern and unit position.
- M6 B+ terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Renault Laguna 2.2 Diesel – selected applications 1993–1997 (engine code G8T706/G8T752/G8T790/G8T792/G8T794).
- Renault Laguna Estate/Break 2.2 Diesel – selected applications 1995–1997 (engine code G8T706/G8T752/G8T790/G8T792/G8T794).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with B0289. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
986040071, 2541625, 2541625A, 2541625E, 2541625H, 436471, 439020, A13VI62, LRB00289, LRB289, DRA3363, 20110289, 7700803325, 7700827344, 7701499544
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Alternator?
Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying B0289 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will B0289 fit my Renault Laguna?
Renault Laguna 2.2 Diesel (1993–1997) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does B0289 replace Lucas LRB00289?
Lucas LRB00289 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for B0289?
The listed details include 12V, 110A output, 6 pulley grooves. Compare the complete specifications on this page with the unit being replaced.
Is B0289 new or remanufactured?
Check the current product condition selection for B0289. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering B0289?
Compare 12V compatibility, 110A output, pulley configuration, mounting points and electrical connections with the original alternator.
Does a battery warning light prove the alternator has failed?
No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
