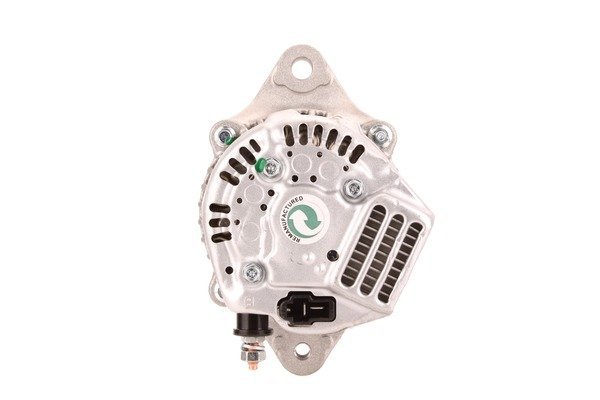

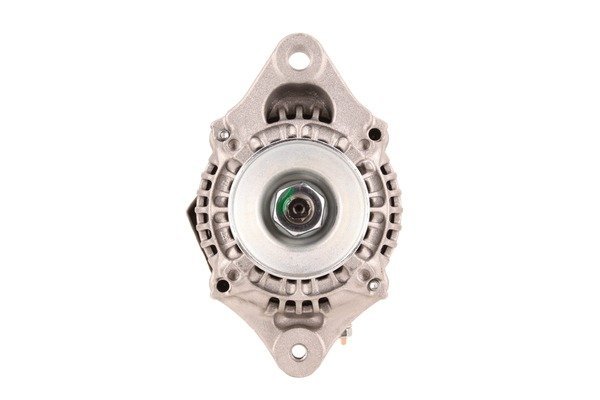

B0344 12V 40A Alternator Fits Aixam A721, Aixam Coupe, Aixam GTO
Price range: £125.00 through £200.00
The B0344 12V 40A Alternator is a replacement charging unit from Sahibs Auto Electrics. Listed applications include selected Aixam A721, Aixam Coupe, Aixam Crossover, Aixam GTO models. Identification references include Lucas LRB00344, Denso 100211161, Delco Remy DRA3453. Its listed 12V 40A rating provides an electrical matching point for your existing unit. Check the single-groove pulley, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your B0344 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| AMP | 40 A |
| Volt | 12 V |
| No. of Grooves | 1 qty |
| Pulley Diameter | 63 mm |
| Mounting holes | 2 qty |
| Position | 0° |
| B+ | M6 |
| Insulated Return | No |
| Water cooled | No |
| Vacuum pump | No |
| Start/Stop | No |
| Weight | 2.7 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYB0344 | Dyno Electrics |
| 401560221 | Euro Car Part |
| 986037270 | Bosch Exchange |
| 986037271 | Bosch Exchange |
| 100211161 | Denso |
| 1002111610 | Denso |
| 1002111611 | Denso |
| 1002111612 | Denso |
| 1002111613 | Denso |
| 1002111631 | Denso |
| 1002111632 | Denso |
| 1002111633 | Denso |
| 1002111650 | Denso |
| 1002111660 | Denso |
| 1002111661 | Denso |
| 1002111662 | Denso |
| 1002111663 | Denso |
| 1002114081 | Denso |
| 1002114082 | Denso |
| 1002114083 | Denso |
| 1002114440 | Denso |
| 1002114451 | Denso |
| 1002114452 | Denso |
| 1002114453 | Denso |
| 100211449 | Denso |
| 1002114490 | Denso |
| 1002114491 | Denso |
| 1002114492 | Denso |
| 1002114493 | Denso |
| 1002114560 | Denso |
| 1002114561 | Denso |
| 1002114562 | Denso |
| 1002114563 | Denso |
| 1002114660 | Denso |
| 1002114680 | Denso |
| 1002116880 | Denso |
| 1002116881 | Denso |
| 1012111230 | Denso |
| 1012111231 | Denso |
| 1012111290 | Denso |
| 1012111320 | Denso |
| 1012111360 | Denso |
| 1012111361 | Denso |
| 1012118961 | Denso |
| 1012118962 | Denso |
| 1022117720 | Denso |
| 110966 | HC-Cargo |
| 11209702 | Mahle |
| 115501040 | PSH |
| 12180N | WAI |
| 12180SECN | WAI |
| 12180SEN | WAI |
| 12196N | WAI |
| 12197N | WAI |
| 1243601ND | WAI |
| 12531N | WAI |
| 1296501ND | WAI |
| 1654164010 | Kubota |
| 1677164010 | Kubota |
| 1677164011 | Kubota |
| 1677164012 | Kubota |
| 1758064011 | Kubota |
| 1J3064012 | Kubota |
| 1J3064013 | Kubota |
| 1J95964011 | Kubota |
| 20201128 | AES |
| 241313 | HC-Cargo |
| 2.70E+12 | Daihatsu |
| 2702087220 | Toyota |
| 2706068001 | Toyota |
| 2706078001 | Toyota |
| 2706087801 | Toyota |
| 6008212350 | Komatsu |
| 62812000040 | Iseki |
| 62812000210 | Iseki |
| 72542542 | Mahle |
| 90295104 | Wilson |
| 90295171 | Wilson |
| 90295290 | Wilson |
| 90295291 | Wilson |
| 90295298 | Wilson |
| 90295313 | Wilson |
| 90295321 | Wilson |
| 90295440 | Wilson |
| A8514 | Dixie |
| AAG5182 | Mahle |
| AIA103 | ATK |
| AIA109 | ATK |
| ALT30383 | Wood Auto |
| ALT5305 | Unipoint |
| ALT5305P | Unipoint |
| ALT5307 | Unipoint |
| DENDAN968 | Wood Auto |
| DRA3453 | Delco Remy |
| HJA971IR | HC-Parts |
| IA9537 | Mahle |
| JA971IR | HC-Parts |
| LRA01464 | Lucas |
| LRA01469 | Lucas |
| LRA01988 | Lucas |
| LRA02163 | Lucas |
| LRA03999 | Lucas |
| LRA1464 | Lucas |
| LRA1469 | Lucas |
| LRA1988 | Lucas |
| LRA2163 | Lucas |
| LRA3999 | Lucas |
| LRB00344 | Lucas |
| LRB344 | Lucas |
| MG1140 | Mahle |
| OAN11221 | Optimum |
| RNL1660ND | RNL |
| RNL1660NDSE | RNL |
| TRA198 | TWA |
| WOOALT30383 | Wood Auto |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| A3999 | Placing of terminals | Placing of terminals | No |
| A1560 | Placing of B+ terminal | Placing of B+ terminal | No |
| A2616 | Placing of terminals | Placing of terminals | No |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| AIXAM | A721 | 0.4 (400ccm) Diesel | Z400LL | A721TWIN | 2005 - 2009 | ||
| AIXAM | Coupe | 0.4 (400ccm) Diesel | Z402 | SV41AF/SV43RF | 2012 - 2016 | ||
| AIXAM | Crossover | 0.4 (400ccm) Diesel | Z402 | SV45AF/SV45RF | 2012 - 2016 | ||
| AIXAM | GTO | 0.4 (400ccm) Diesel | Z400LL | SV43AF | 2012 - 2015 | ||
| AIXAM | Mega | 0.6 (599ccm) Diesel | Z402B | M07 | 2010 - | ||
| DAIHATSU | Cuore | 0.8 (847ccm) Petrol | ED10 | MK II | L80 | 1985 - 1990 | |
| DAIHATSU | Cuore | 0.8 (847ccm) Petrol | ED10 | MK II | L81 | 1986 - 1988 | |
| DAIHATSU | Cuore | 0.8 (847ccm) Petrol | ED | MK II | L80 | 1989 - 1990 | |
| DAIHATSU | Domino | 0.8 (847ccm) Petrol | ED | MK II | L80 | 1985 - 1990 | |
| DAIHATSU | Hijet | 0.8 (843ccm) Petrol | CD | S84 | 1986 - 1990 | ||
| DAIHATSU | Hijet | 0.8 (843ccm) Petrol | CD | U20 | 1986 - 1990 | ||
| DAIHATSU | Hijet | 1.0 (993ccm) Petrol | CB10 | S85 | 1986 - 1990 | ||
| DAIHATSU | Hijet | 1.0 (993ccm) Petrol | CB41 | S85 | 1992 - 1994 | ||
| DAIHATSU | Hijet | 1.0 (993ccm) Petrol | CB41 | S85 | 1992 - 1998 | ||
| DAIHATSU | Hijet | 1.0 (993ccm) Petrol | CB42 | S85 | 1994 - 1998 | ||
| PIAGGIO | Porter | 1.0 (993ccm) Petrol | CB41 | S85 | 1993 - 1994 | ||
| PIAGGIO | Porter | 1.0 (993ccm) Petrol | CB41 | S85 | 1993 - 1998 |
Description
B0344 Replacement Alternator
Start your B0344 alternator comparison with the linked Lucas reference LRB00344 and the specifications shown on this page. The listed electrical rating is 12V 40A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected Aixam A721 0.4 Diesel variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 40A output: compare the listed rating with the original alternator.
- Single-groove pulley: check belt profile and alignment against the existing unit.
- 2 mounting holes: compare the fixing pattern and unit position.
- M6 B+ terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Aixam A721 0.4 Diesel – selected applications 2005–2009 (engine code Z400LL).
- Aixam Coupe 0.4 Diesel – selected applications 2012–2016 (engine code Z402).
- Aixam Crossover 0.4 Diesel – selected applications 2012–2016 (engine code Z402).
- Aixam GTO 0.4 Diesel – selected applications 2012–2015 (engine code Z400LL).
- Aixam Mega 0.6 Diesel – selected applications 2010 – (engine code Z402B).
- Daihatsu Cuore 0.8 Petrol – selected applications 1985–1990 (engine code ED10).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with B0344. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
986037270, 986037271, 100211161, 1002111610, 1002111611, 1002111612, 1002111613, 1002111631, 1002111632, 1002111633, 1002111650, 1002111660, 1002111661, 1002111662, 1002111663, 1002114081, 1002114082, 1002114083, 1002114440, 1002114451, 1002114452, 1002114453, 100211449, 1002114490, 1002114491, 1002114492, 1002114493, 1002114560, 1002114561, 1002114562, 1002114563, 1002114660, 1002114680, 1002116880, 1002116881, 1012111230, 1012111231, 1012111290, 1012111320, 1012111360, 1012111361, 1012118961, 1012118962, 1022117720, LRB00344, LRA01464, LRA01469, LRA01988, LRA02163, LRA03999, LRA1464, LRA1469, LRA1988, LRA2163, LRA3999, LRB344, DRA3453, 11209702, 72542542, AAG5182, IA9537, MG1140
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Alternator?
Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying B0344 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will B0344 fit my Aixam A721?
Aixam A721 0.4 Diesel (2005–2009) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does B0344 replace Lucas LRB00344?
Lucas LRB00344 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for B0344?
The listed details include 12V, 40A output, 1 pulley groove. Compare the complete specifications on this page with the unit being replaced.
Is B0344 new or remanufactured?
Check the current product condition selection for B0344. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering B0344?
Compare 12V compatibility, 40A output, pulley configuration, mounting points and electrical connections with the original alternator.
Does a battery warning light prove the alternator has failed?
No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
